Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 3 illustrations

Illustrations

Figure 176002C

176002C 2004-08 → —

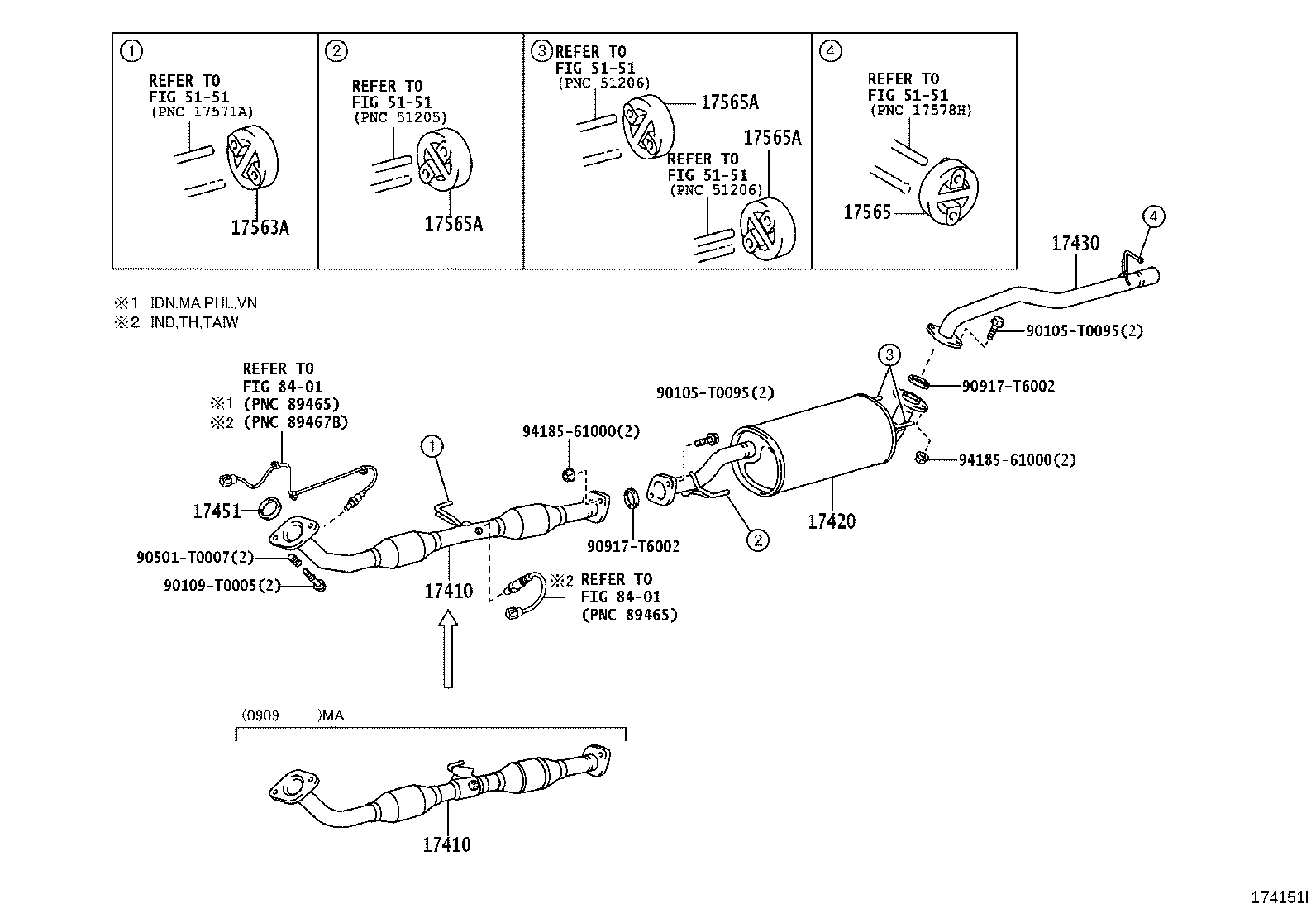

Figure 174151I

174151I 2004-08 → —

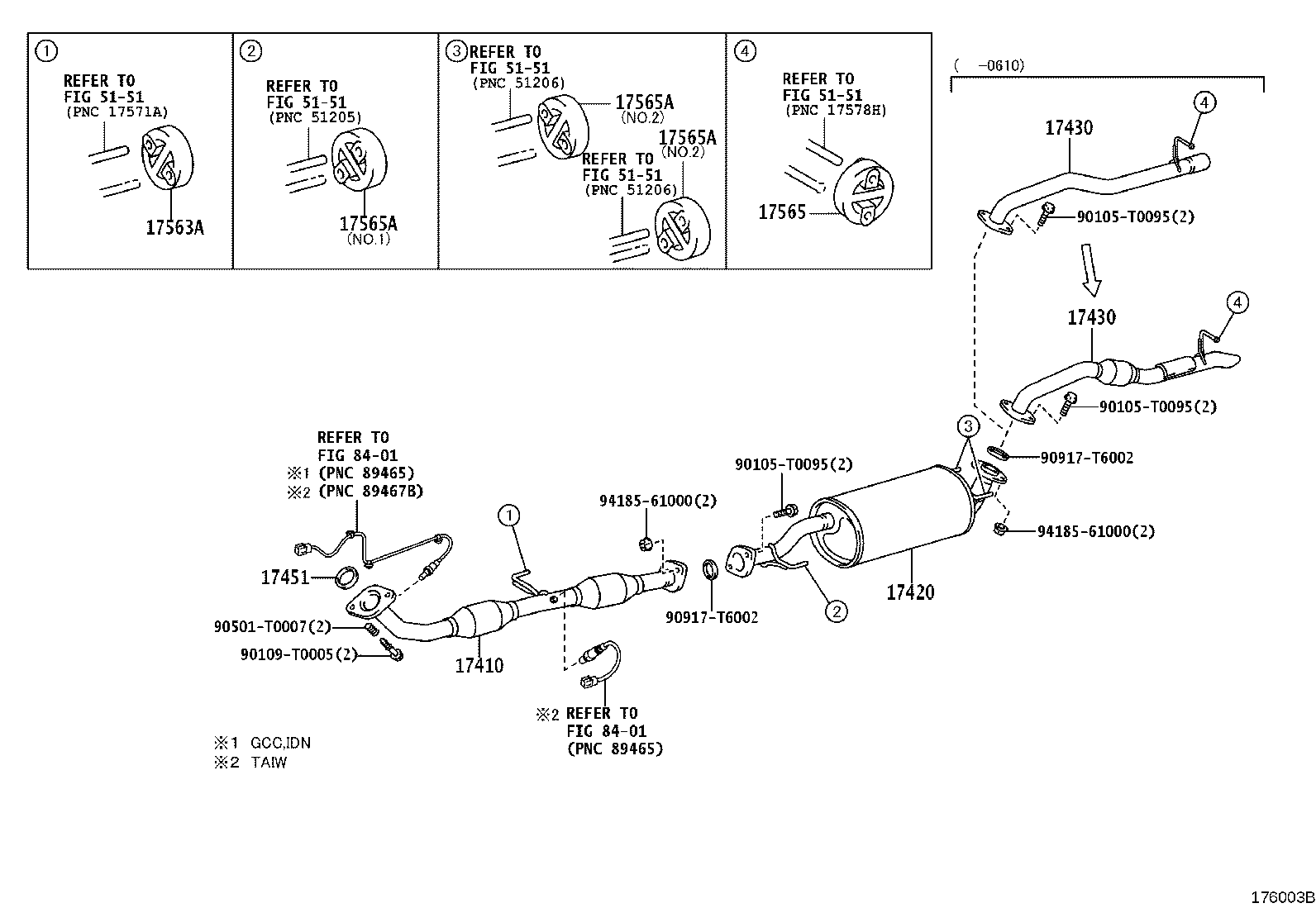

Figure 176003B

176003B 2004-12 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17420	Pipe Assy, Exhaust, Center
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17563A	Support, Exhaust Pipe, NO.3
17565	Support, Exhaust Pipe, NO.5
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
