Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 25 illustrations

Illustrations

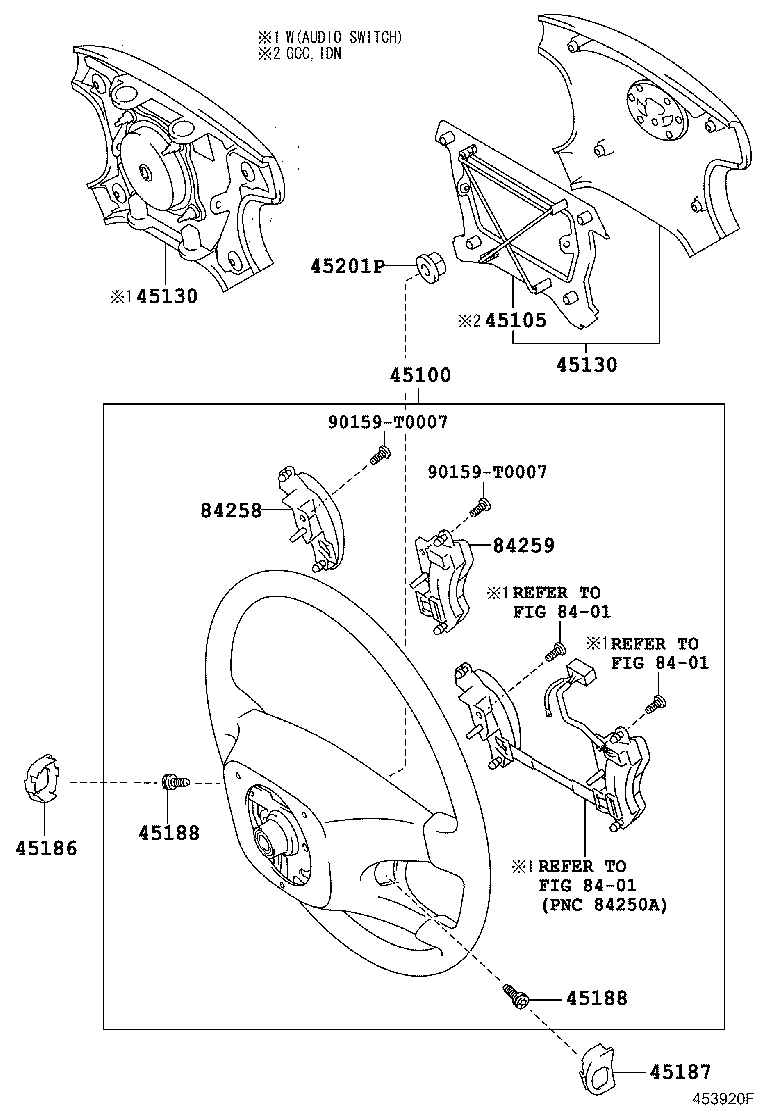

Figure 453919F 453919F 2004-08 → 2006-09 Figure 453919F 453919F 2004-08 → 2009-10 Figure 453919F 453919F 2004-08 → — Figure 453919F 453919F 2006-09 → 2009-08 Figure 453919F 453919F 2006-09 → — Figure 453919F 453919F 2007-09 → — Figure 453919F 453919F 2009-10 → — Figure 453919F 453919F 2010-04 → — Figure 453920F 453920F 2004-08 → — Figure 453920F 453920F 2007-08 → — Figure 453920F 453920F 2008-09 → — Figure 453920F 453920F 2008-11 → — Figure 454149 454149 2005-01 → — Figure 453950D 453950D 2005-01 → 2008-09 Figure 453950D 453950D 2006-08 → — Figure 453950D 453950D 2006-09 → — Figure 453950D 453950D 2007-08 → — Figure 453950D 453950D 2008-09 → 2008-11 Figure 453950D 453950D 2008-09 → — Figure 453950D 453950D 2008-09 → — Figure 453950D 453950D 2008-11 → — Figure 453950D 453950D 2009-08 → — Figure 453950D 453950D 2009-10 → — Figure 454945C 454945C 2007-07 → 2009-10 Figure 455990A 455990A 2009-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
