Toyota Innova/Kijang Innova
2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General
Supported model
Data version 2016-12

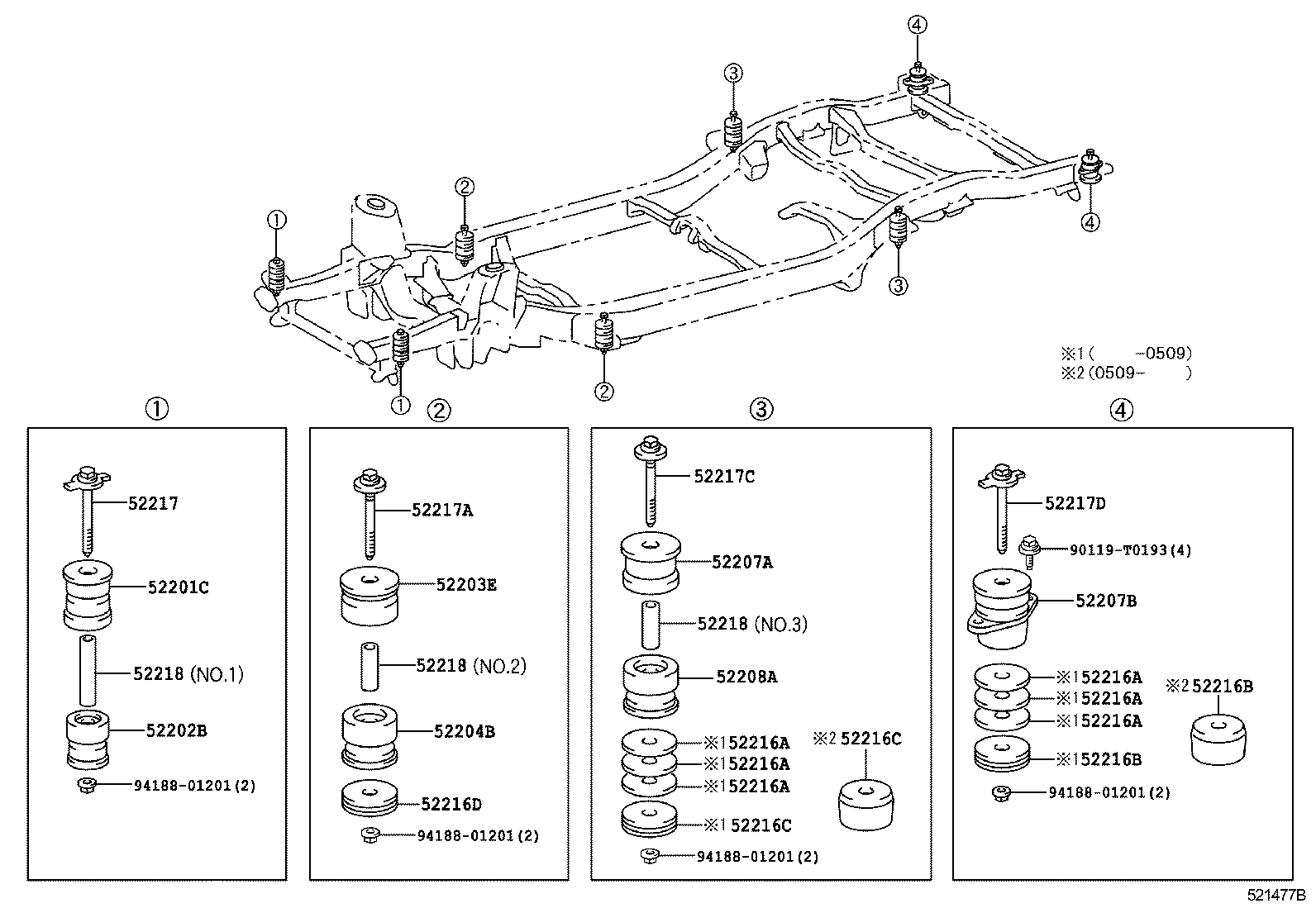

Cab Mounting & Body Mounting
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52201C | Cushiion Sub-assy, Cab Mounting, NO.1 Upper |
| 52202B | Cushiion Sub-assy, Cab Mounting, NO.1 Lower |
| 52203E | Cushion Sub-assy, Cab Mounting, NO.2 |
| 52204B | Cushion Sub-assy, Cab Mounting, NO.2 Lower |
| 52207A | Cushion Sub-assy, Cab Mounting, NO.4 Upper |
| 52207B | Cushion Sub-assy, Cab Mounting, Rear |
| 52208A | Cushion Sub-assy, Cab Mounting, NO.4 Lower |
| 52216A | Stopper, Cab Mounting Cushion |
| 52216B | Stopper, Front Suspension Member Body Mounting, Rear |
| 52216C | Stopper, Cab Mounting Cushion |
| 52216D | Stopper, Cab Mounting Cushion |
| 52217 | Bolt, Body Mounting |
| 52217A | Bolt, Body Mounting |
| 52217C | Bolt, Body Mounting |
| 52217D | Bolt, Body Mounting |
| 52218 | Holder, Body Mount Bolt Spacer, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
