Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 9 illustrations

Illustrations

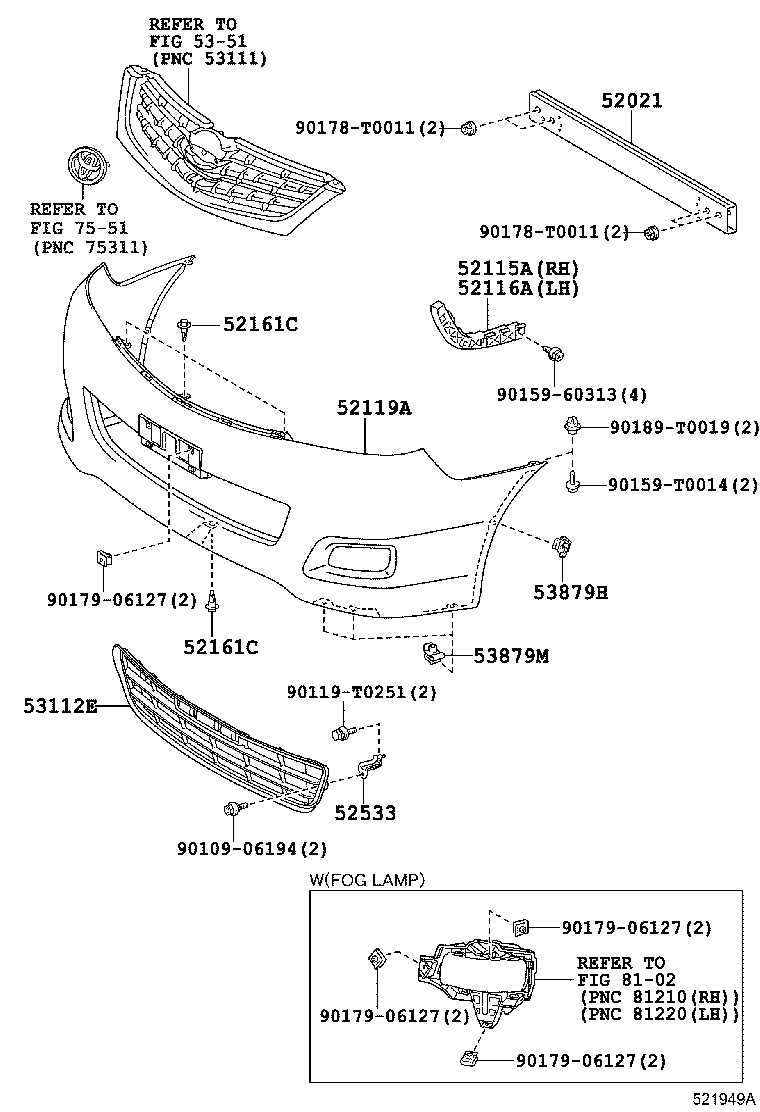

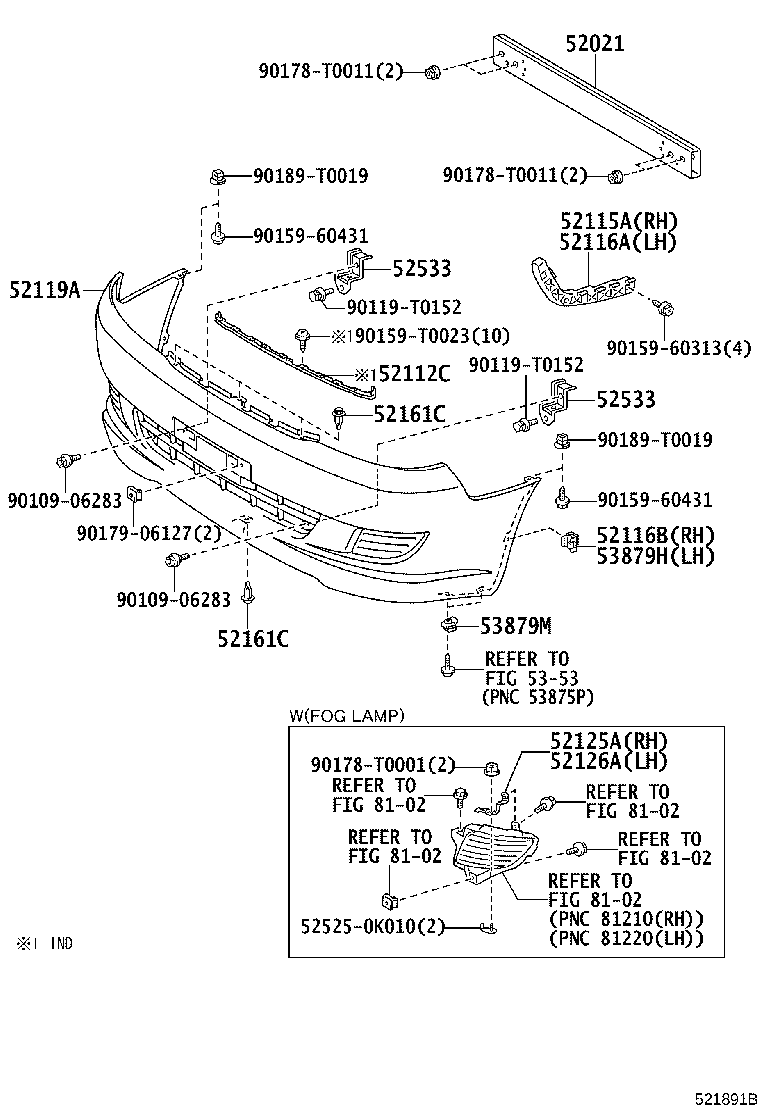

Figure 521130K 521130K 2004-08 → 2006-08 Figure 521130K 521130K 2004-08 → 2006-09 Figure 521891B 521891B 2006-08 → 2008-08 Figure 521891B 521891B 2006-08 → 2008-09 Figure 521891B 521891B 2006-08 → — Figure 521891B 521891B 2006-09 → 2008-12 Figure 521949A 521949A 2008-08 → — Figure 521949A 521949A 2008-09 → — Figure 521949A 521949A 2008-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52081 Stay Sub-assy, Front Bumper
52082 Stay Sub-assy, Front Bumper, LH
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52161C Piece, Front Bumper
52533 Bracket, Front Bumper Retainer, NO.1
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
53879M Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
