Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 17 illustrations

Illustrations

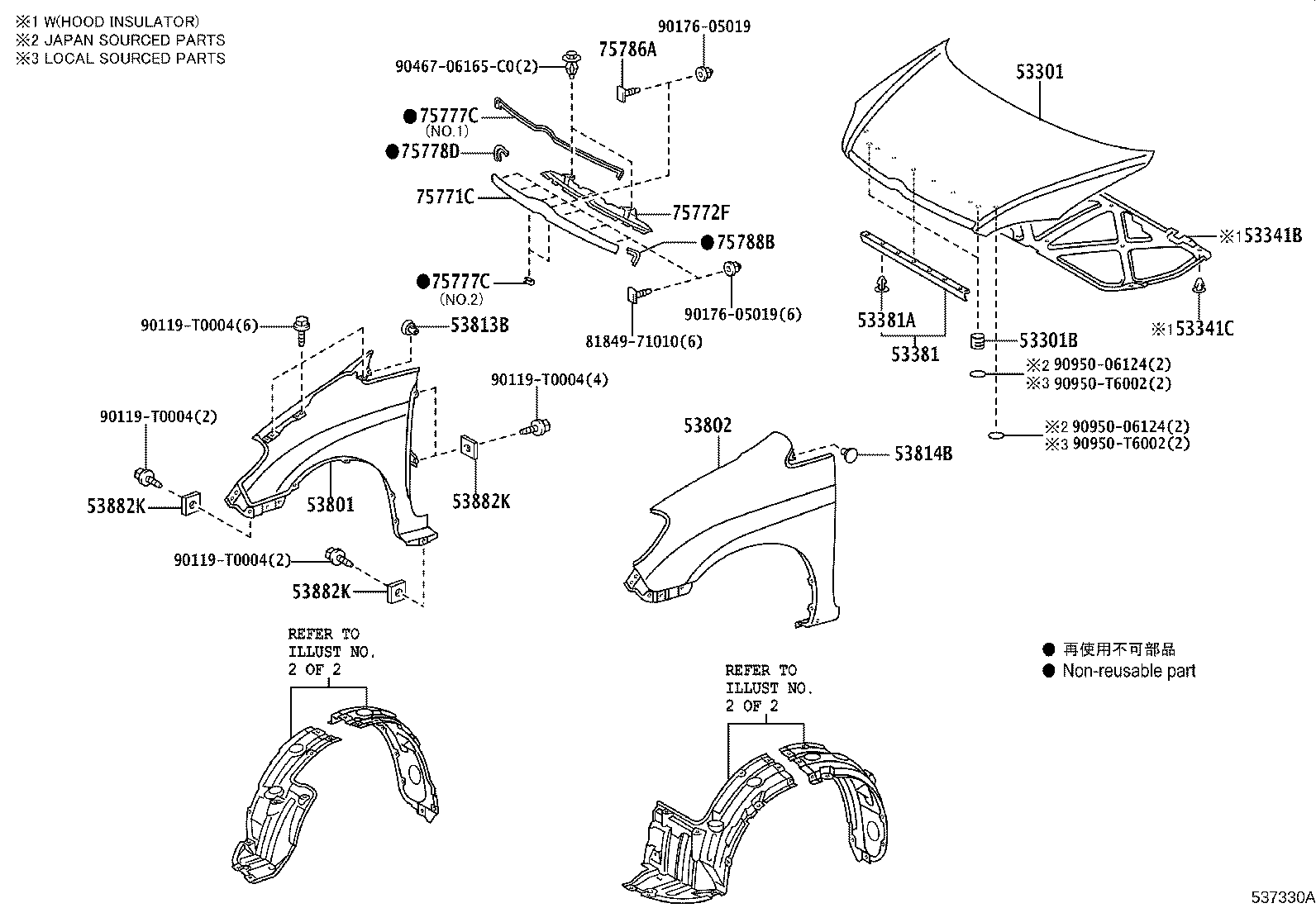

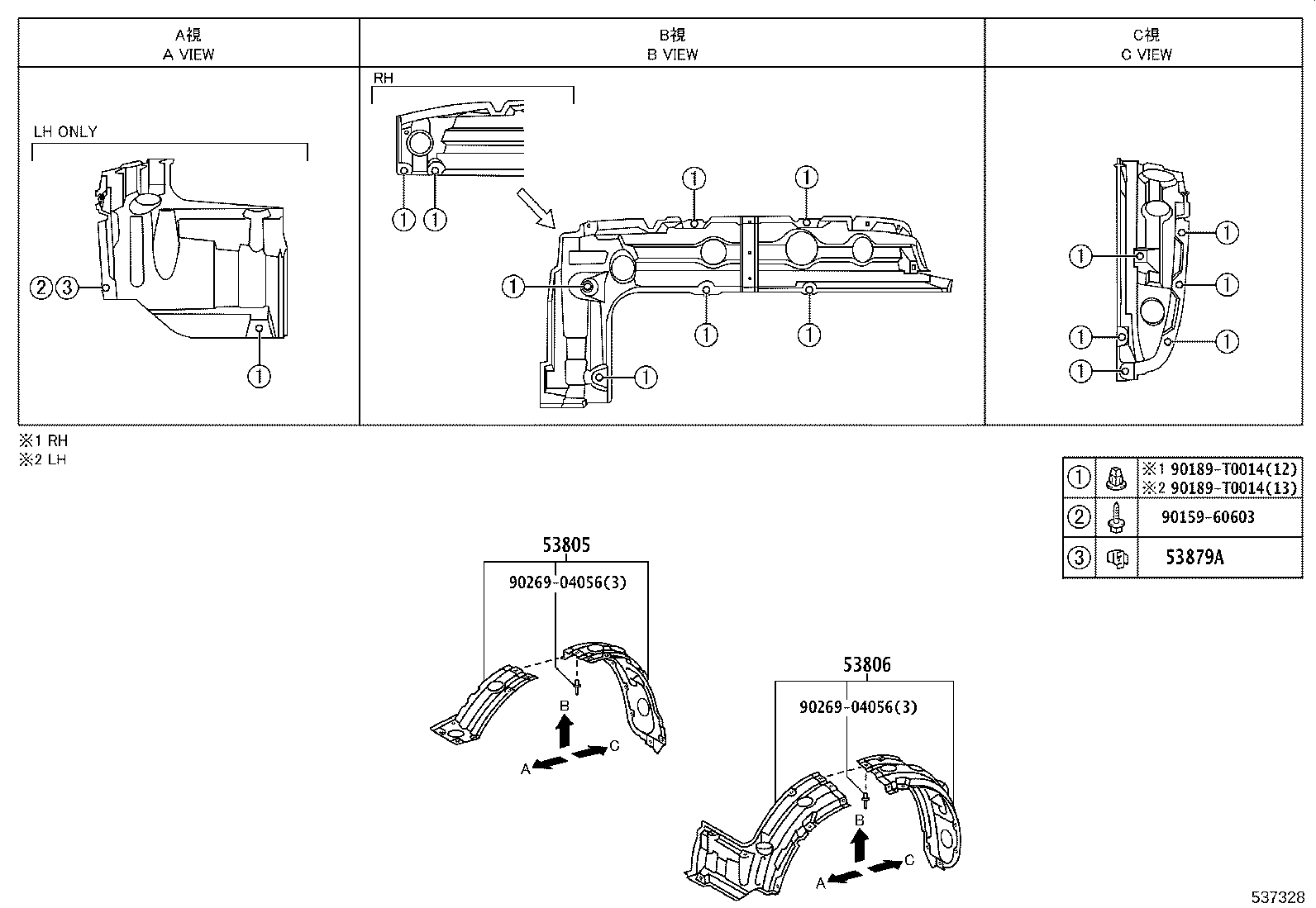

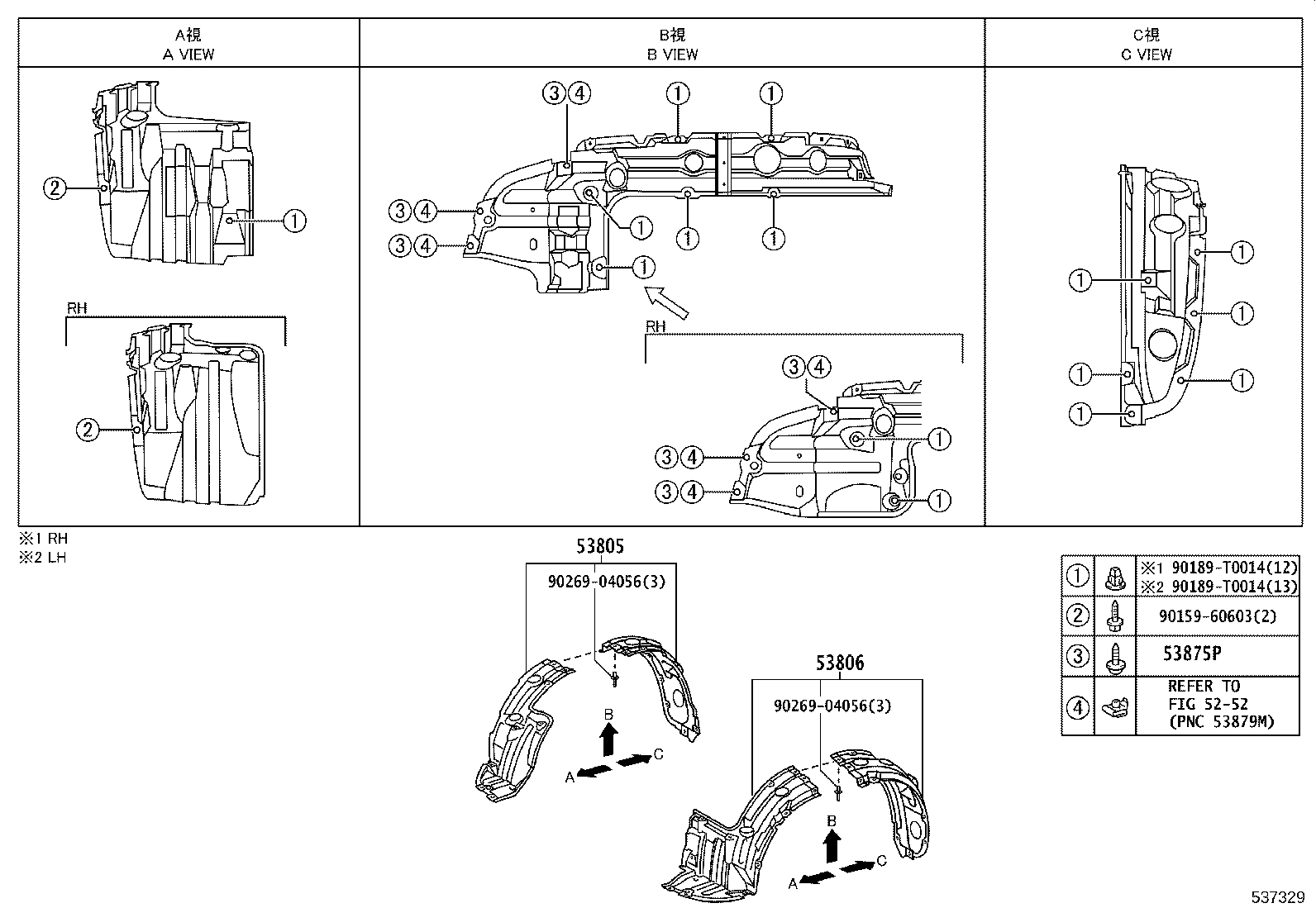

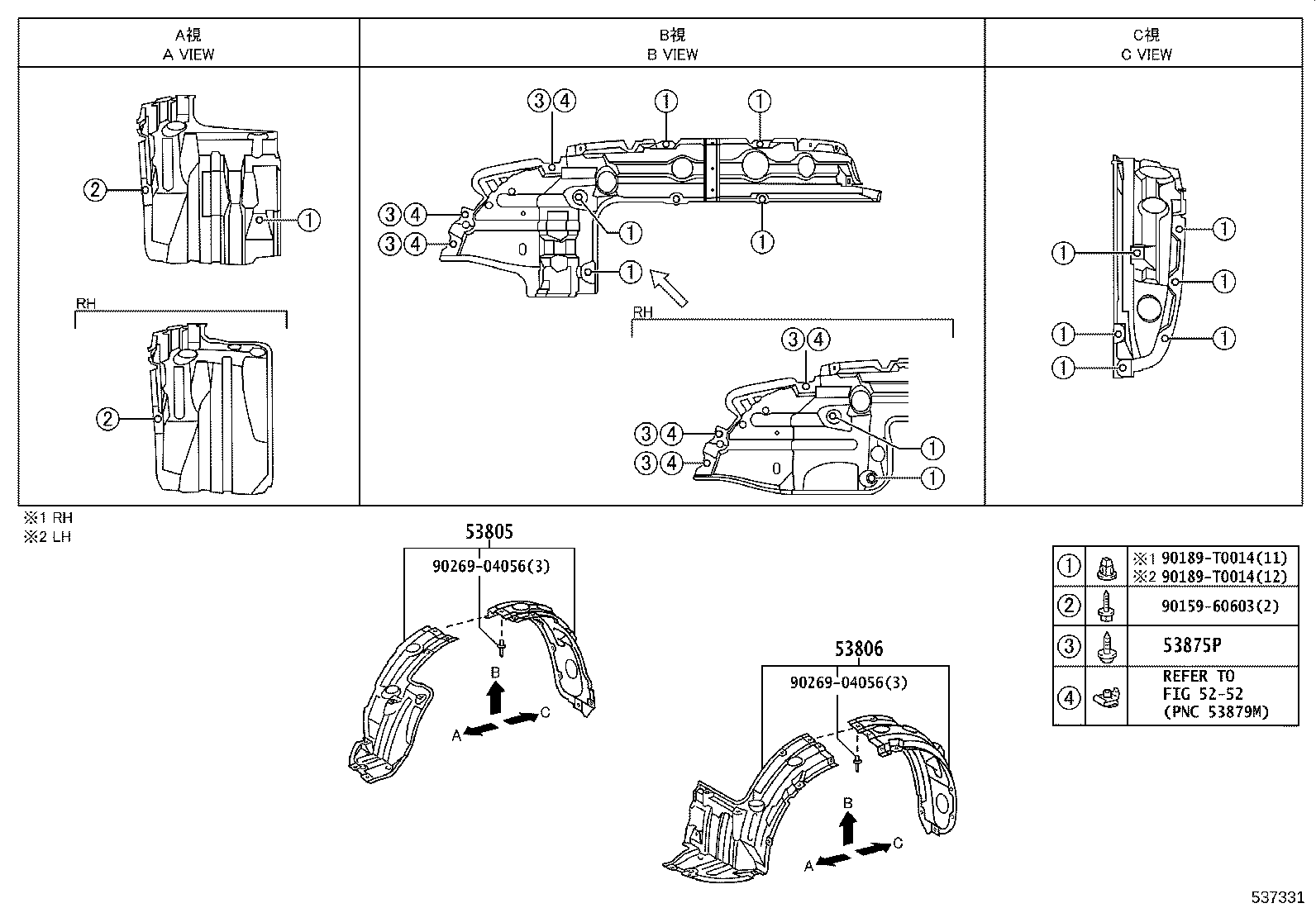

Figure 537327A 537327A 2004-08 → 2008-08 Figure 537327A 537327A 2004-08 → 2008-09 Figure 537327A 537327A 2004-08 → 2008-12 Figure 537327A 537327A 2007-07 → — Figure 537328 537328 2004-08 → 2006-08 Figure 537328 537328 2004-08 → 2006-09 Figure 537328 537328 2004-08 → 2006-12 Figure 537329 537329 2004-08 → 2008-08 Figure 537329 537329 2004-08 → 2008-09 Figure 537329 537329 2004-08 → 2008-12 Figure 537329 537329 2007-07 → — Figure 537330A 537330A 2008-08 → — Figure 537330A 537330A 2008-09 → — Figure 537330A 537330A 2008-12 → — Figure 537331 537331 2008-08 → — Figure 537331 537331 2008-09 → — Figure 537331 537331 2008-12 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53875P Screw, NO.1
53879A Retainer, Front Fender Liner
53882K Seal, Front Fender
75771C Moulding, Hood, Front
75772F Moulding, Hood, Rear
75777C Pad, Hood Front Moulding
75778D Pad, Hood Front Moulding, RH NO.1
75778E Pad, Hood Front Moulding, RH NO.2
75786A Retainer, Hood Front Moulding
75788B Pad, Hood Front Moulding, LH NO.1
75788C Pad, Hood Front Moulding, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
