Toyota Innova/Kijang Innova
2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General
Supported model
Data version 2016-12

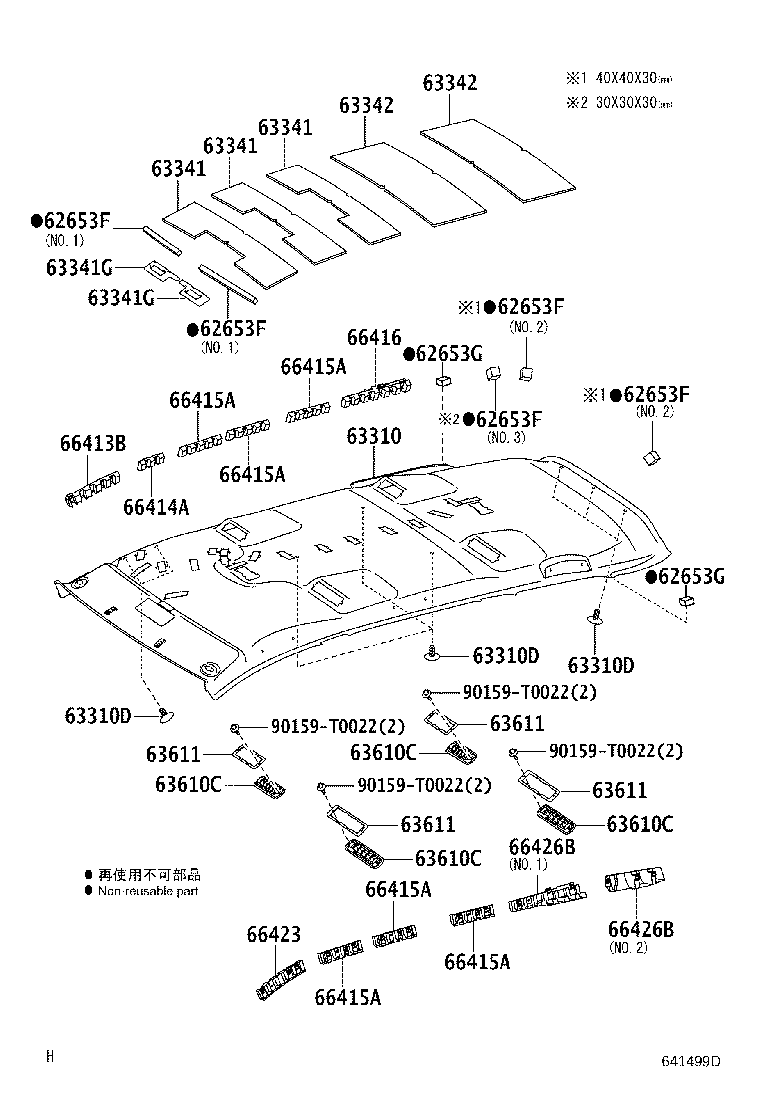

Roof Headlining & Silencer Pad
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62653F | Packing (FOR ROOF HEADLINING) |
| 62653G | Packing,(FOR ROOF HEADLINING) |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63610C | Register Assy, Air Outlet, NO.1 |
| 63611 | Bracket, Rear Cooler, NO.1 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
