Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

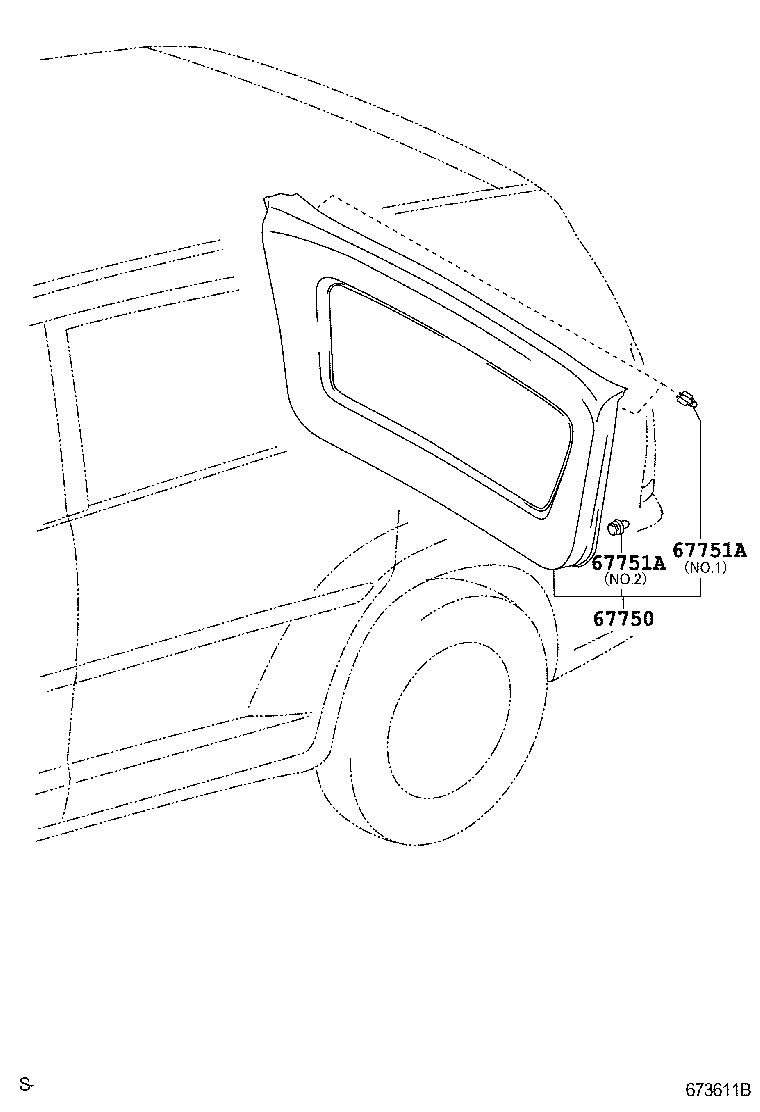

Figure 673612J 673612J 2004-08 → — Figure 673611B 673611B 2004-08 → —

Part groups

PNCDescription
64795A Trim, Back Window Opening
64819 Spacer, Back Window Glass, NO.2
64885C Channel, Back Door Glass, RH
64886B Channel, Back Door Glass, LH
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
68294B Dam, Back Door Glass Adhesive
76811A Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76825 Protector, Back Door Outside Garnish
76825C Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
