Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

8 part groups · 2 illustrations

Illustrations

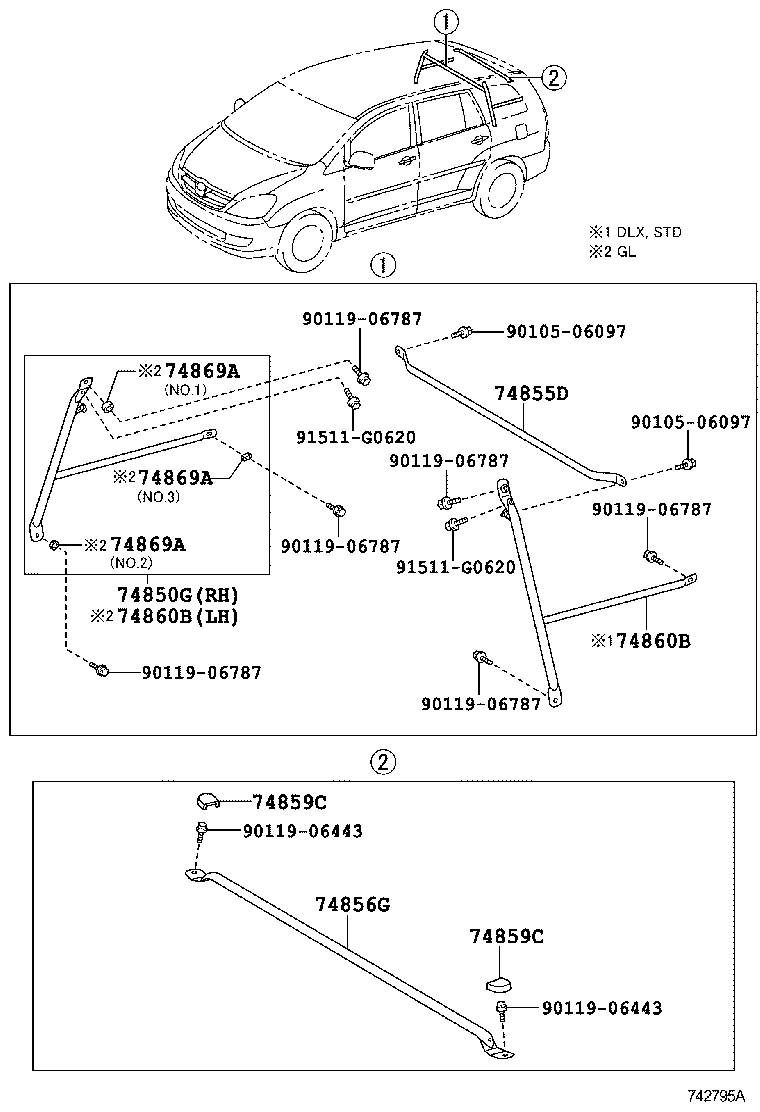

Figure 742279B 742279B 2007-07 → 2009-09 Figure 742795A 742795A 2009-09 → —

Part groups

PNCDescription
74850G Separator Assy, Rear
74855D Bar, Separator, Upper
74856G Bar, Separator, NO.6
74859C Cover, Rear Separator Bar, LH
74860B Separator Assy, Rear LH
74866A Bracket, Separator Bar, NO.3
74867A Bracket, Separator Bar, NO.4
74869A Protector, Separator Bar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
