Toyota Innova/Kijang Innova
2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General
Supported model
Data version 2016-12

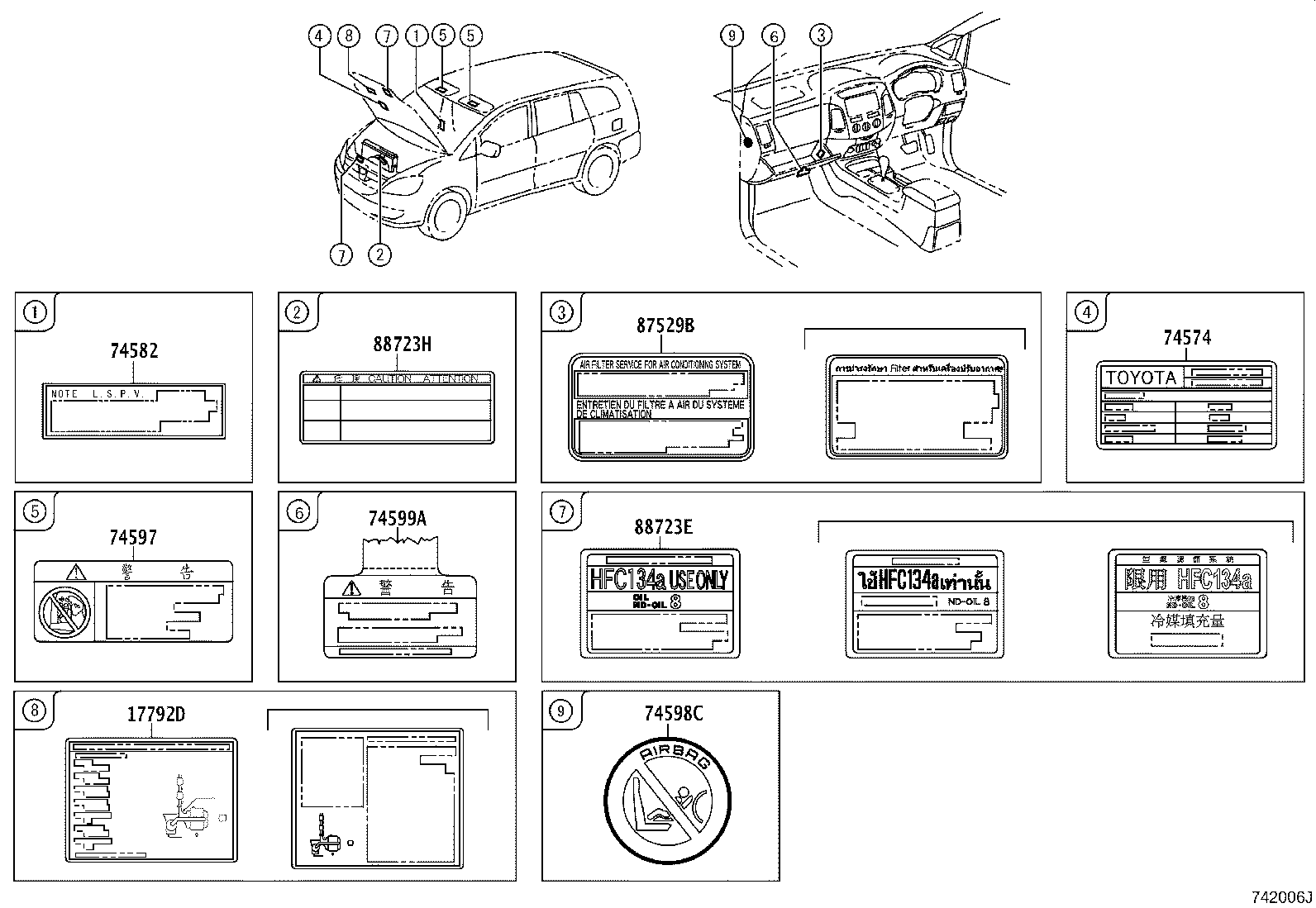

Caution Plate
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 17792D | Label, Emission Control Device Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 69339A | Plate, Child Protector Lock Caution |
| 74515A | Plate, Theft Warning |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74574 | Plate, Noise Identification |
| 74579A | Label, Unleaded Fuel Information |
| 74582 | Plate, Load Sensing Valve Marking |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 74599A | Plate, Separation Door Open Caution |
| 82685 | Plate, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
