Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 7 illustrations

Illustrations

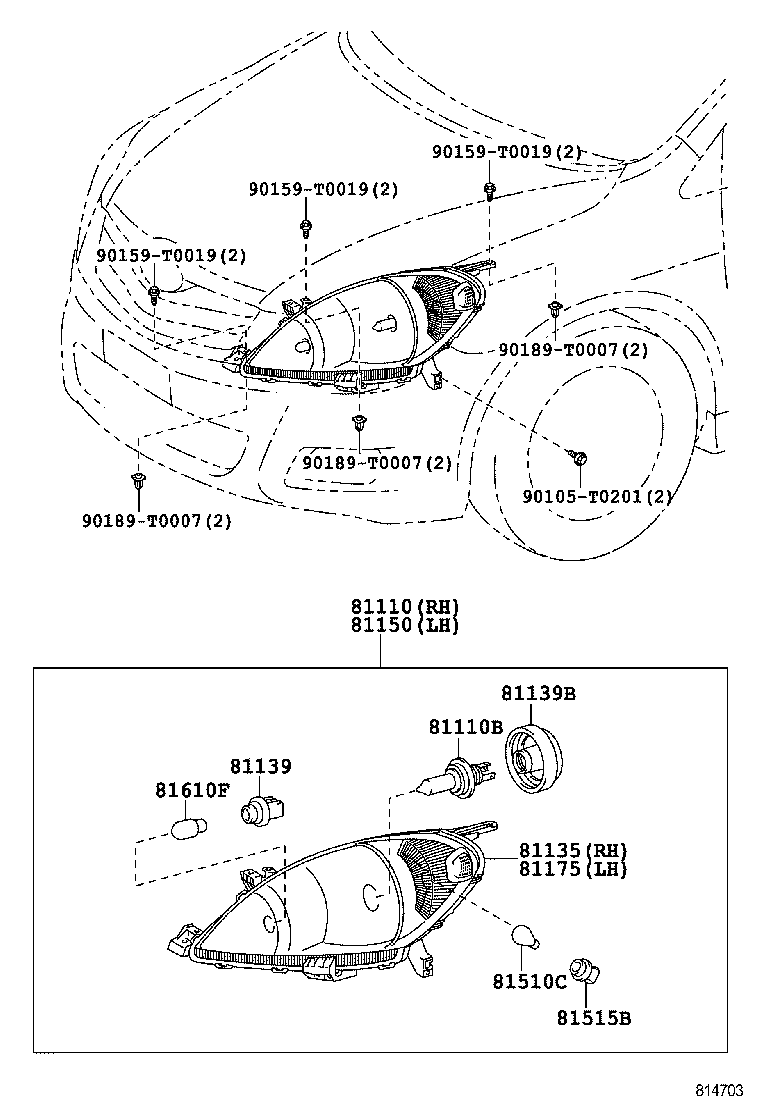

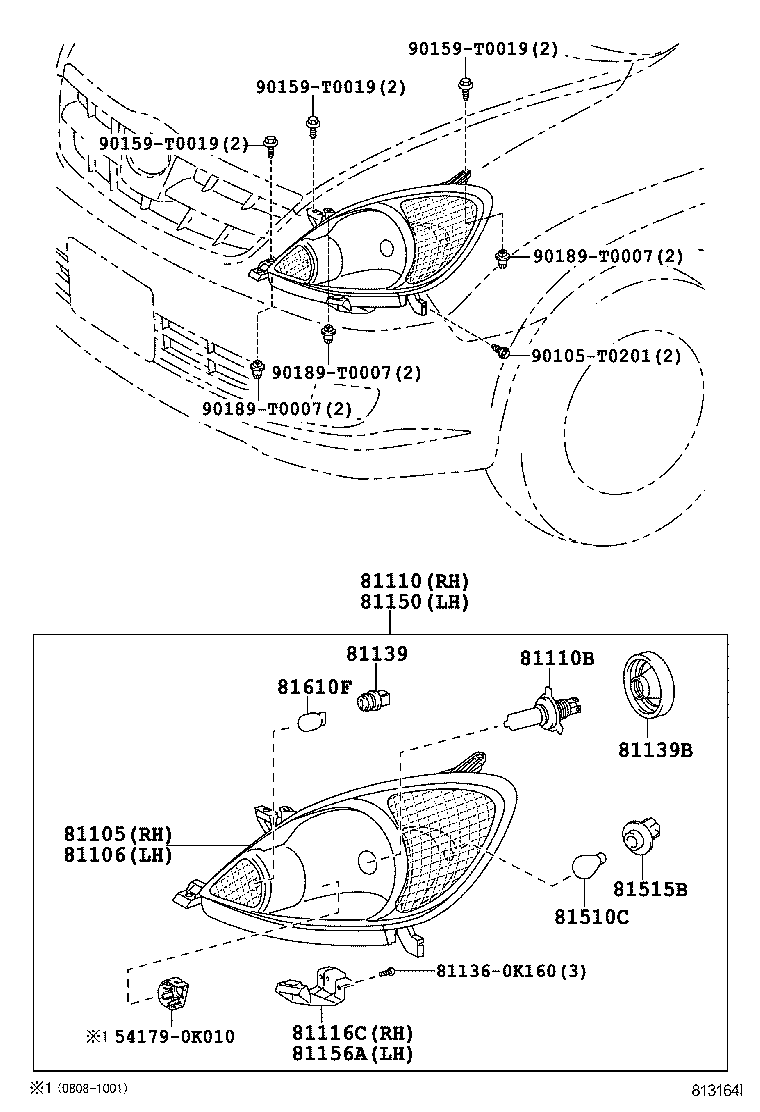

Figure 812977K 812977K 2004-08 → 2008-08 Figure 812977K 812977K 2004-08 → 2008-09 Figure 812977K 812977K 2004-12 → 2007-08 Figure 812977K 812977K 2007-07 → — Figure 813164I 813164I 2005-02 → — Figure 814703 814703 2008-08 → — Figure 814703 814703 2008-09 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81116C Bracket, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81139B Socket, Headlamp Bulb
81150 Headlamp Assy, LH
81156A Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
