Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 8 illustrations

Illustrations

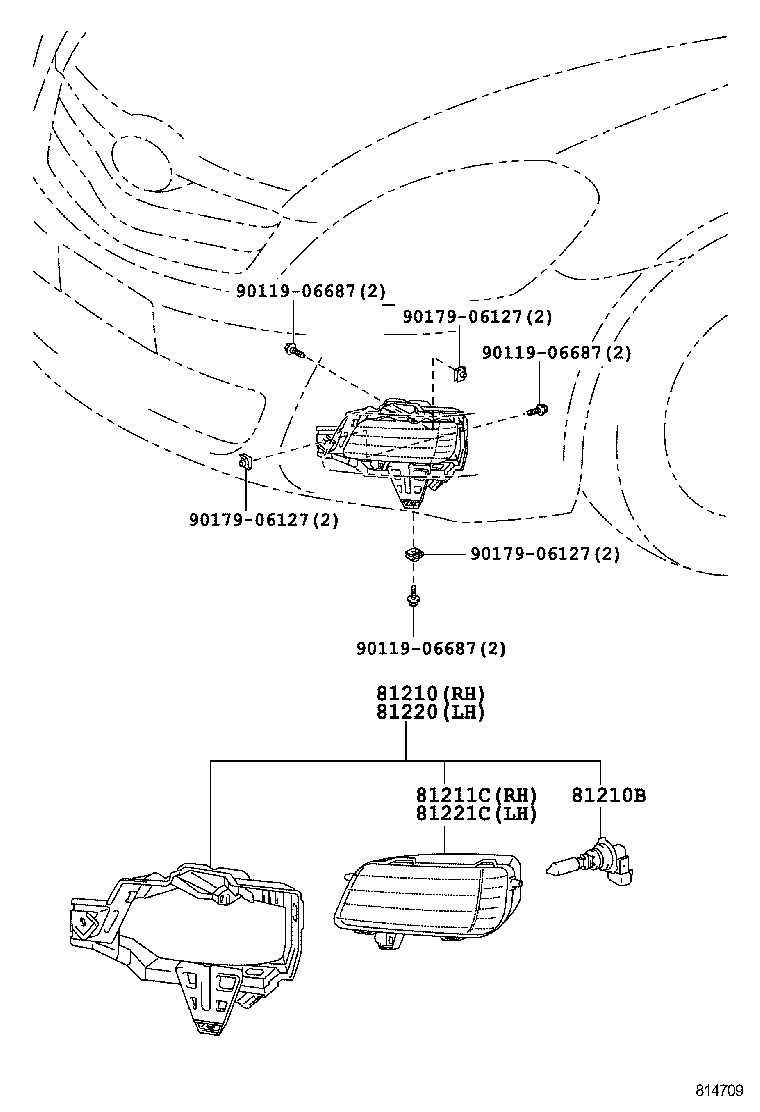

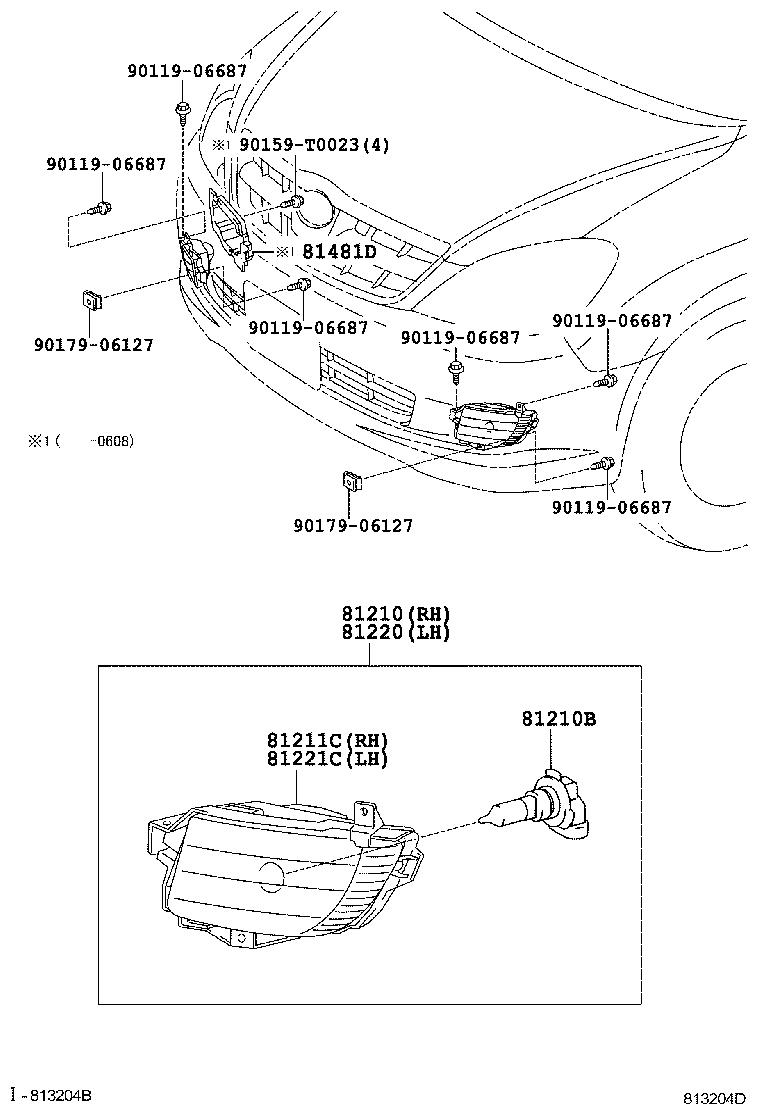

Figure 812942F 812942F 2004-08 → 2004-11 Figure 813204D 813204D 2004-08 → 2008-12 Figure 813204D 813204D 2004-11 → 2008-08 Figure 813204D 813204D 2004-11 → 2008-09 Figure 813204D 813204D 2007-07 → — Figure 814709 814709 2008-08 → — Figure 814709 814709 2008-09 → — Figure 814709 814709 2008-12 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81269A Seal, Fog Lamp
81481D Cover, Fog Lamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
