Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 7 illustrations

Illustrations

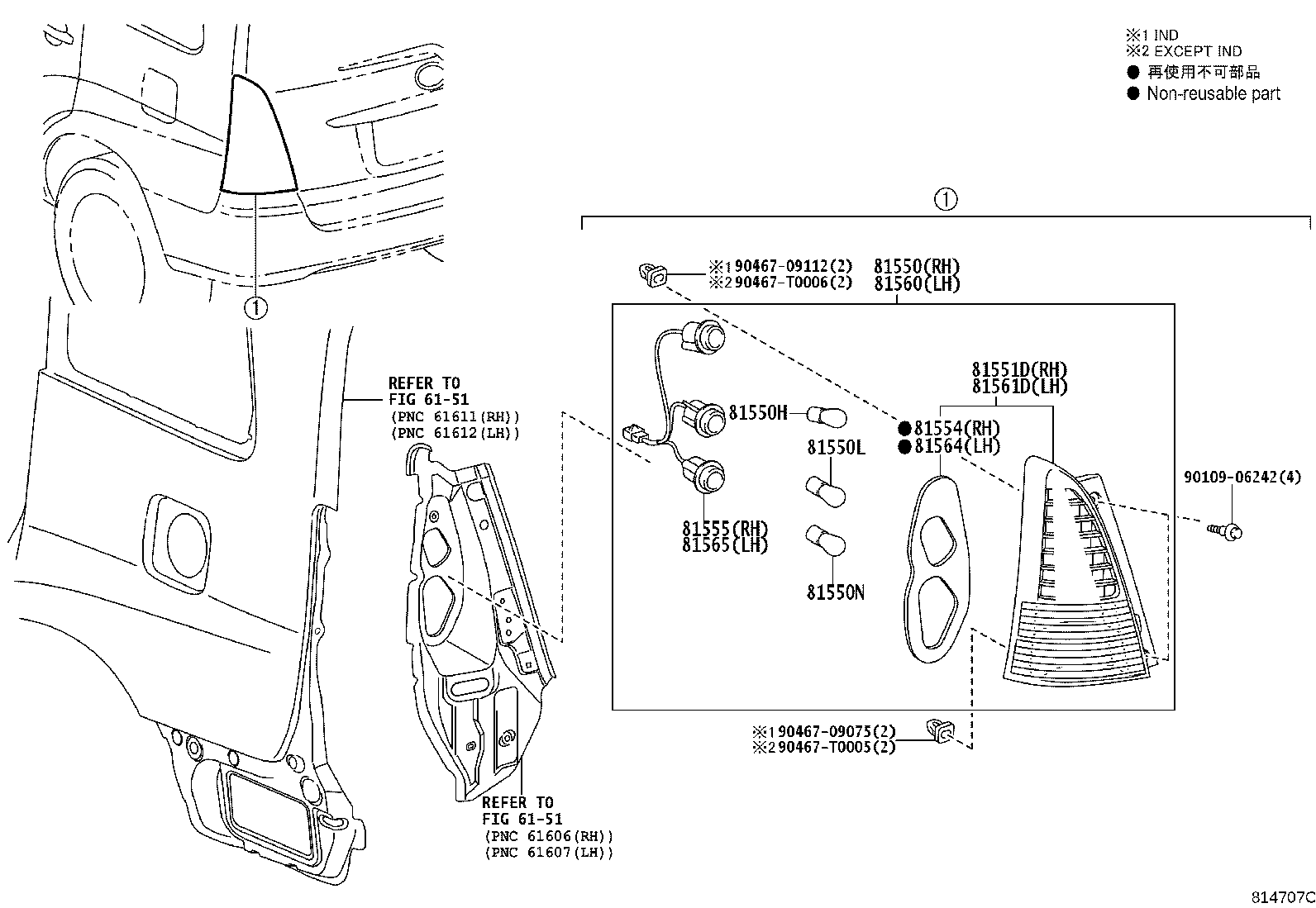

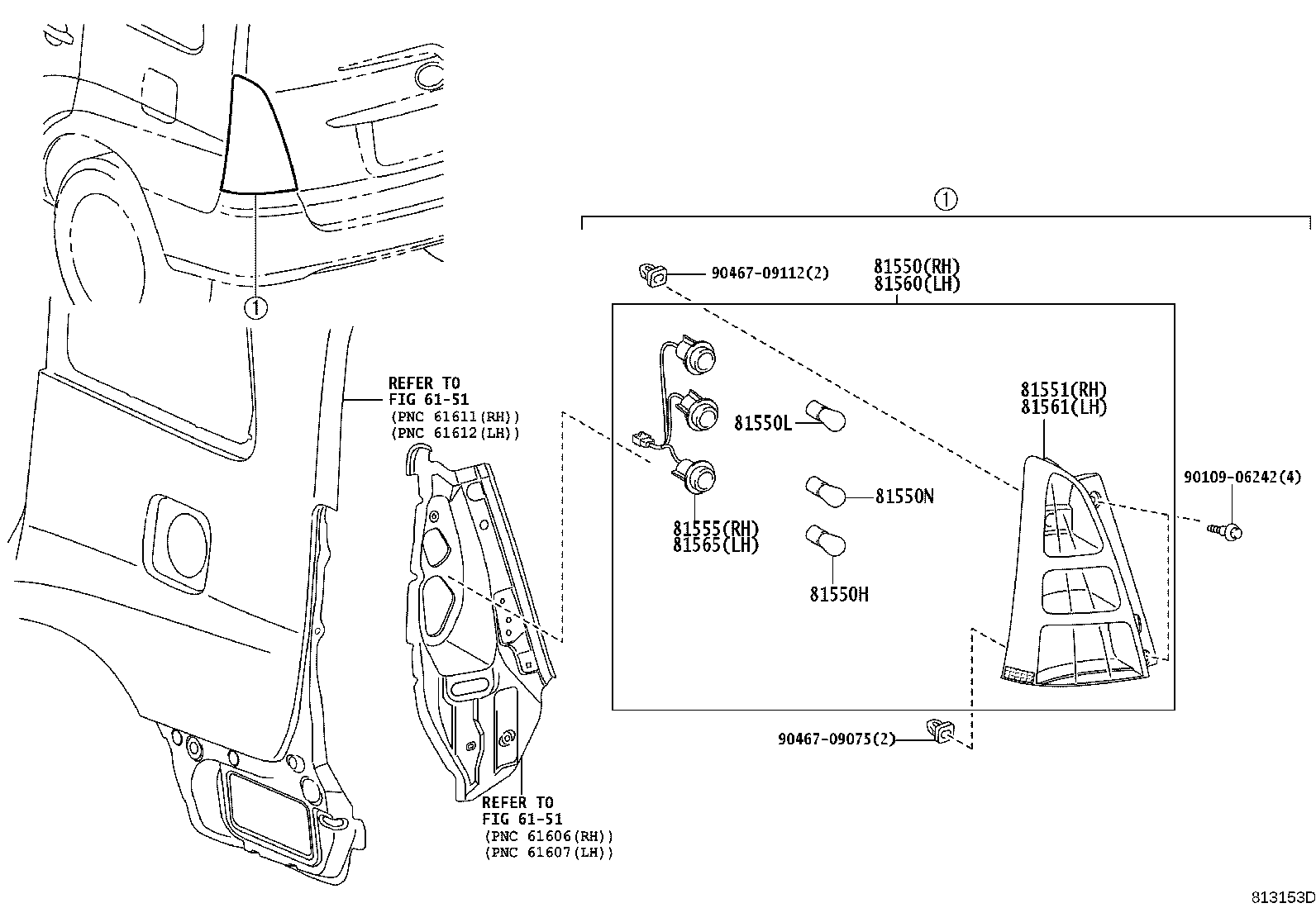

Figure 812971J 812971J 2004-08 → 2008-08 Figure 812971J 812971J 2004-08 → 2008-09 Figure 812971J 812971J 2007-07 → — Figure 813153D 813153D 2005-02 → 2008-12 Figure 814707C 814707C 2008-08 → — Figure 814707C 814707C 2008-09 → — Figure 814707C 814707C 2008-12 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551 Lens, Rear Combination Lamp, RH
81551D Lens & Body, Rear Combination Lamp, RH
81552C Gasket, Rear Combination Lamp
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
