Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 11 illustrations

Illustrations

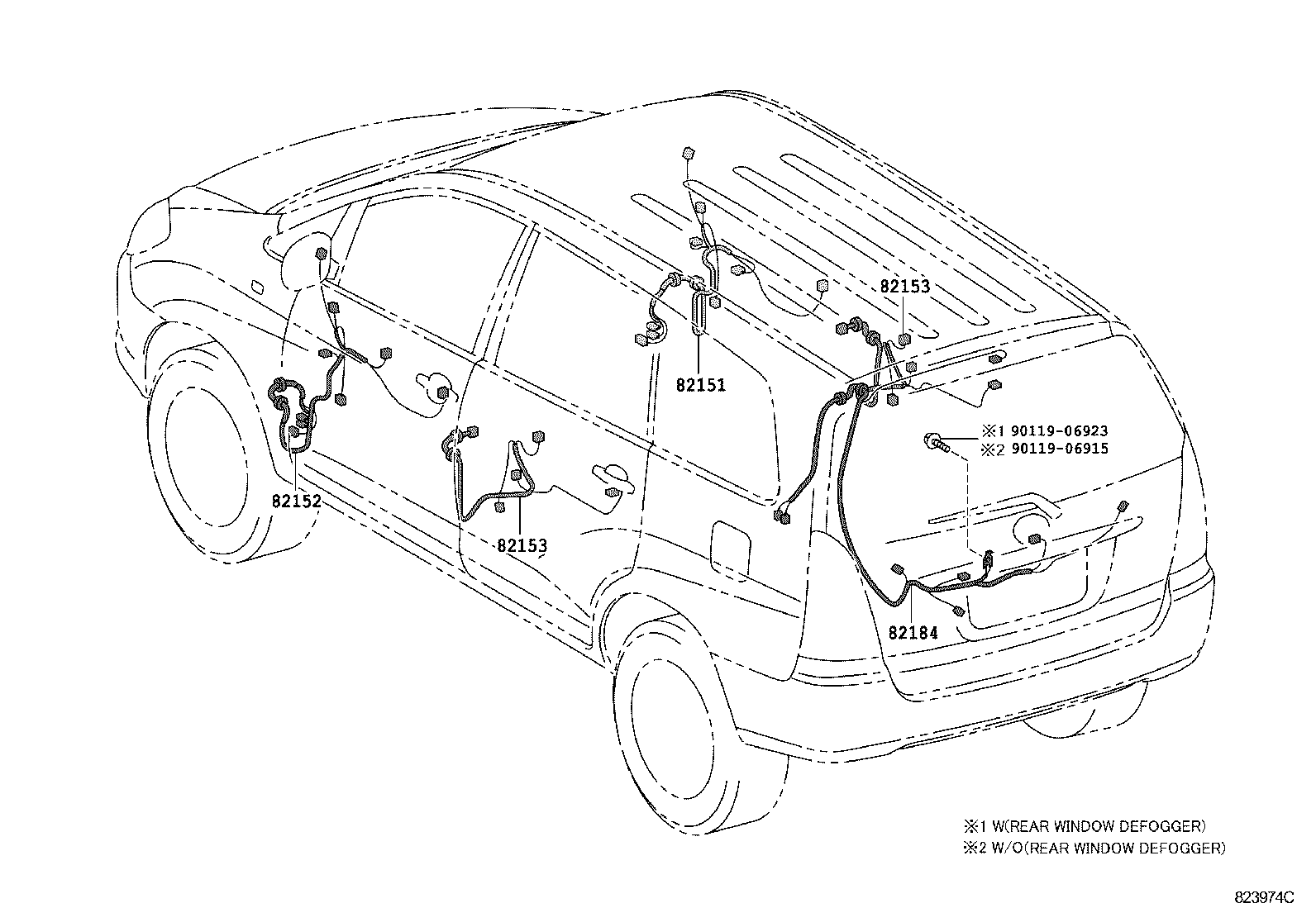

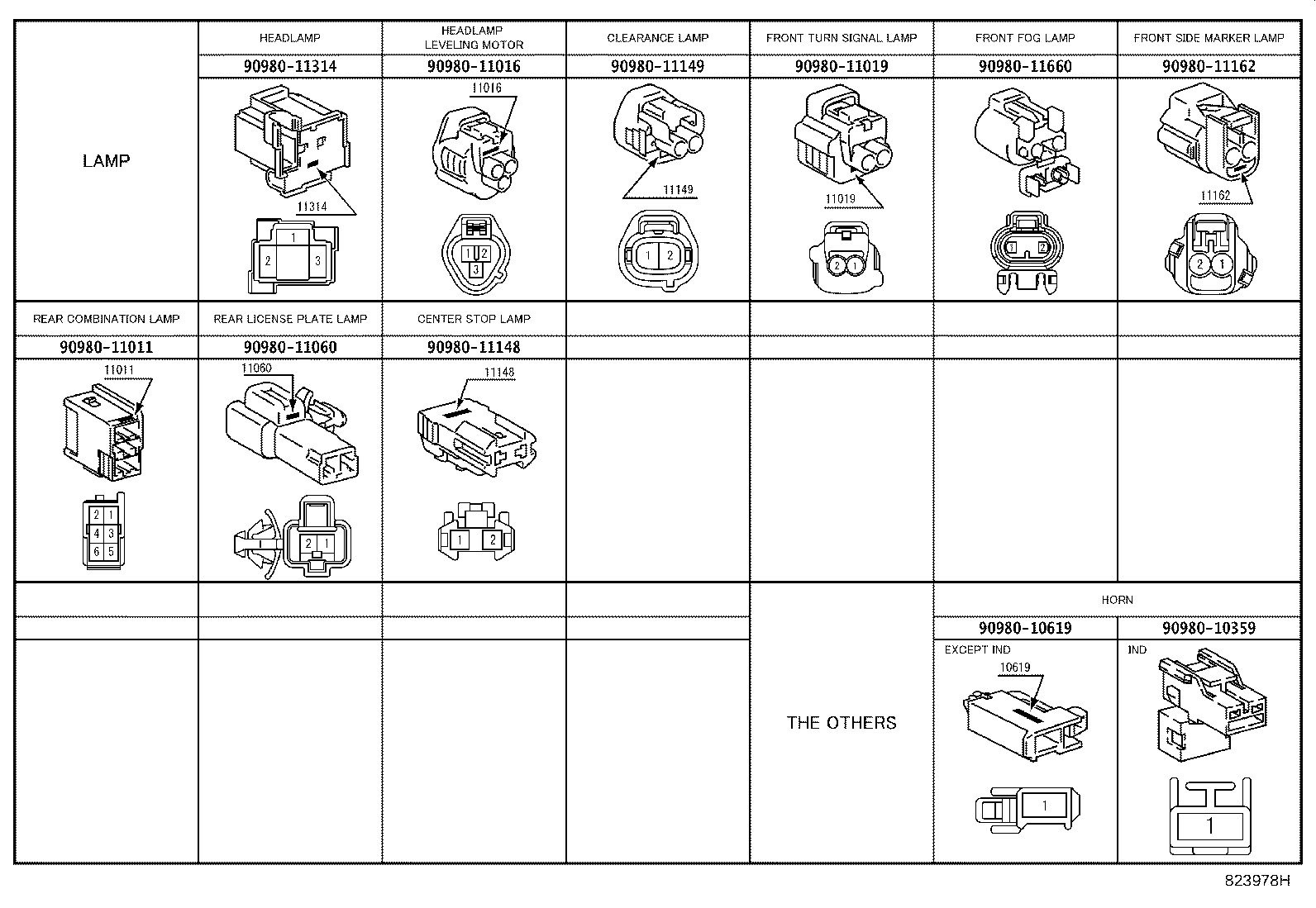

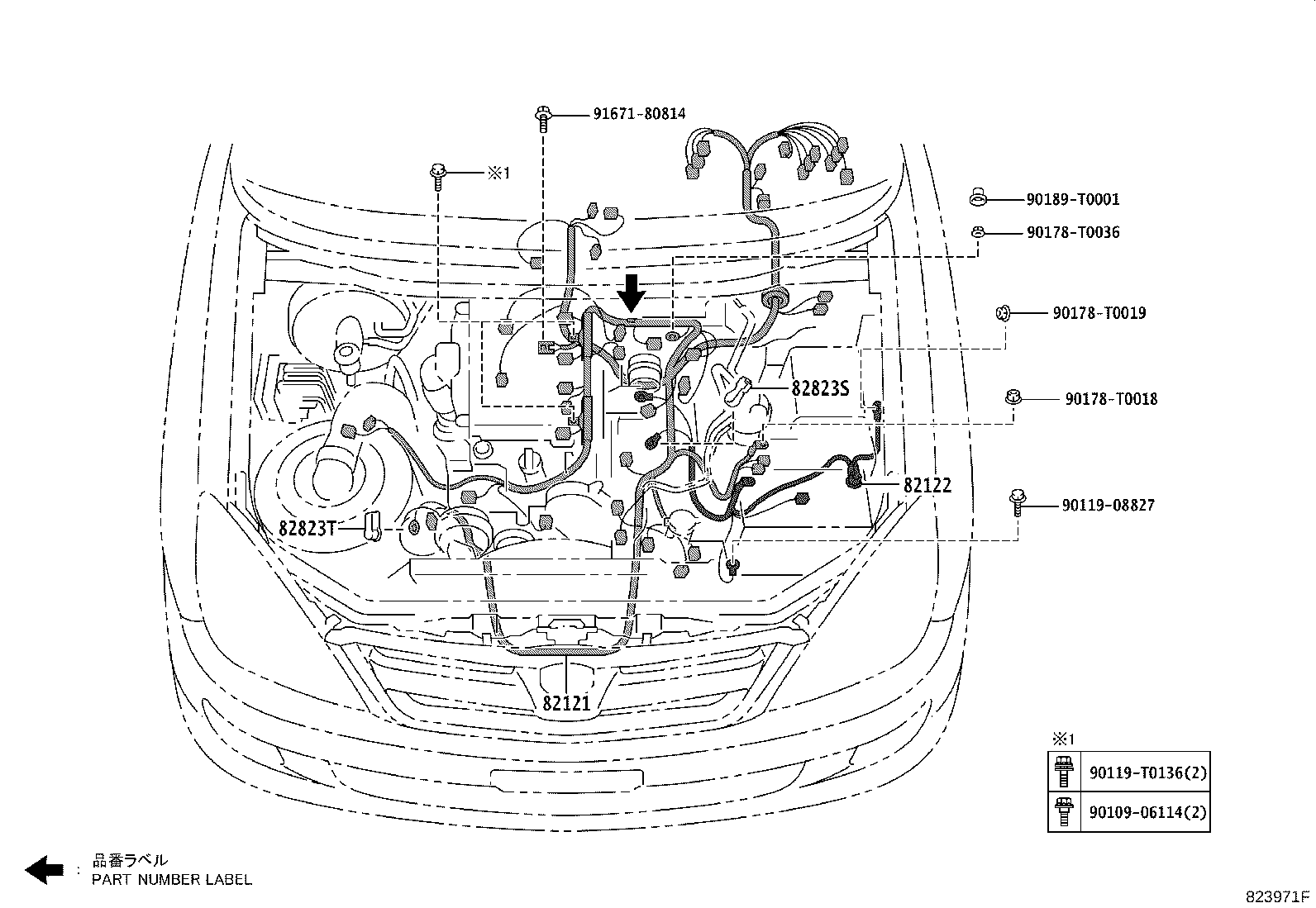

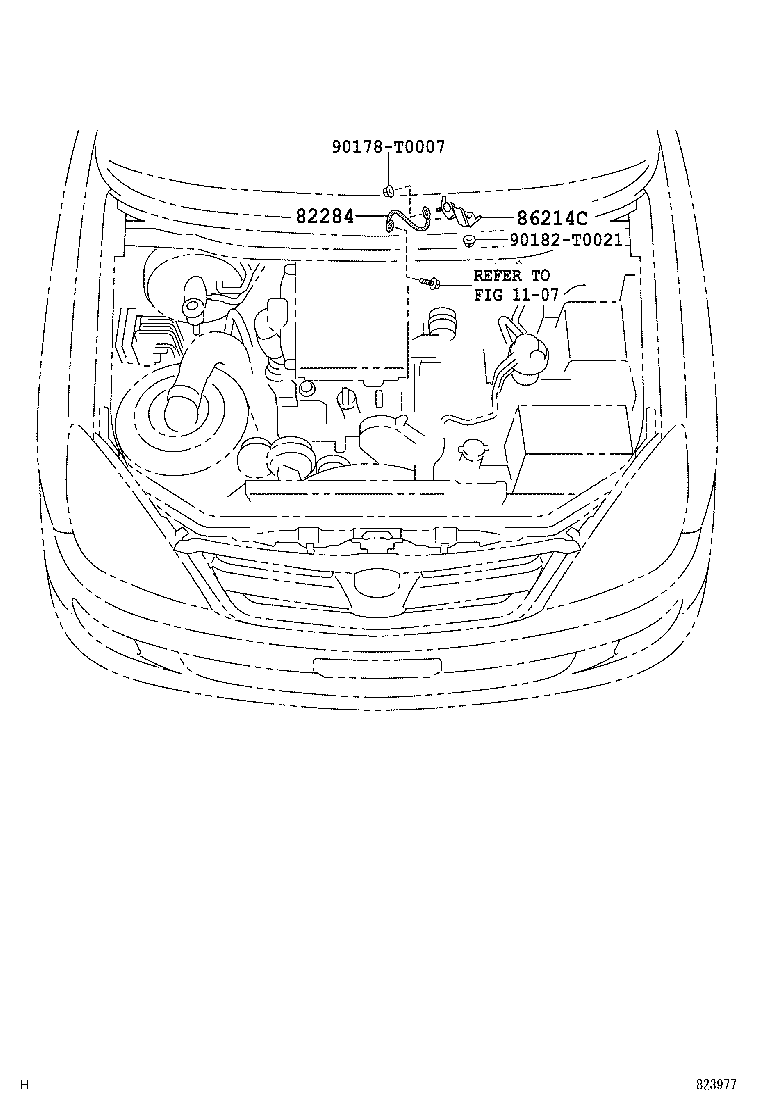

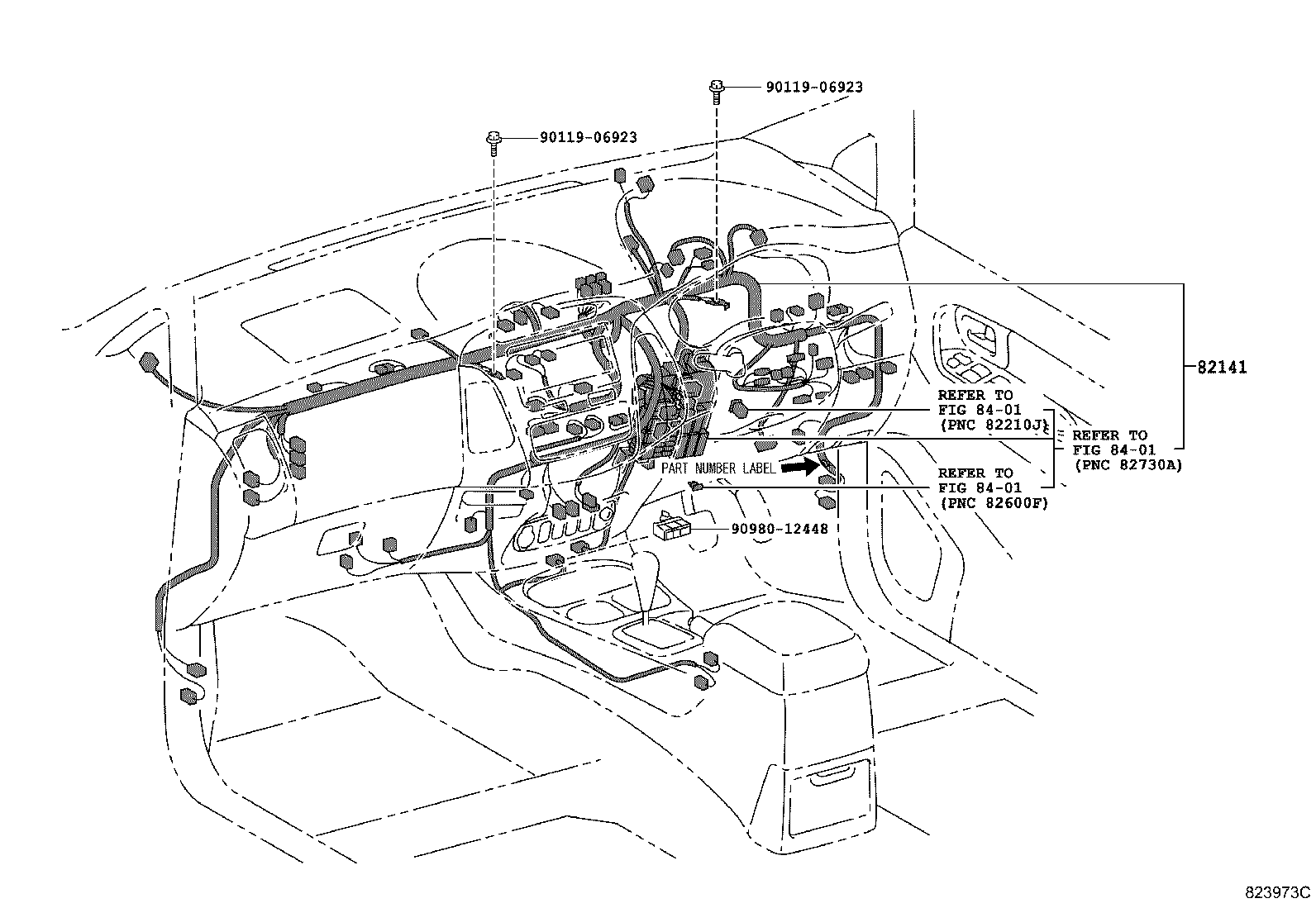

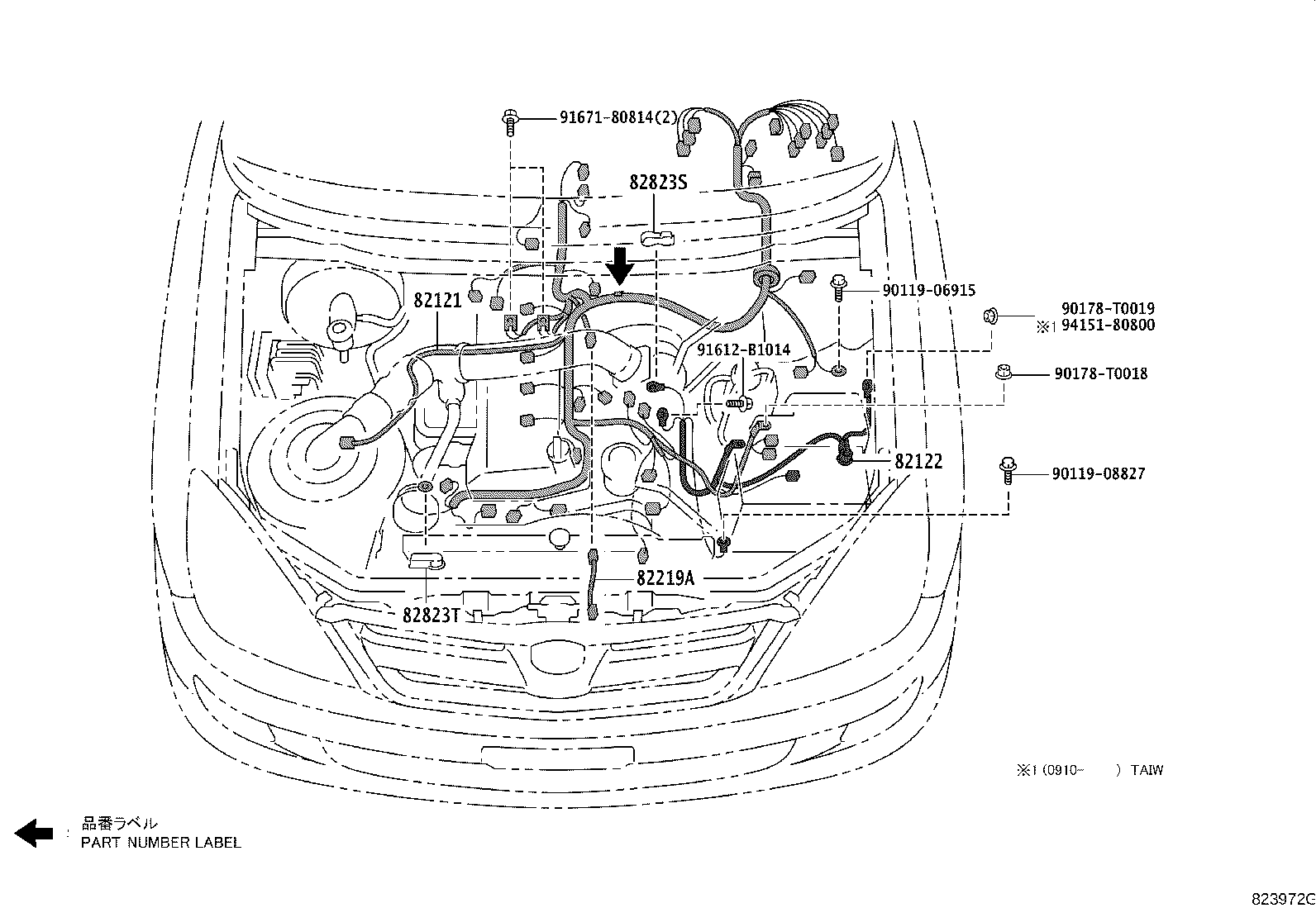

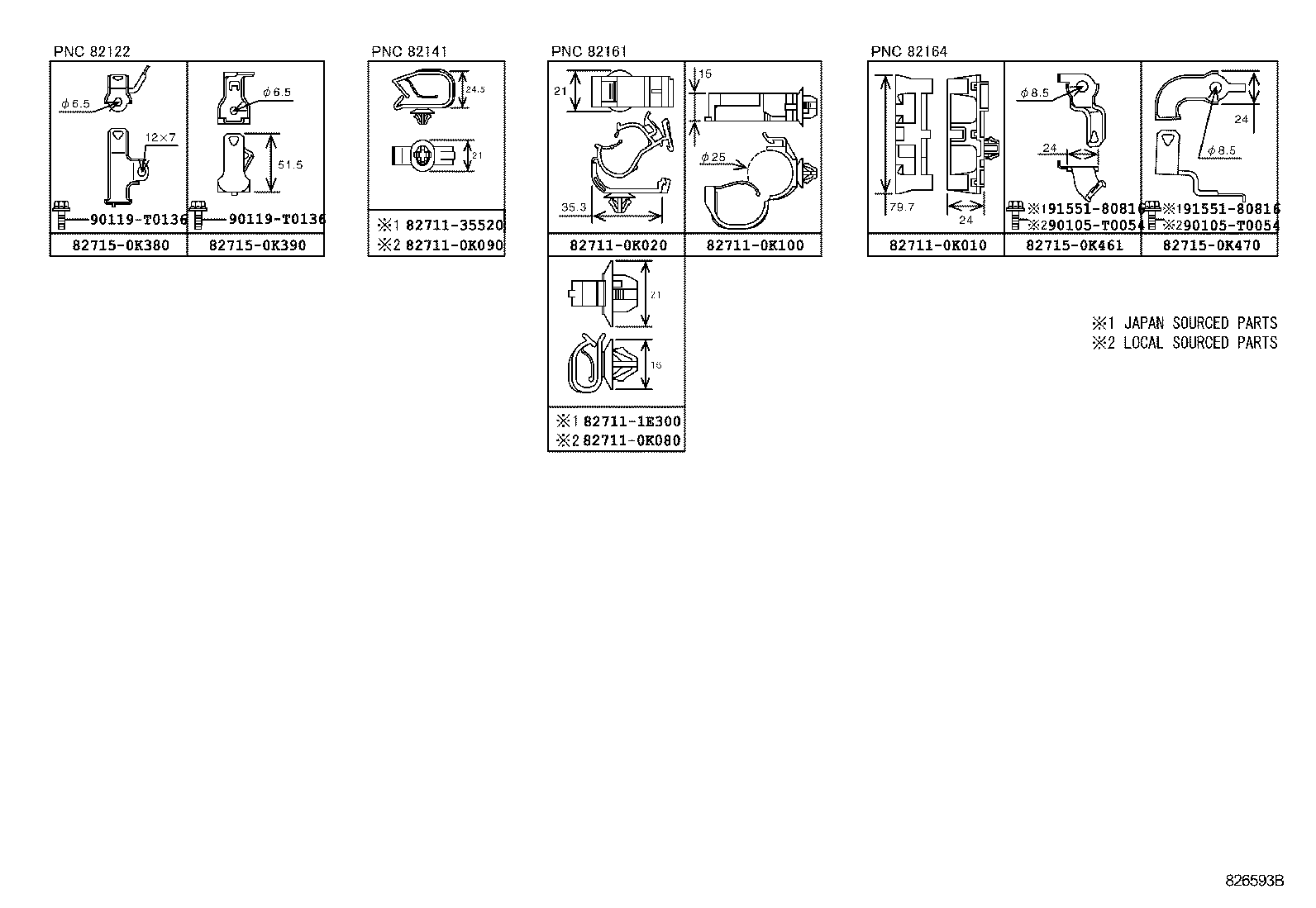

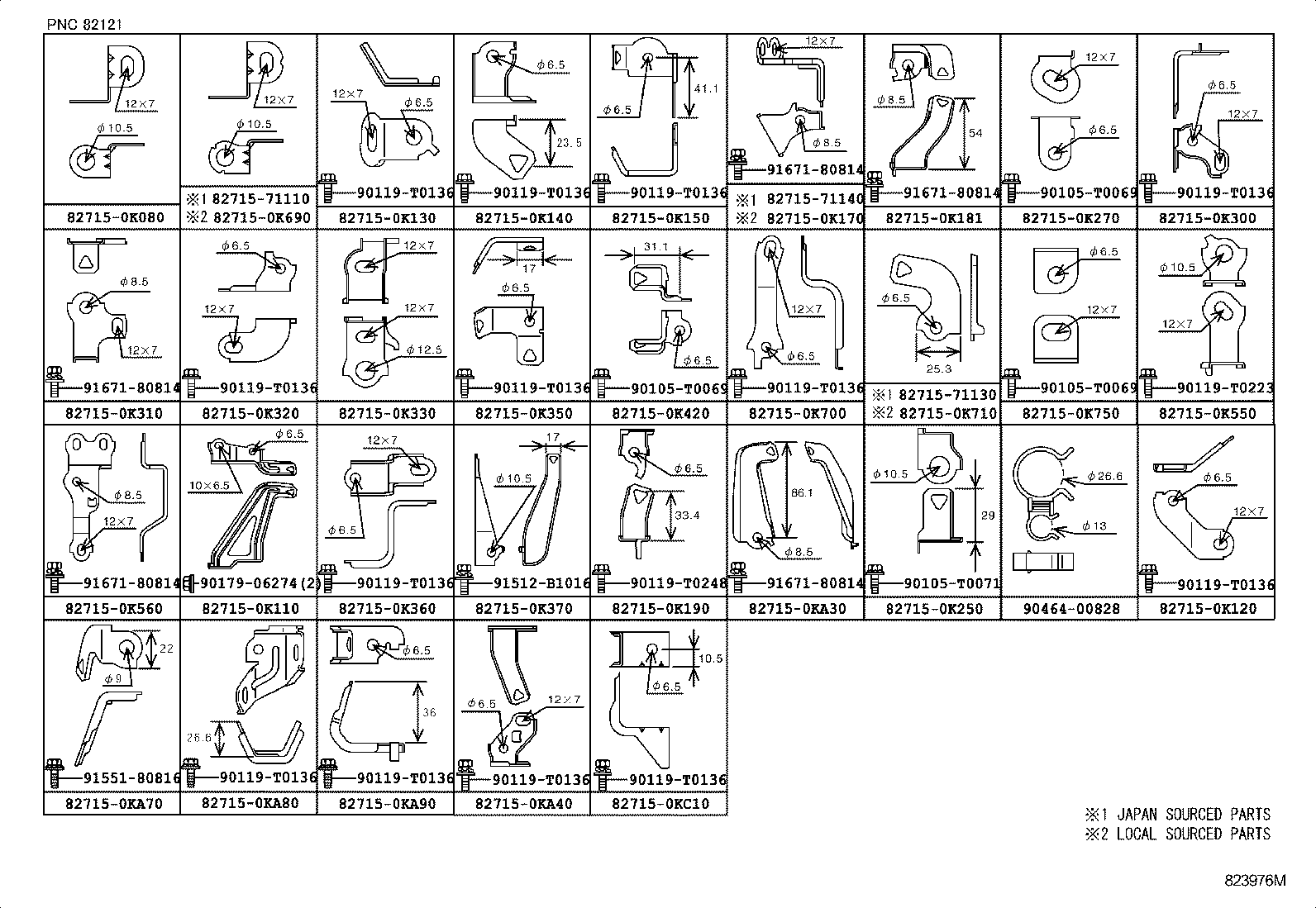

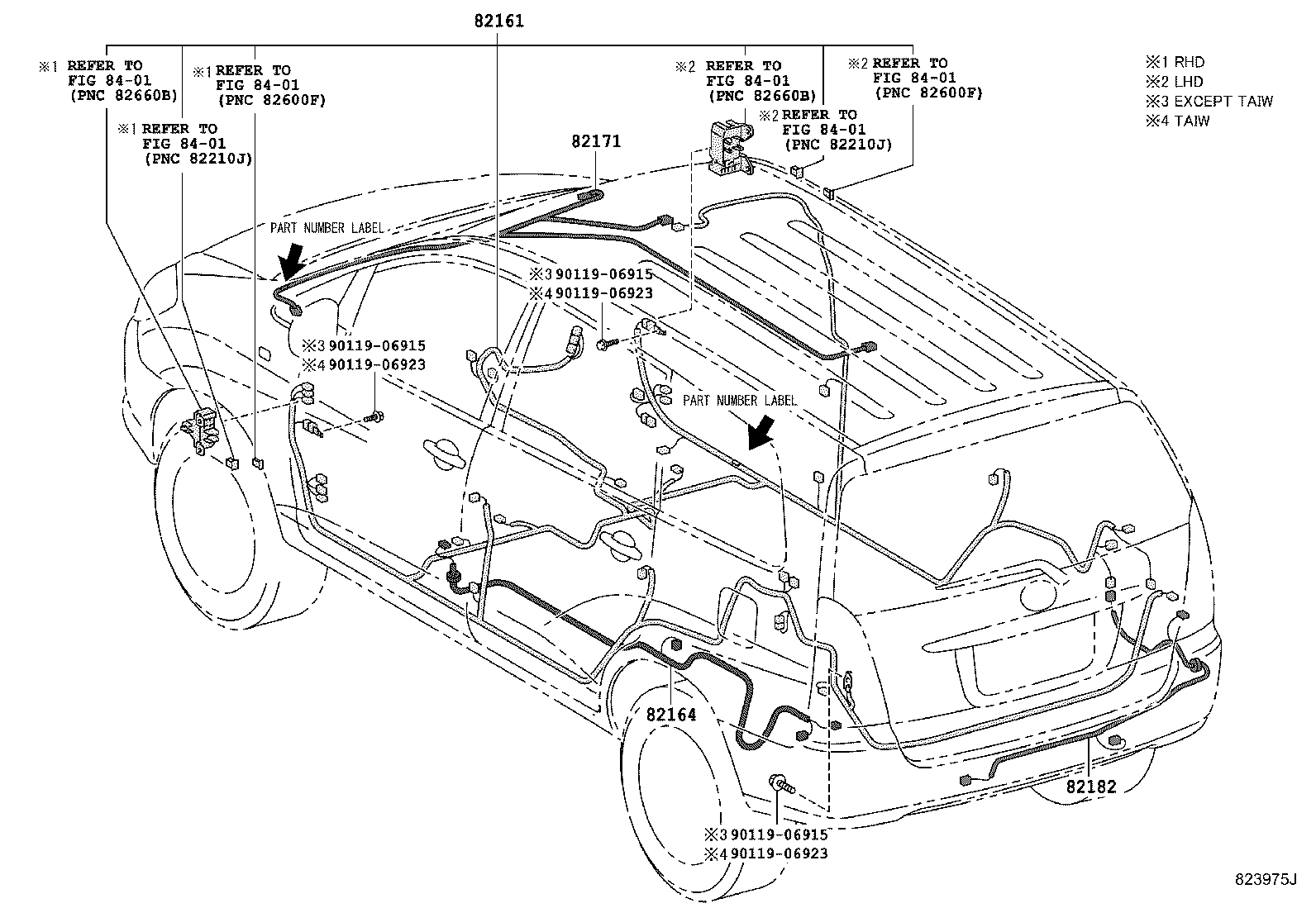

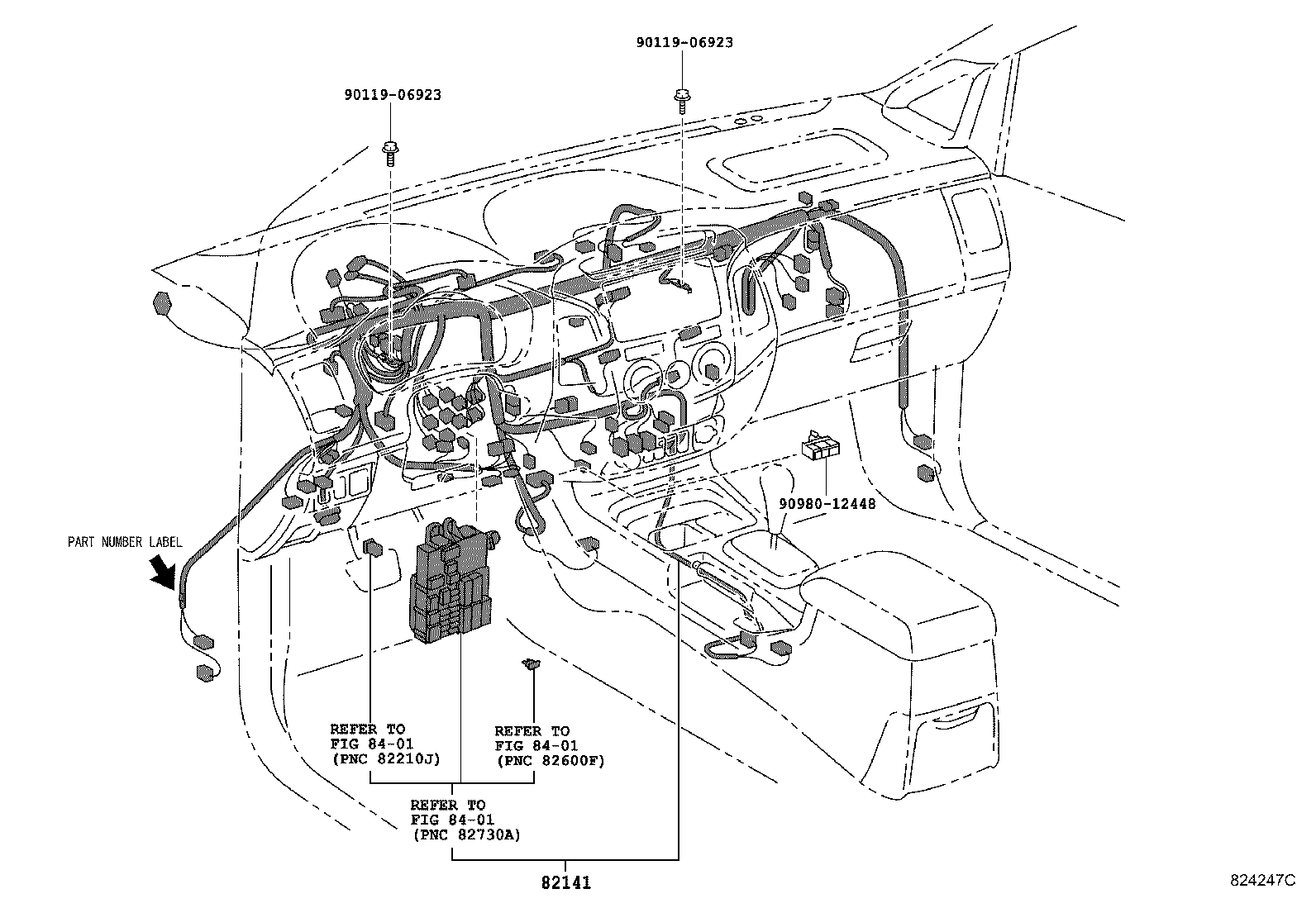

Figure 823970J 823970J 2004-08 → — Figure 823971F 823971F 2004-08 → — Figure 823972G 823972G 2004-08 → — Figure 823973C 823973C 2004-08 → — Figure 824247C 824247C 2005-01 → — Figure 823974C 823974C 2004-08 → — Figure 823975J 823975J 2004-08 → — Figure 823976M 823976M 2004-08 → — Figure 826593B 826593B 2004-08 → — Figure 823977 823977 2004-08 → — Figure 823978H 823978H 2004-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82219A Wire, Sensor
82284 Wire, Earth
82817B Protector, Wiring Harness, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
