Toyota Innova/Kijang Innova
2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General
Supported model
Data version 2016-12

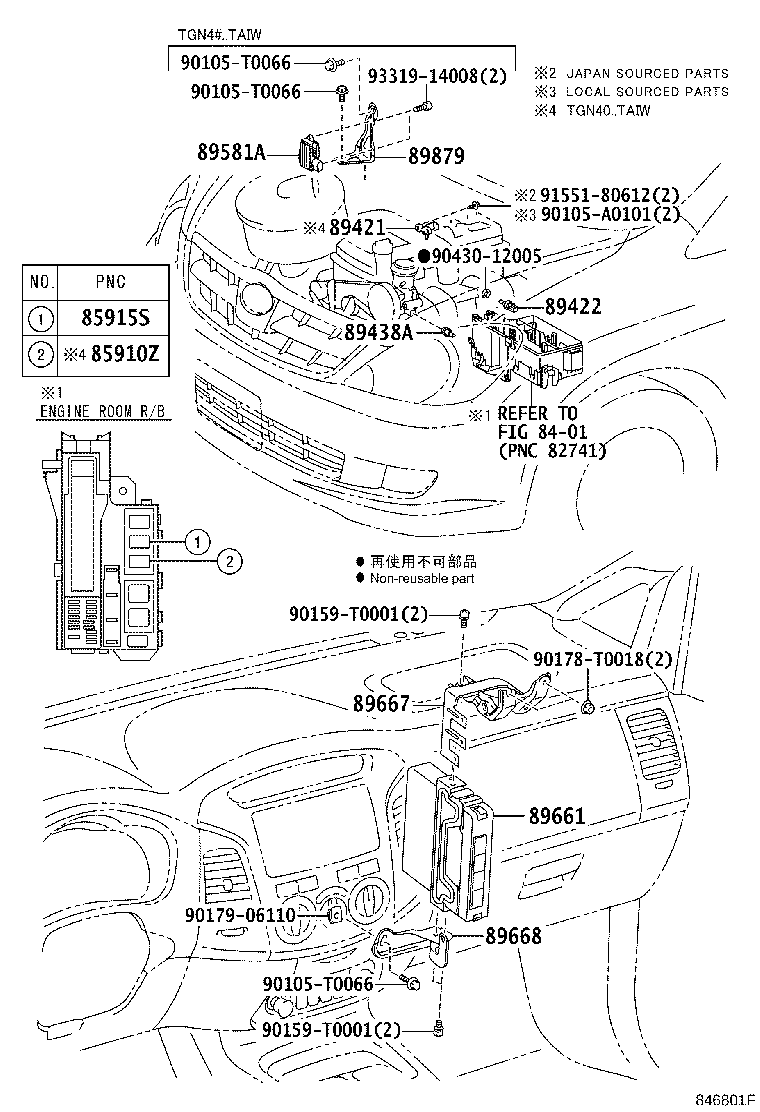

Electronic Fuel Injection System
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910Z | Relay, Injection (FOR EFI) |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89456 | Resistor, Variable |
| 89581A | Driver, Air Injection Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
