Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

12 part groups · 4 illustrations

Illustrations

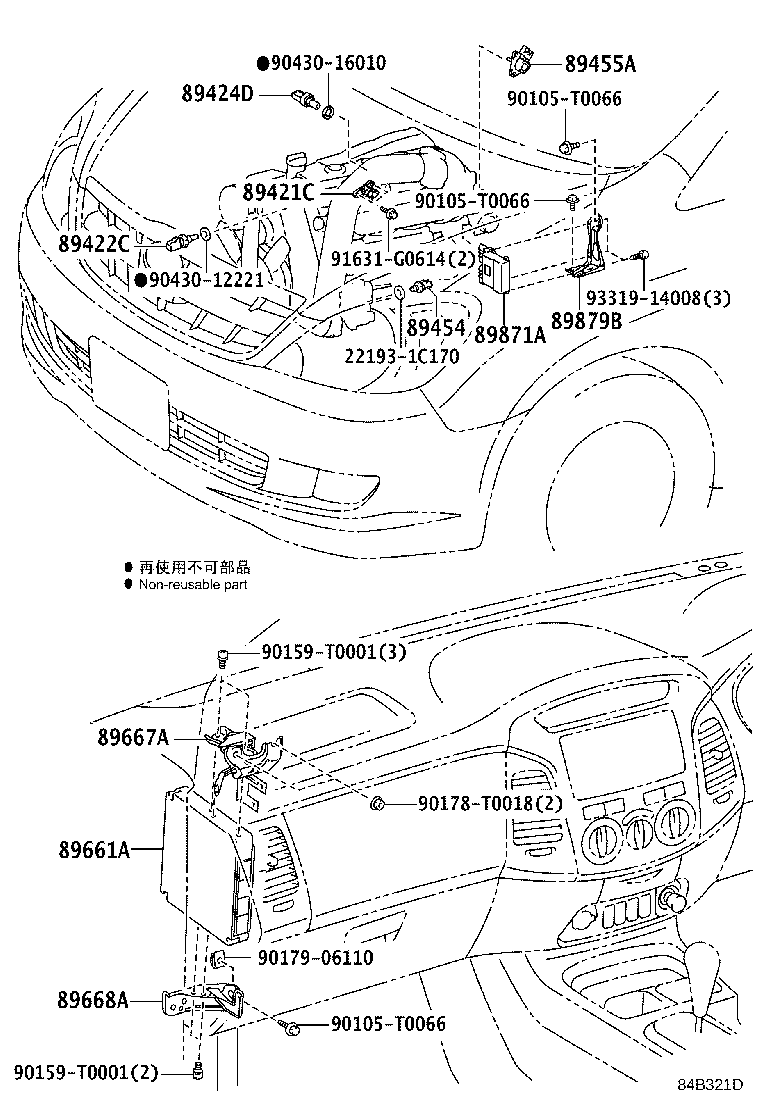

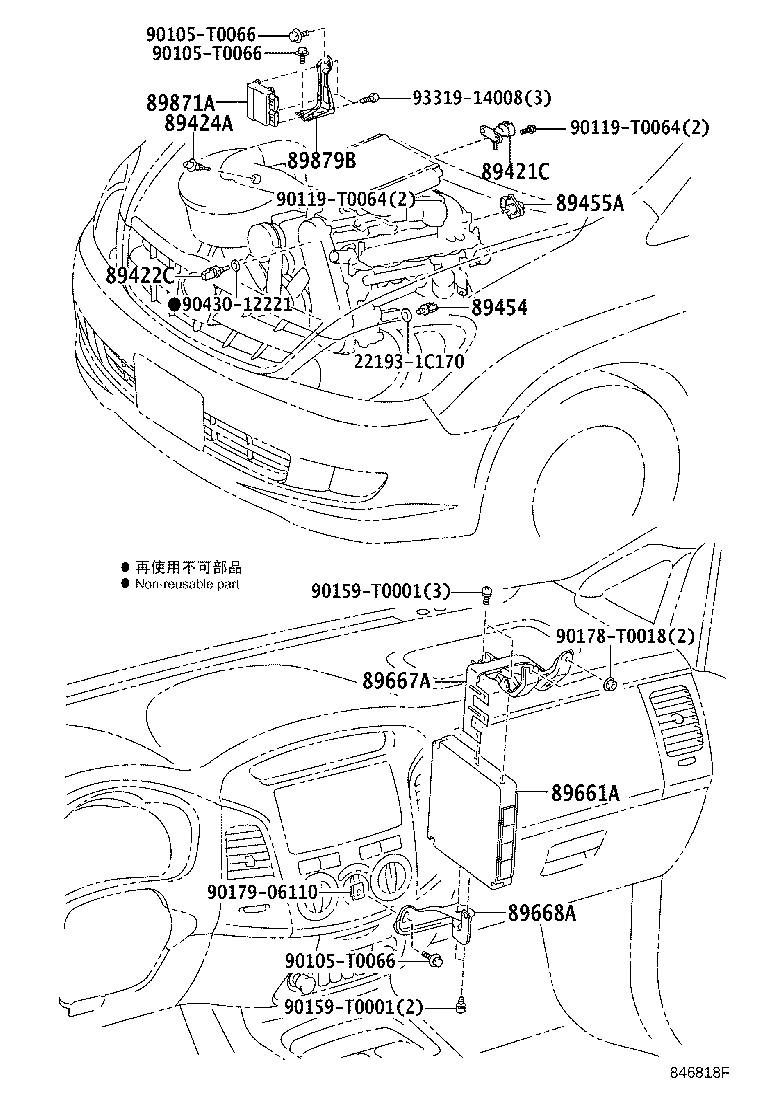

Figure 846578I 846578I 2004-08 → 2010-04 Figure 846578I 846578I 2004-08 → — Figure 846818F 846818F 2005-01 → — Figure 84B321D 84B321D 2010-04 → —

Part groups

PNCDescription
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89661A Computer, Engine Control
89661D Cushion, Engine Control Computer
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
