Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 7 illustrations

Illustrations

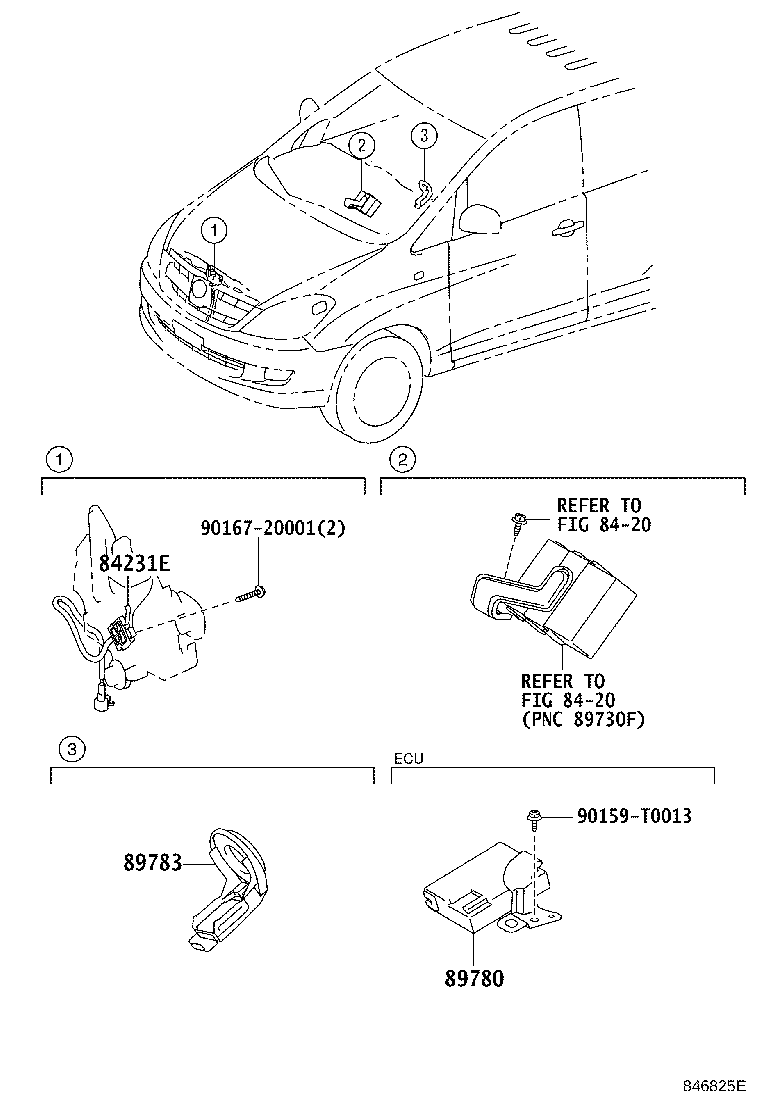

Figure 846388H 846388H 2004-08 → 2008-08 Figure 846388H 846388H 2004-08 → — Figure 846388H 846388H 2004-08 → — Figure 846825E 846825E 2005-01 → 2008-09 Figure 846825E 846825E 2005-01 → — Figure 849913D 849913D 2008-08 → — Figure 849914D 849914D 2008-09 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
