Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 24 illustrations

Illustrations

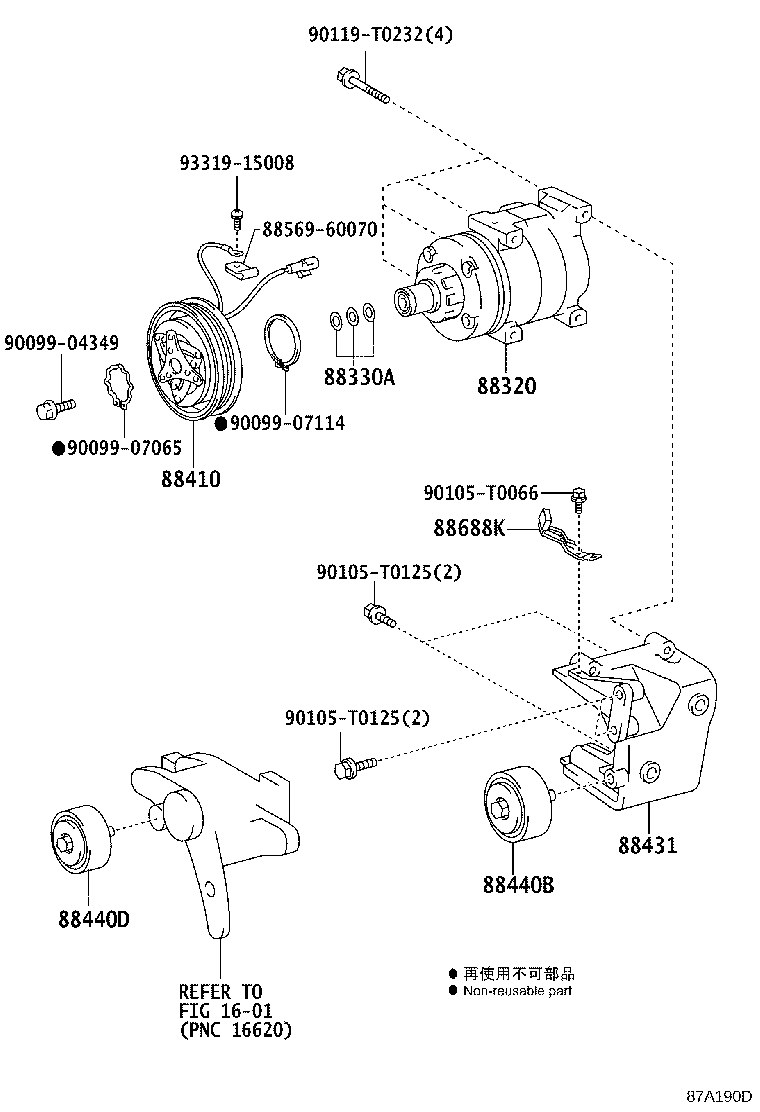

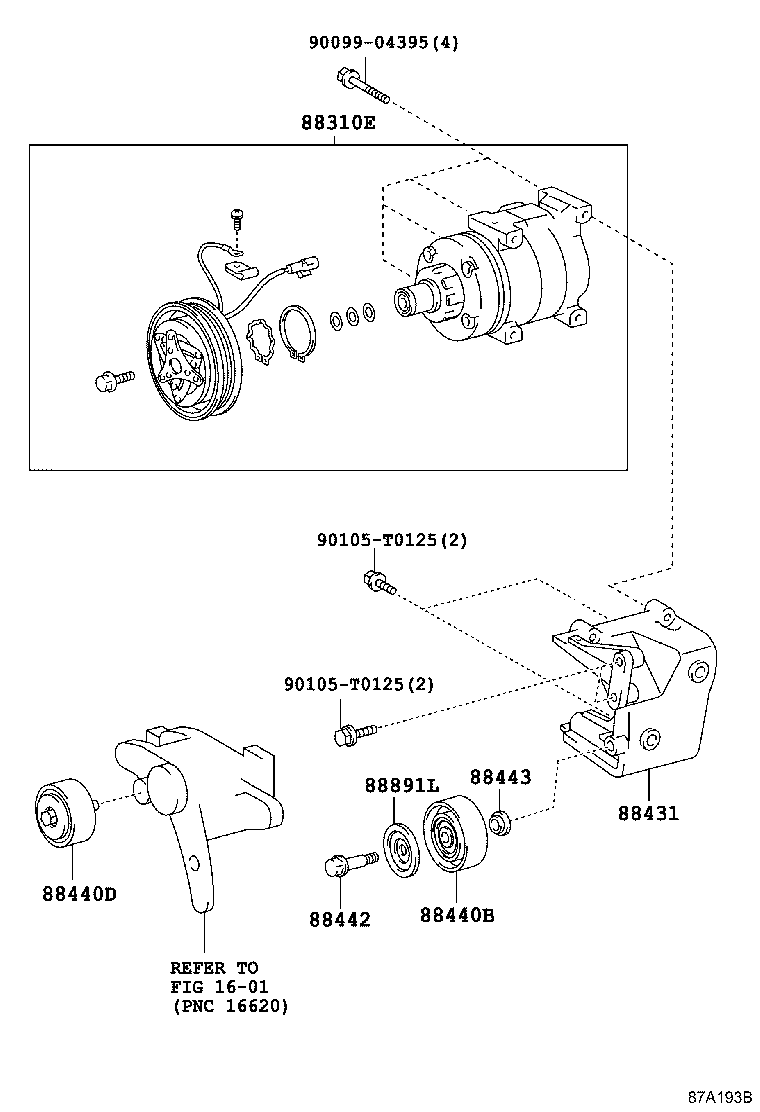

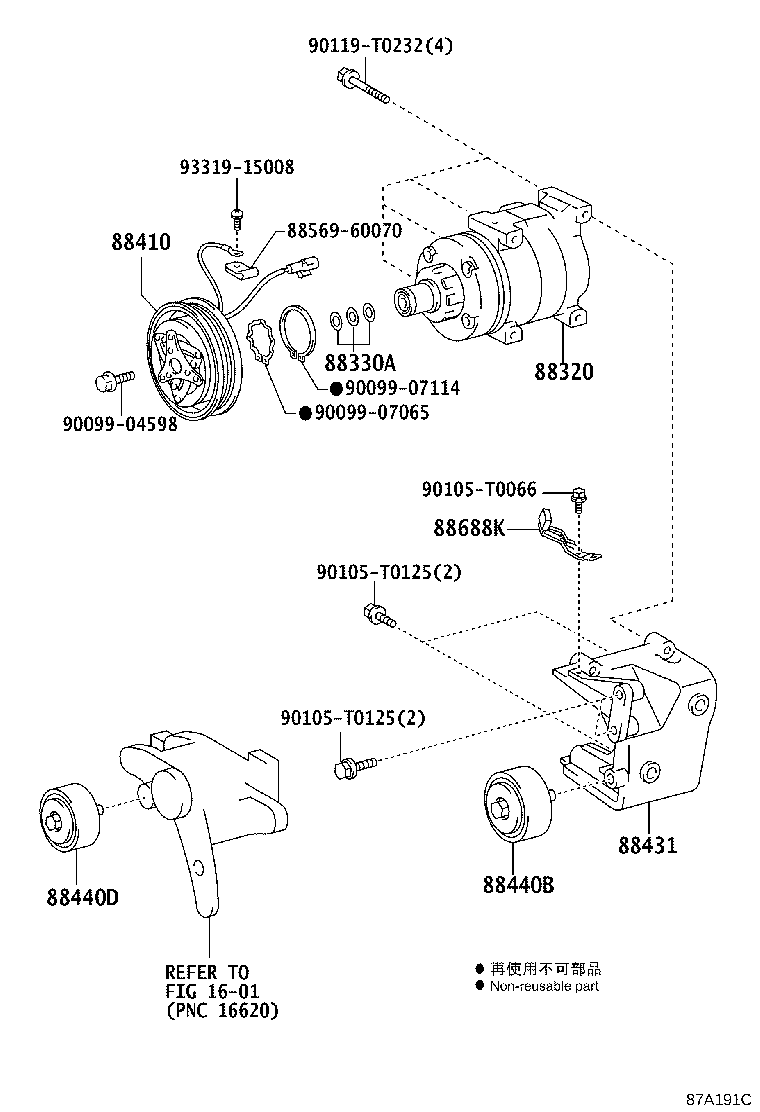

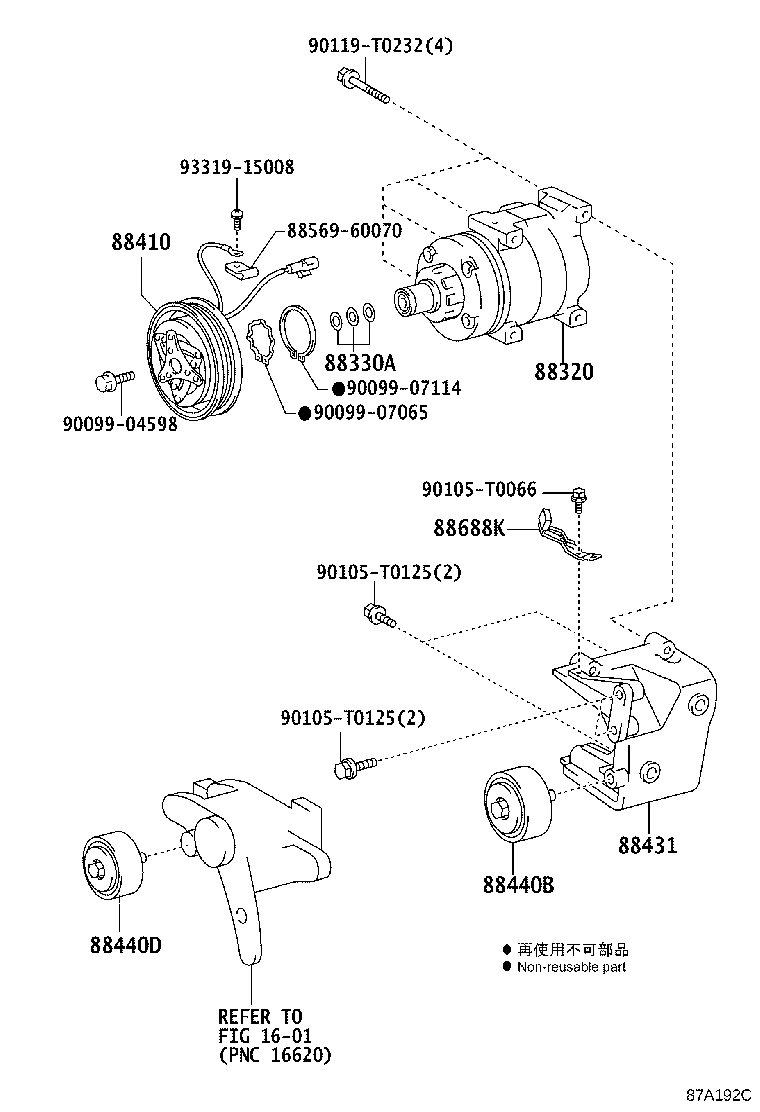

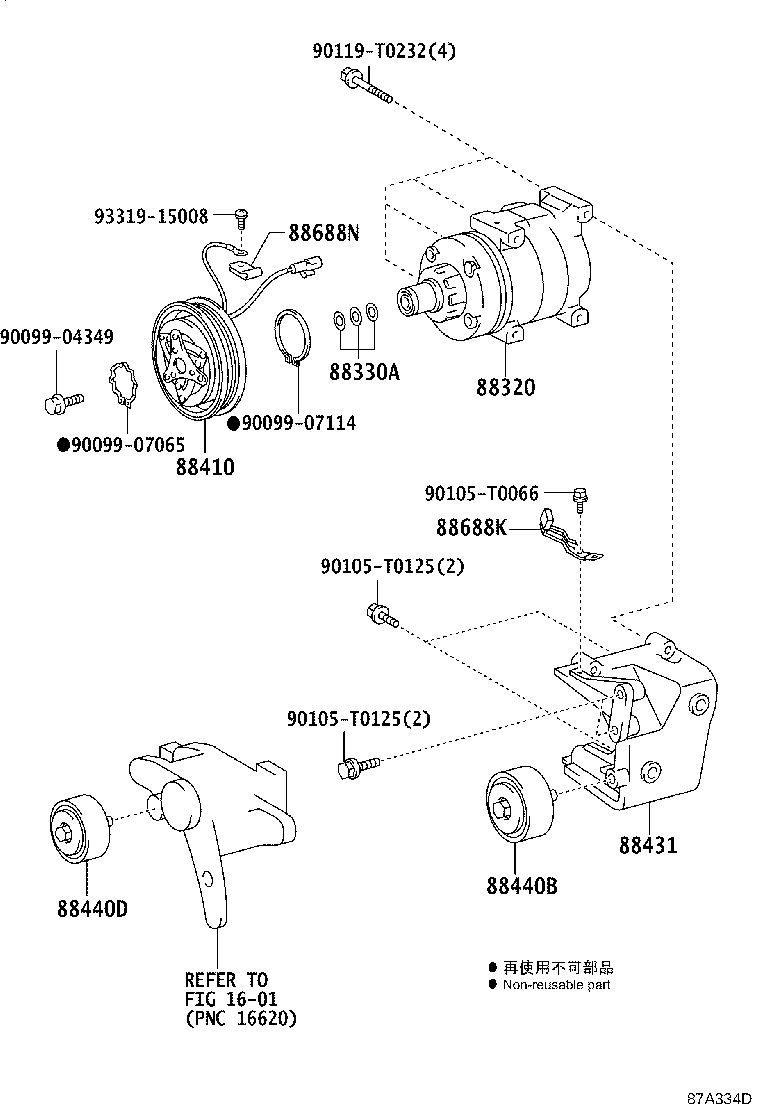

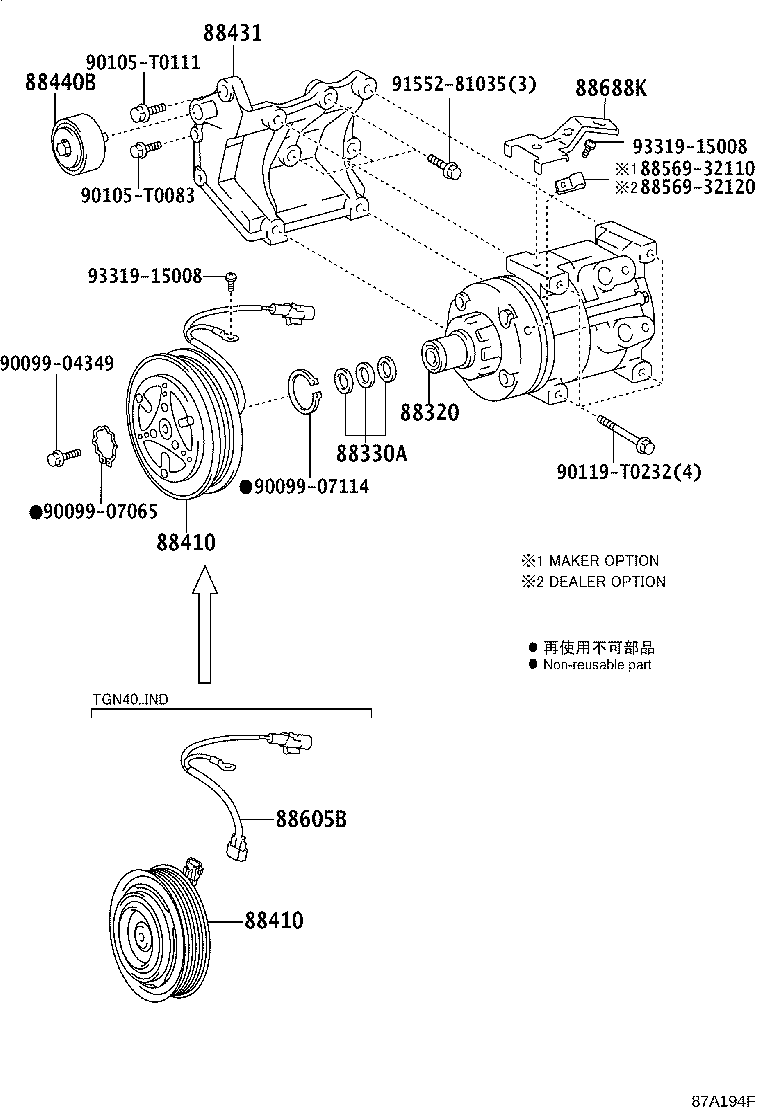

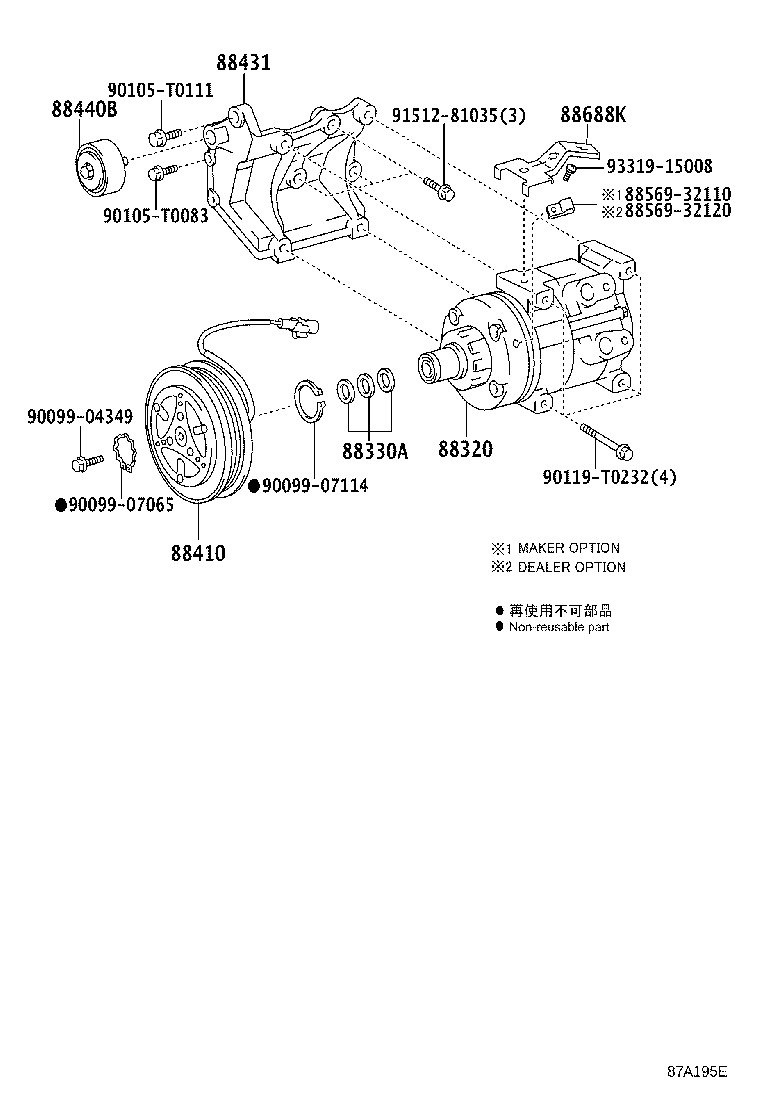

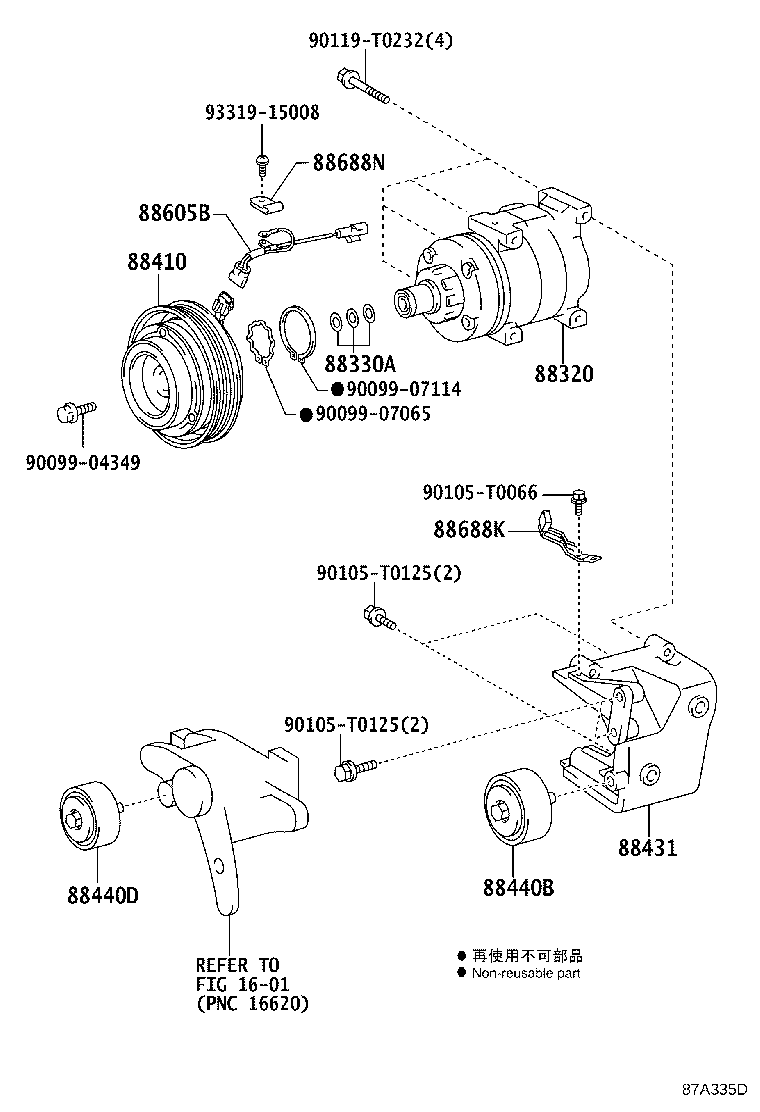

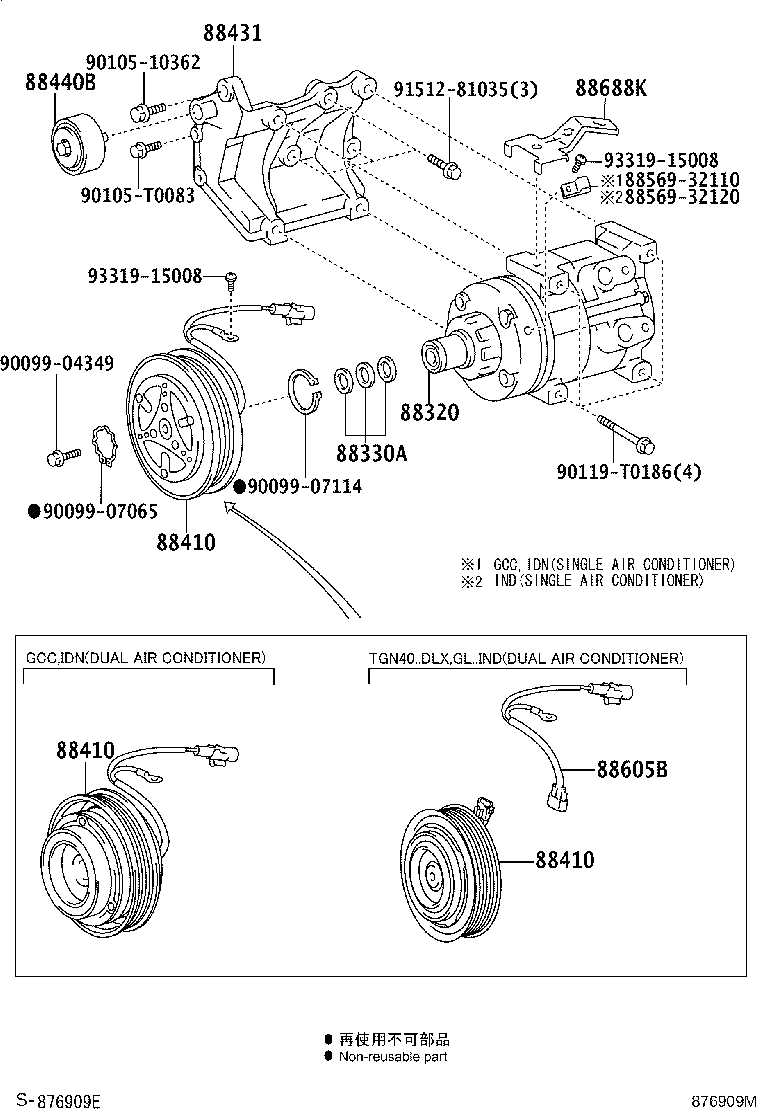

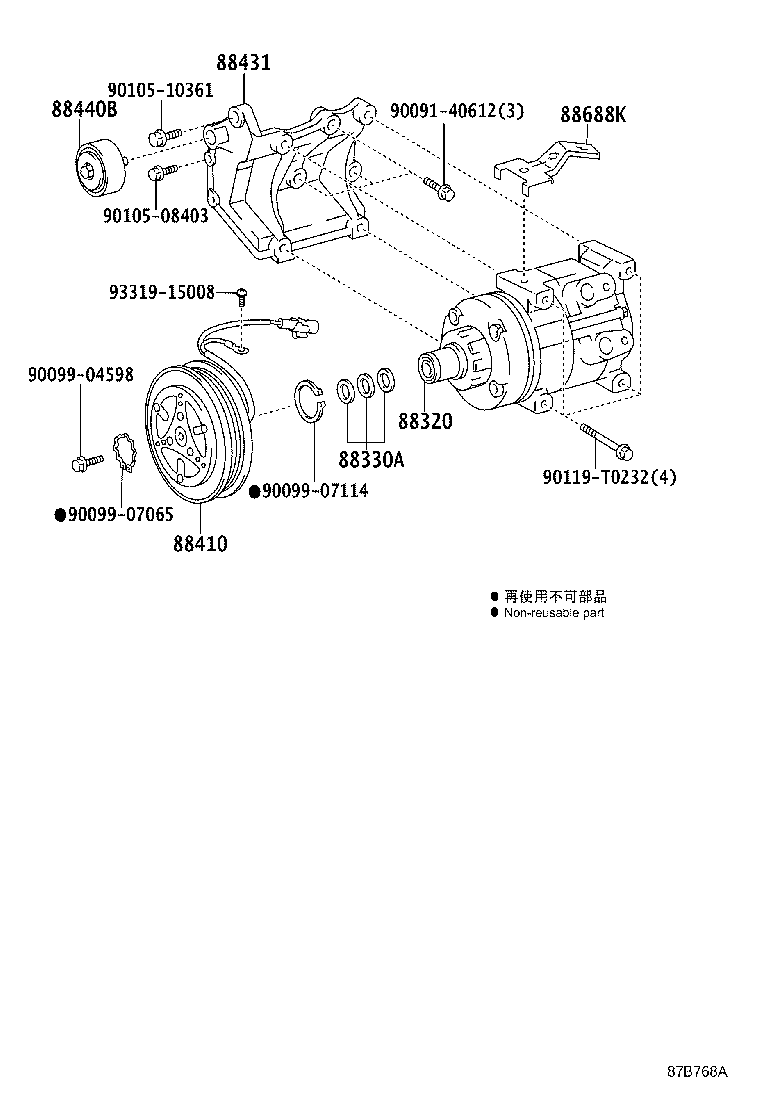

Figure 876910M 876910M 2004-08 → 2008-08 Figure 876910M 876910M 2004-08 → 2008-09 Figure 876910M 876910M 2004-08 → — Figure 876910M 876910M 2005-02 → 2008-12 Figure 876909M 876909M 2004-08 → 2008-08 Figure 876909M 876909M 2004-08 → 2008-09 Figure 876909M 876909M 2004-08 → 2008-12 Figure 876909M 876909M 2004-08 → — Figure 876909M 876909M 2005-02 → — Figure 87A190D 87A190D 2008-08 → — Figure 87A191C 87A191C 2008-08 → — Figure 87A195E 87A195E 2008-08 → — Figure 87A195E 87A195E 2008-09 → — Figure 87A195E 87A195E 2008-12 → — Figure 87A195E 87A195E 2011-11 → — Figure 87A194F 87A194F 2008-08 → — Figure 87A194F 87A194F 2008-09 → — Figure 87A194F 87A194F 2008-12 → — Figure 87A194F 87A194F 2011-12 → — Figure 87B768A 87B768A 2008-08 → — Figure 87A192C 87A192C 2008-09 → — Figure 87A193B 87A193B 2008-09 → — Figure 87A334D 87A334D 2008-12 → — Figure 87A335D 87A335D 2008-12 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
88891L Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
