Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 3 illustrations

Illustrations

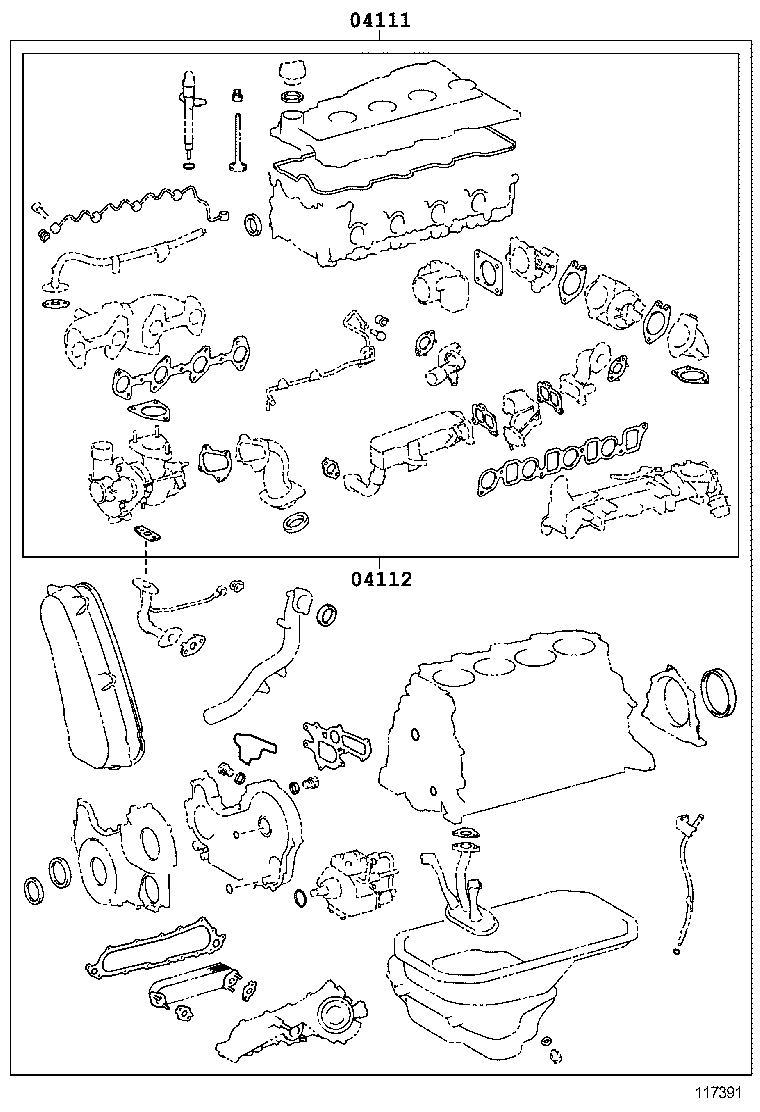

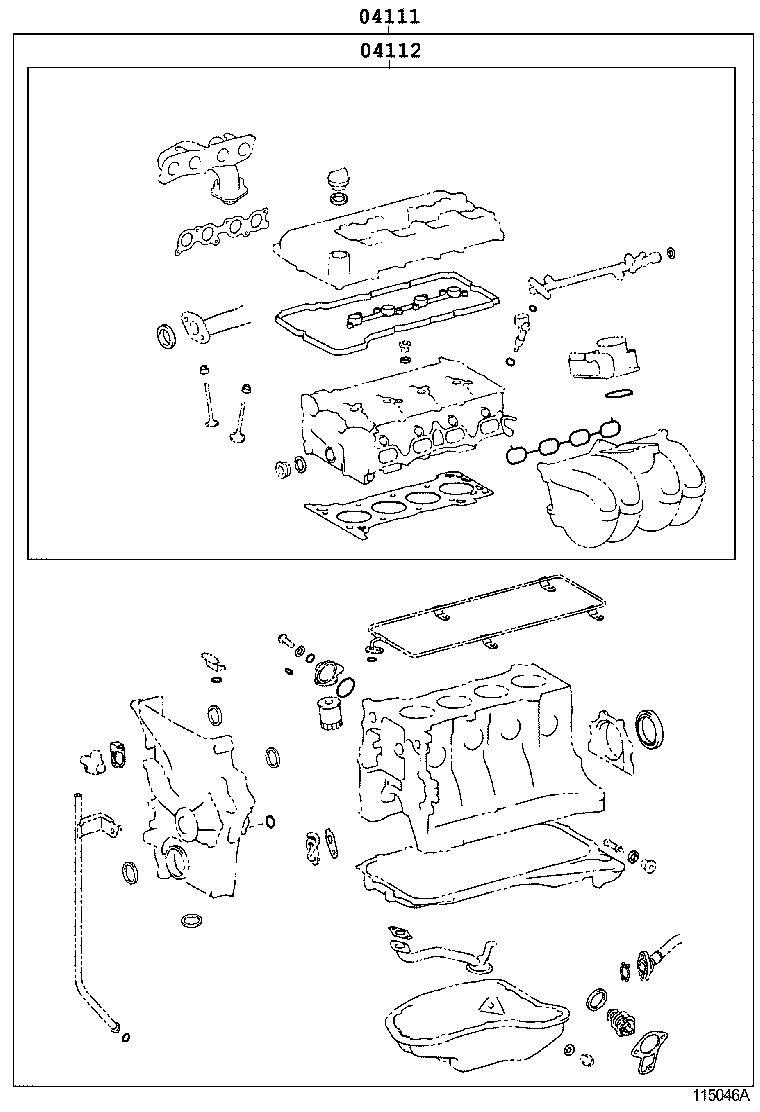

Figure 117106 117106 2011-07 → — Figure 117391 117391 2012-01 → — Figure 115046A 115046A 2011-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
