Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

12 part groups · 3 illustrations

Illustrations

Figure 151843B

151843B 2011-07 → —

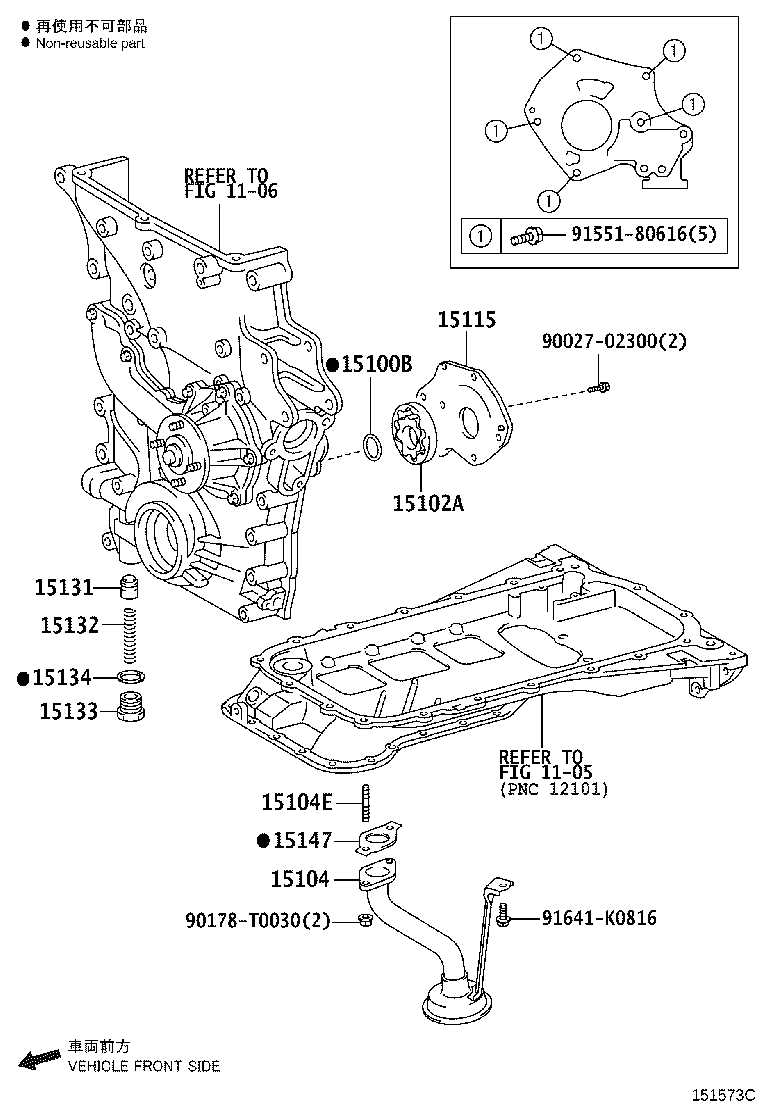

Figure 151573C

151573C 2011-07 → 2015-03

Figure 152233C

152233C 2015-03 → —

Part groups

PNC	Description
15100B	Ring, O(FOR OIL PUMP)
15102A	Rotor, Oil Pump
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15115	Cover, Oil Pump
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15149	Gasket, Oil Strainer Flange
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
