Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 3 illustrations

Illustrations

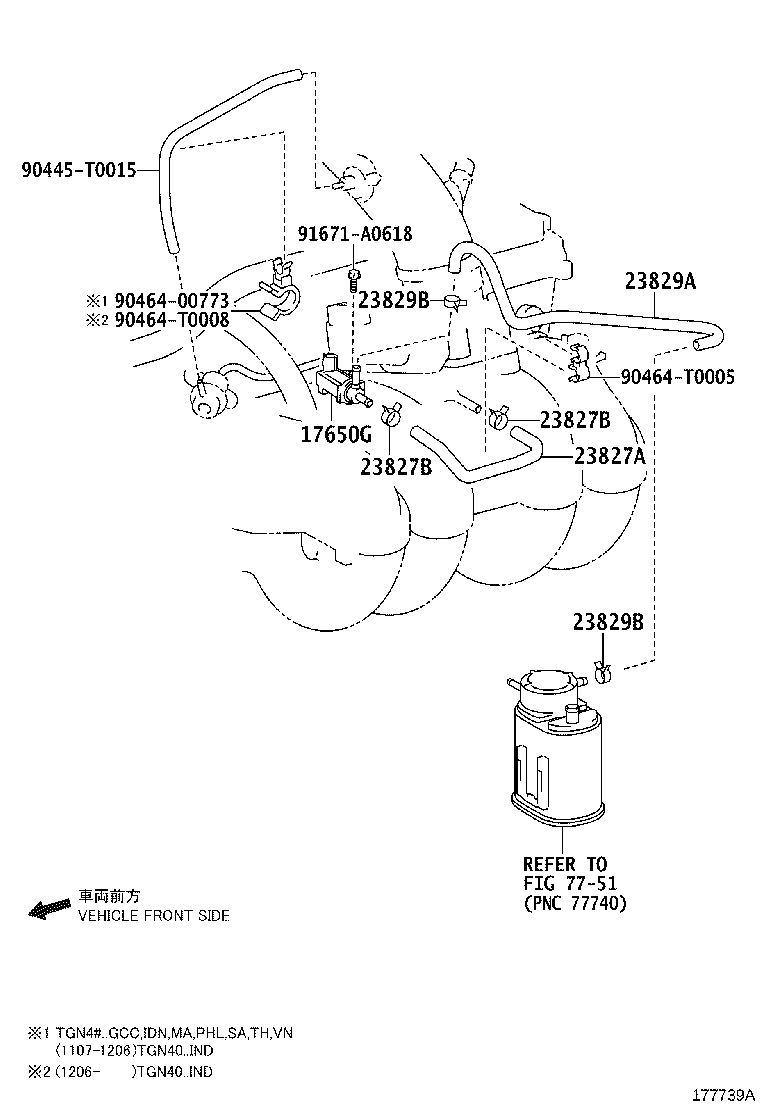

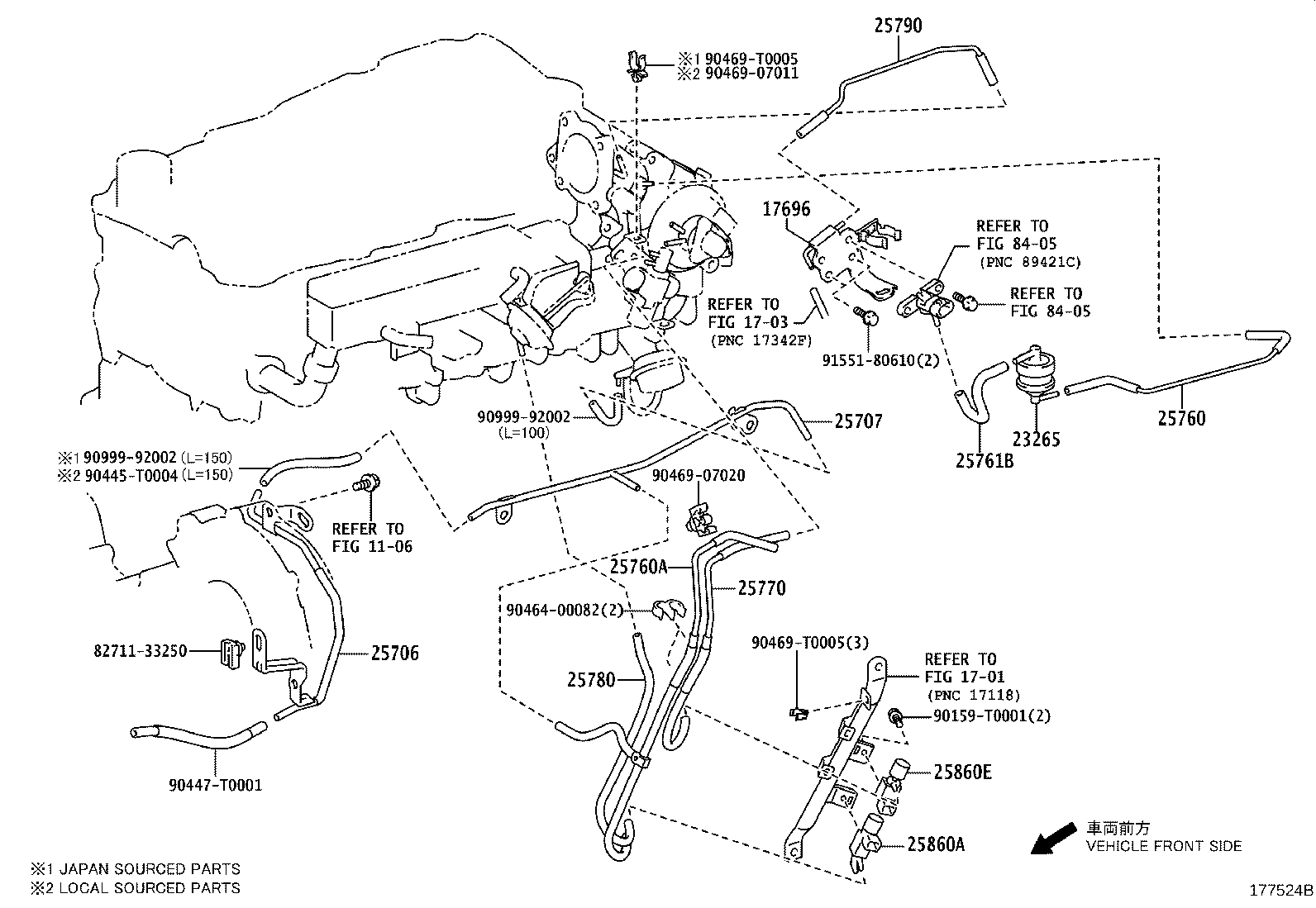

Figure 177284A 177284A 2011-07 → — Figure 177524B 177524B 2012-01 → — Figure 177739A 177739A 2011-07 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
