Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

9 part groups · 2 illustrations

Illustrations

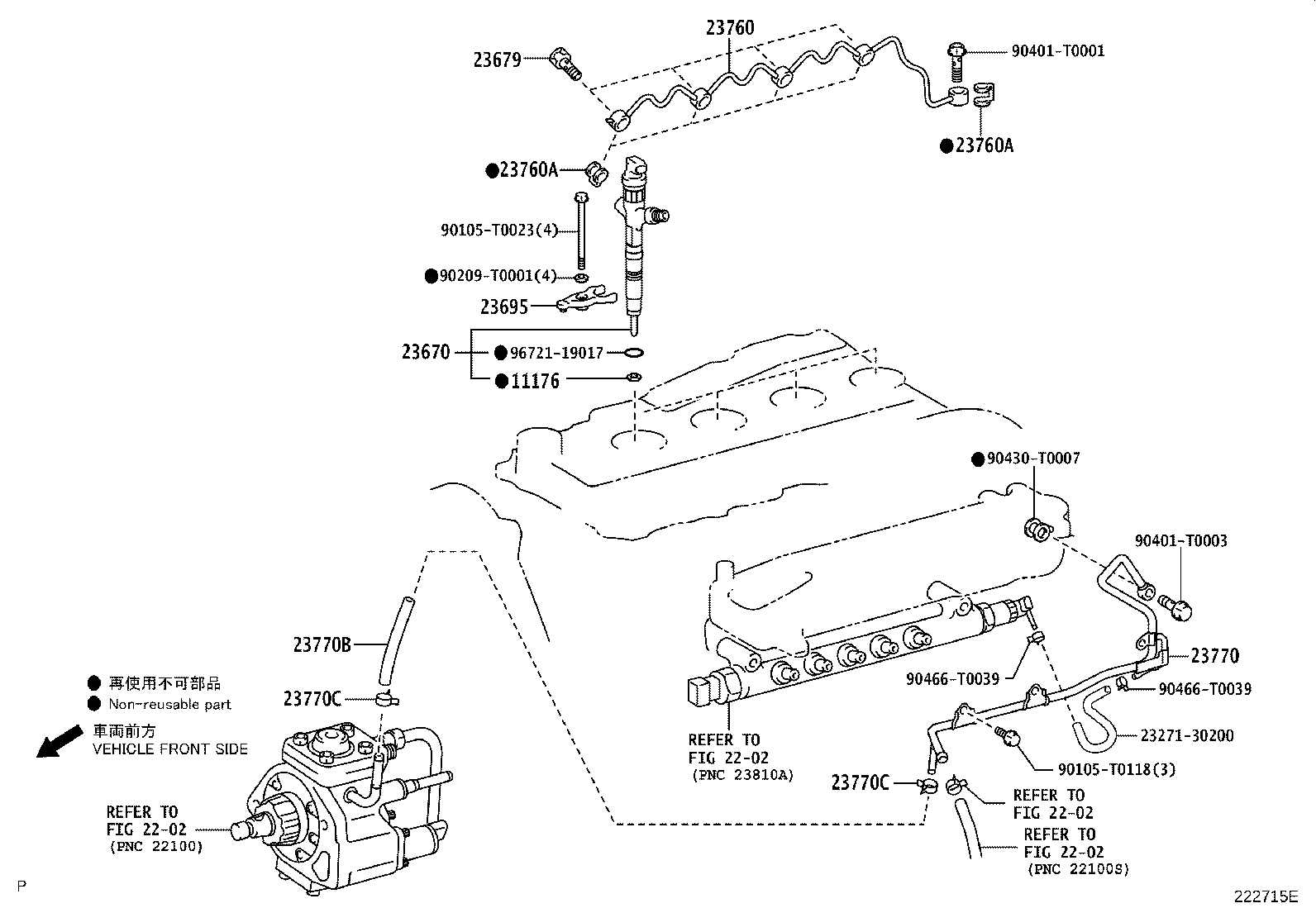

Figure 222666E 222666E 2011-07 → — Figure 222715E 222715E 2012-01 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
