Toyota Innova/Kijang Innova
2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General
Supported model
Data version 2017-05

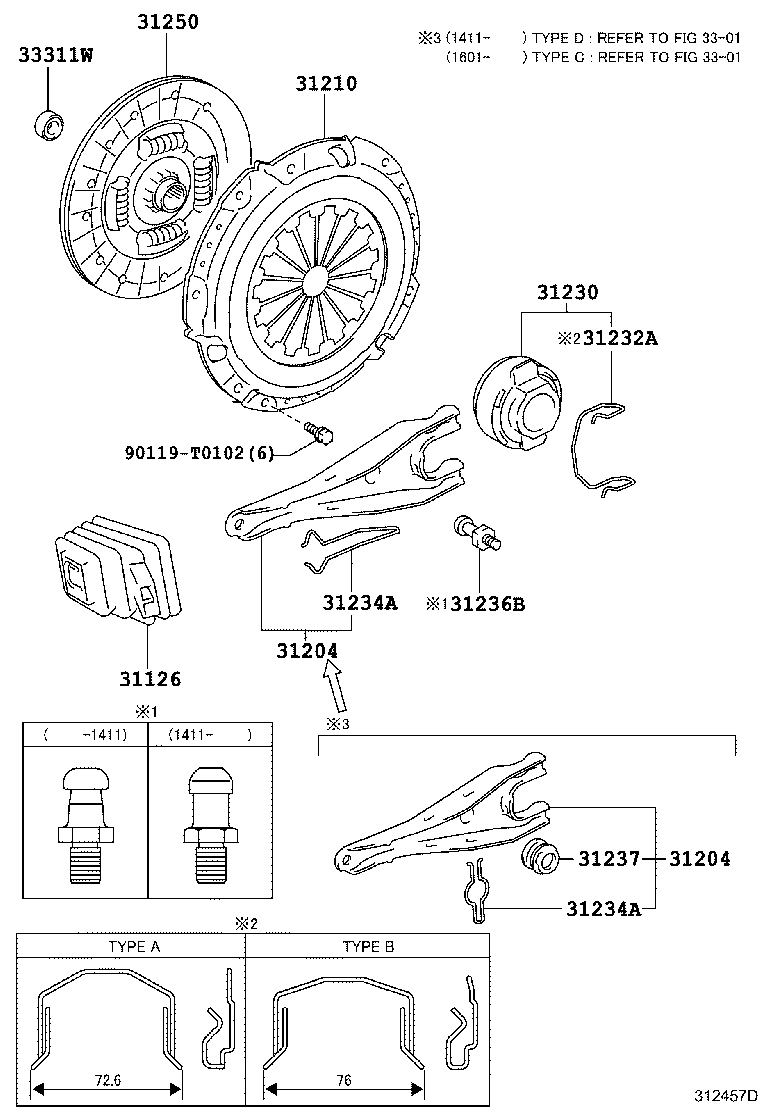

Clutch & Release Fork
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31231B | Ring, Snap(FOR CLUTCH RELEASE HUB) |
| 31232A | Clip, Release Bearing Hub |
| 31234A | Spring, Release Fork Support |
| 31236B | Support, Release Fork |
| 31237 | Boot, Clutch Release Fork Support |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
