Toyota Innova/Kijang Innova
2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General
Supported model
Data version 2017-05

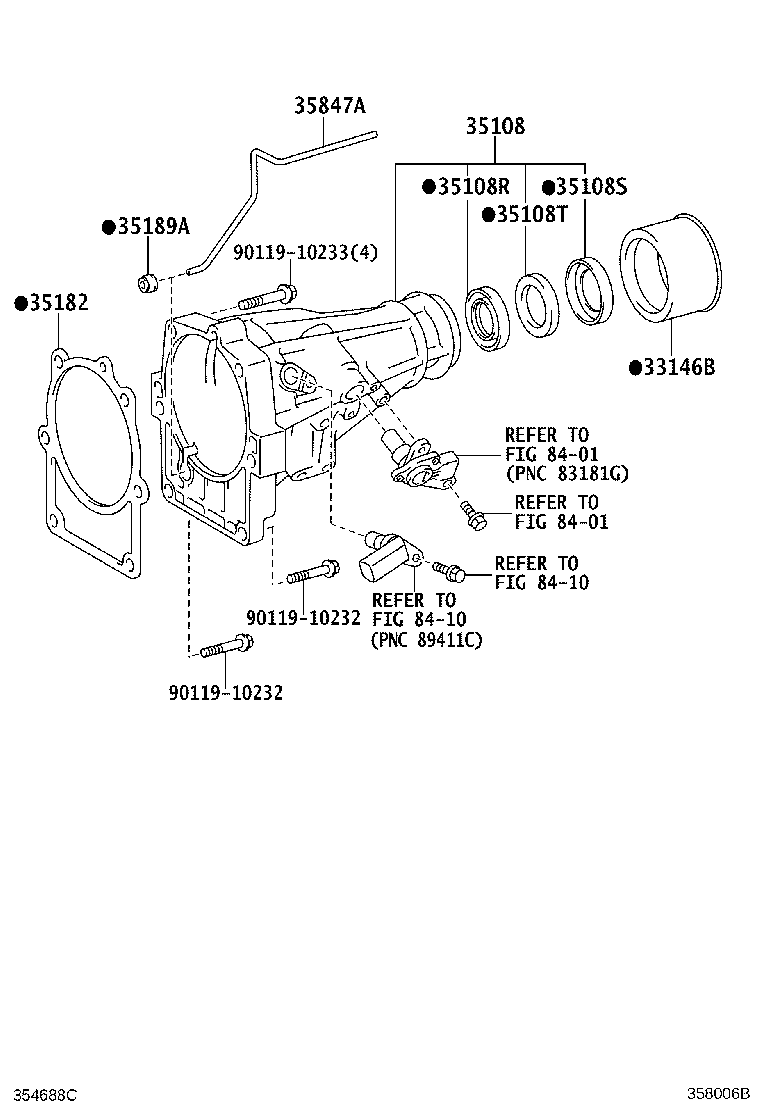

Extension Housing (ATM)
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33146B | Deflector, Extension Housing Dust |
| 35108 | Housing Sub-assy, Extension (ATM) |
| 35108R | Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) |
| 35108S | Retainer, Extension Housing Dust Seal (ATM) |
| 35108T | Seal, Dust (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) |
| 35182 | Gasket, Extension Housing (ATM) |
| 35189A | Gasket, Extension Housing Bush Apply Tube |
| 35847A | Tube, Extension Housing Bush Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
