Toyota Innova/Kijang Innova
2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General
Supported model
Data version 2017-05

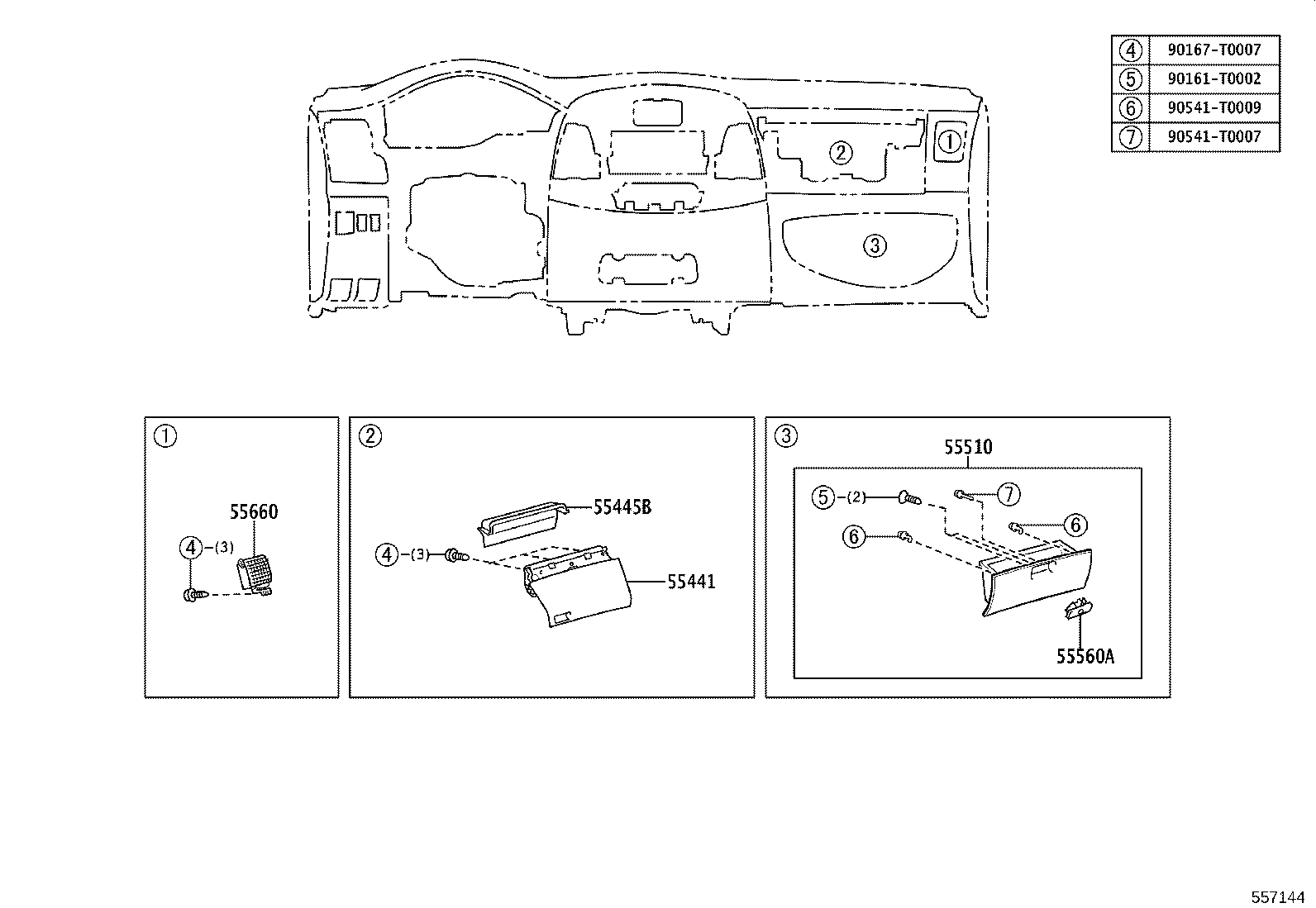

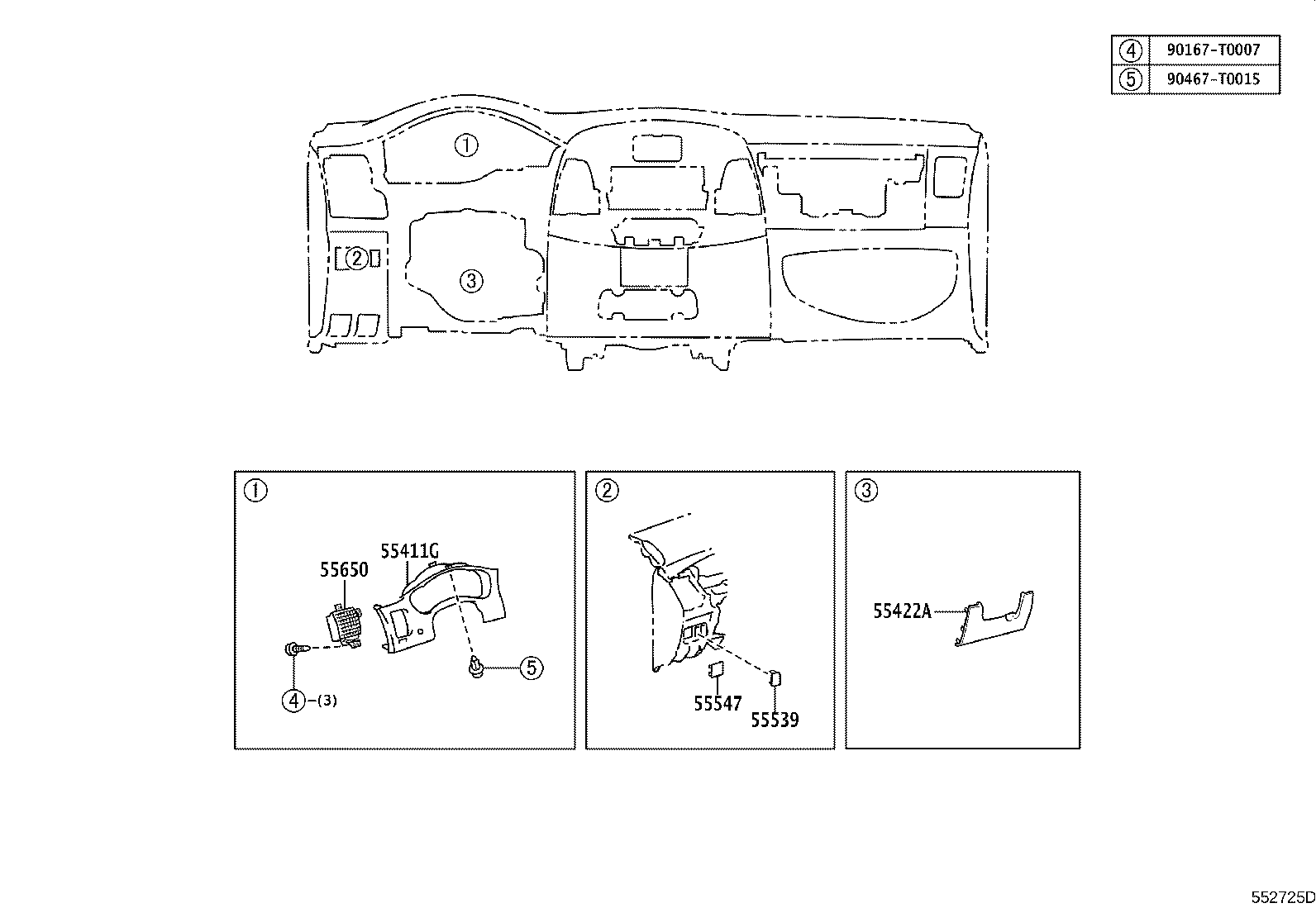

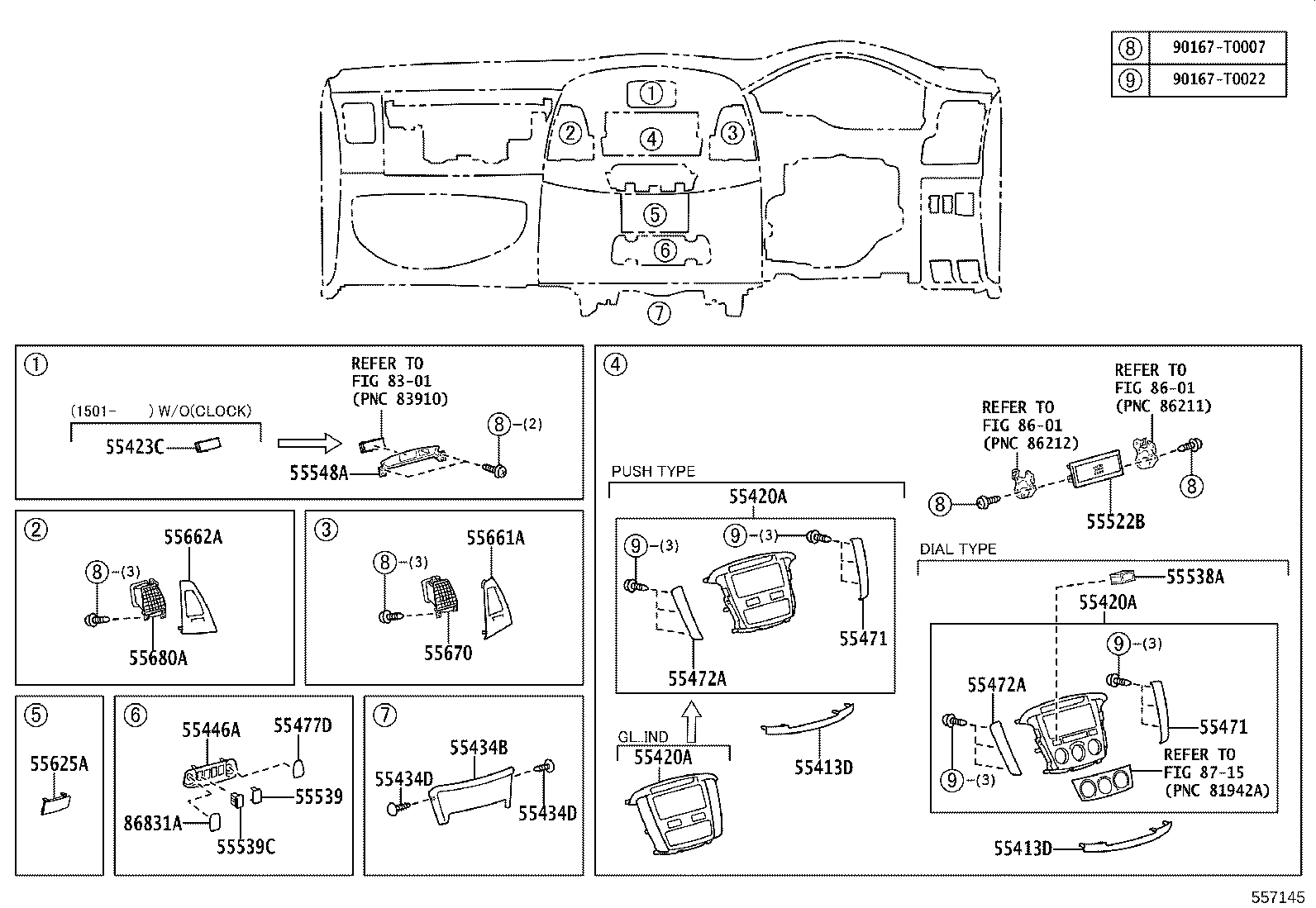

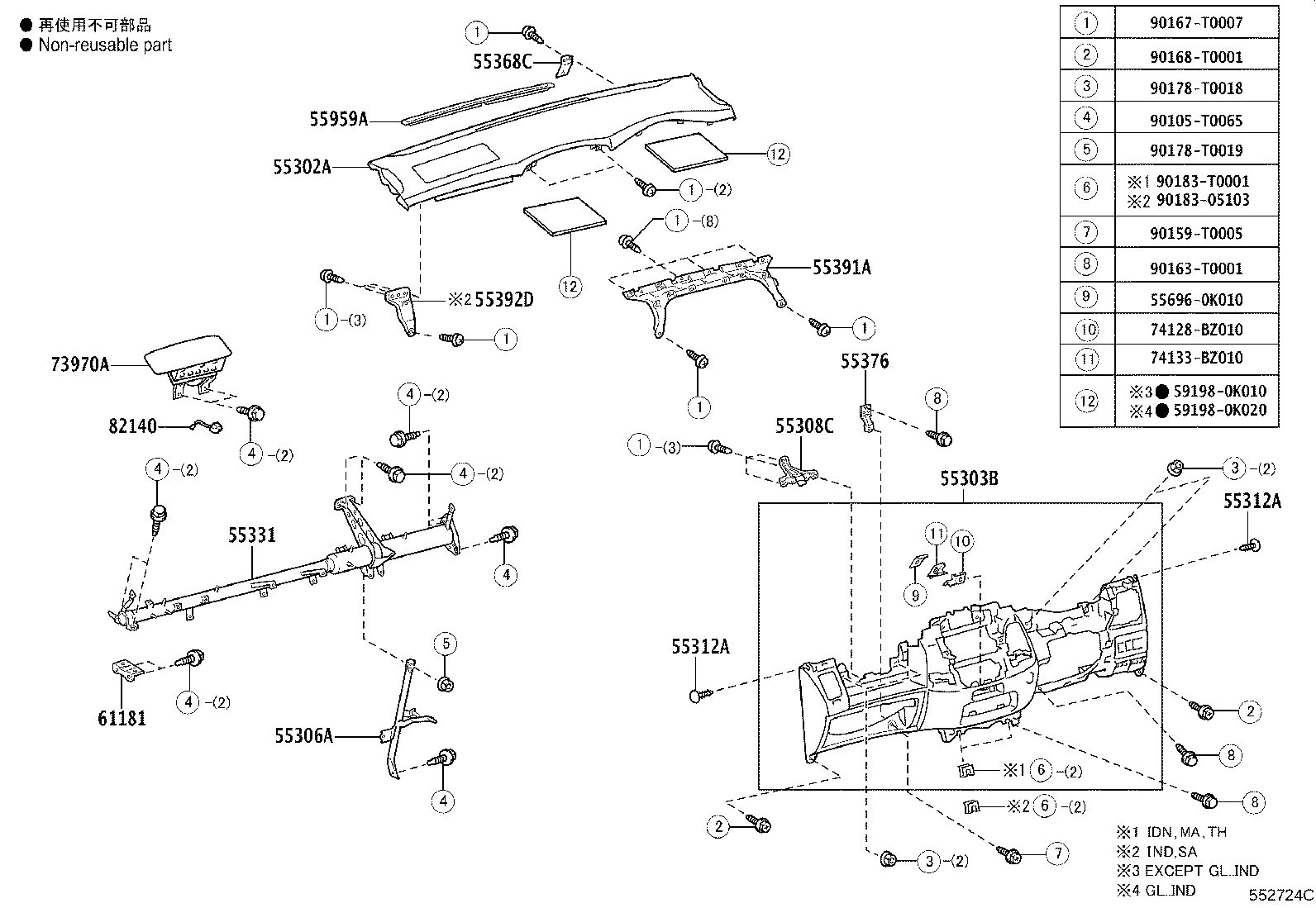

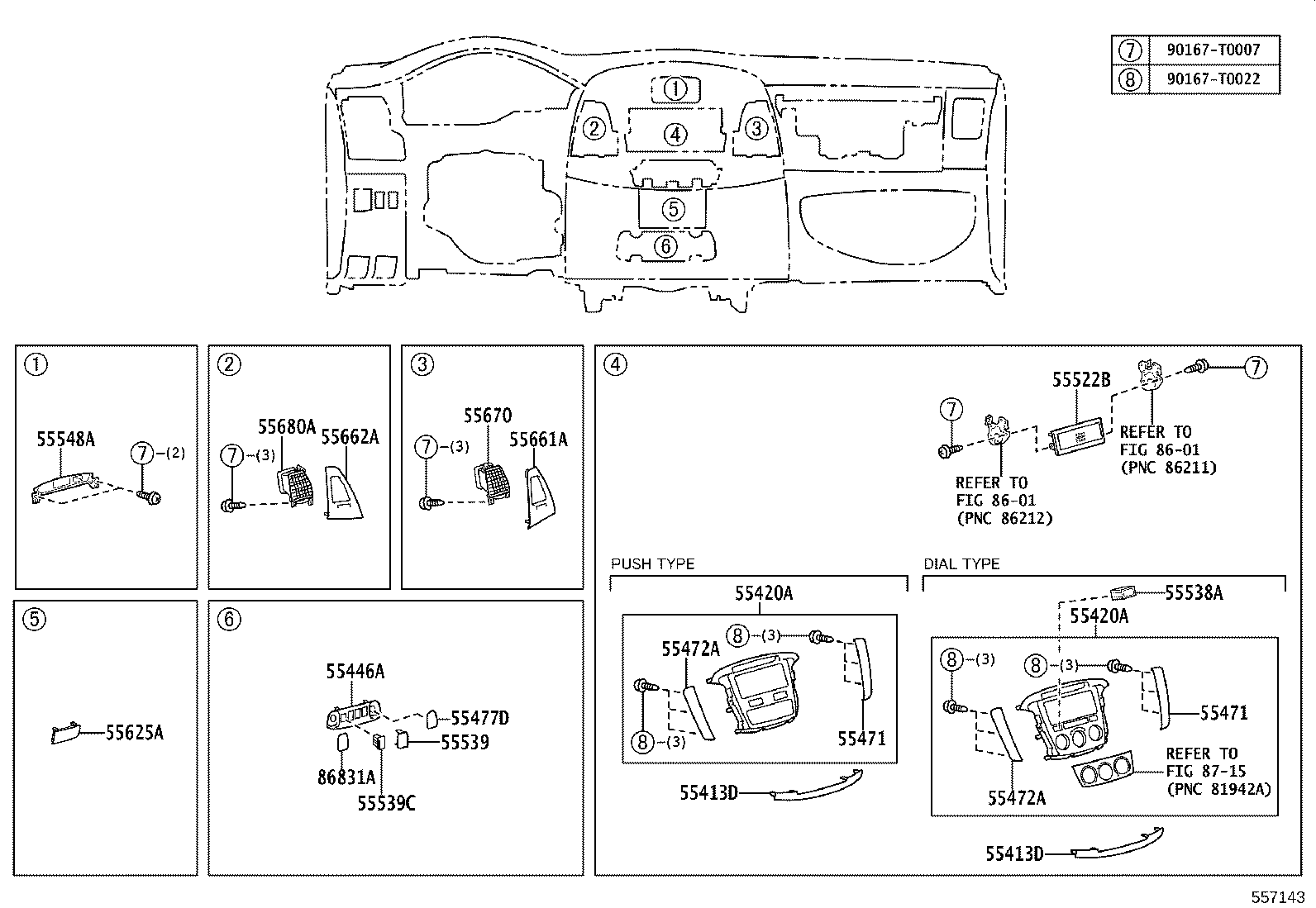

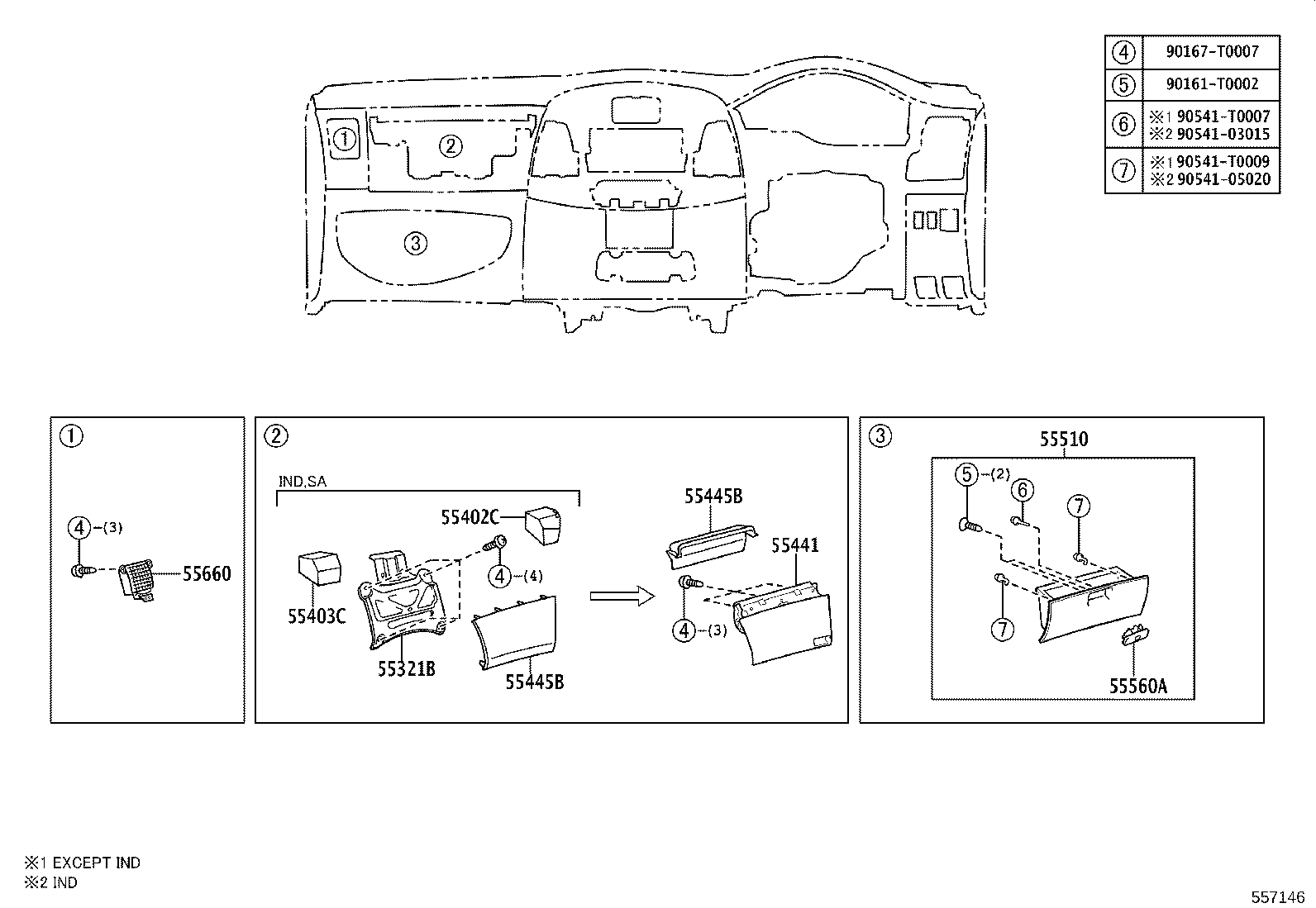

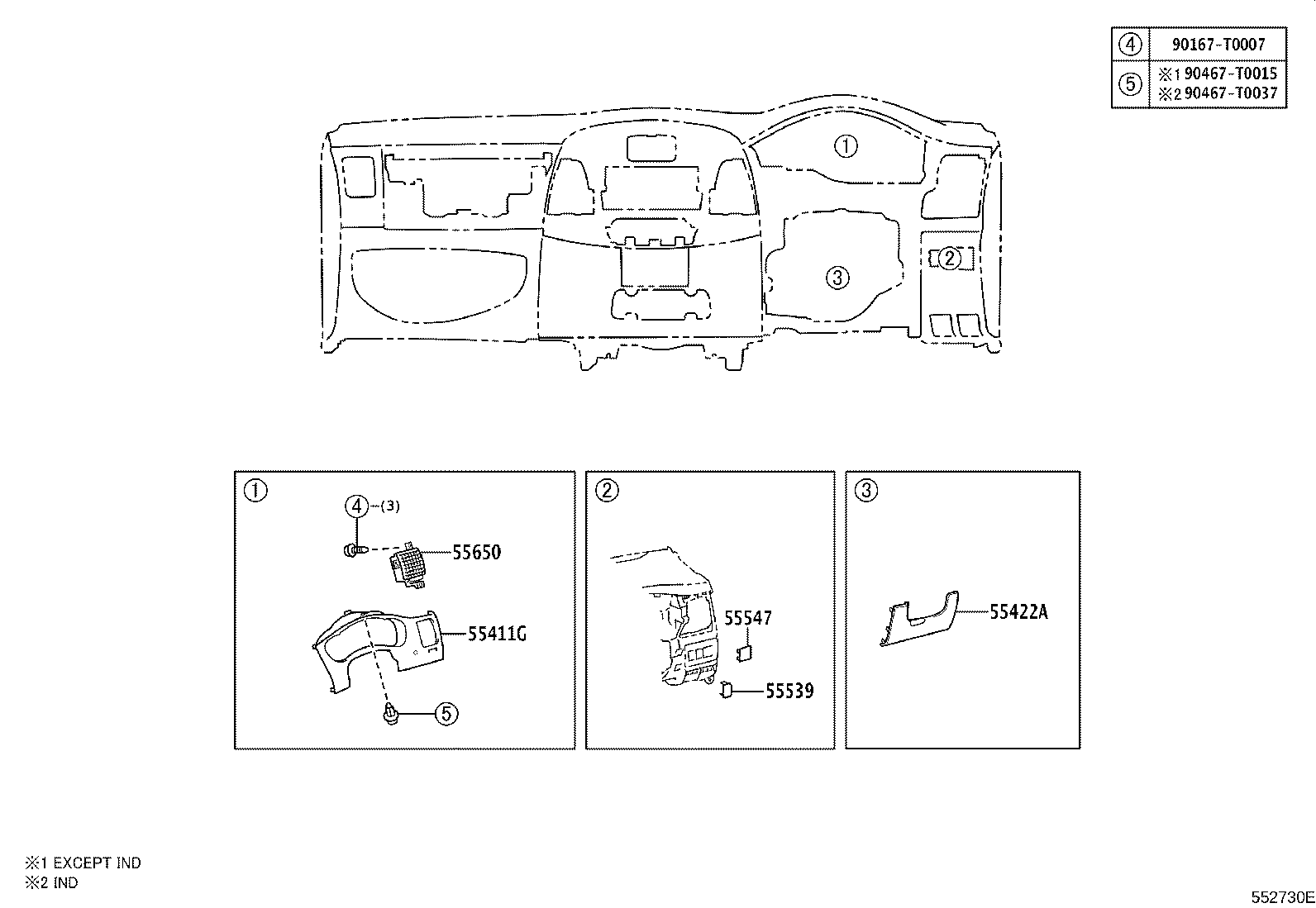

Instrument Panel & Glove Compartment
46 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55368C | Bracket, Meter Mounting |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55391A | Panel, Instrument Panel Reinf, Inner NO.1 |
| 55392D | Panel, Instrument Panel Reinforcement, Inn NO.2 |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403C | Pad Sub-assy, Instrument Panel, Lower LH |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55423C | Cover, Clock Opening |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55445B | Plate, Instrument Panel Finish |
| 55446A | Base, Switch Hole, NO.1 |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55477D | Cover, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55625A | Cover, Front Ash Receptacle |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55959A | Cover, Defroster Nozzle Opening, NO.1 |
| 61181 | Bracket, Instrument Panel Side |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 82140 | Wire Assy, Instrument Panel |
| 86831A | Cover, Accessory Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
