Toyota Innova/Kijang Innova
2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General
Supported model
Data version 2017-05

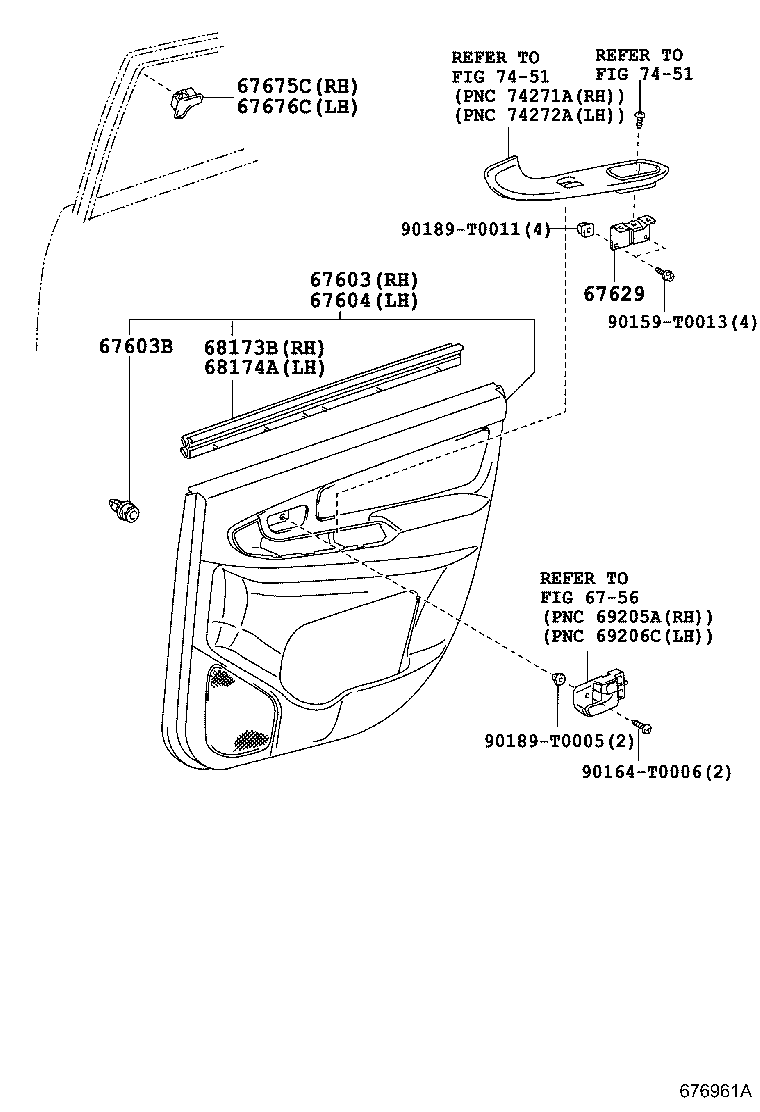

Rear Door Panel & Glass
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67485B | Seal, Rear Door Division Bar, Inside, RH |
| 67486B | Seal, Rear Door Division Bar, Inside, LH |
| 67487B | Seal, Rear Door Division Bar, RH |
| 67488B | Seal, Rear Door Division Bar, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67629 | Bracket, Rear Door Trim Board |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 69905F | Channel Sub-assy, Rear Door Glass, RH |
| 69906E | Channel Sub-assy, Rear Door Glass, LH |
| 69975D | Filler, Rear Door Glass Channal |
| 75931A | Tape, Black Out, Outer Upper RH |
| 75932A | Tape, Black Out, Outer Upper LH |
| 75933B | Tape, Black Out, Outer Front RH |
| 75934B | Tape, Black Out, Outer Front LH |
| 75935B | Tape, Black Out, Outer Rear RH |
| 75936B | Tape, Black Out, Outer Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
