Toyota Innova/Kijang Innova
2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General
Supported model
Data version 2017-05
Back Door Panel & Glass
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64795A | Trim, Back Window Opening |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |

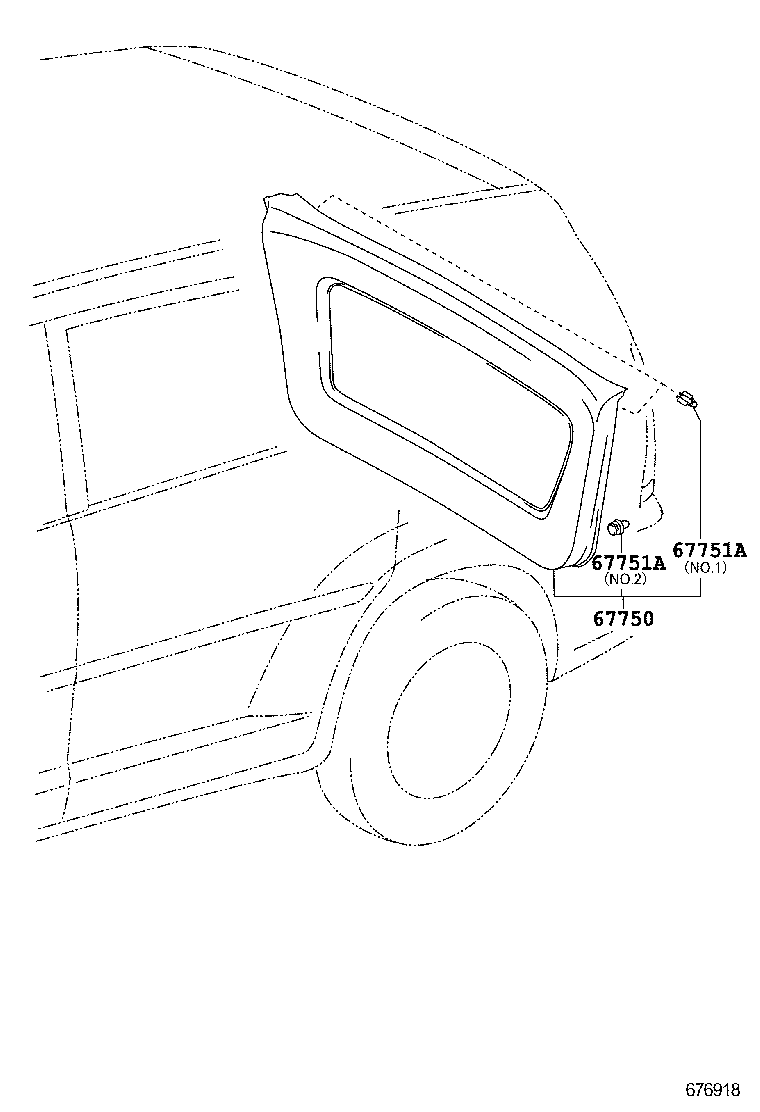

| 67750 | Board Assy, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68285 | Moulding, Back Door Frame, RH |
| 68286 | Moulding, Back Door Frame, LH |
| 68294A | Dam, Back Door Glass Adhesive |
| 68294B | Dam, Back Door Glass Adhesive |

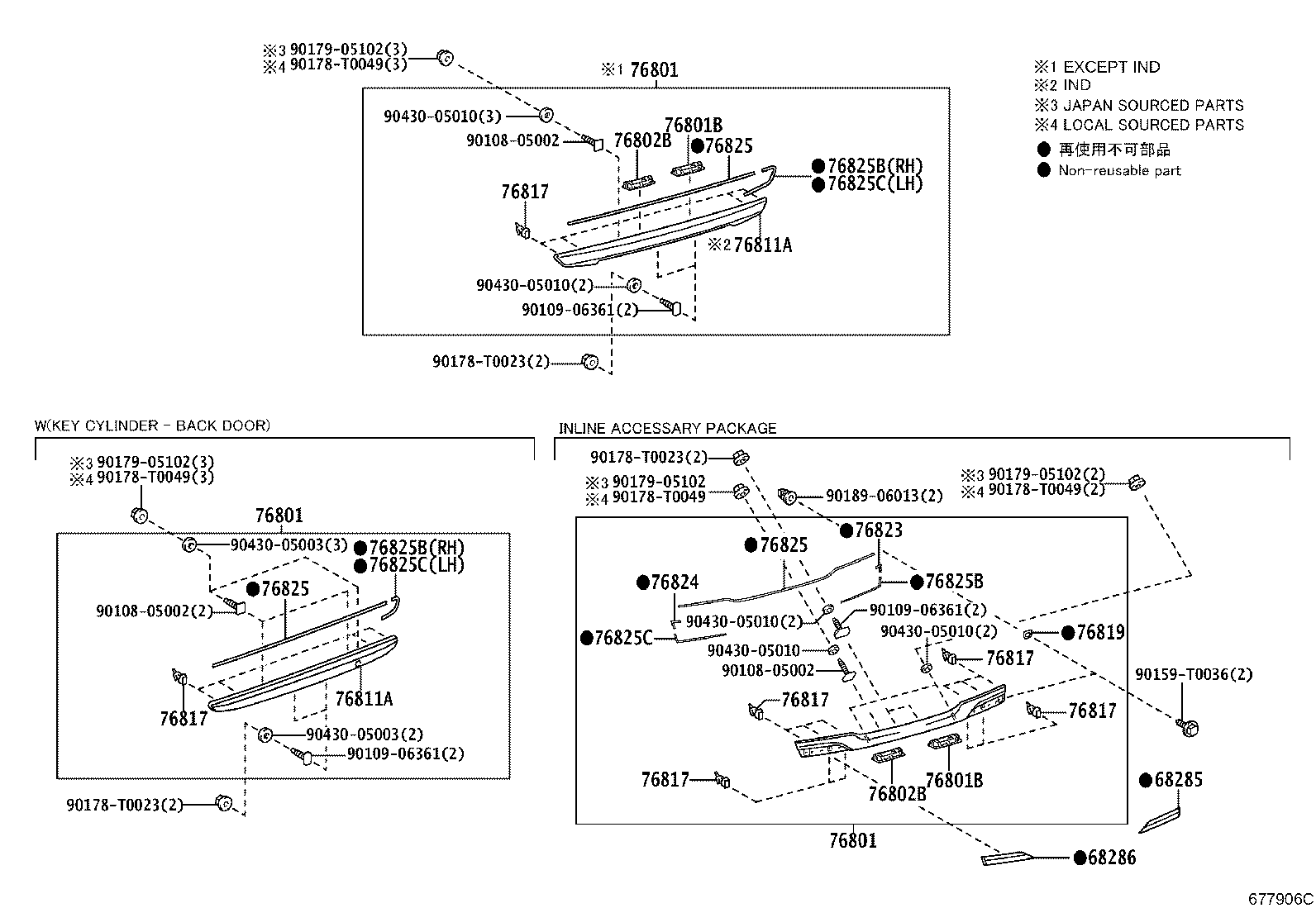

| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76801B | Garnish Sub-assy, Back Door, Outside RH |
| 76802B | Garnish Sub-assy, Back Door, Outside LH |
| 76811A | Garnish, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76819 | Seal, Back Door Outside Garnish |
| 76823 | Protector, Back Door Garnish Moulding, RH |
| 76824 | Protector, Back Door Garnish Moulding, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825B | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
