Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

22 part groups · 3 illustrations

Illustrations

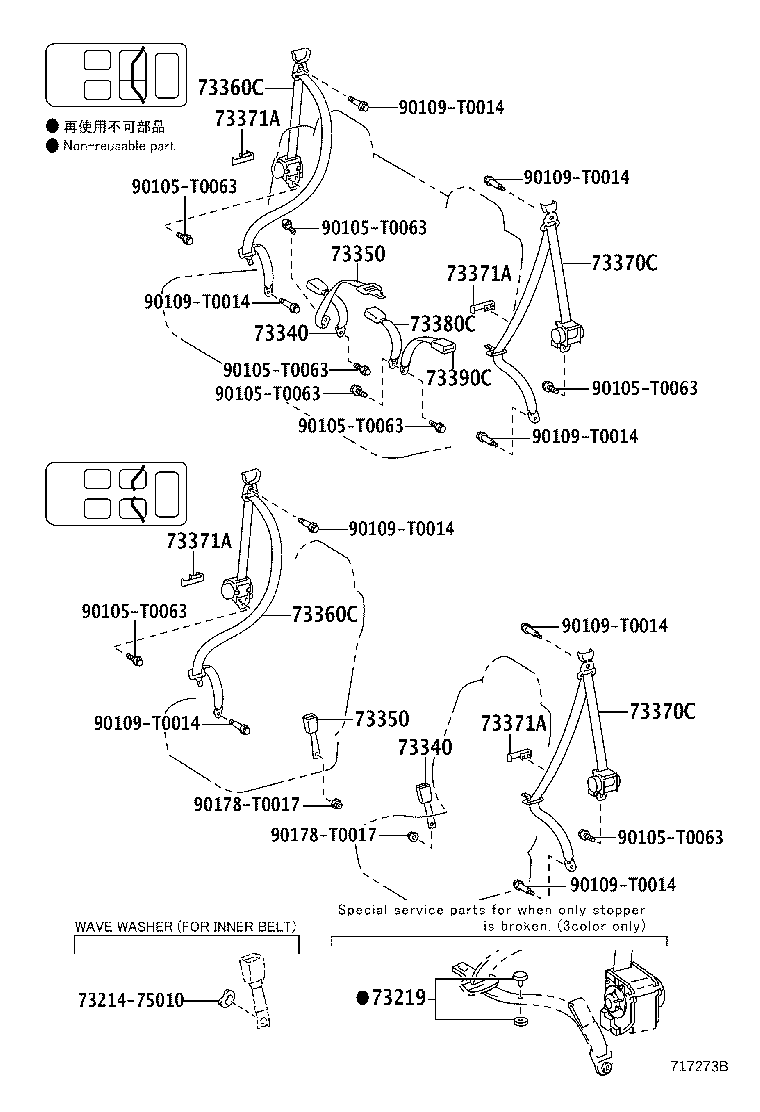

Figure 717272F 717272F 2011-07 → — Figure 717273B 717273B 2011-07 → — Figure 717271B 717271B 2011-07 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
