Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 13 illustrations

Illustrations

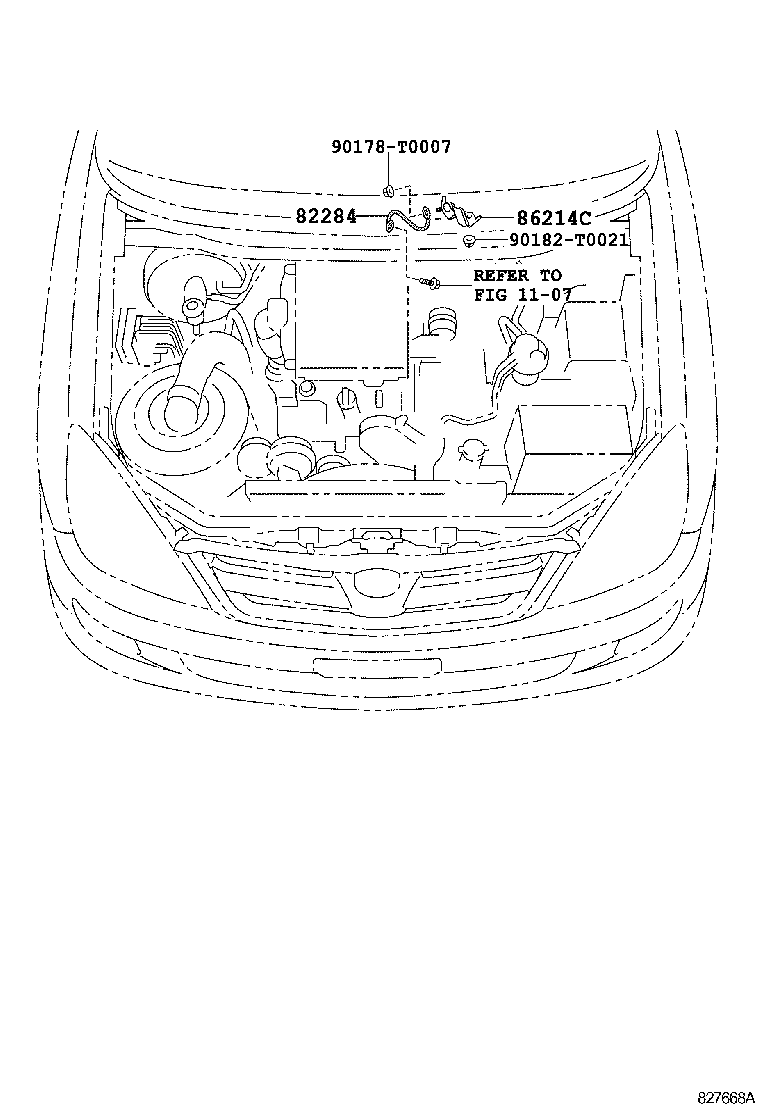

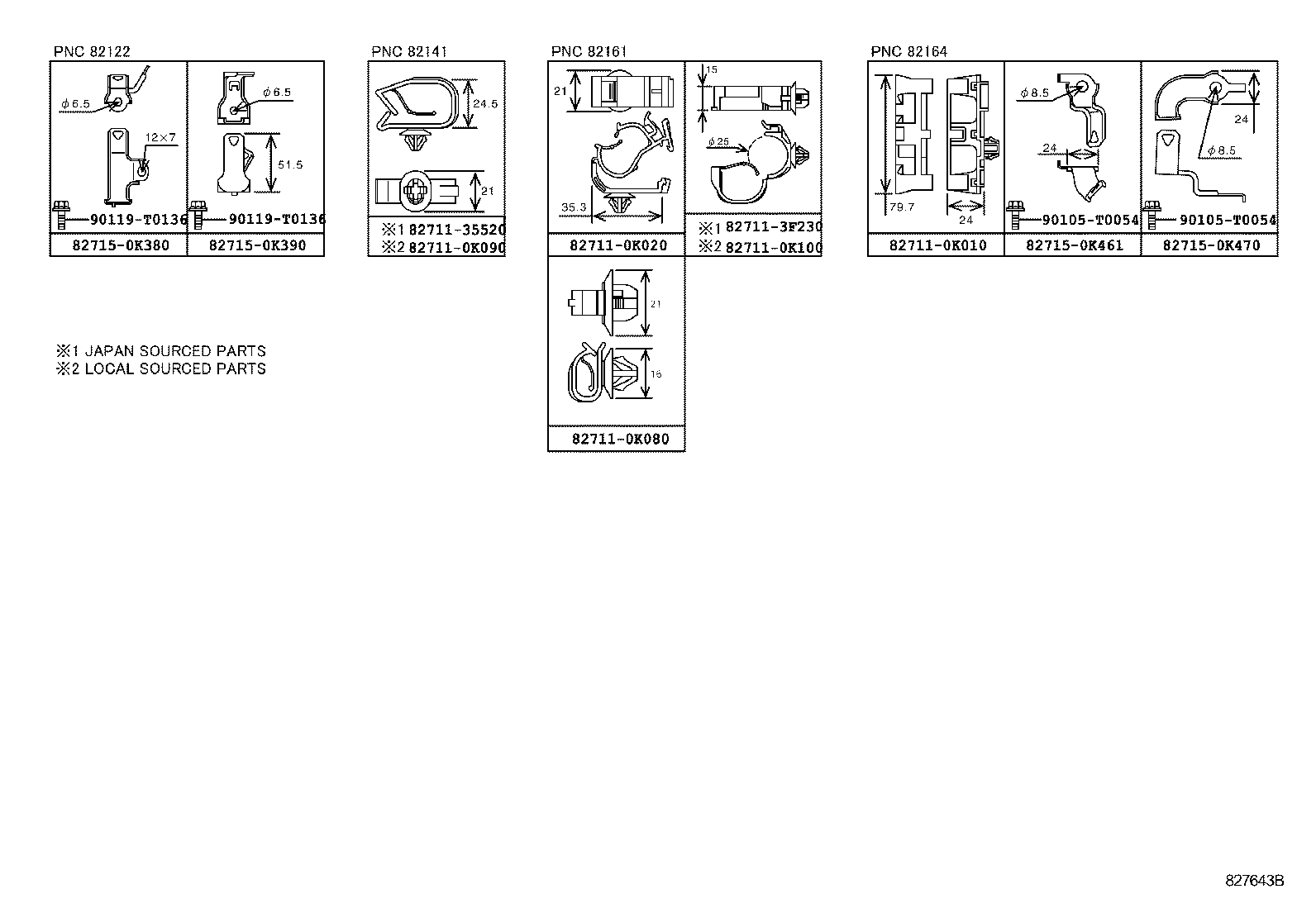

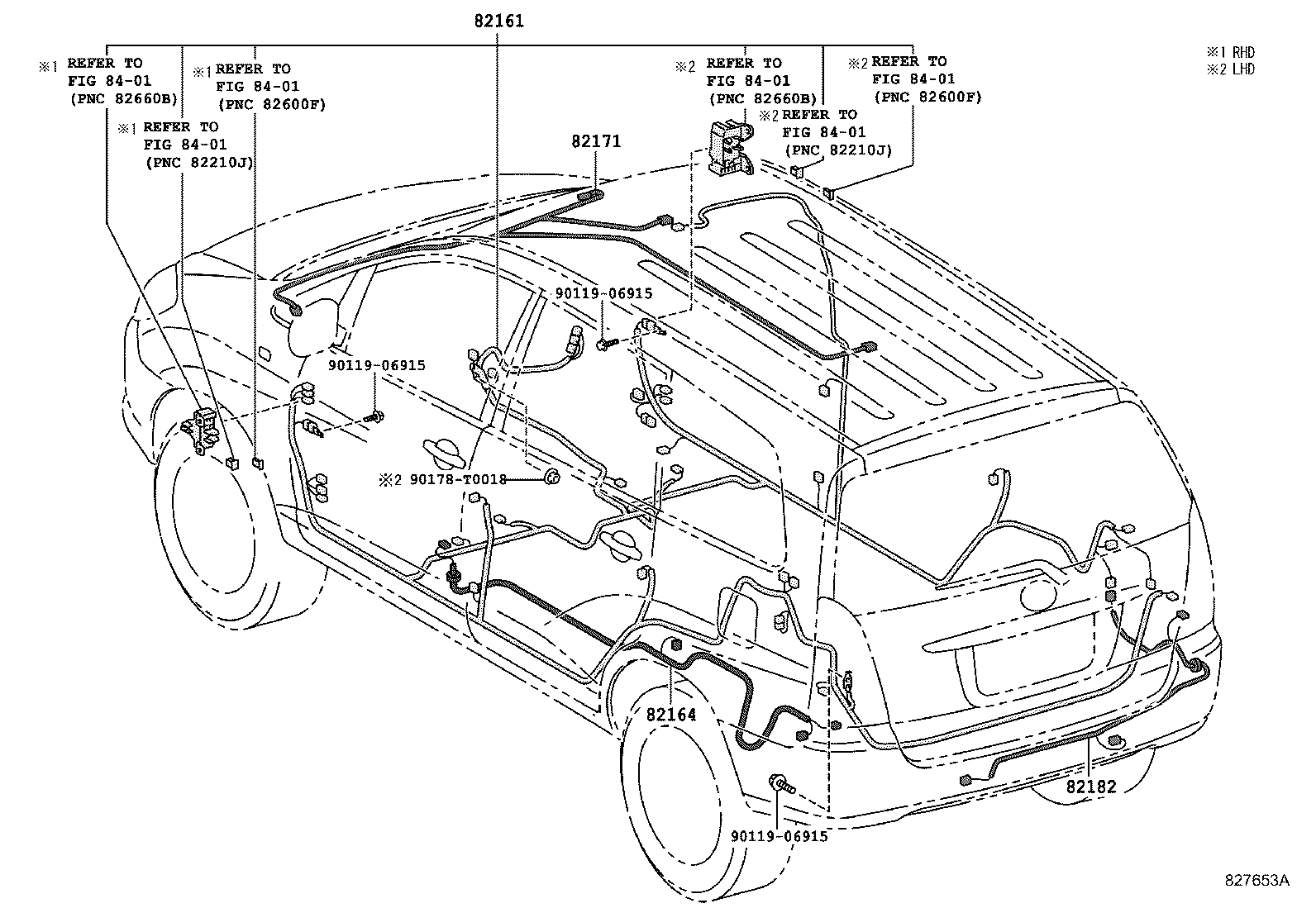

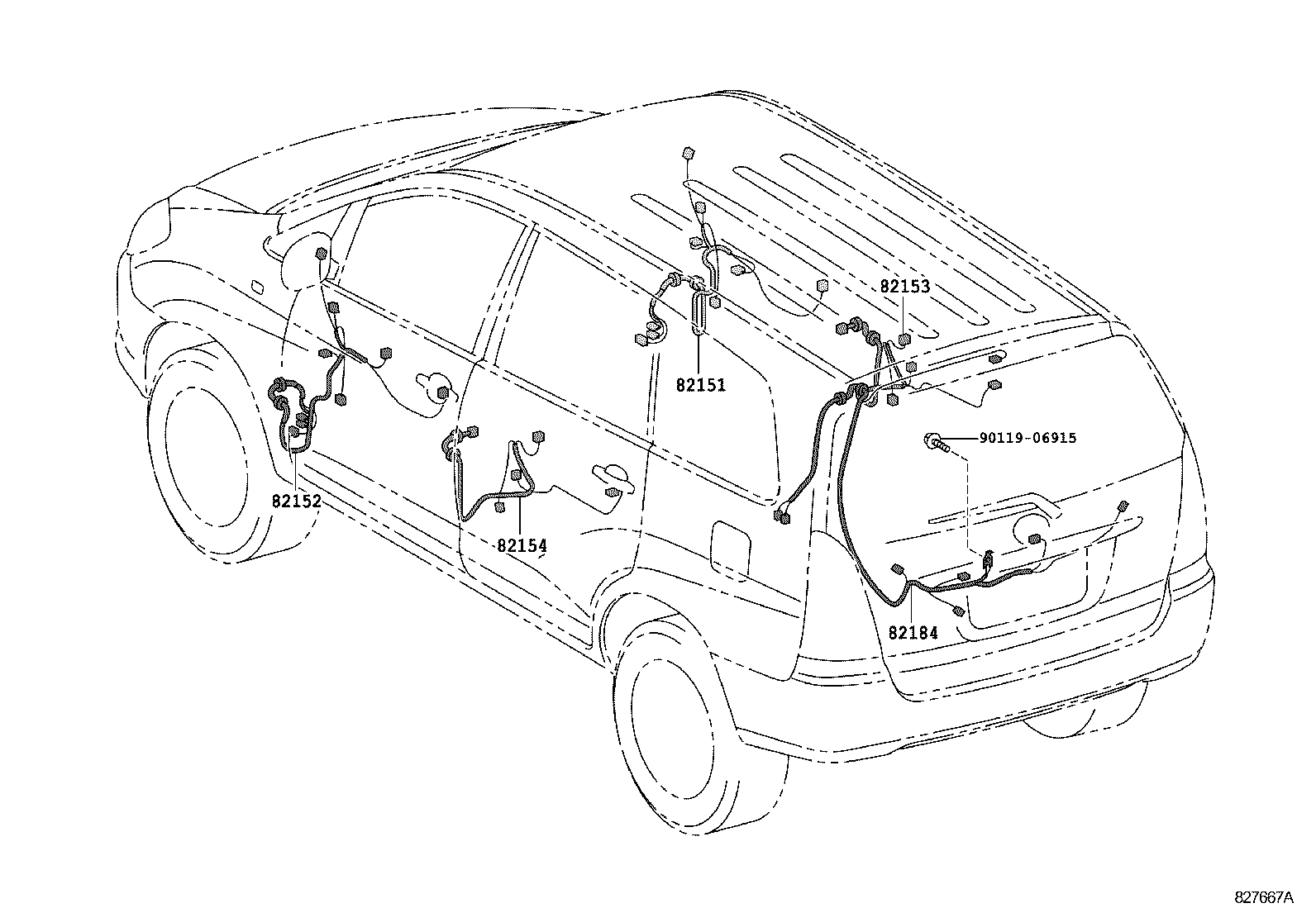

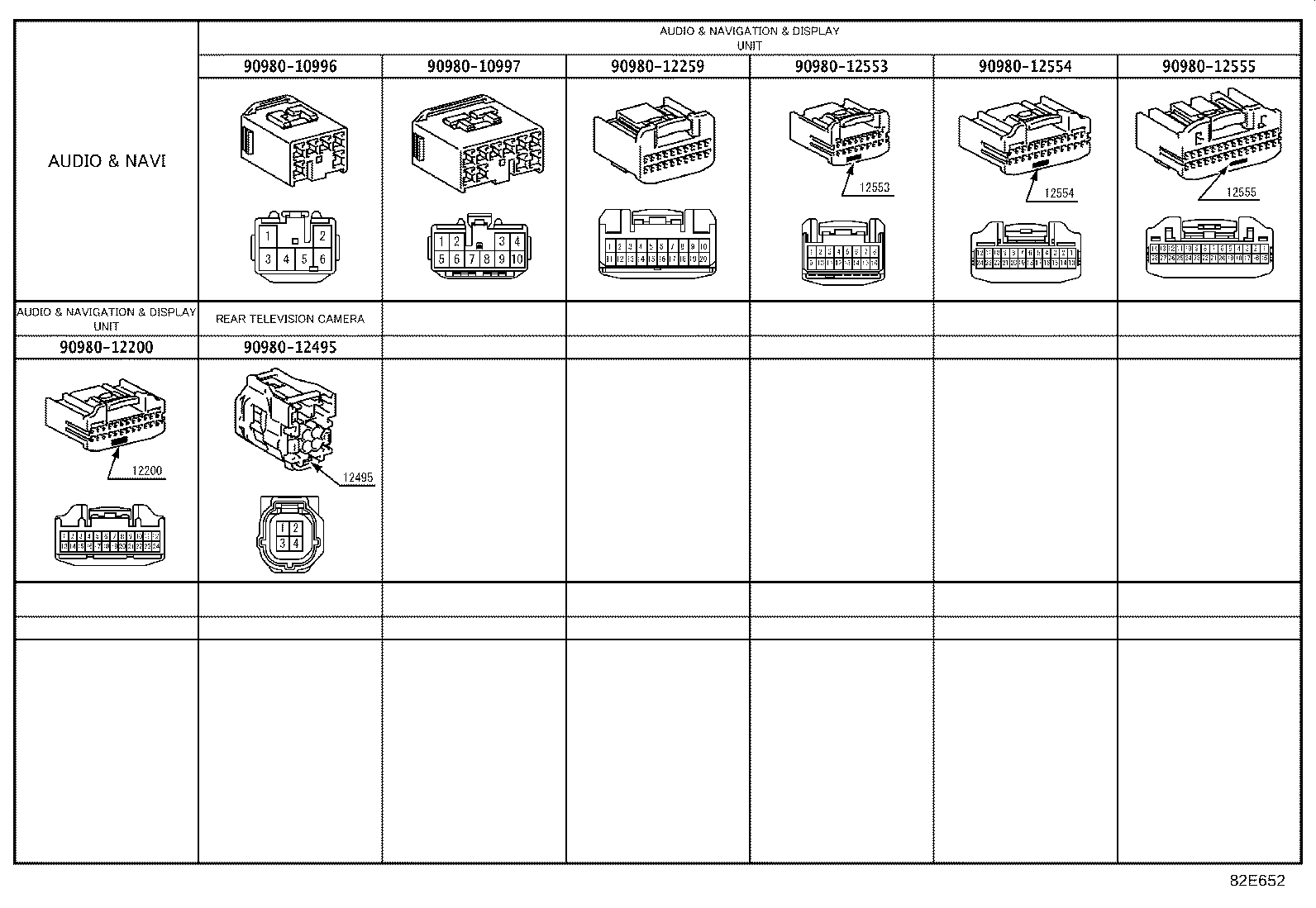

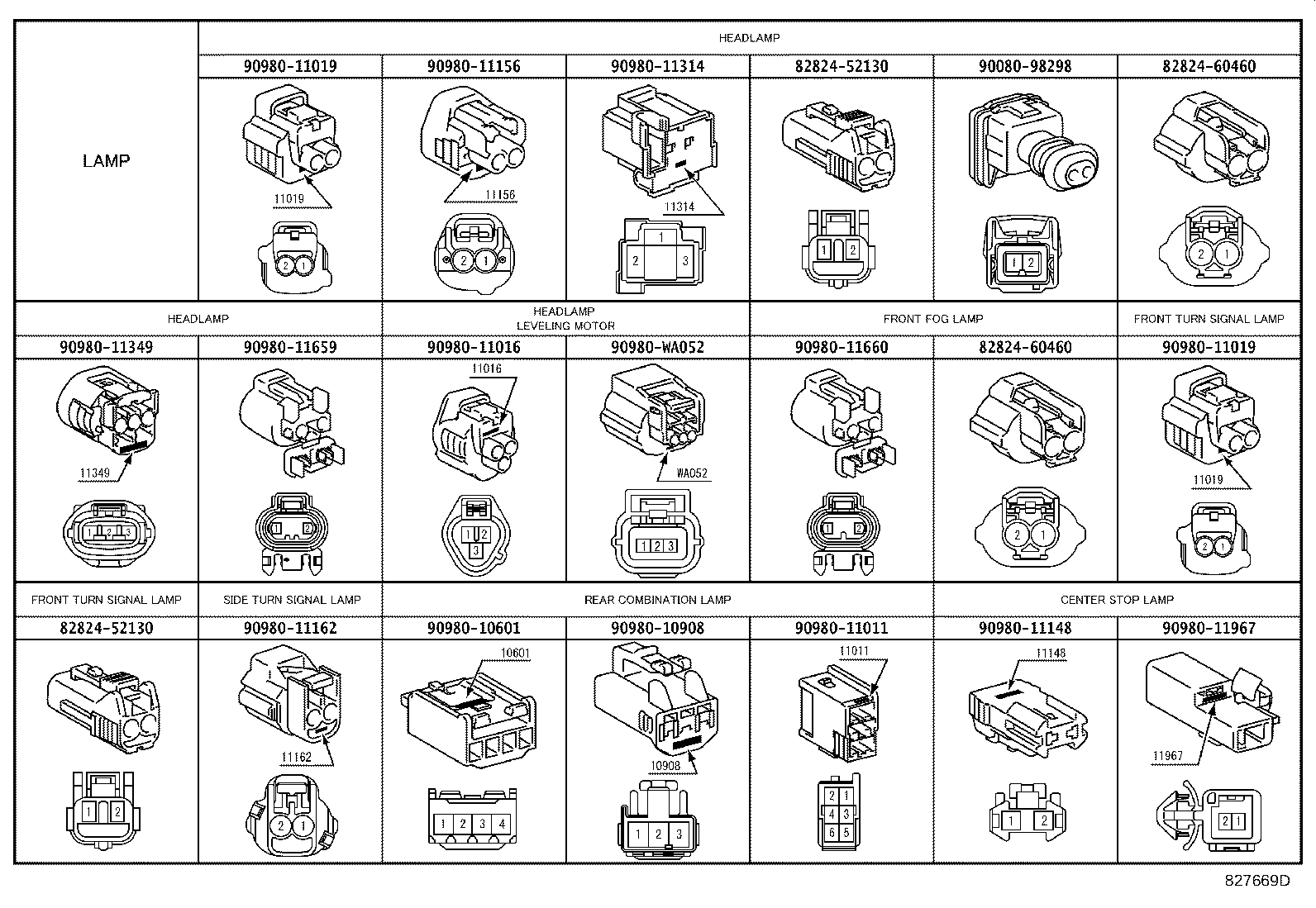

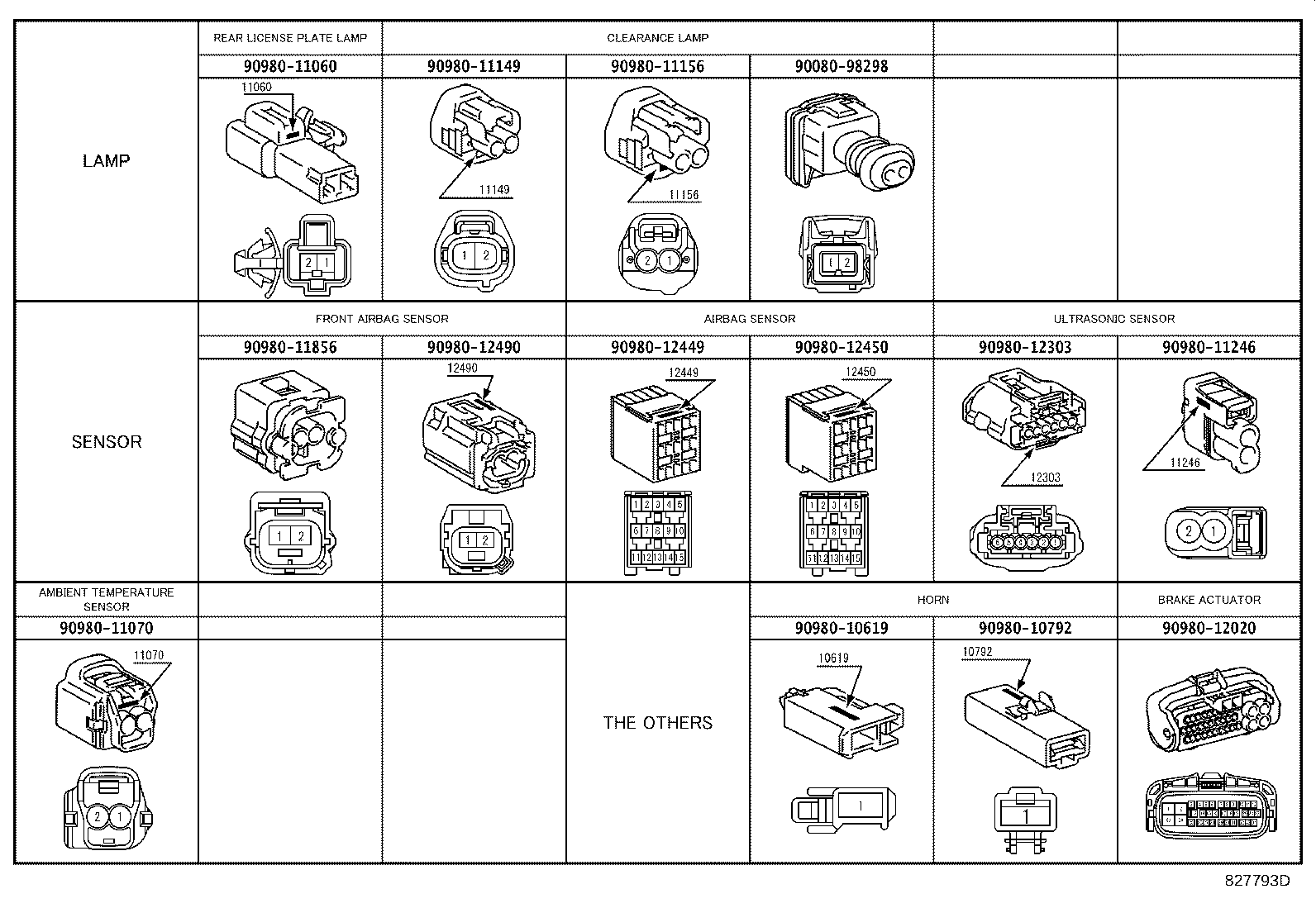

Figure 827652C 827652C 2011-07 → — Figure 827663B 827663B 2011-07 → — Figure 827664C 827664C 2011-07 → — Figure 827665B 827665B 2011-07 → — Figure 827666C 827666C 2011-07 → — Figure 827667A 827667A 2011-07 → — Figure 827653A 827653A 2011-07 → — Figure 827642E 827642E 2011-07 → — Figure 827643B 827643B 2011-07 → — Figure 827668A 827668A 2011-07 → — Figure 827669D 827669D 2011-07 → — Figure 827793D 827793D 2011-07 → — Figure 82E652 82E652 2011-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

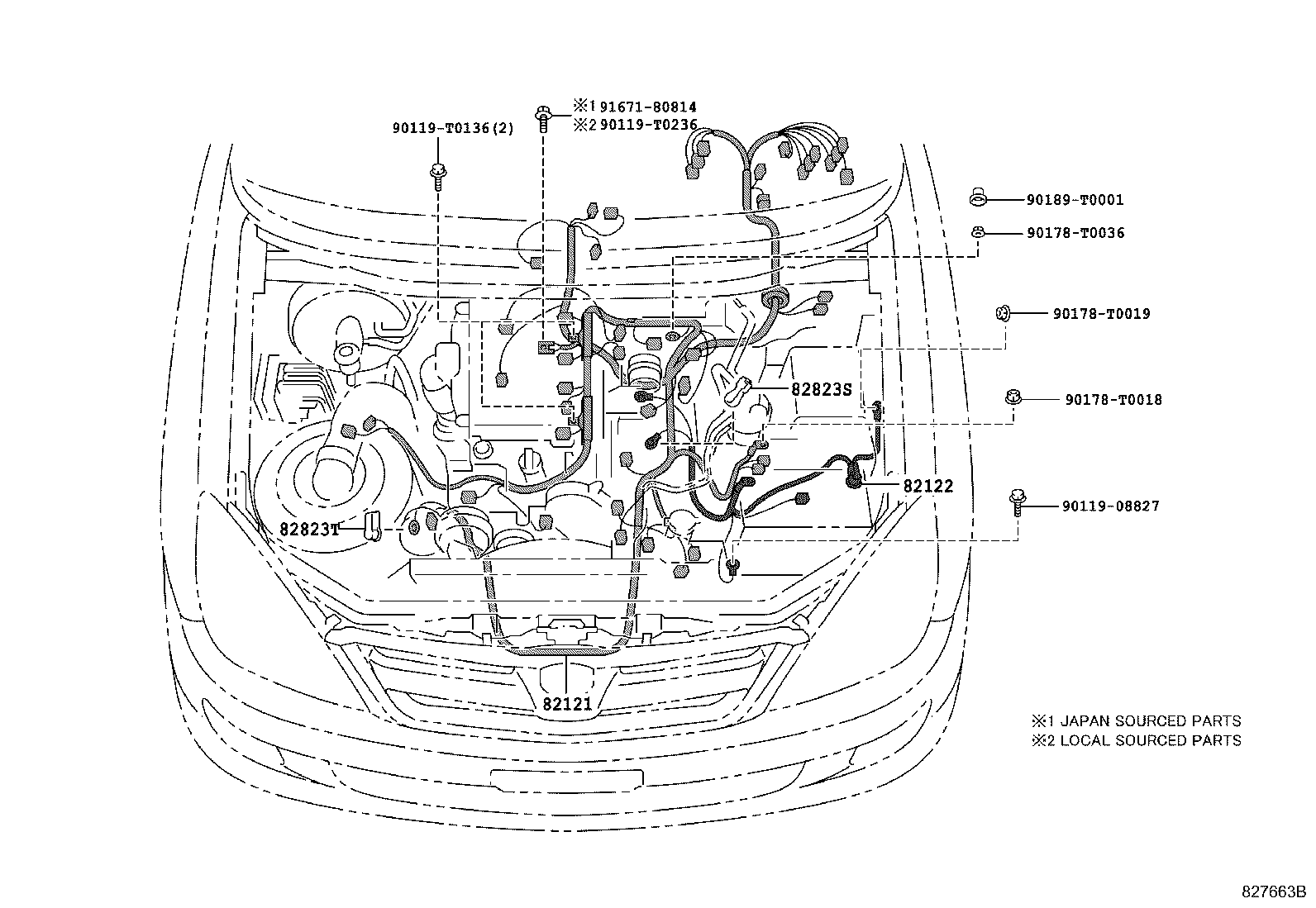

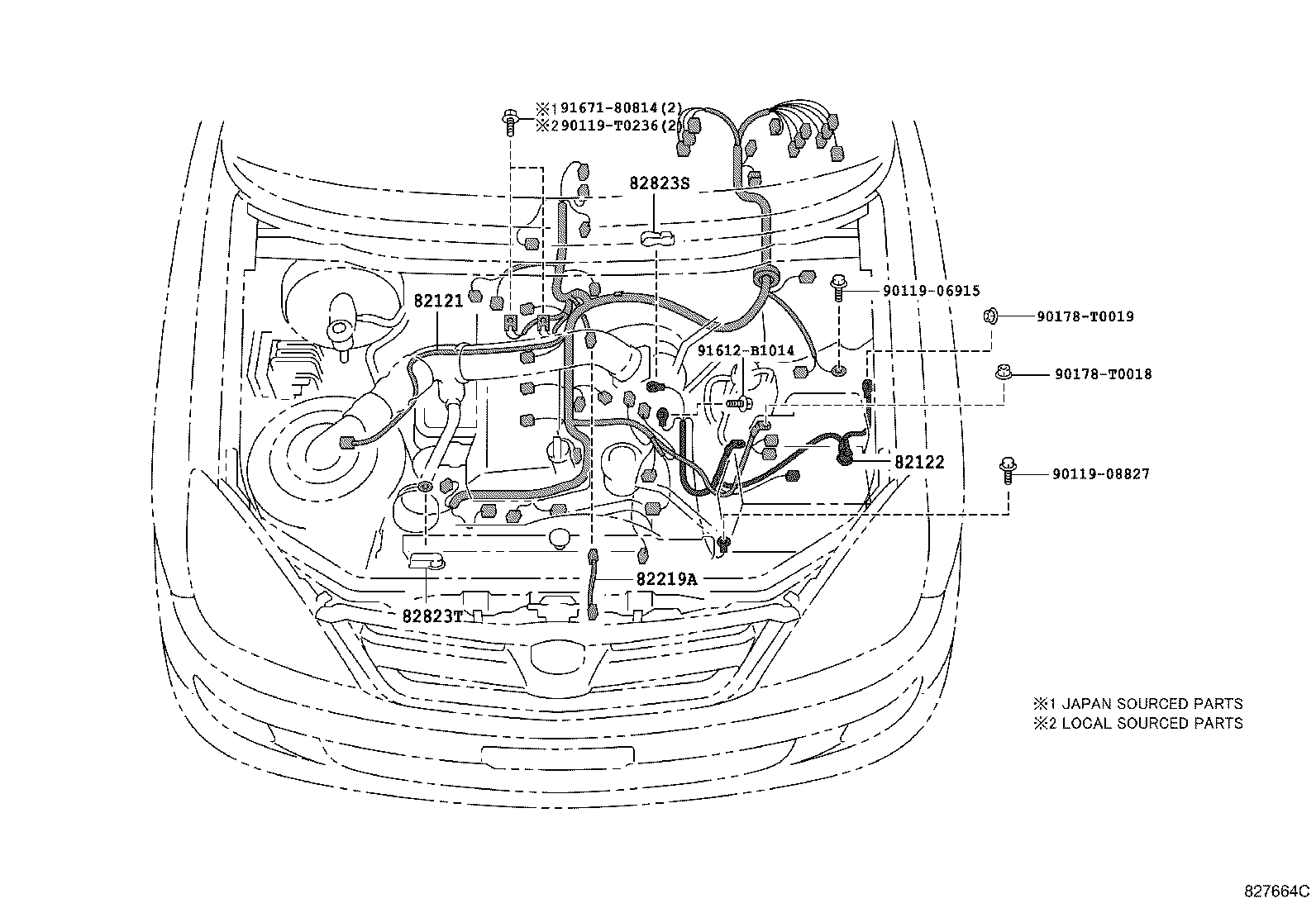

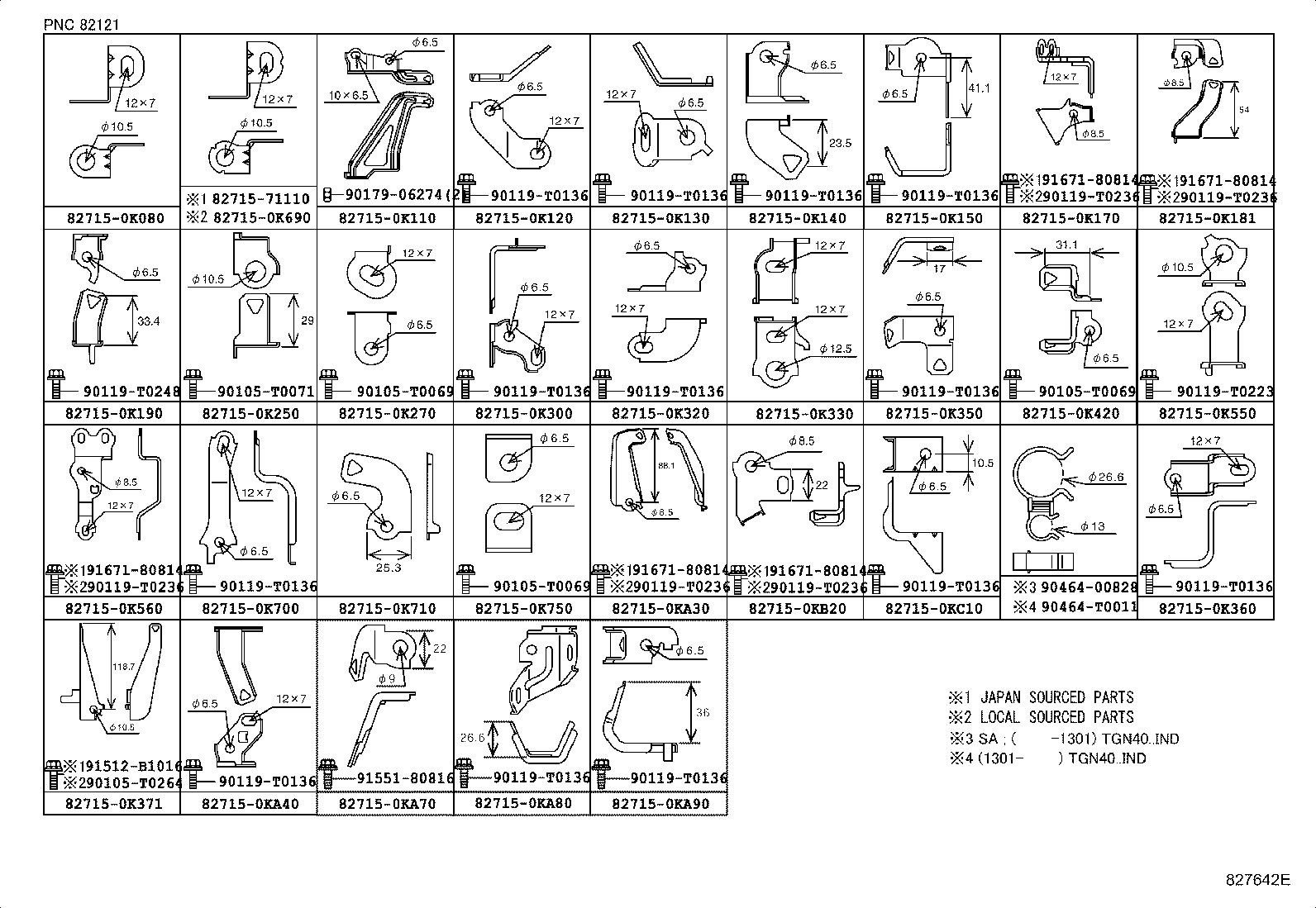

82121 Wire, Engine
82122 Wire, Engine, NO.2

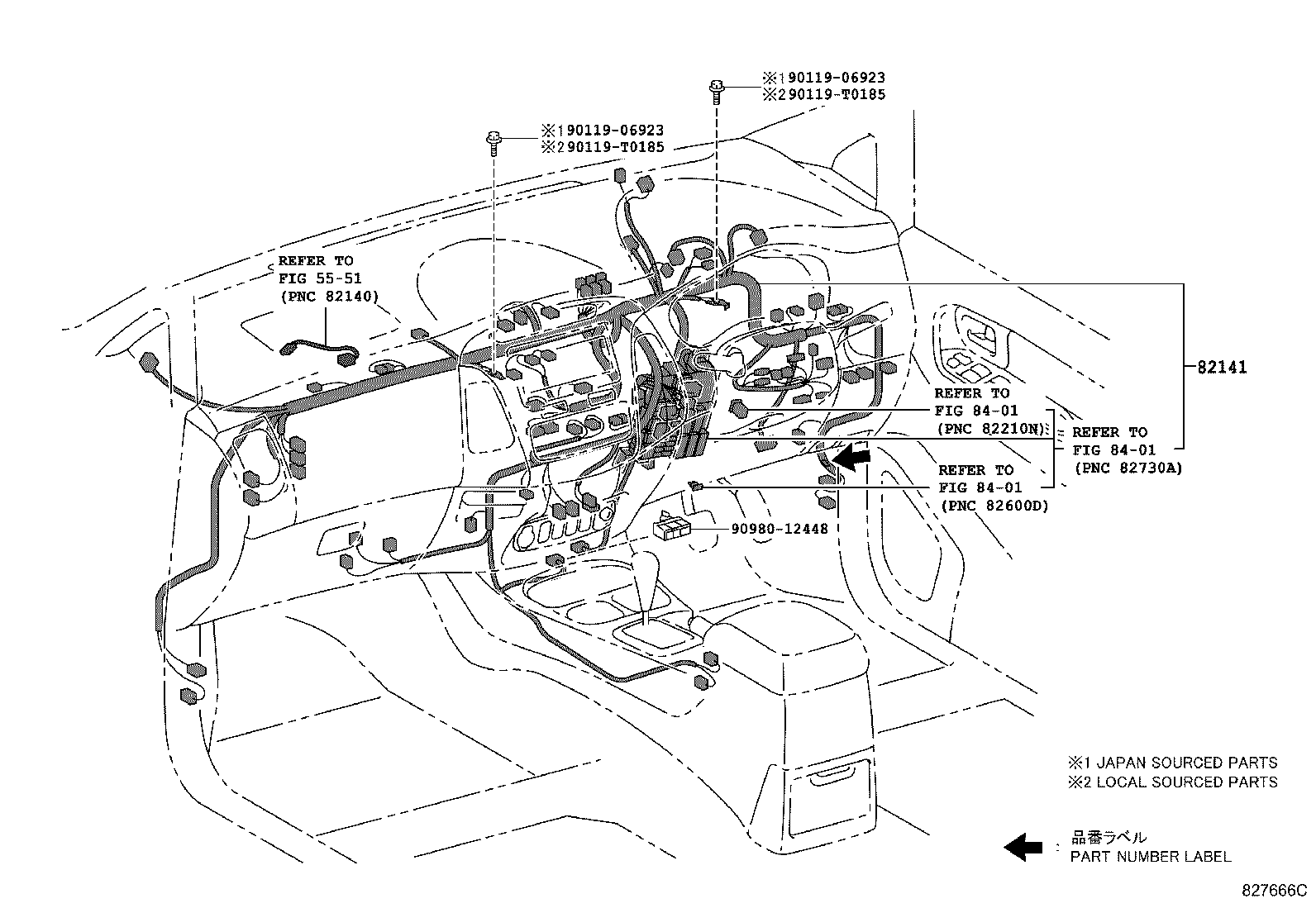

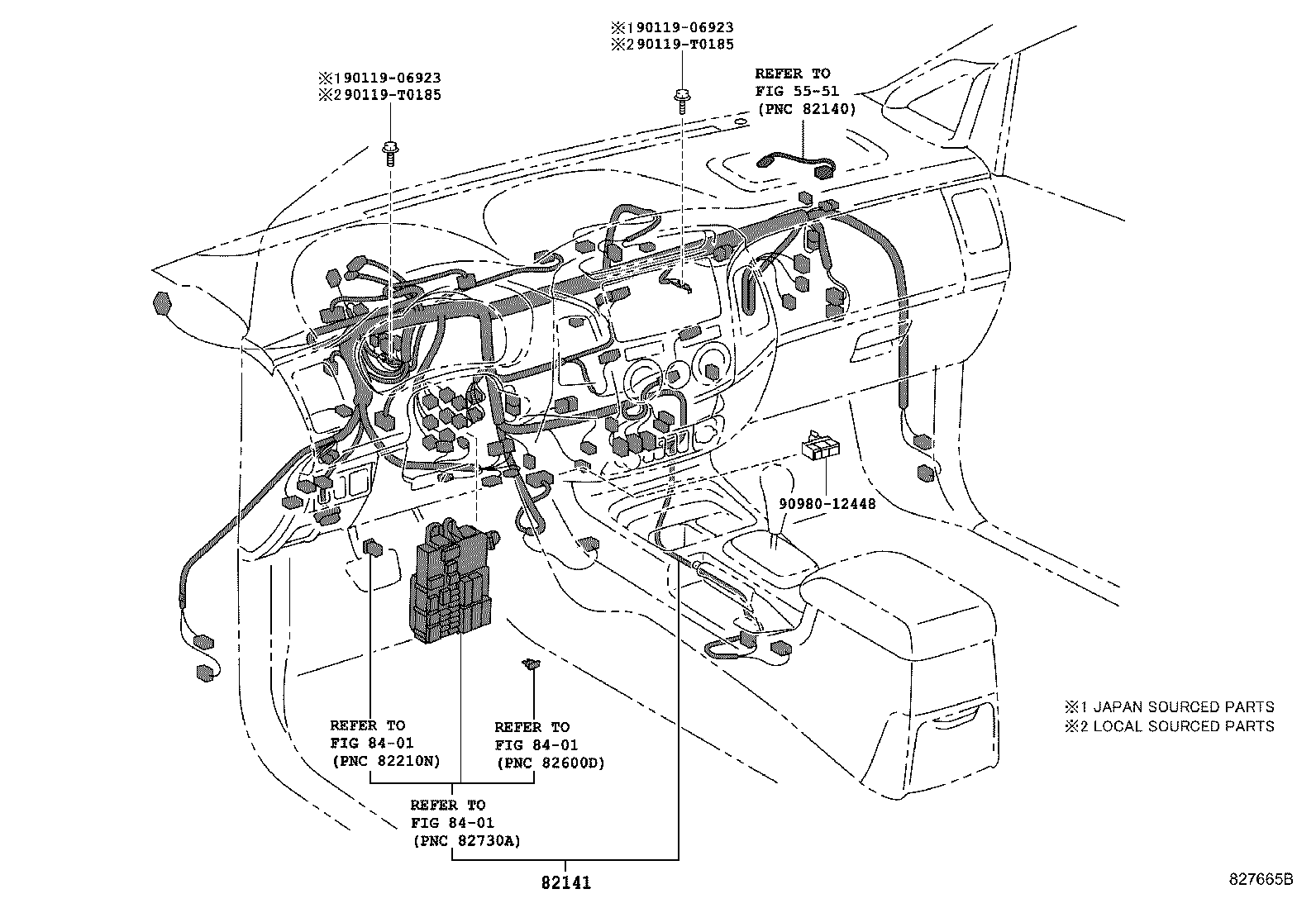

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82219A Wire, Sensor
82284 Wire, Earth
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
