Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

10 part groups · 2 illustrations

Illustrations

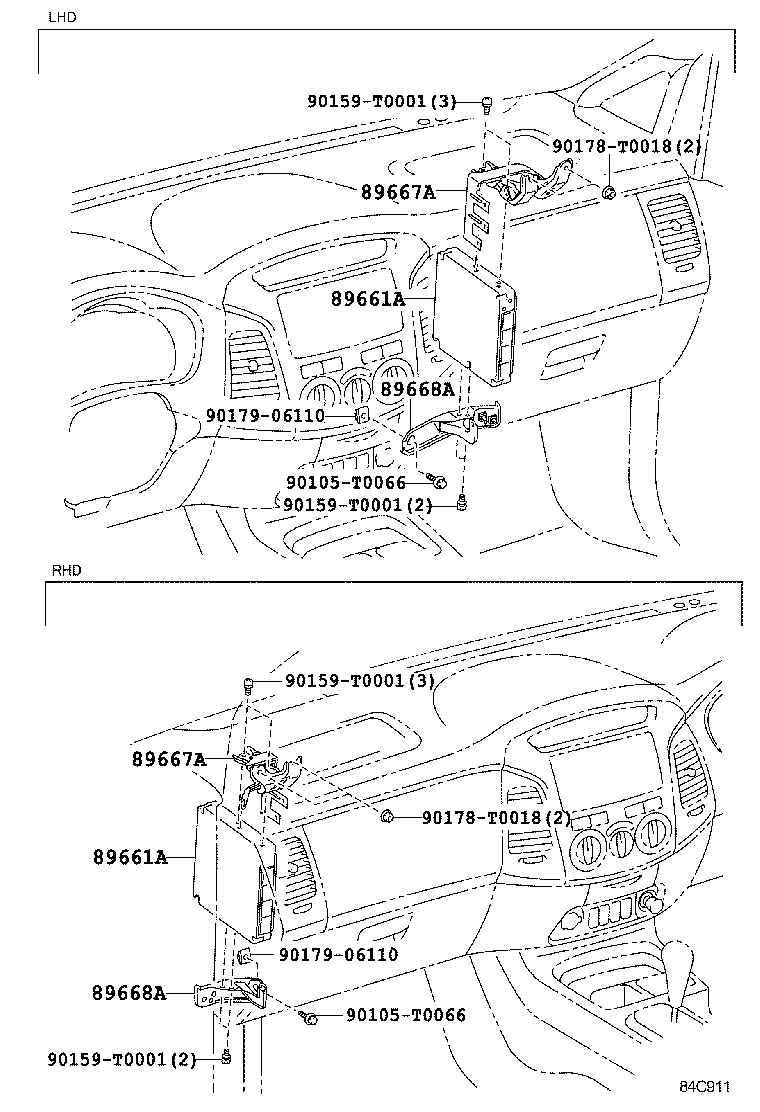

Figure 84C317E 84C317E 2011-07 → — Figure 84C911 84C911 2011-07 → —

Part groups

PNCDescription
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
