Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 3 illustrations

Illustrations

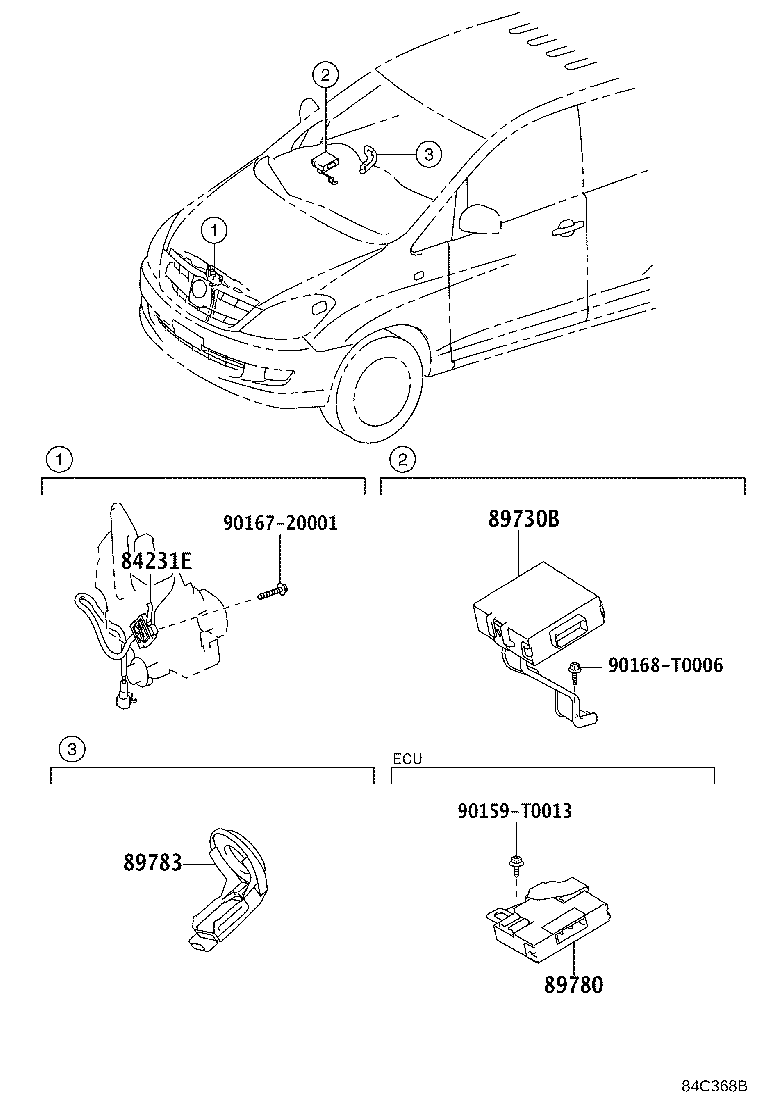

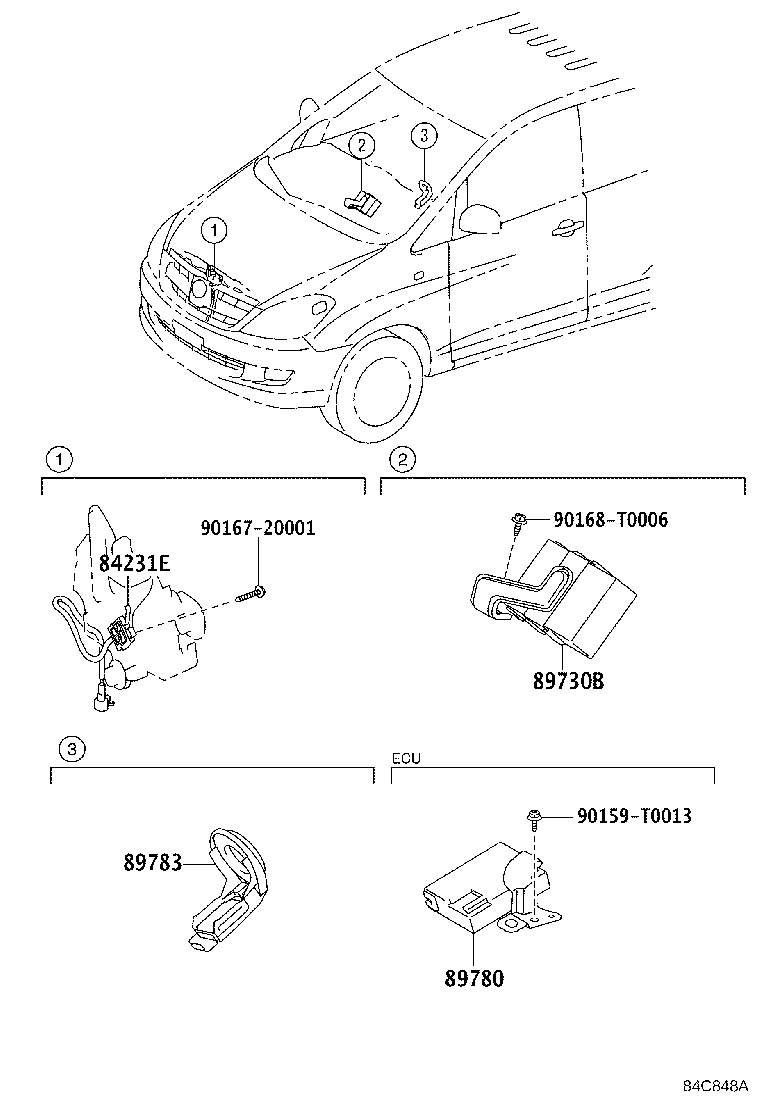

Figure 84C366B 84C366B 2011-07 → — Figure 84C368B 84C368B 2011-07 → — Figure 84C848A 84C848A 2012-02 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
