Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

2 part groups · 2 illustrations

Illustrations

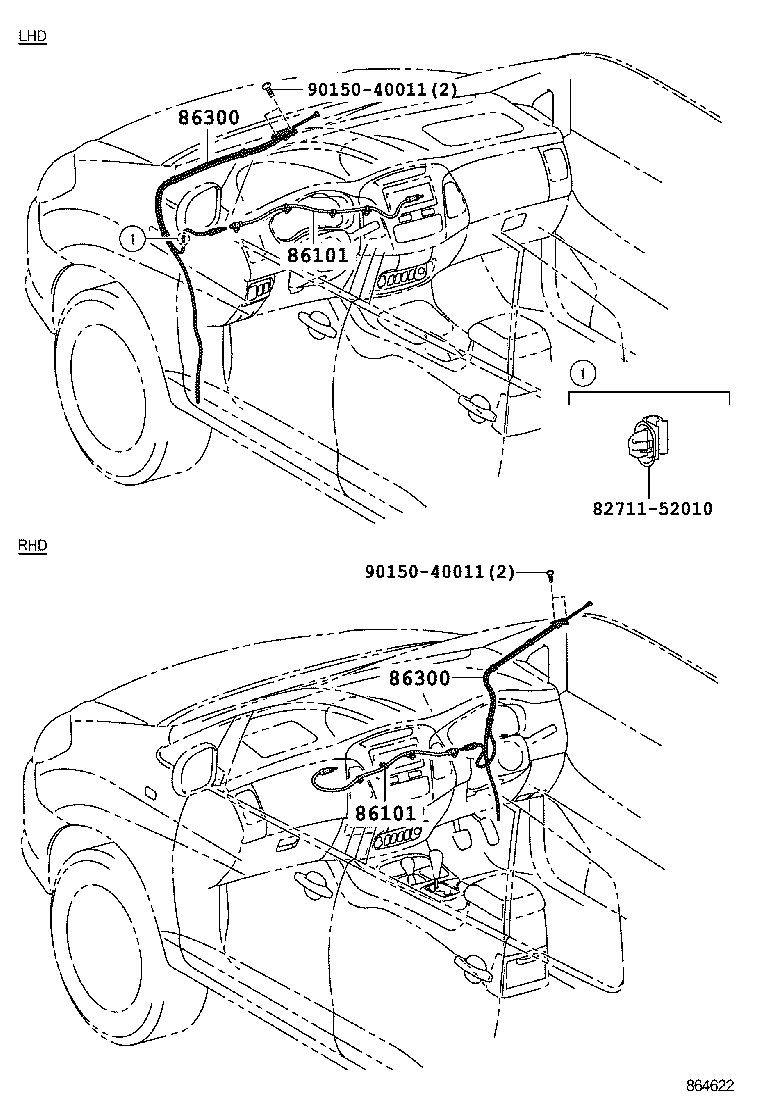

Figure 864620 864620 2011-07 → — Figure 864622 864622 2011-07 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
