Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

7 part groups · 8 illustrations

Illustrations

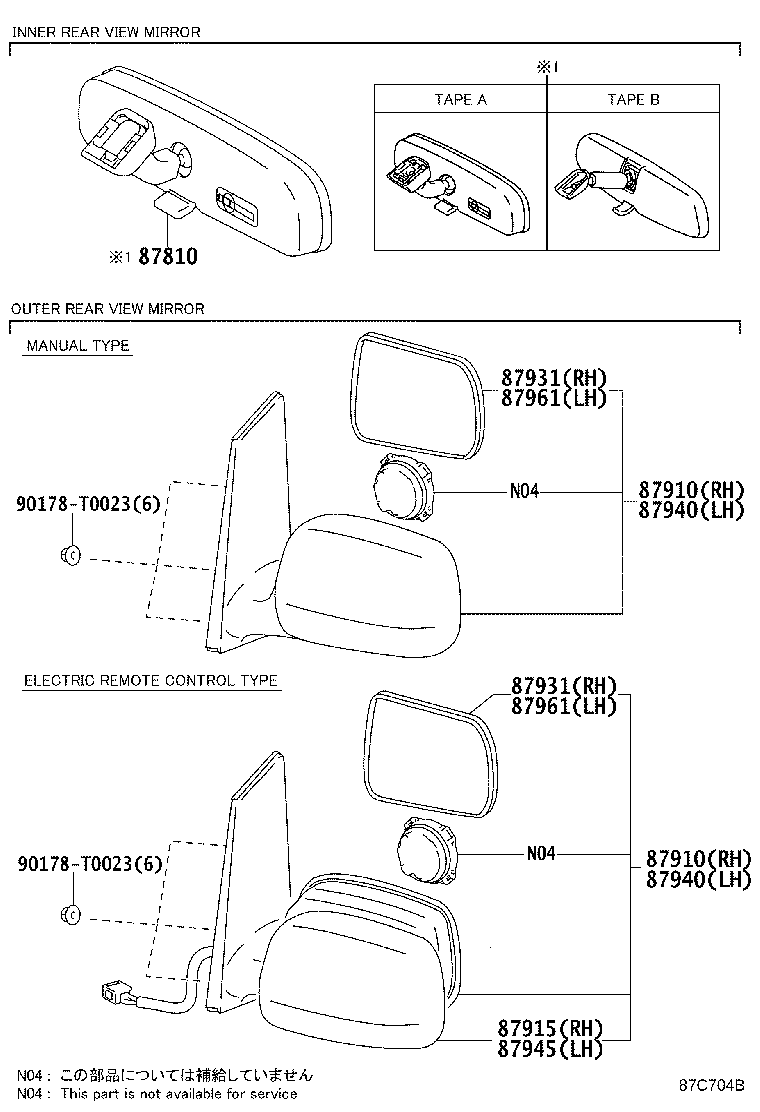

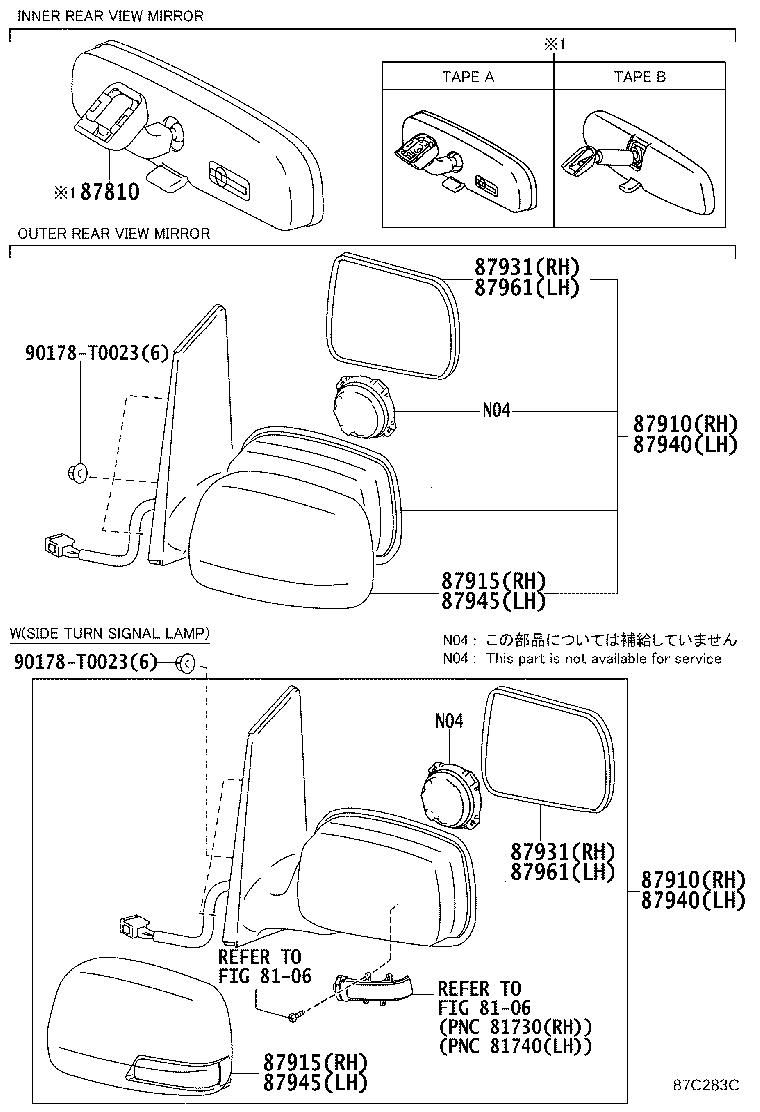

Figure 87C282B 87C282B 2011-07 → — Figure 87C282B 87C282B 2012-02 → — Figure 87C283C 87C283C 2011-07 → — Figure 87C283C 87C283C 2011-10 → — Figure 87C283C 87C283C 2012-01 → — Figure 87C283C 87C283C 2012-02 → — Figure 87C283C 87C283C 2013-08 → — Figure 87C704B 87C704B 2012-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87931 Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
