Heating & Air Conditioning - Control & Air Duct

32 part groups · 7 illustrations

Illustrations

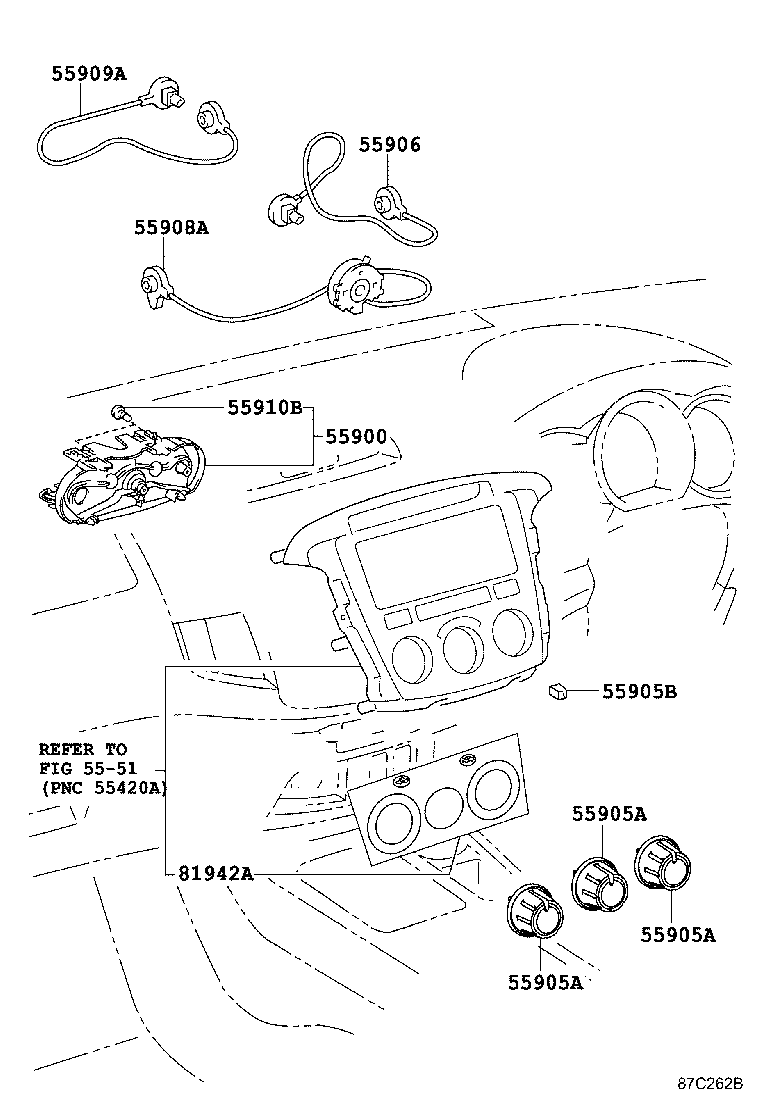

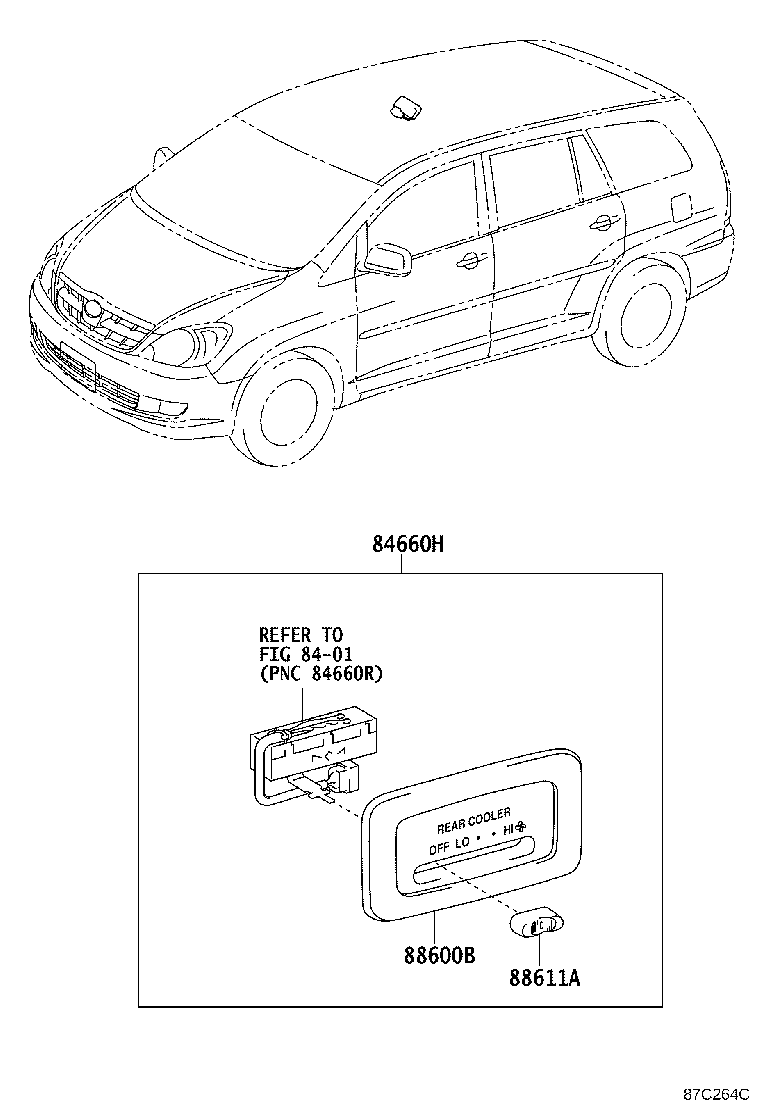

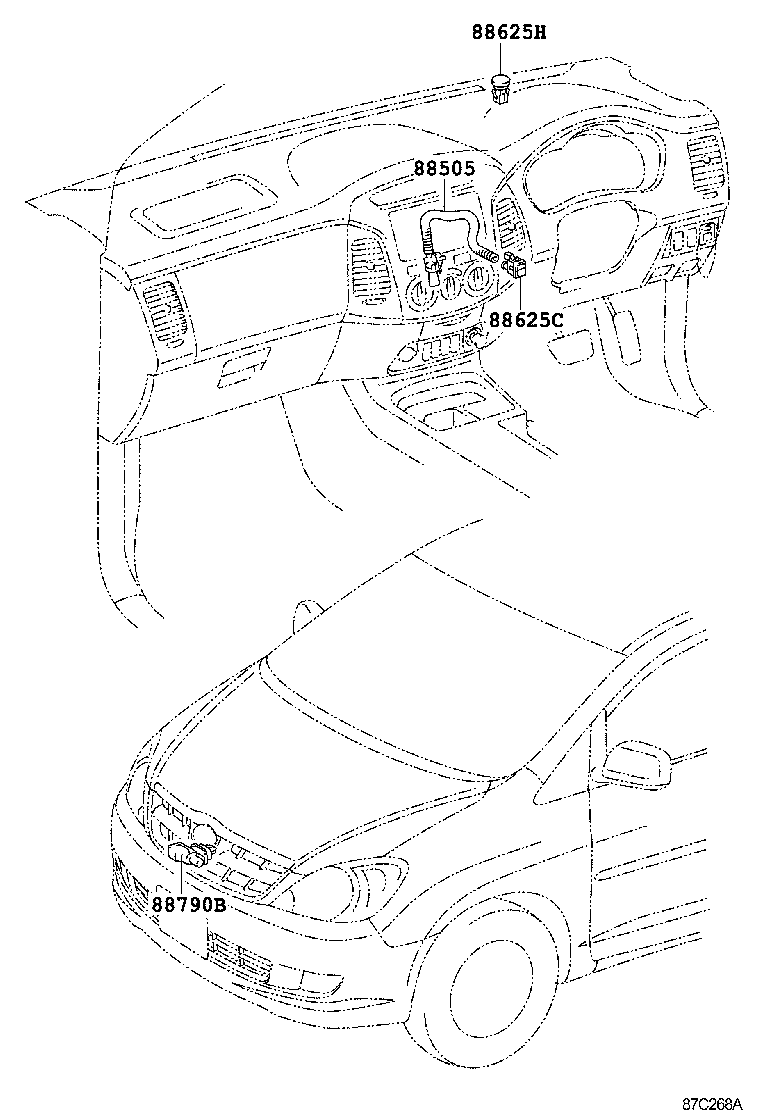

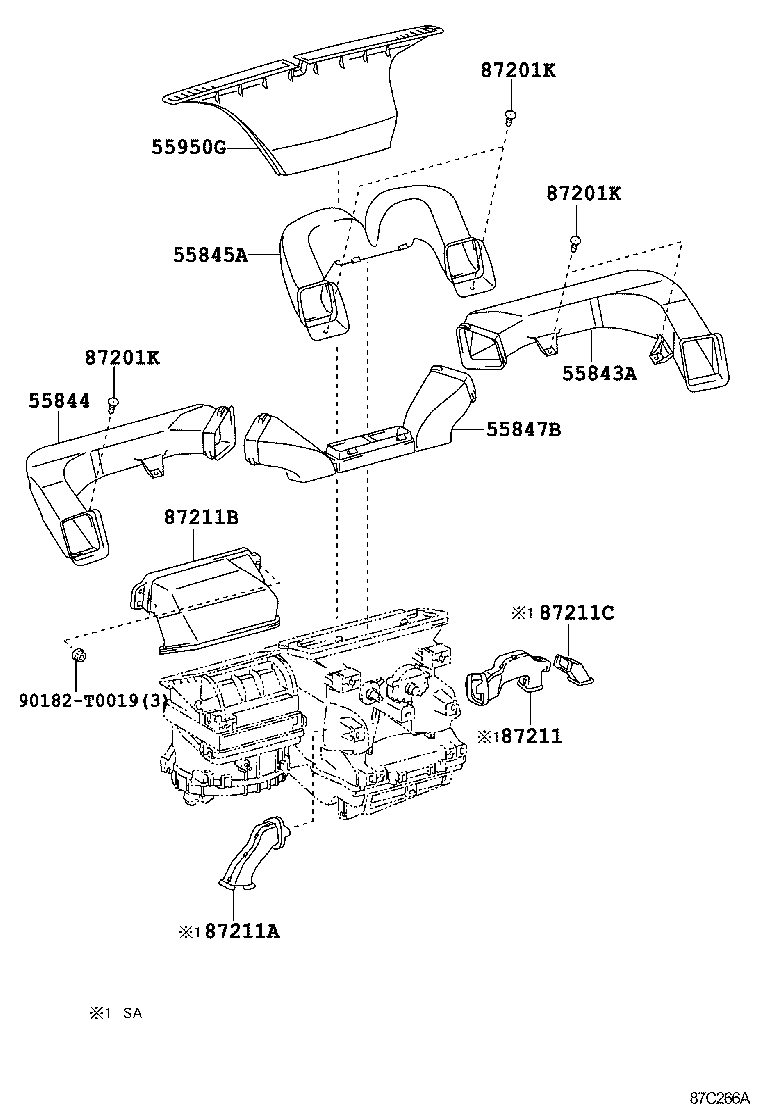

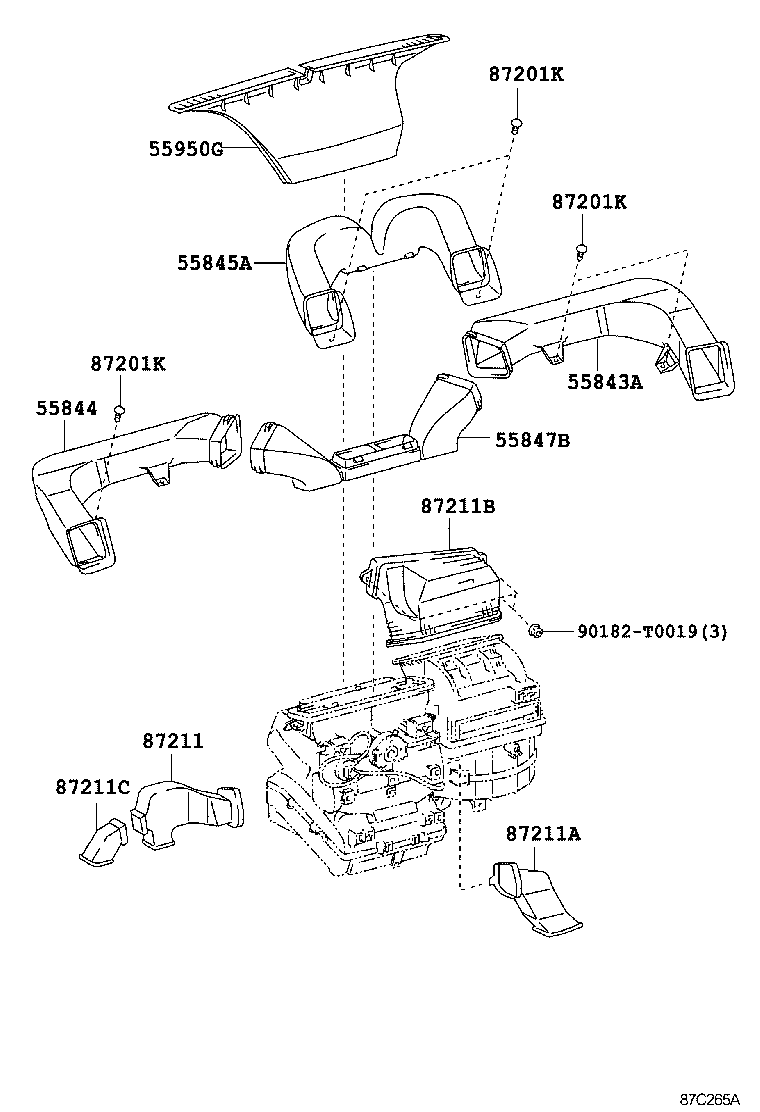

Figure 87C263A 87C263A 2011-07 → — Figure 87C262B 87C262B 2011-07 → — Figure 87C264C 87C264C 2011-07 → — Figure 87C265A 87C265A 2011-07 → — Figure 87C266A 87C266A 2011-07 → — Figure 87C267E 87C267E 2011-07 → — Figure 87C268A 87C268A 2011-07 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55847B Duct, Heater TO Register, NO.5
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55912E Base, Heater Control, Lower
55950G Nozzle Assy, Defroster
81942A Sheet, Heater Control Name, NO.1
84013A Panel Sub-assy, Integration
84660H Switch Assy, Cooler Control
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
88484 Wire, Cooler, NO.1
88505 Duct Sub-assy,Air Conditioner
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88600B Panel Assy, Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88650B Amplifier Assy, Airconditioner
88790B Thermistor Assy
