Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 5 illustrations

Illustrations

Figure 87B984B

87B984B 2011-07 → —

Figure 87B984B

87B984B 2012-01 → —

Figure 87B984B

87B984B 2012-02 → —

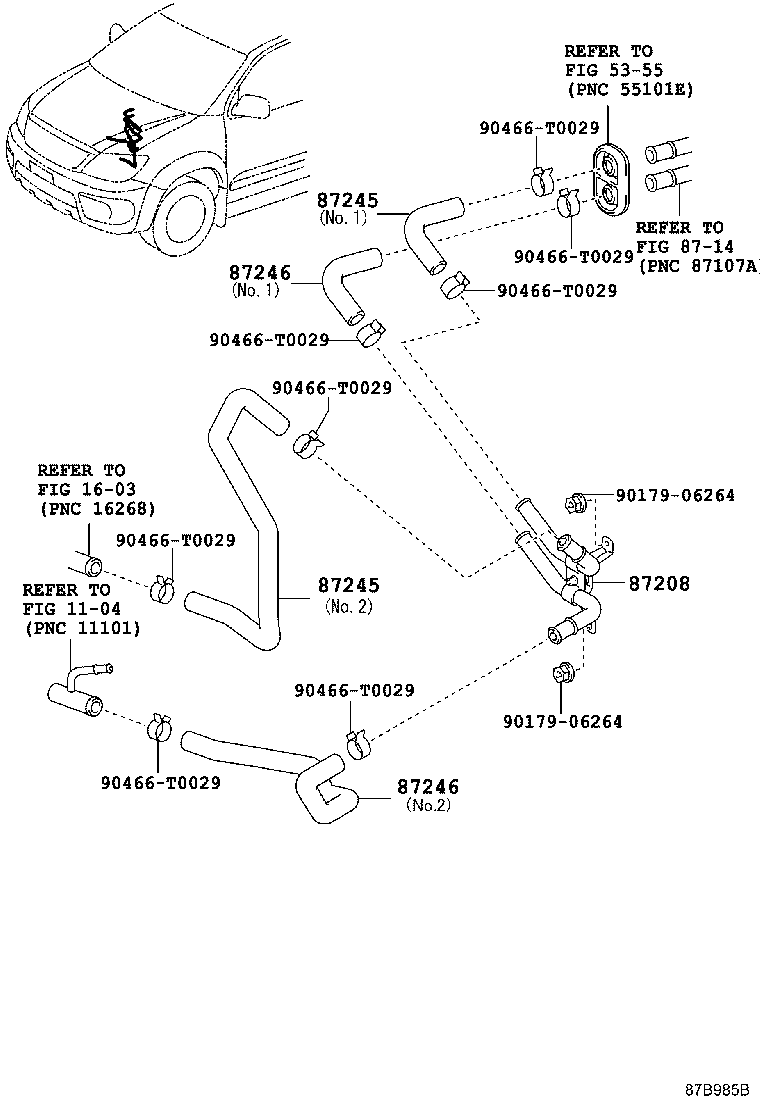

Figure 87B985B

87B985B 2011-07 → —

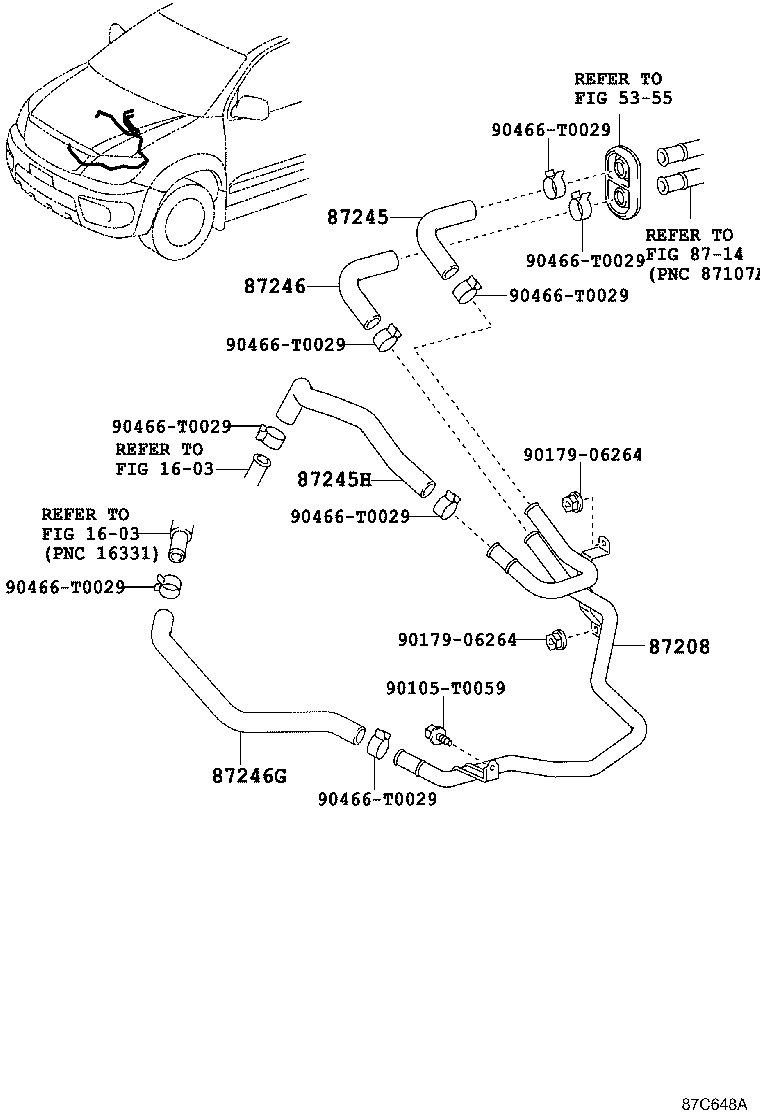

Figure 87C648A

87C648A 2012-01 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245H	Hose, Heater Water, Inlet H
87246	Hose, Heater Water, Outlet
87246G	Hose, Heater Water, Outlet G

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
