Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

45 part groups · 22 illustrations

Illustrations

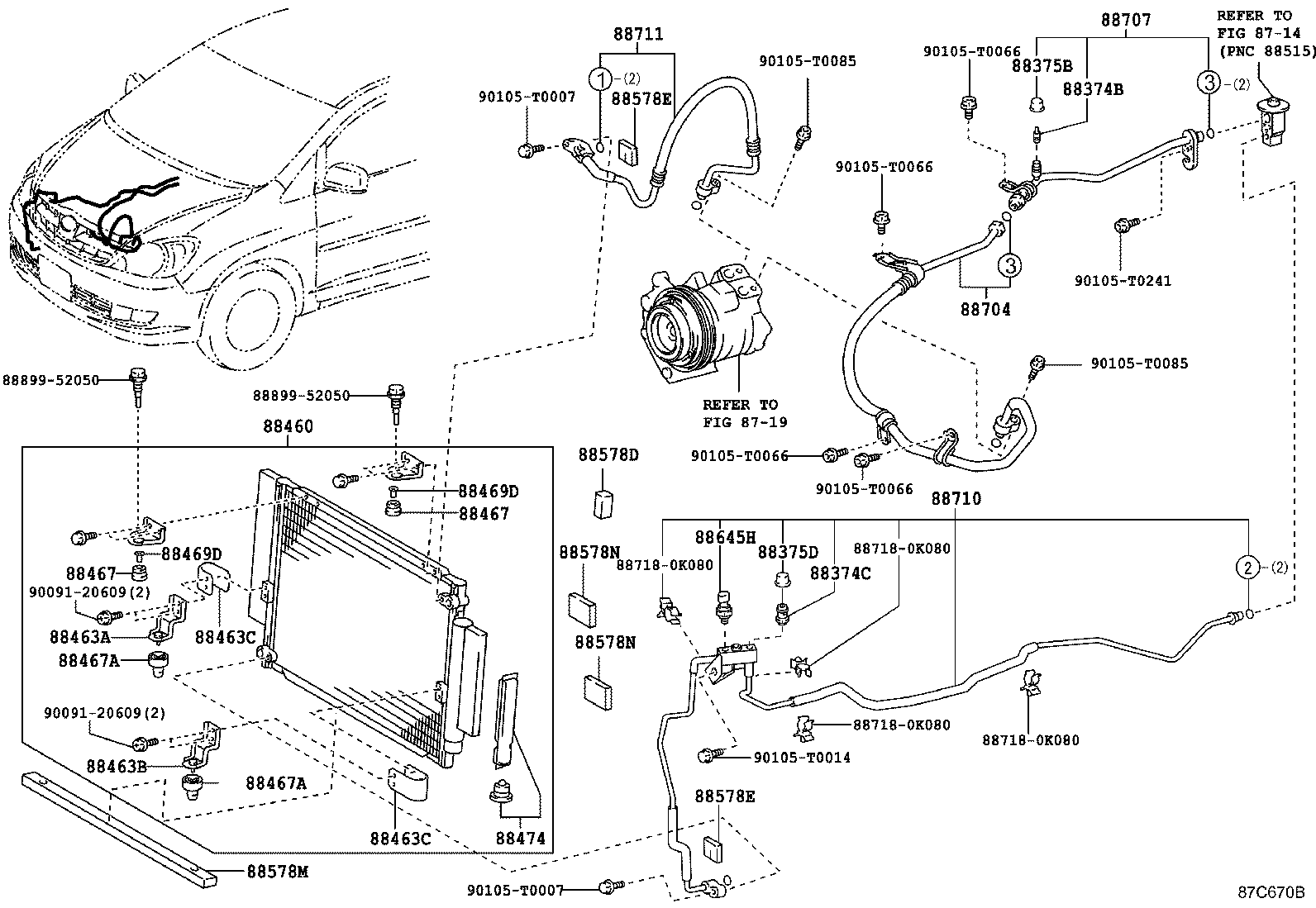

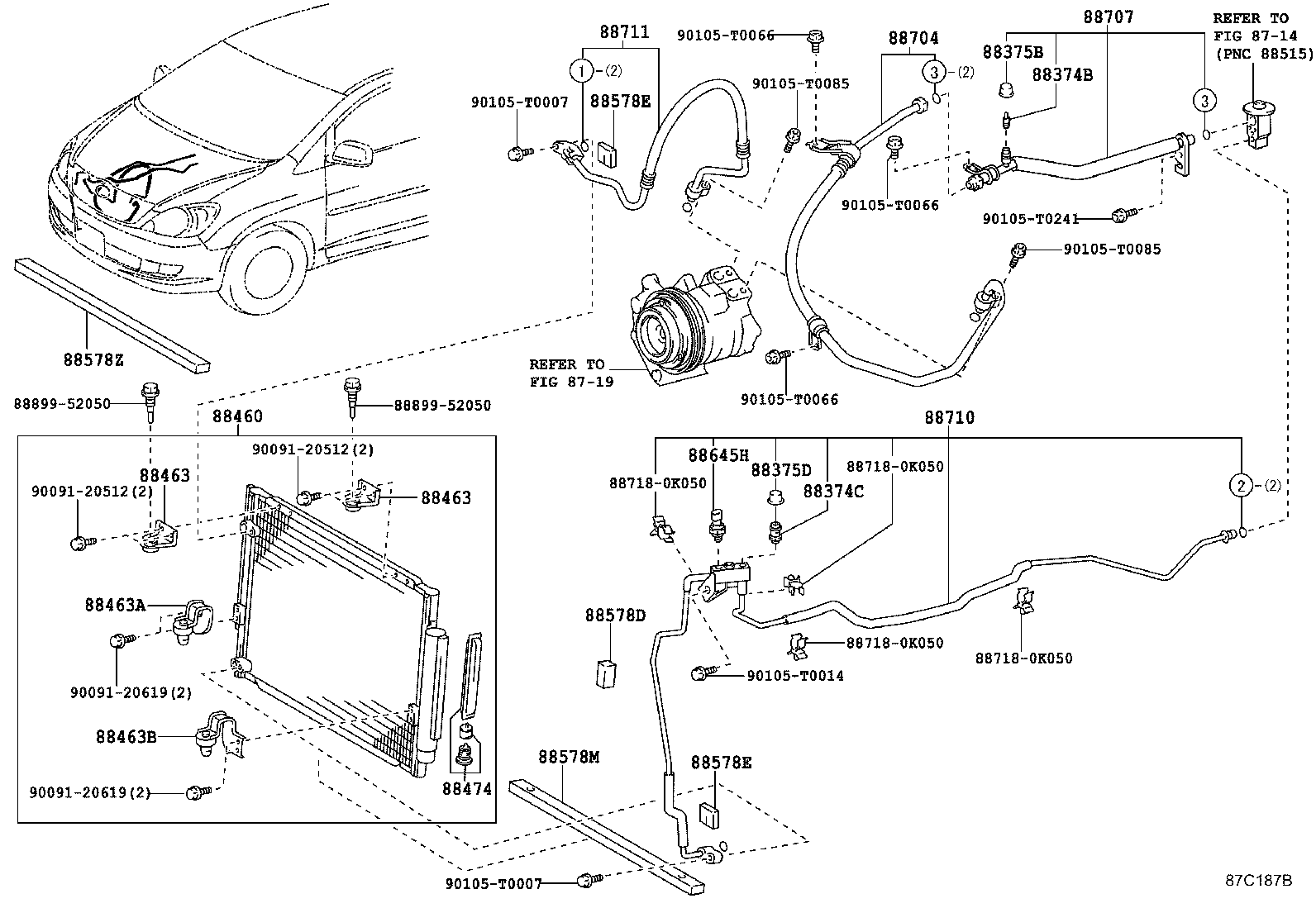

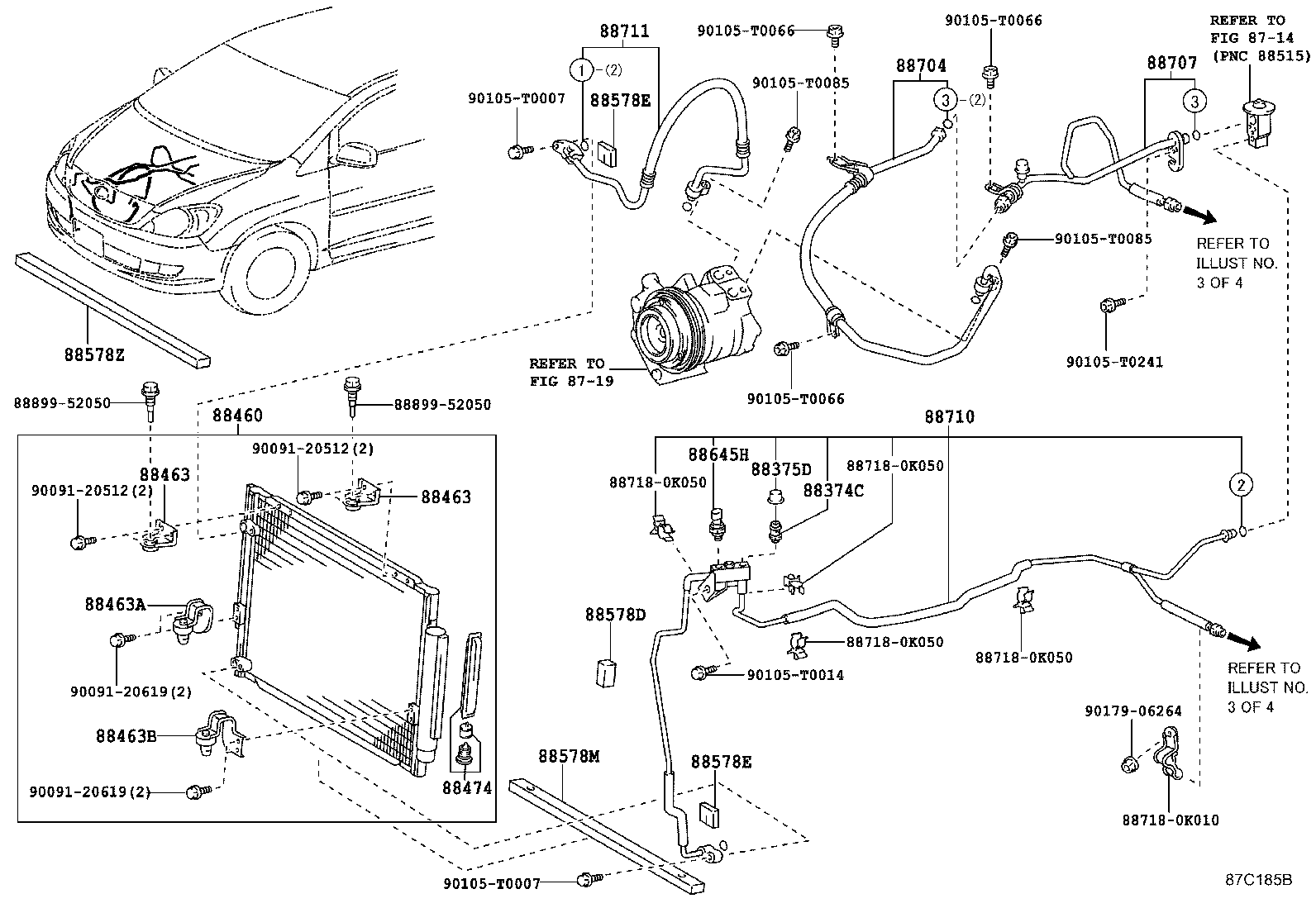

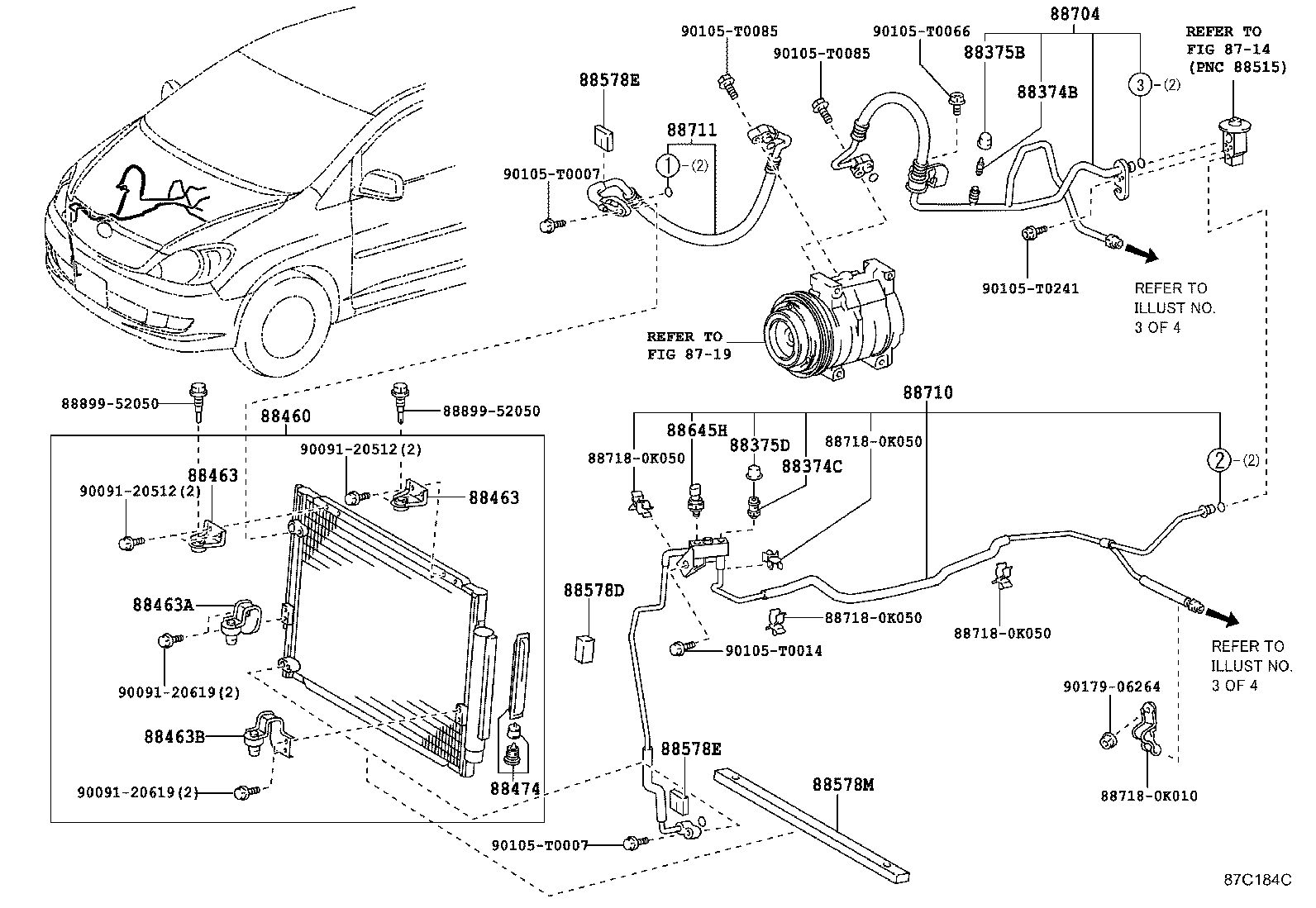

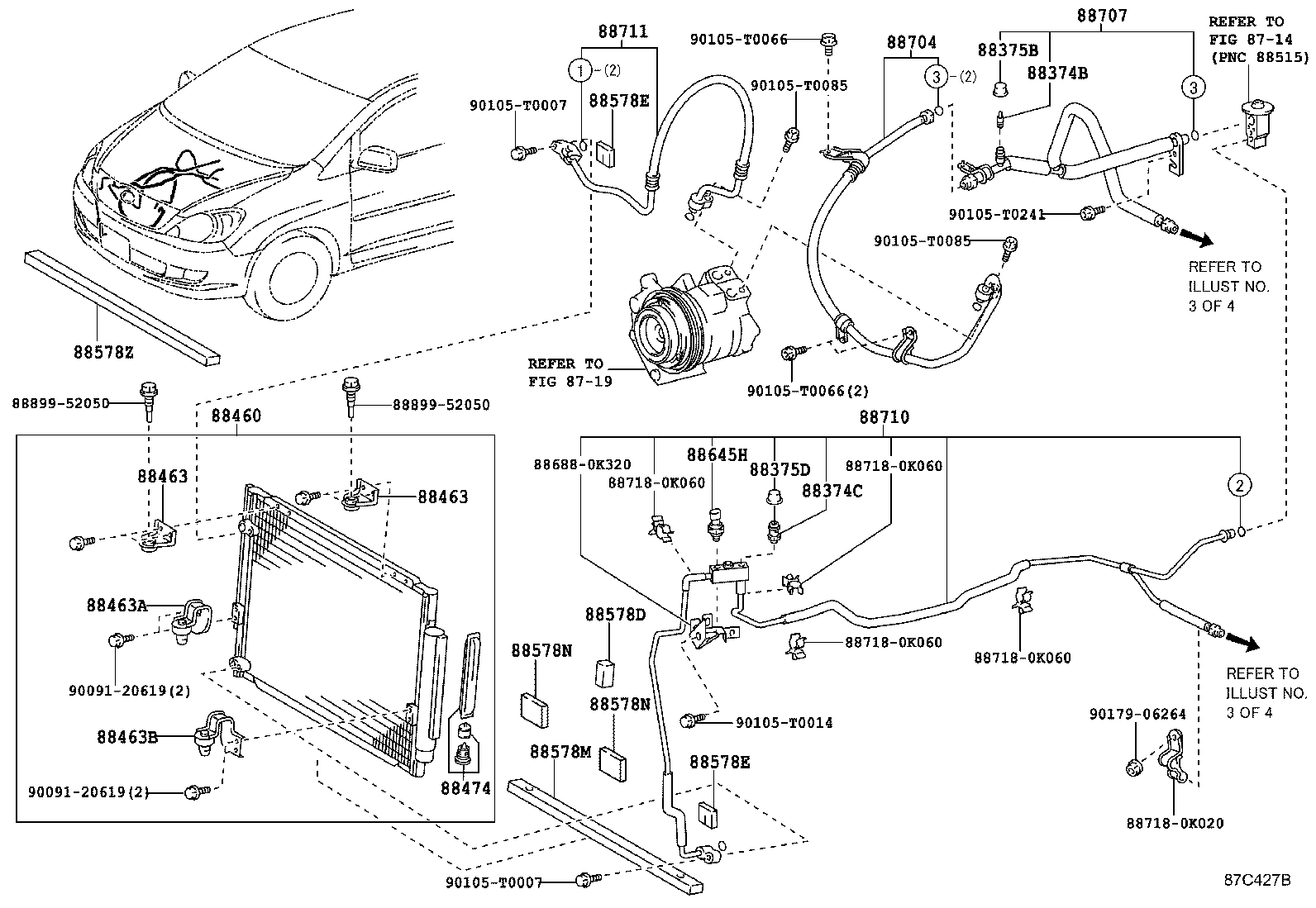

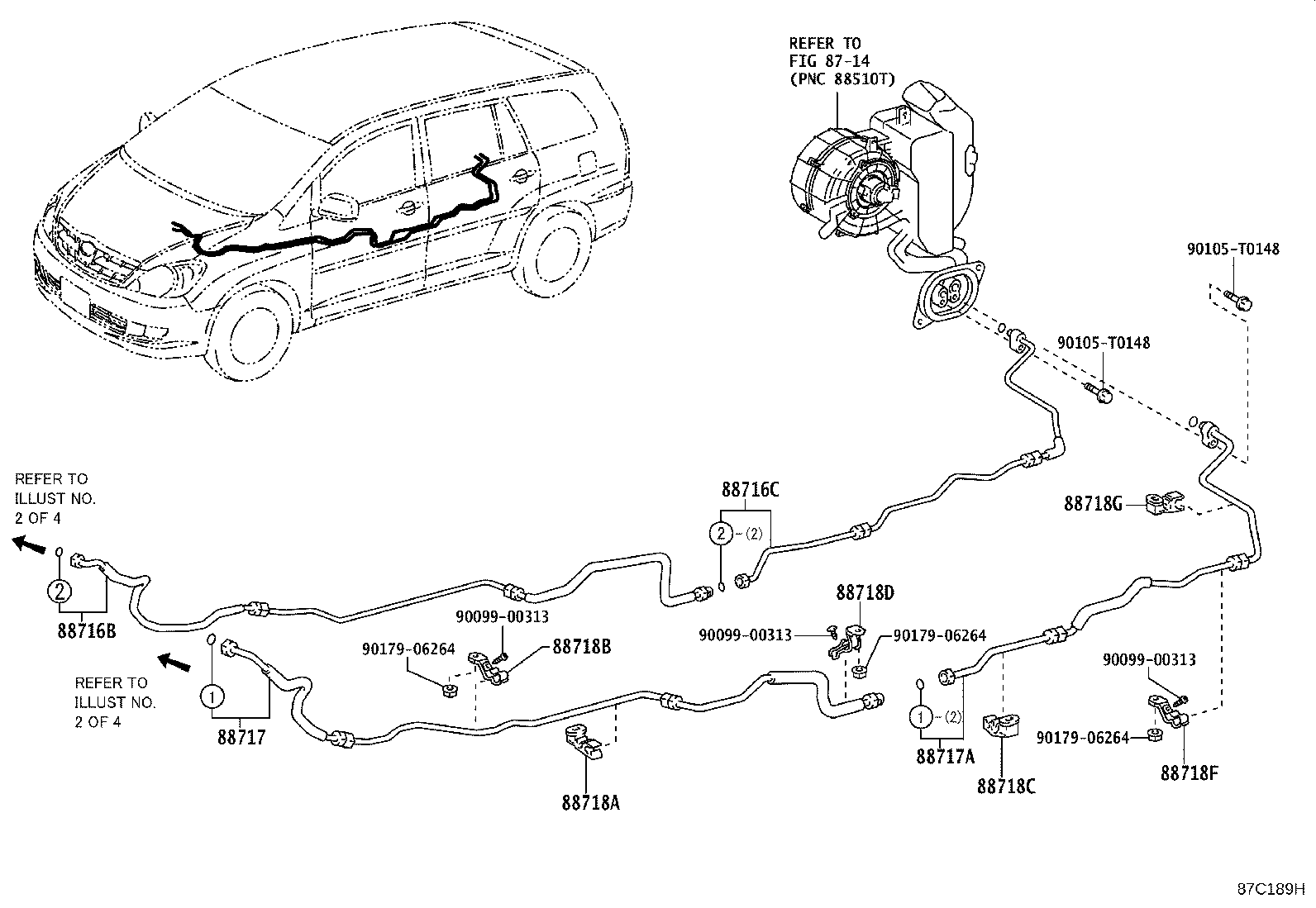

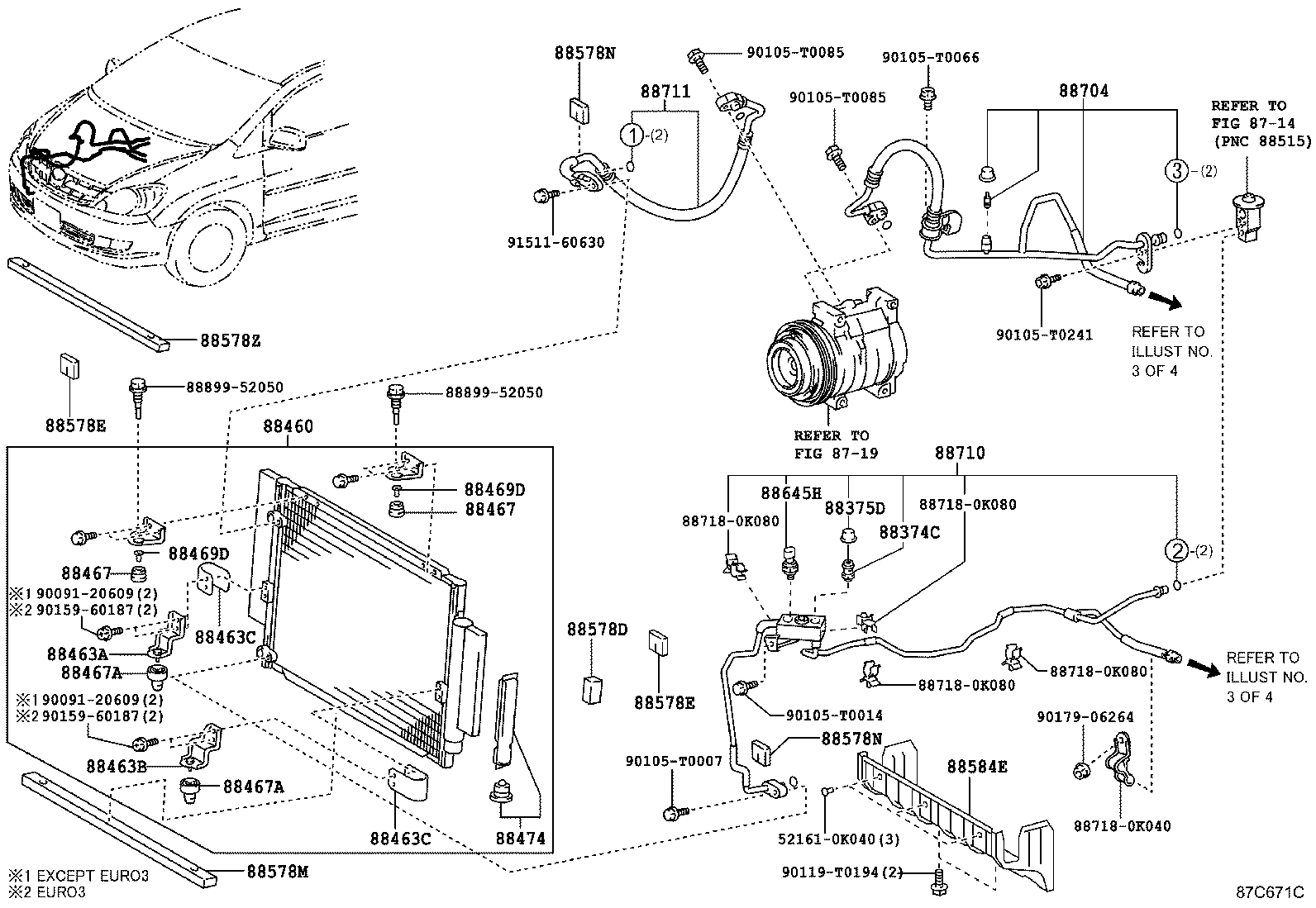

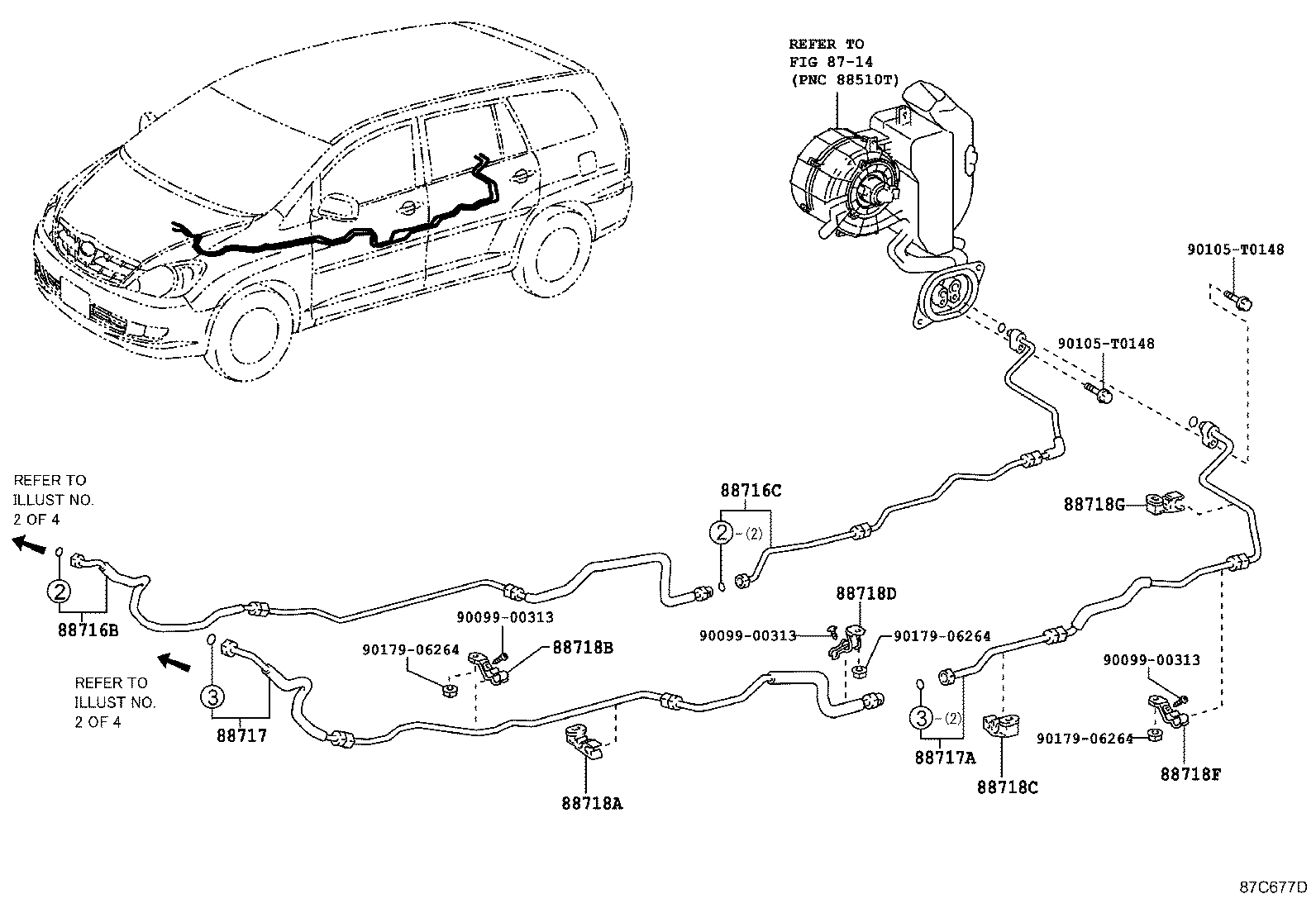

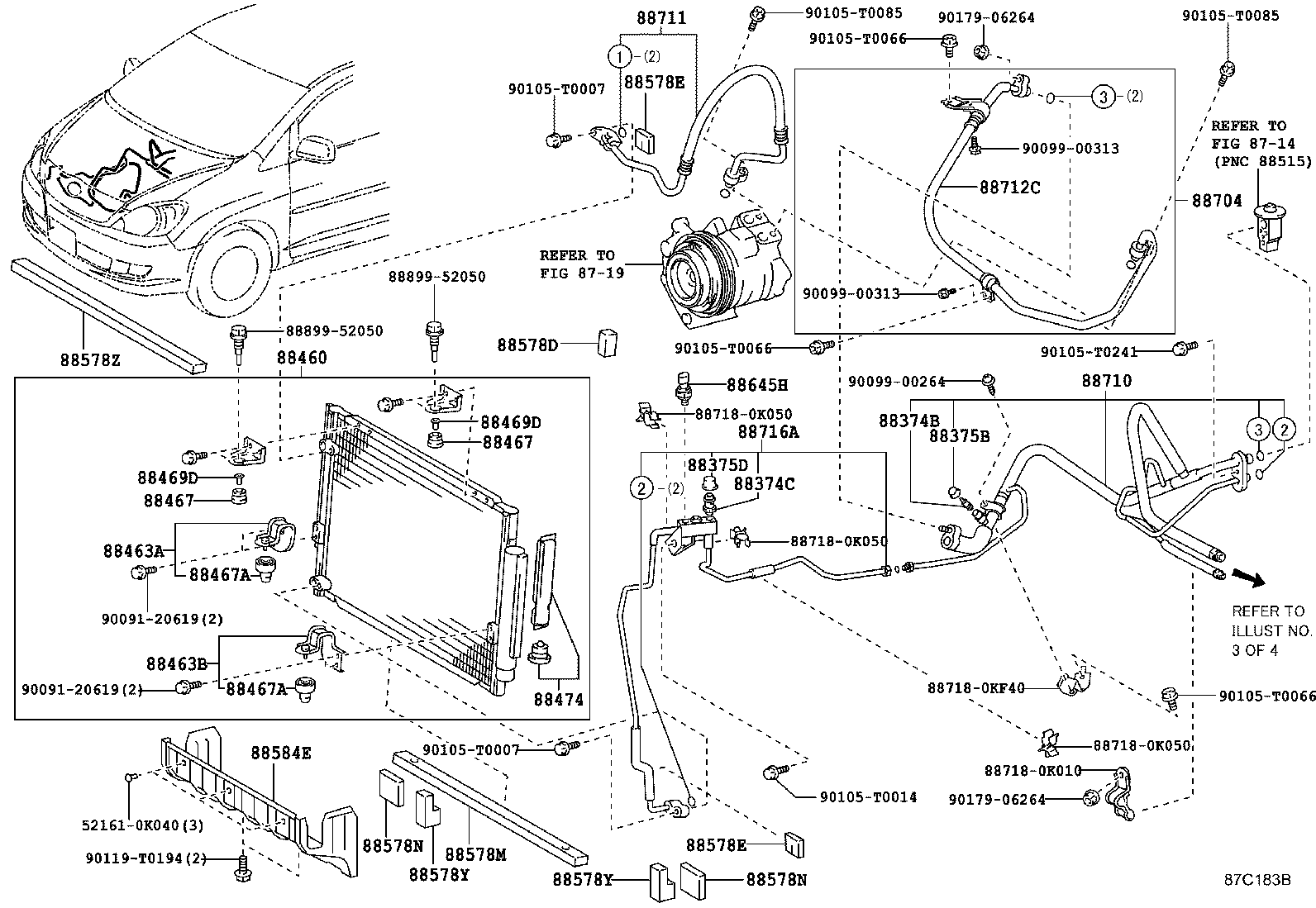

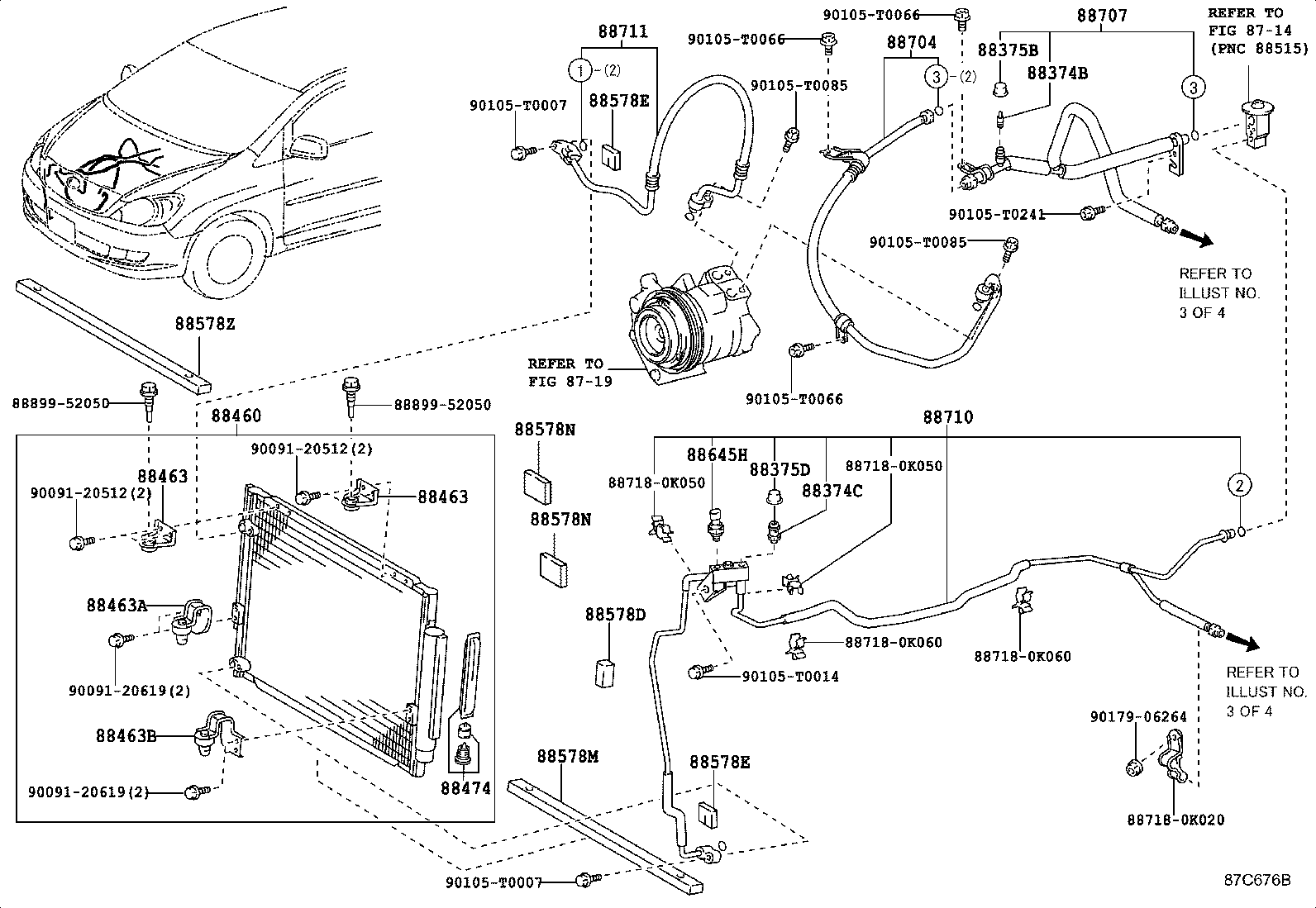

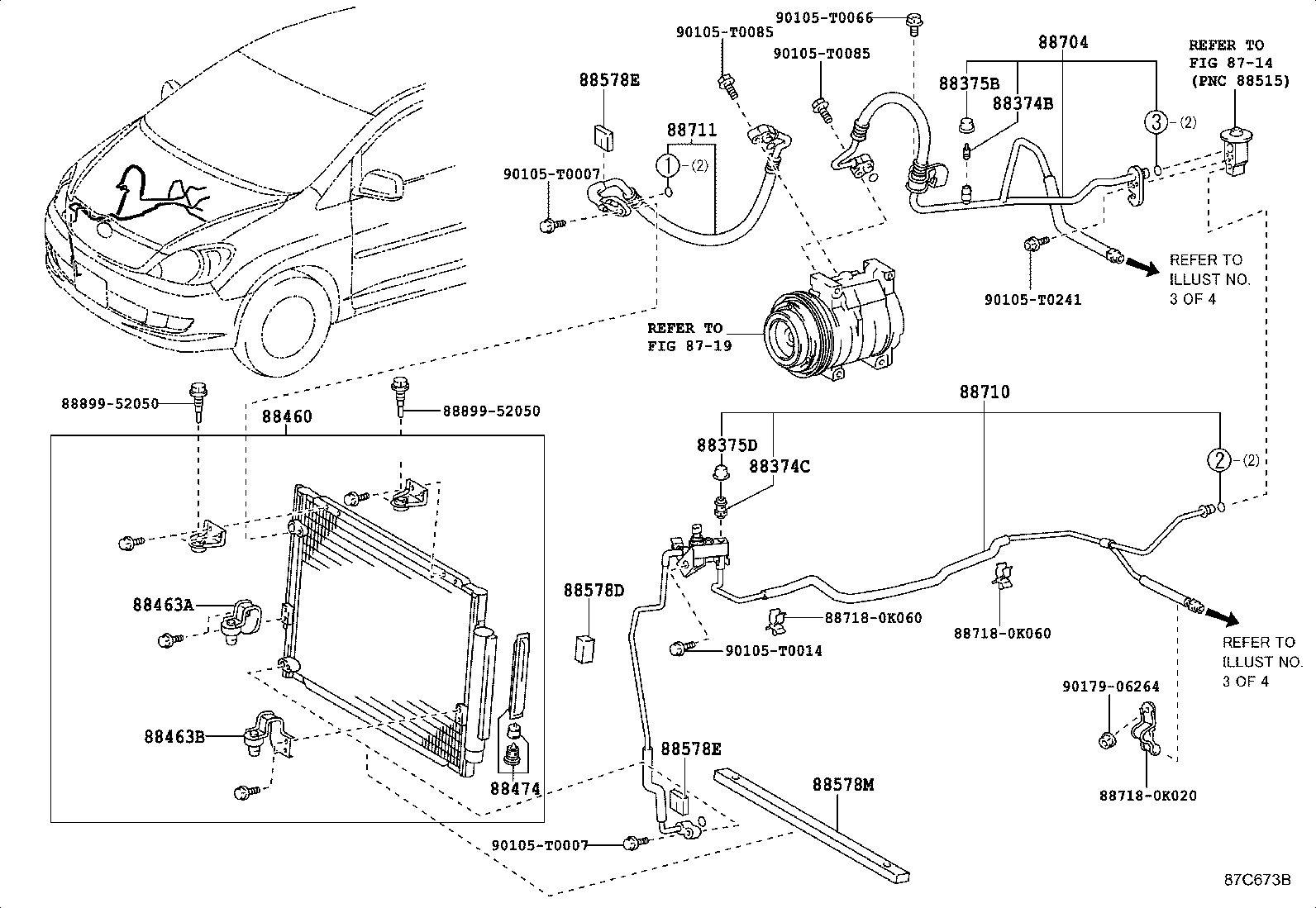

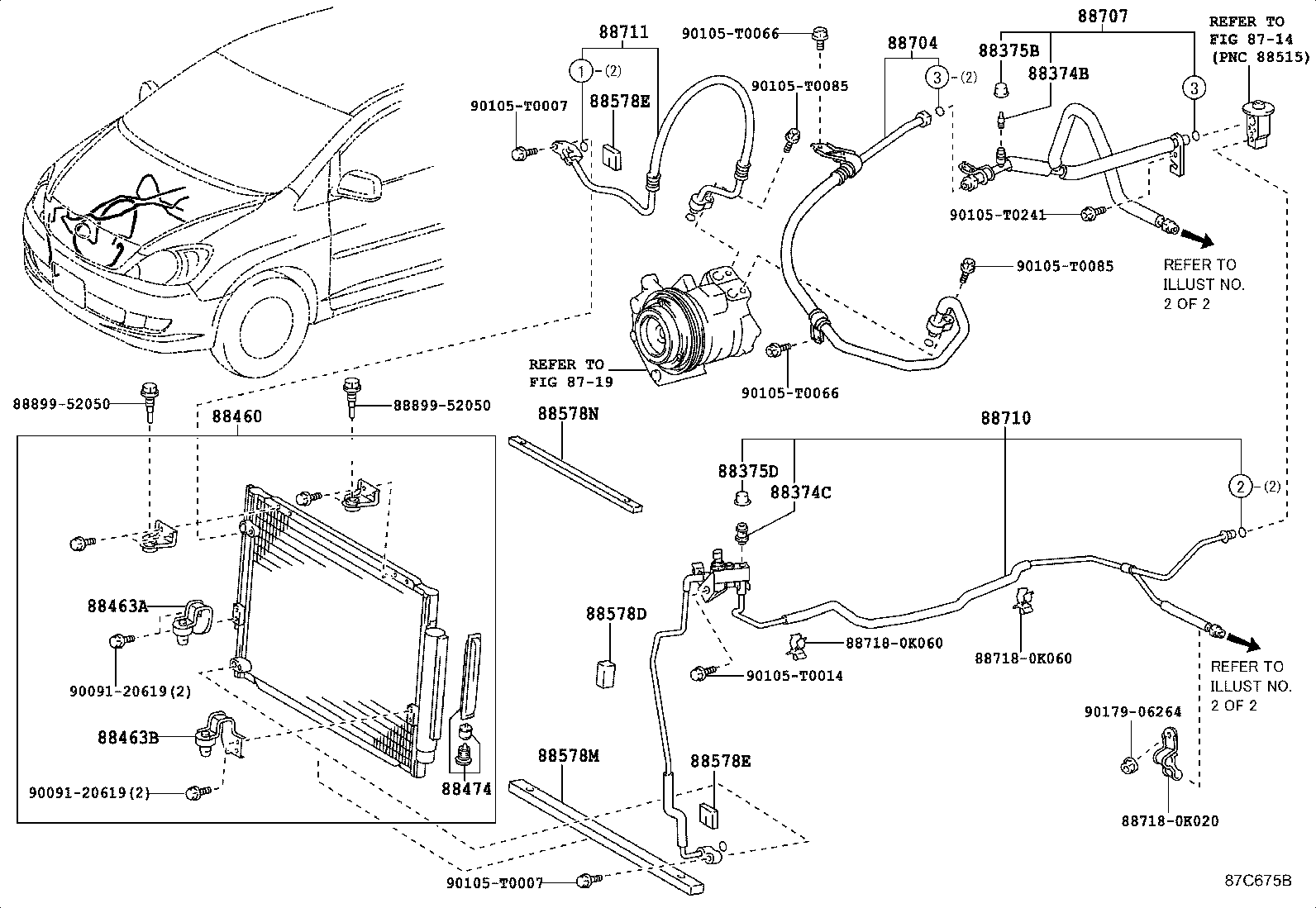

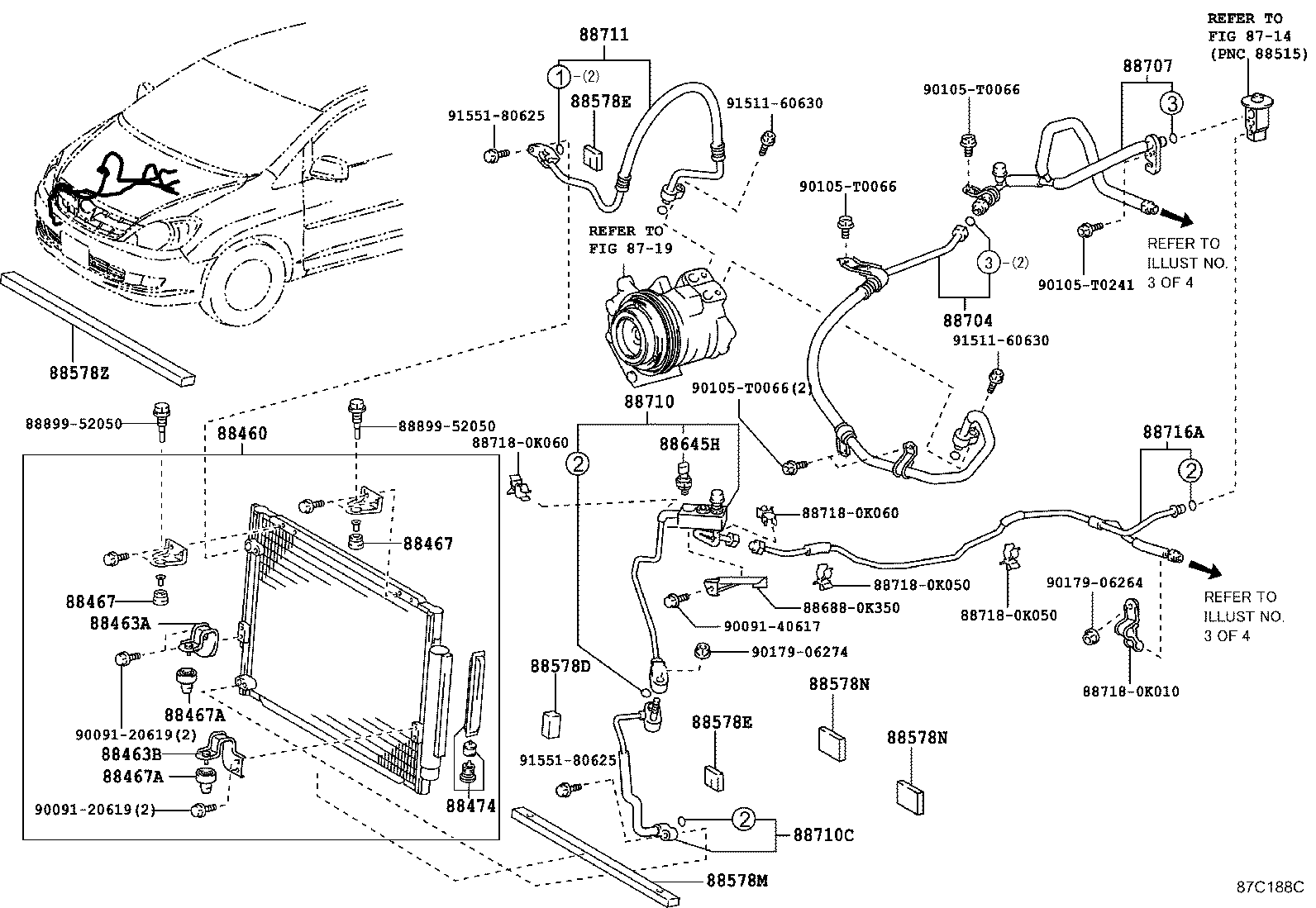

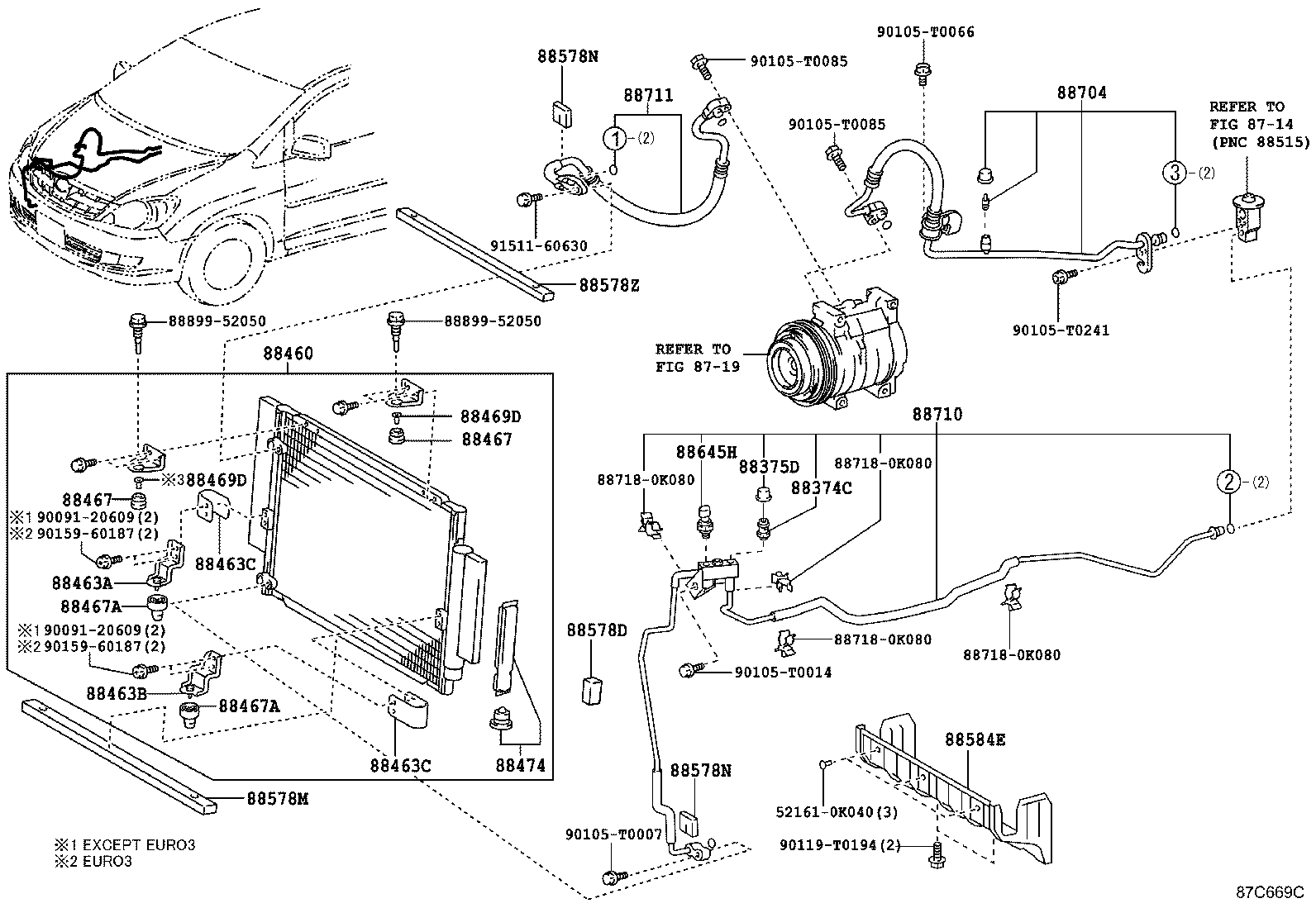

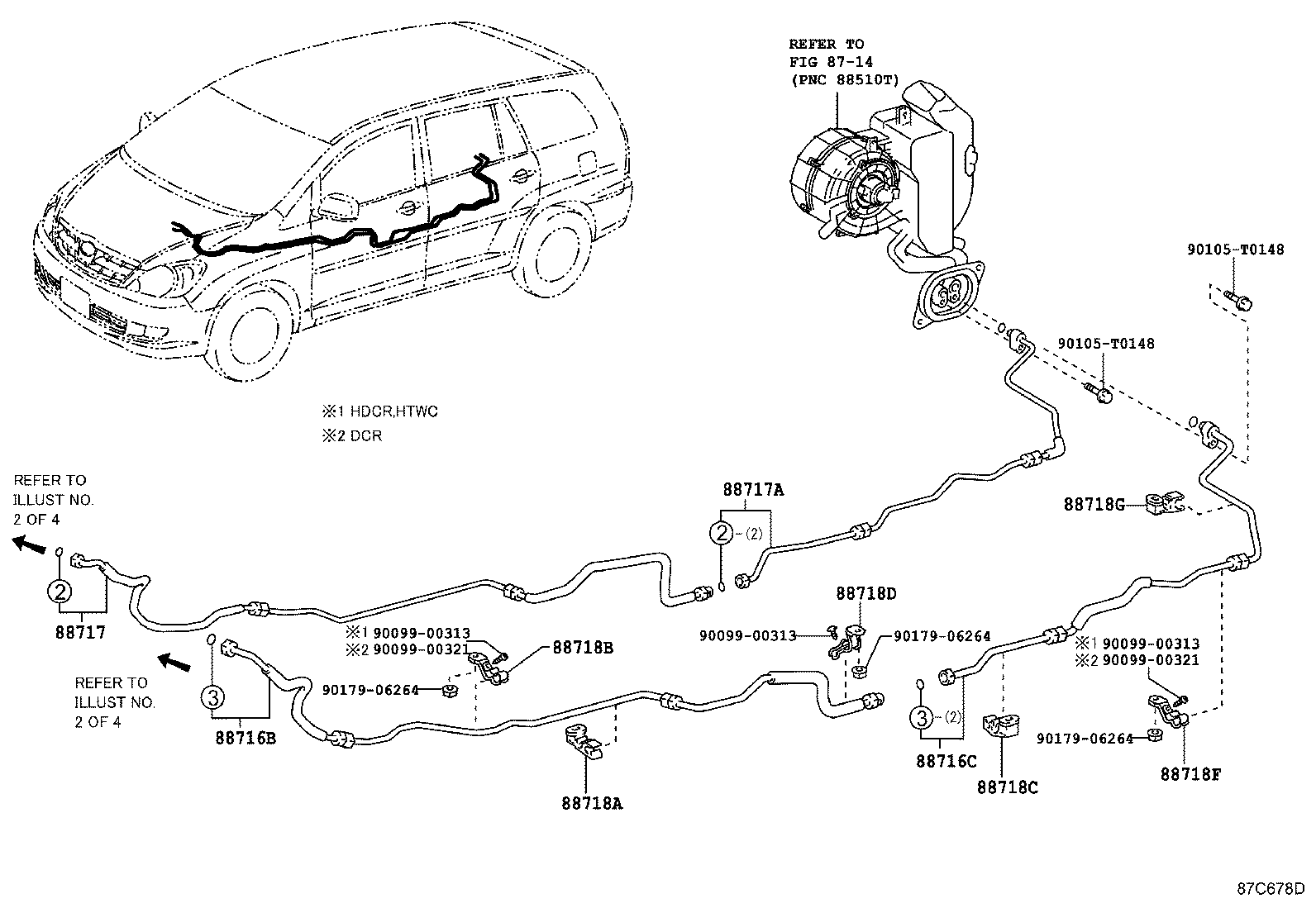

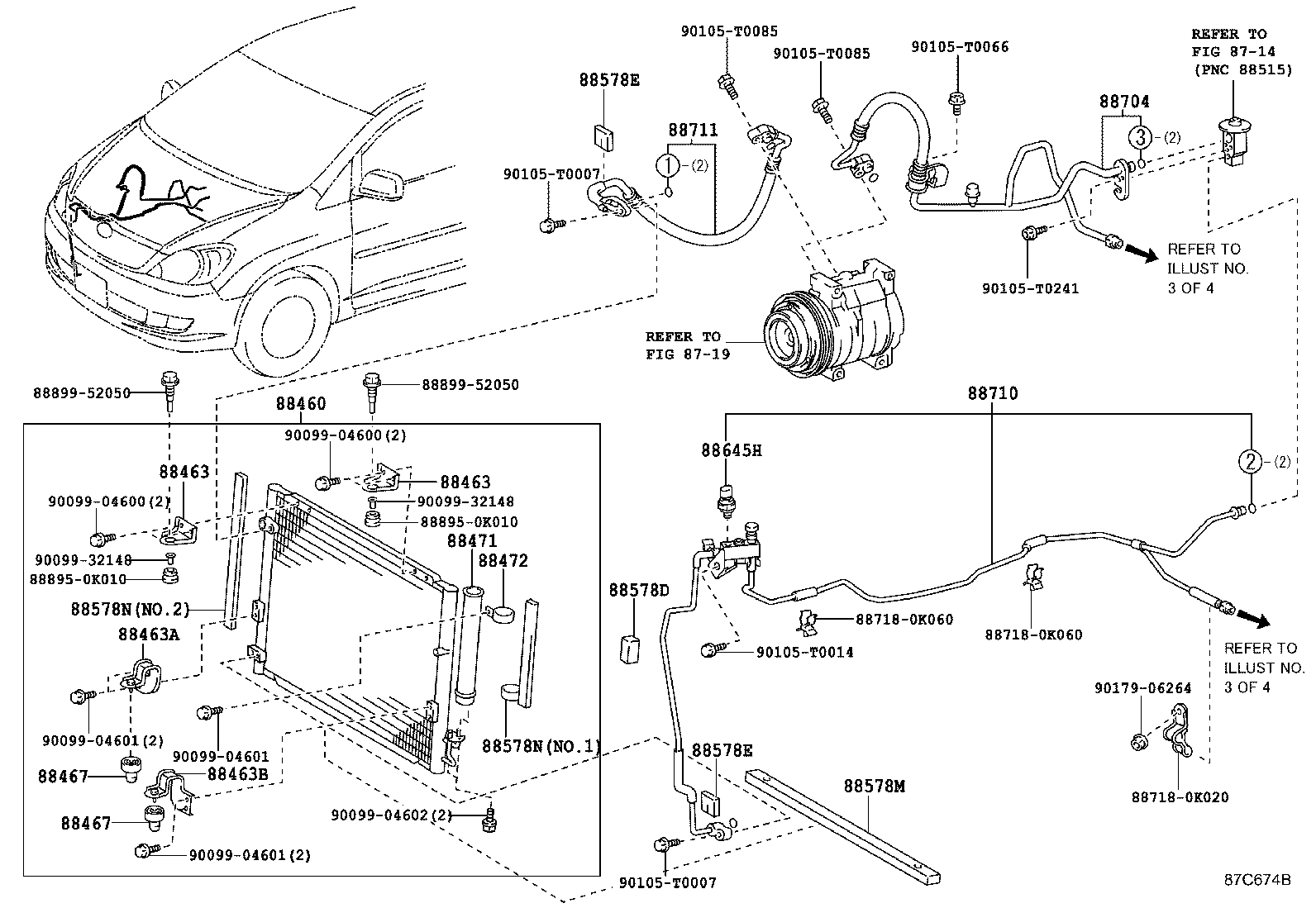

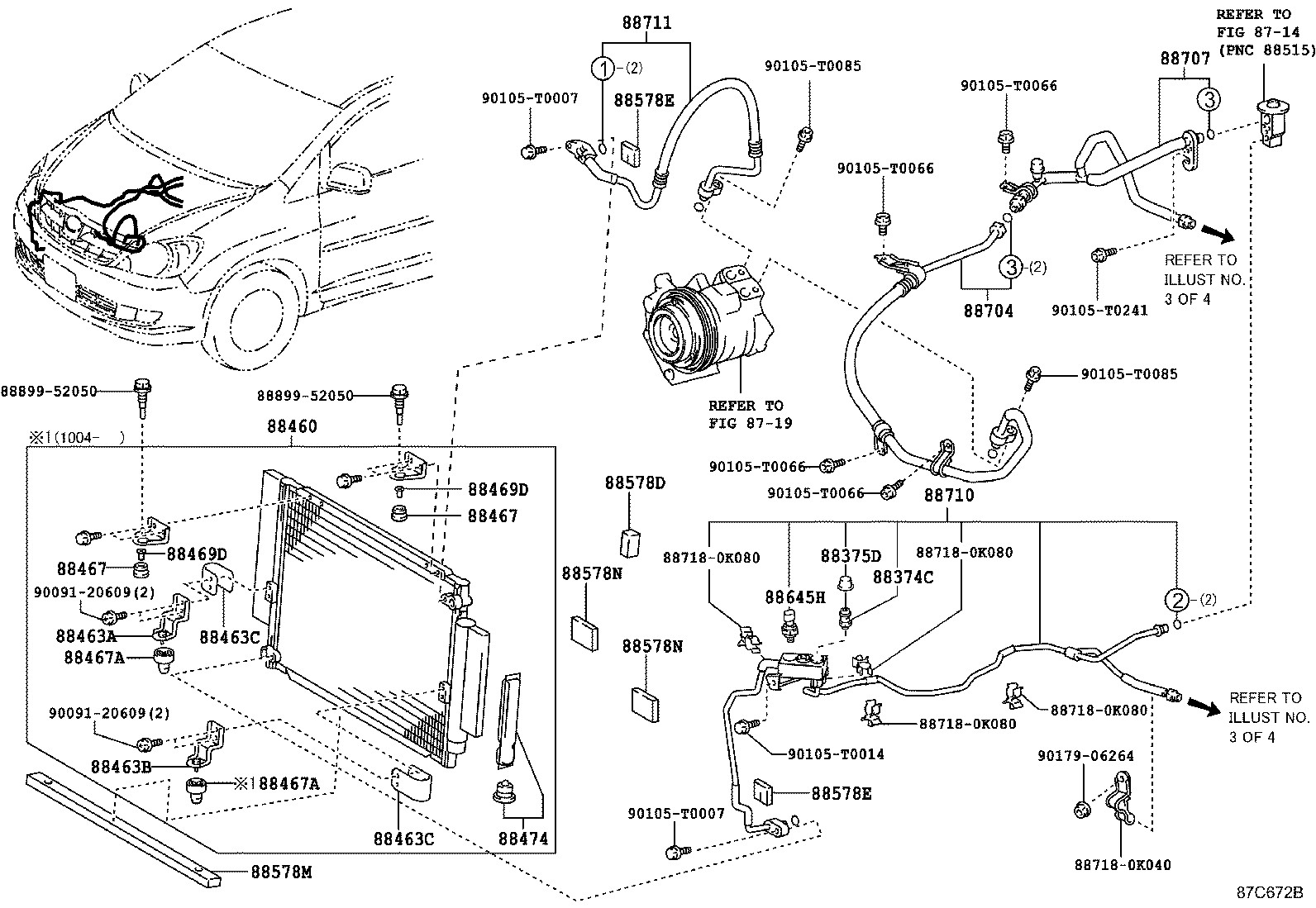

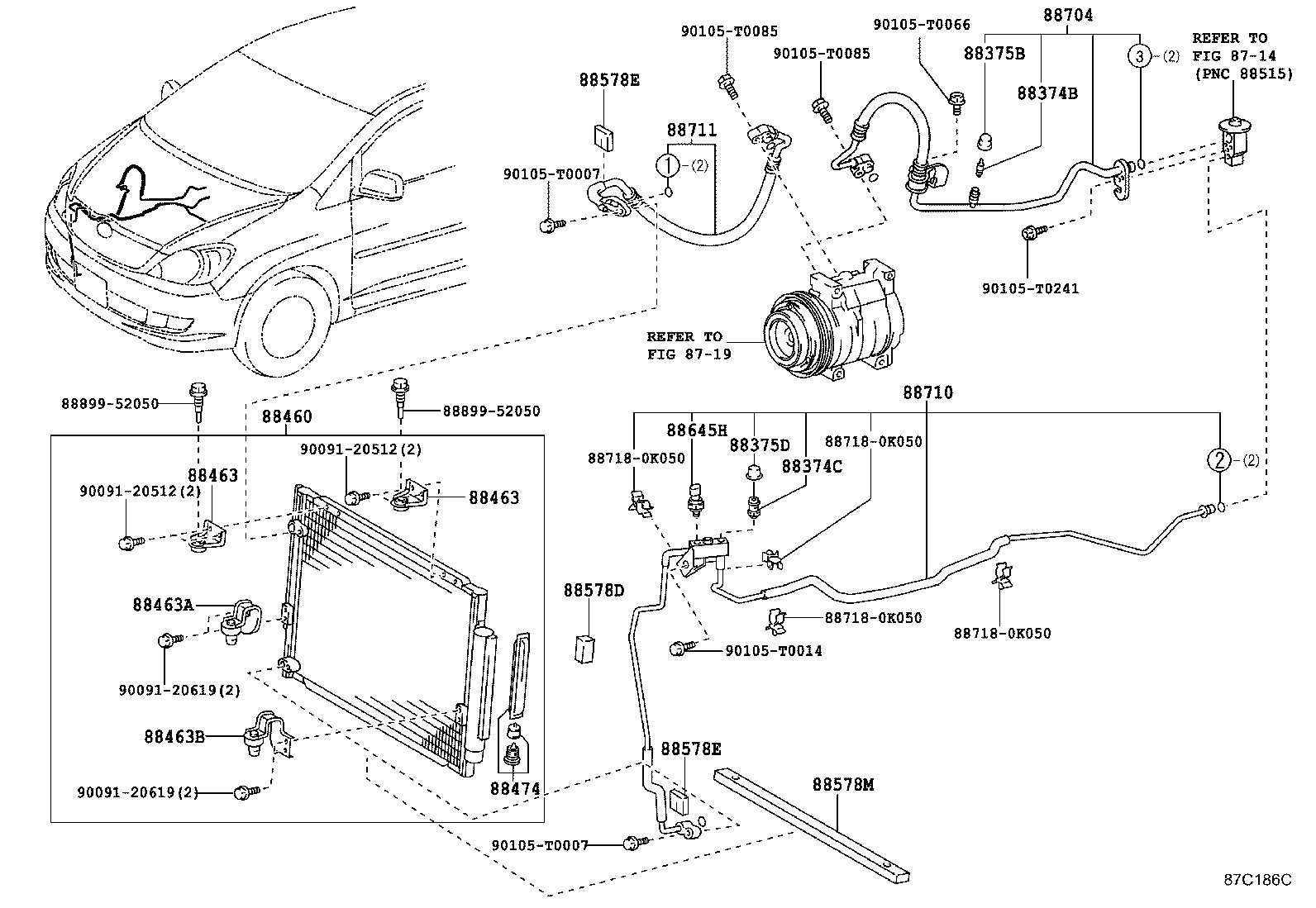

Figure 87C182A 87C182A 2011-07 → — Figure 87C183B 87C183B 2011-07 → — Figure 87C184C 87C184C 2011-07 → — Figure 87C186C 87C186C 2011-07 → — Figure 87C185B 87C185B 2011-07 → — Figure 87C187B 87C187B 2011-07 → — Figure 87C188C 87C188C 2011-07 → — Figure 87C427B 87C427B 2011-10 → — Figure 87C671C 87C671C 2012-01 → — Figure 87C672B 87C672B 2012-01 → — Figure 87C669C 87C669C 2012-01 → — Figure 87C670B 87C670B 2012-01 → — Figure 87C674B 87C674B 2012-01 → — Figure 87C673B 87C673B 2012-02 → — Figure 87C675B 87C675B 2012-02 → — Figure 87C676B 87C676B 2012-02 → — Figure 87C189H 87C189H 2011-07 → — Figure 87C189H 87C189H 2011-10 → — Figure 87C189H 87C189H 2012-01 → — Figure 87C678D 87C678D 2012-02 → — Figure 87C677D 87C677D 2012-02 → — Figure 87C679A 87C679A 2011-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88578N Packing, Cooling Pipe, NO.4
88578Y Packing, Cooling Pipe, NO.5
88578Z Packing, Cooler, NO.1
88584E Guide, Cooler Air
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
