Toyota Innova/Kijang Innova

2011-07 → 2016-11 · chassis KUN40,TGN4# · catalogue 611270 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 10 illustrations

Illustrations

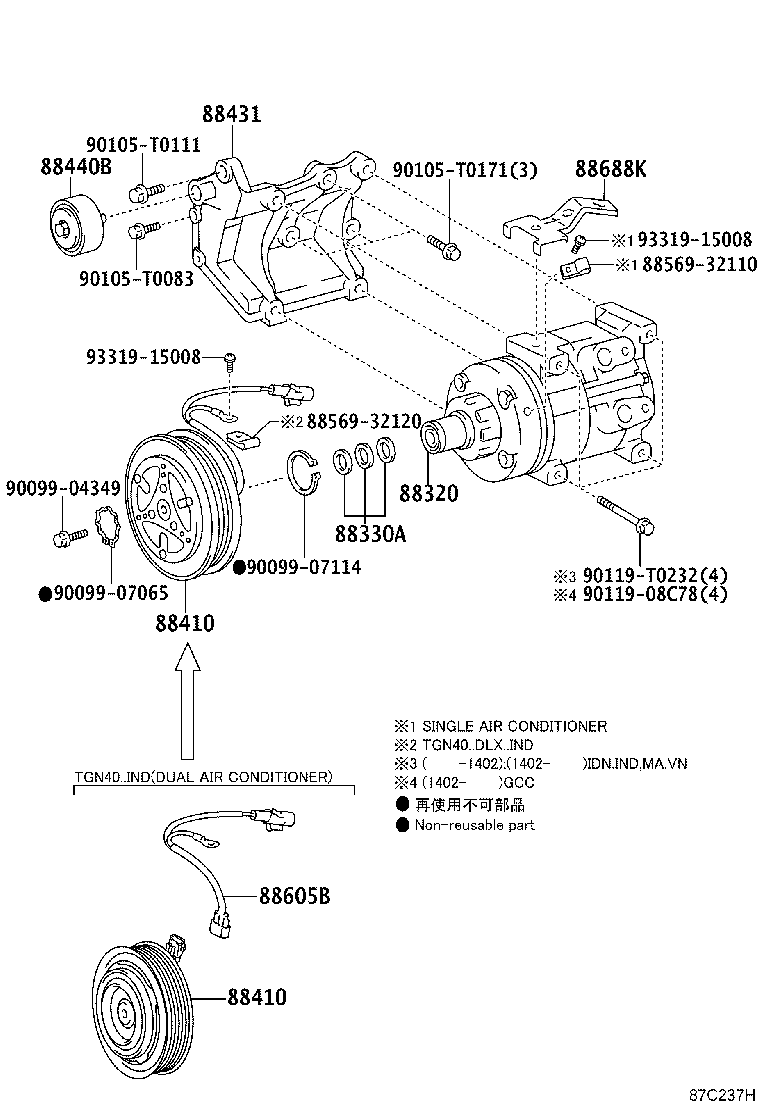

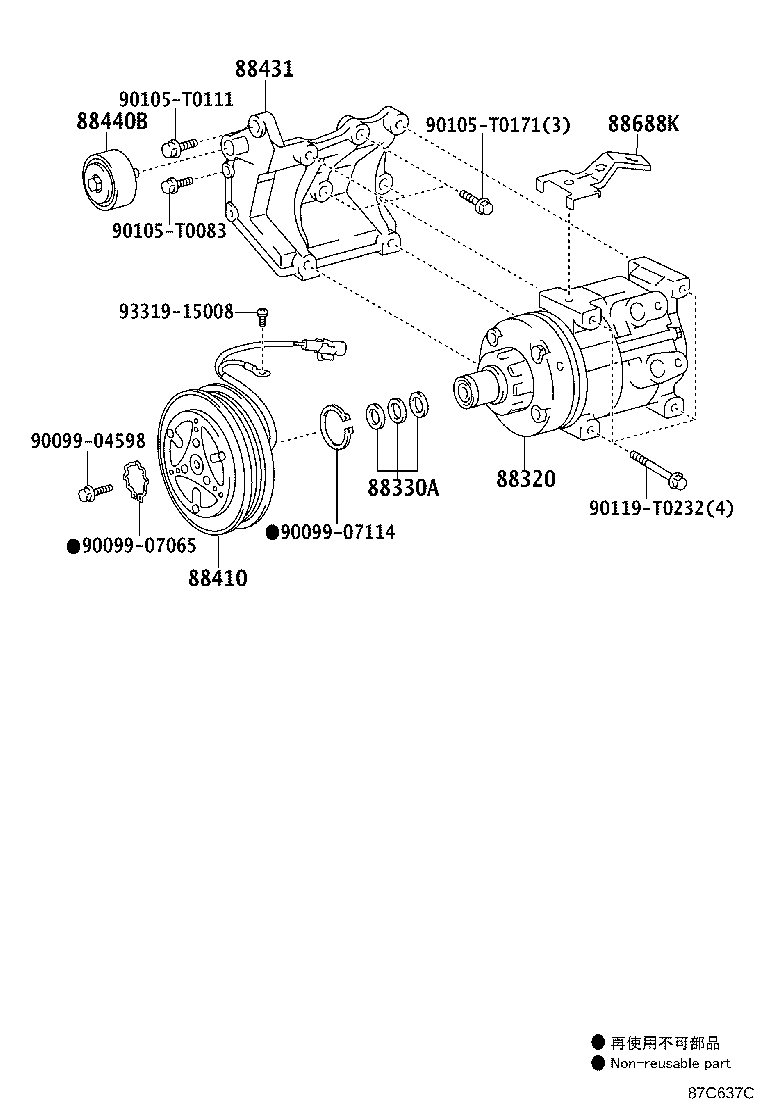

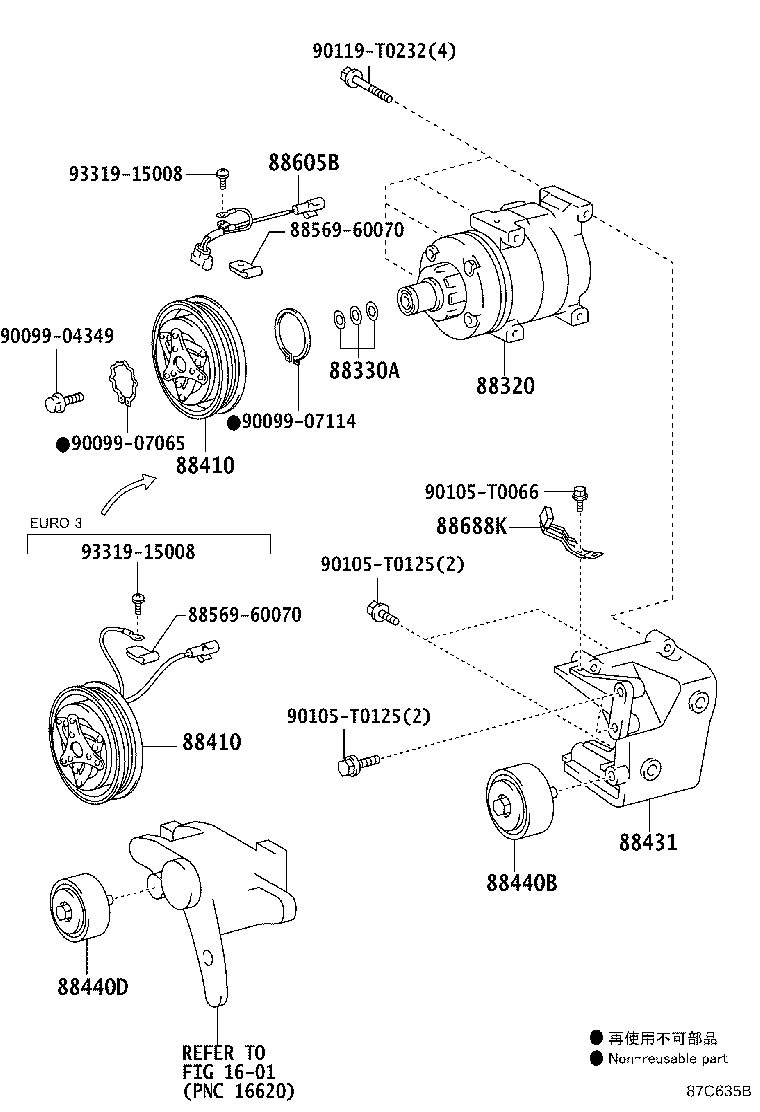

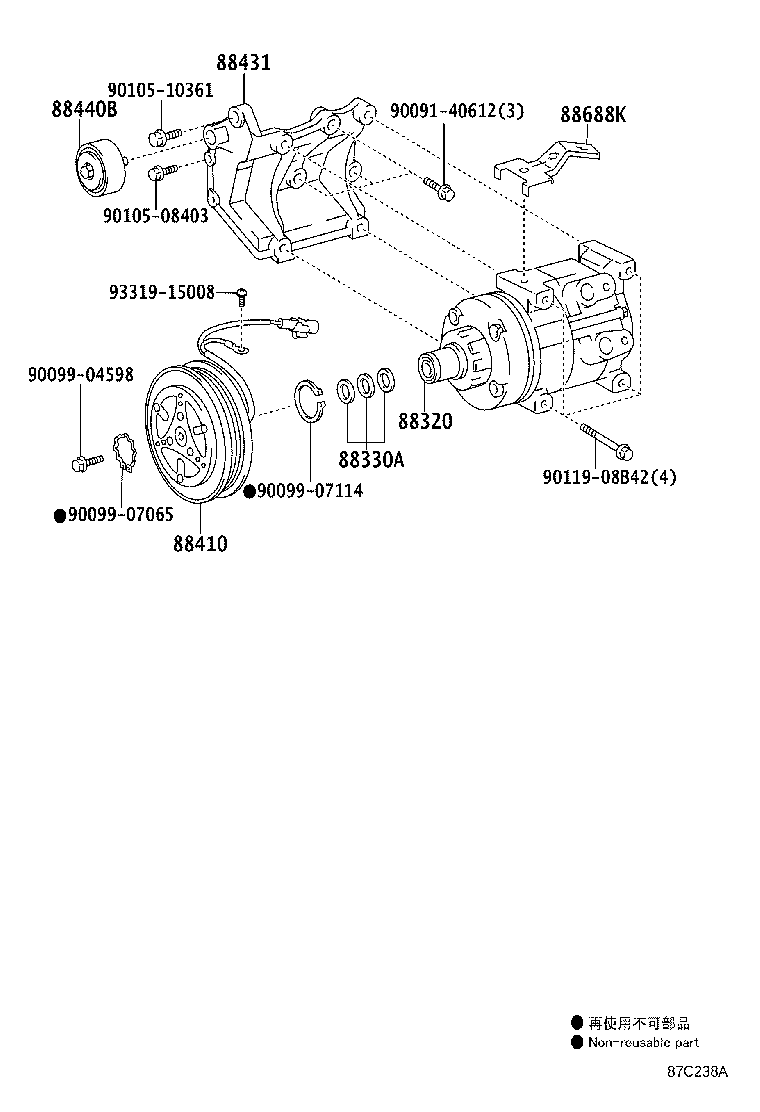

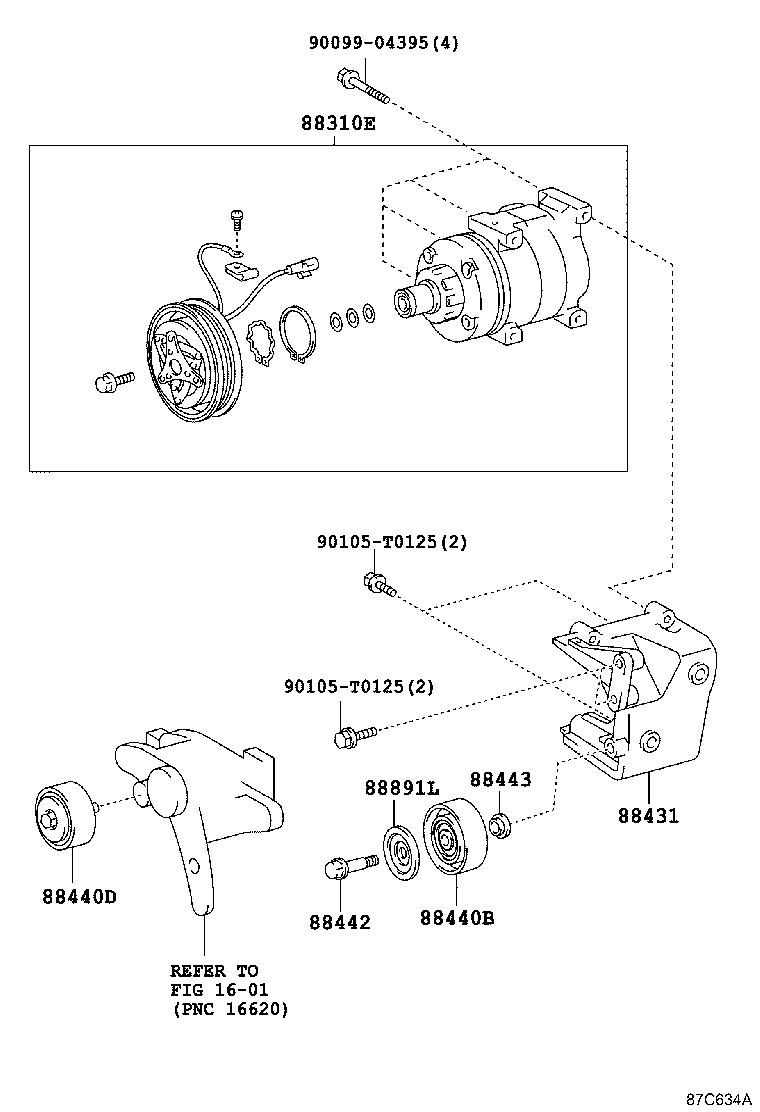

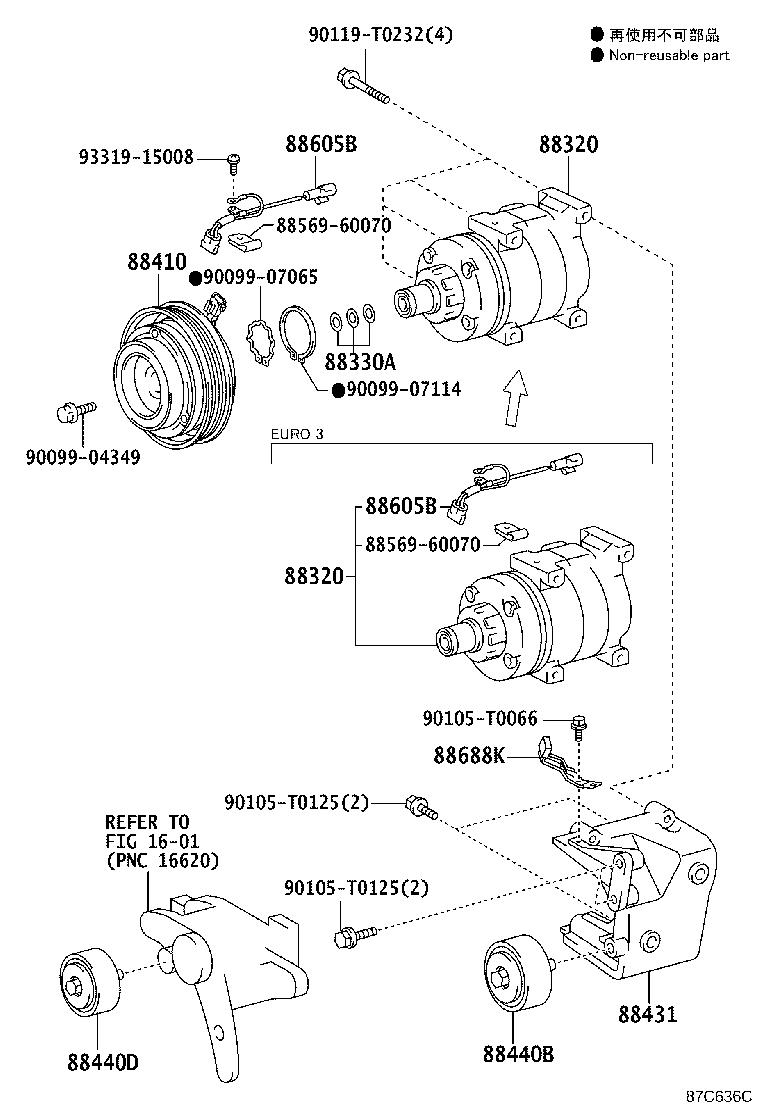

Figure 87C236B 87C236B 2011-07 → — Figure 87C236B 87C236B 2012-02 → — Figure 87C237H 87C237H 2011-07 → — Figure 87C237H 87C237H 2011-10 → — Figure 87C237H 87C237H 2012-02 → — Figure 87C238A 87C238A 2011-07 → — Figure 87C636C 87C636C 2012-01 → — Figure 87C635B 87C635B 2012-01 → — Figure 87C634A 87C634A 2012-02 → — Figure 87C637C 87C637C 2012-02 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
88891L Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
