Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11
Cylinder Block

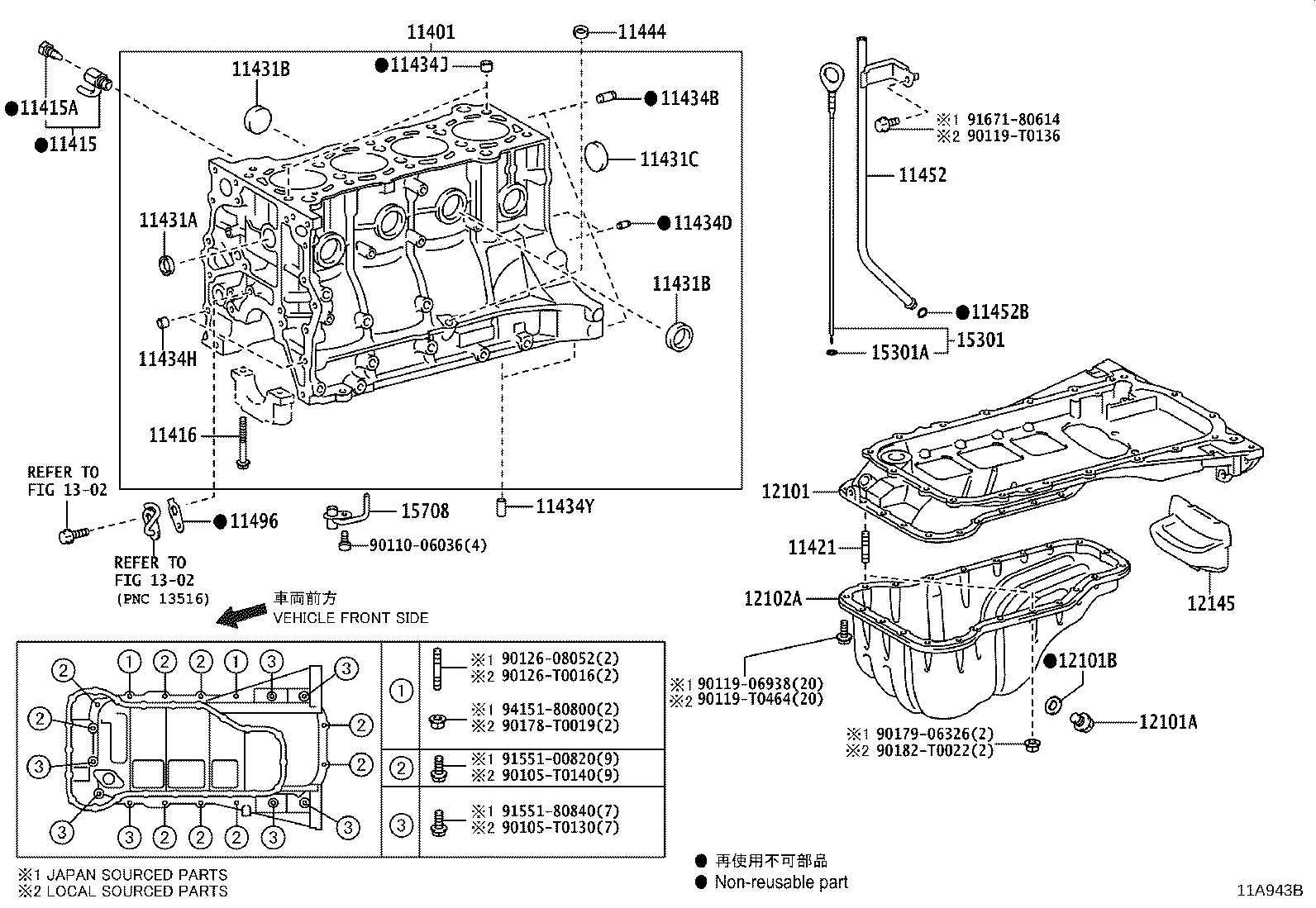

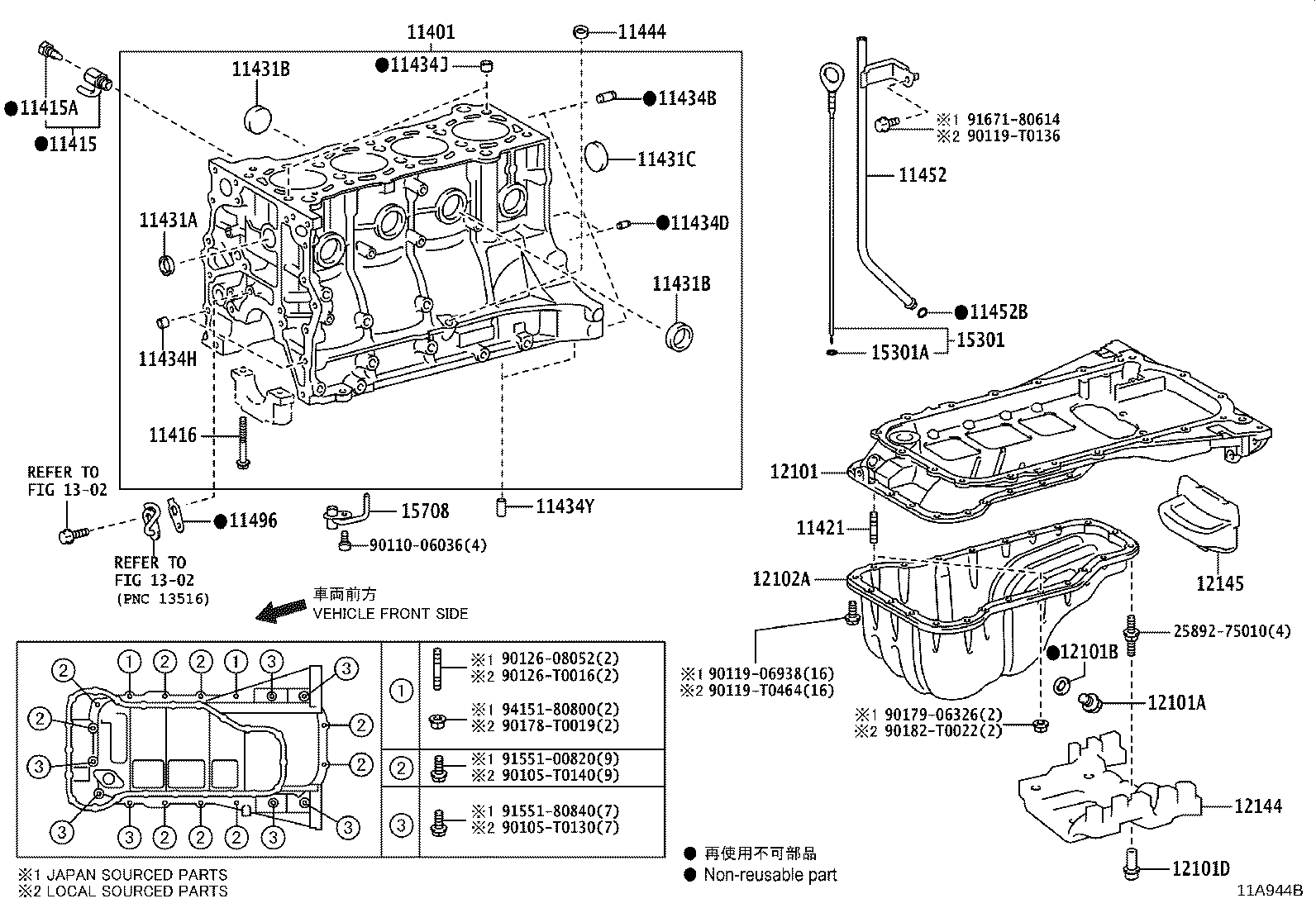

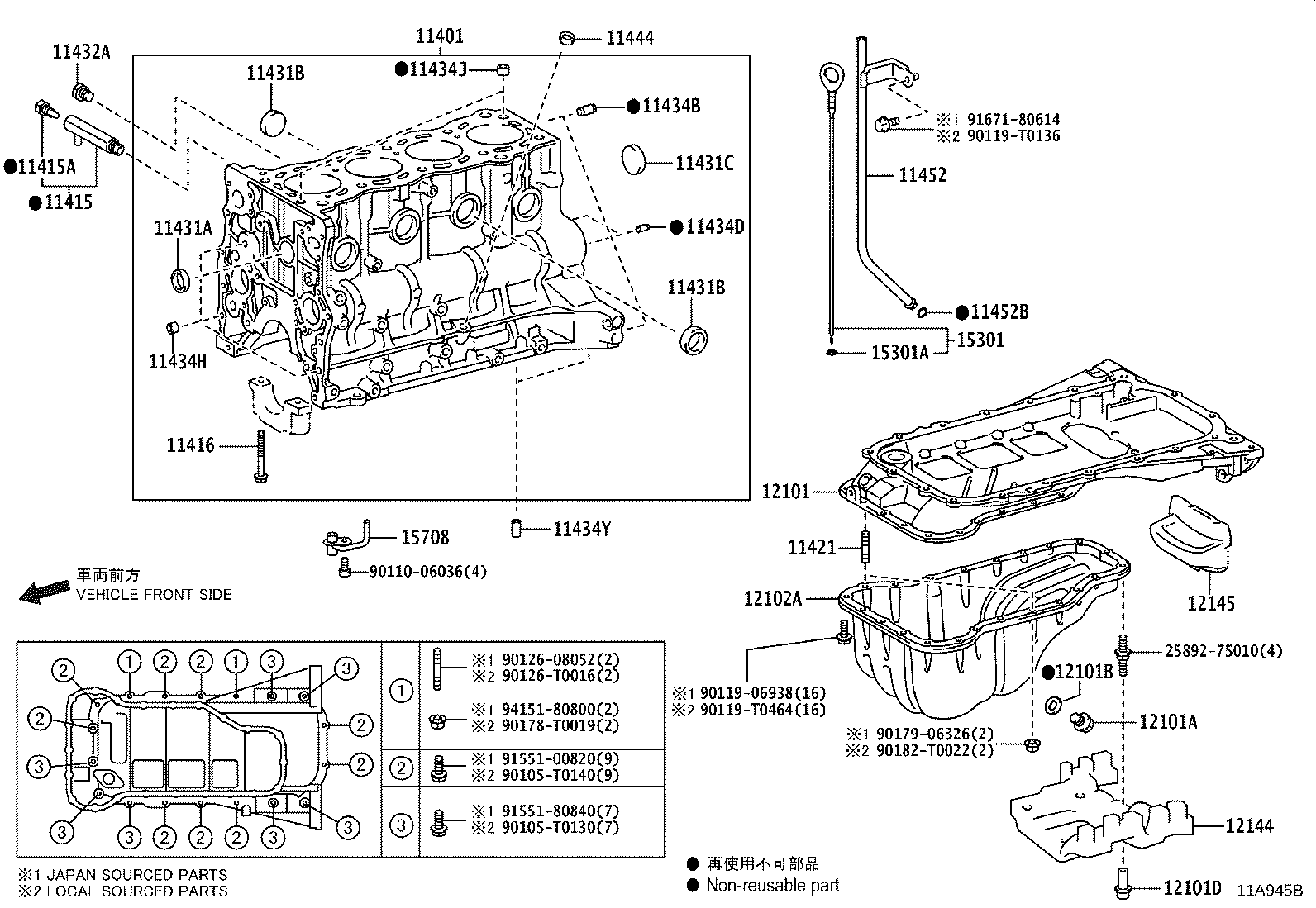

41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401V | O-ring, Crank Position Sensor |
| 11409 | Guide Sub-assy, Oil Level Gage |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434T | Pin, Ring(FOR TIMING BELT IDLER BRACKET SET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11444 | Plug, Hole |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11496 | Gasket, Oil Hole Cover Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101D | Plug NO.1(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12144 | Silencer, Oil Pan Cover |
| 12145 | Silencer, Oil Pan Cover, NO.2 |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 12583A | Insulator, Cylinder Block, NO.3 |
| 12584 | Insulator, Cylinder Brock, NO.4 |
| 12585 | Insulator, Cylinder Brock, NO.5 |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 16630K | Pulley Assy, Idler |
| 19313 | Bracket, Crank Position Sensor Harness |
| 27148C | Wire, Connecting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
