Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

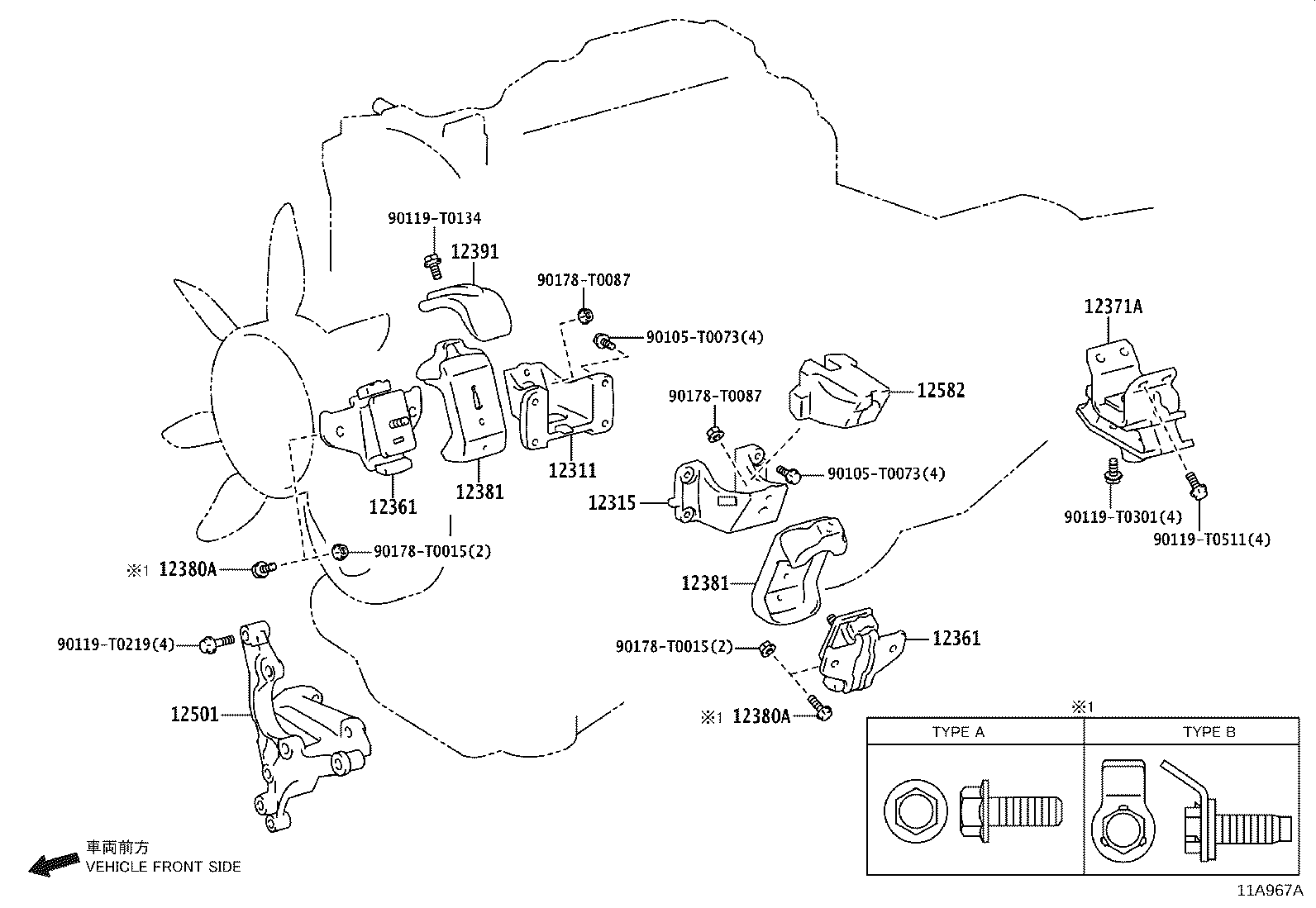

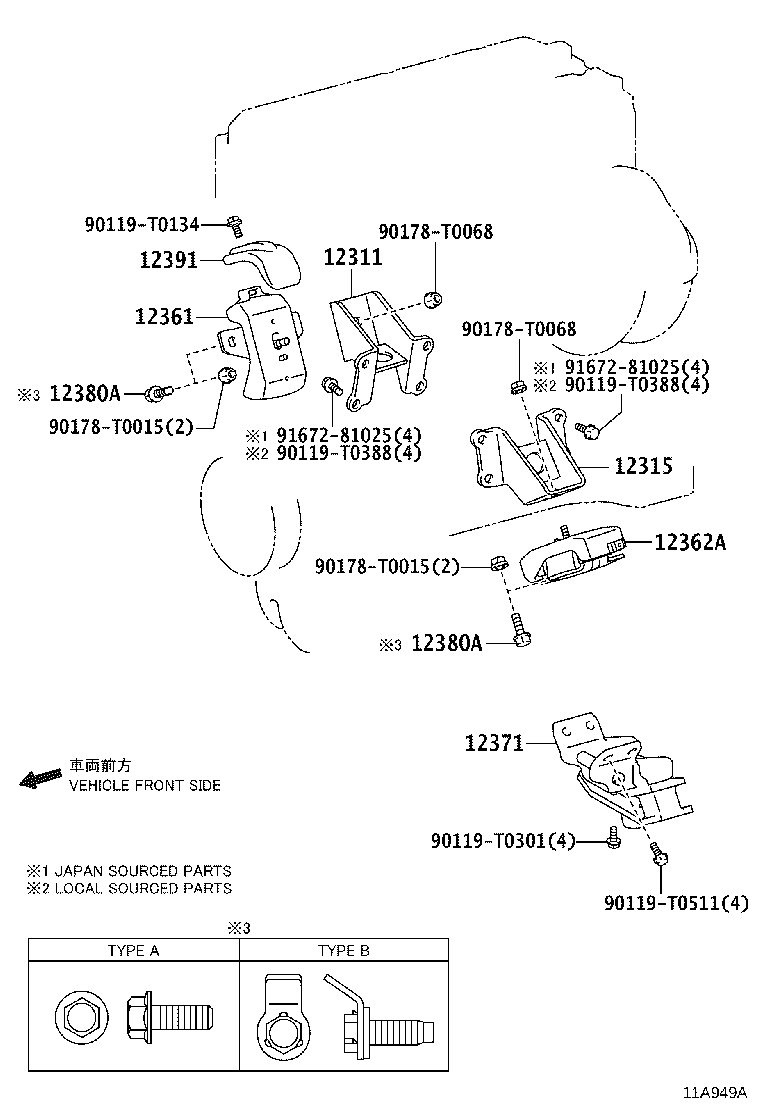

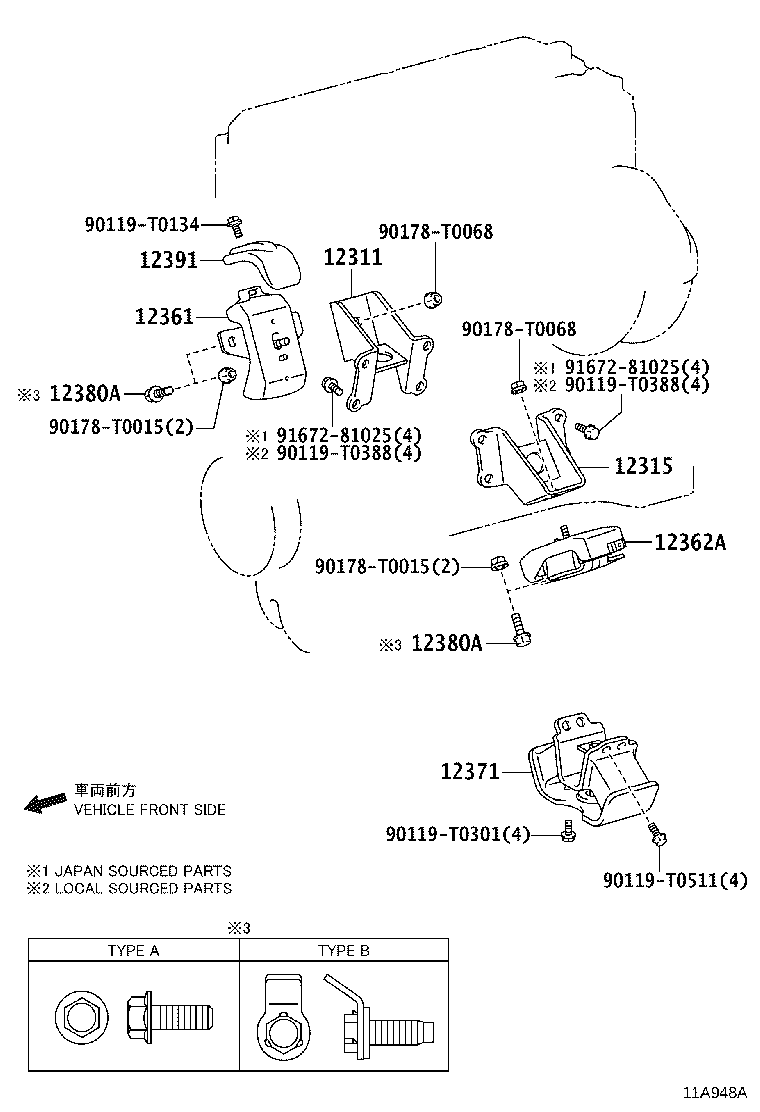

Mounting
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12371A | Insulator, Engine Mounting, Rear |
| 12380A | Bolt(FOR ENGINE MOUNTING INSURATOR) |
| 12381 | Stabilizer, Engine Mounting |
| 12391 | Insulator, Engine Mounting Front, Heat, RH |
| 12501 | Bracket Sub-assy, Alternator |
| 12582 | Insulator, Cylinder Block, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
