Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

10 part groups · 4 illustrations

Illustrations

Figure 152468B

152468B 2015-11 → —

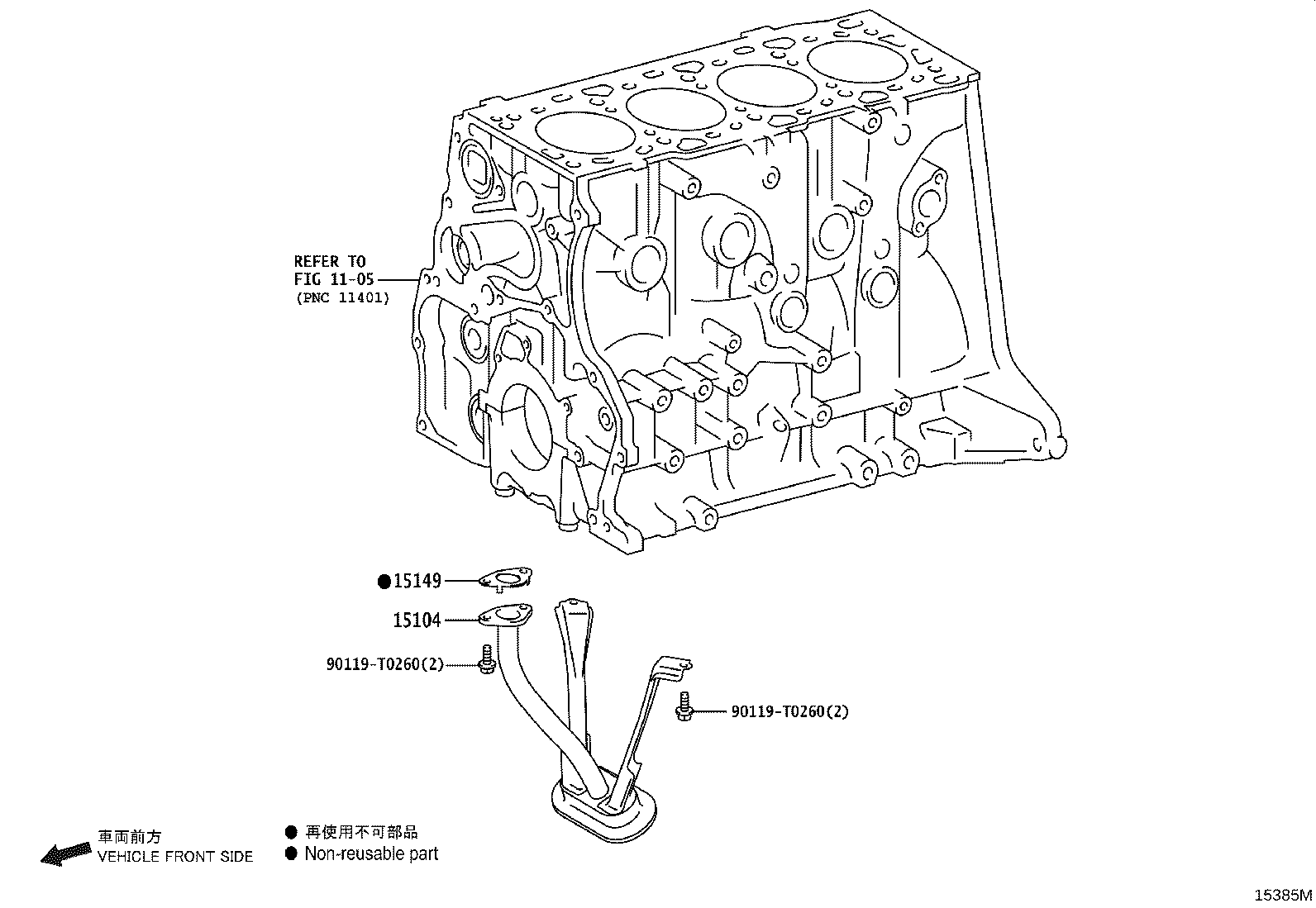

Figure 15385M

15385M 2015-11 → 2024-01

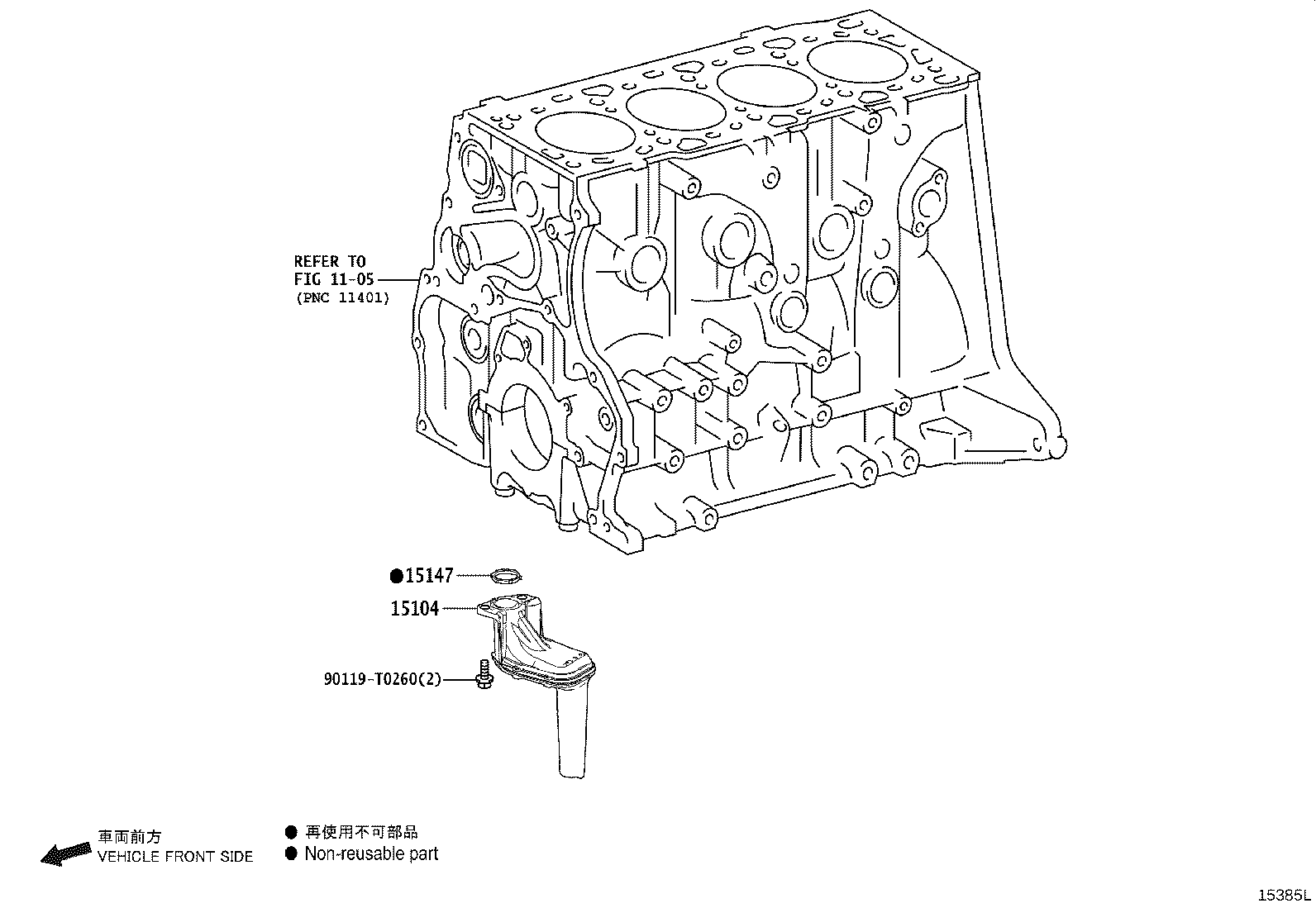

Figure 15385L

15385L 2024-01 → —

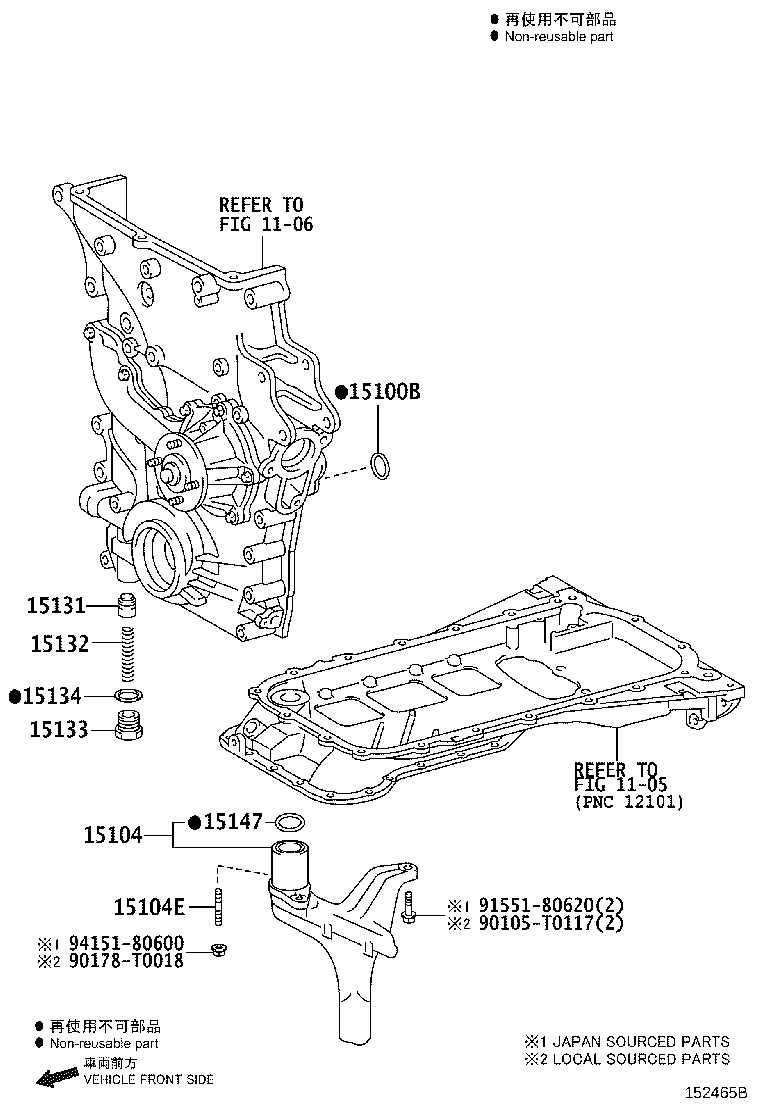

Figure 152465B

152465B 2015-11 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15100B	Ring, O(FOR OIL PUMP)
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15149	Gasket, Oil Strainer Flange

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
