Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

11 part groups · 3 illustrations

Illustrations

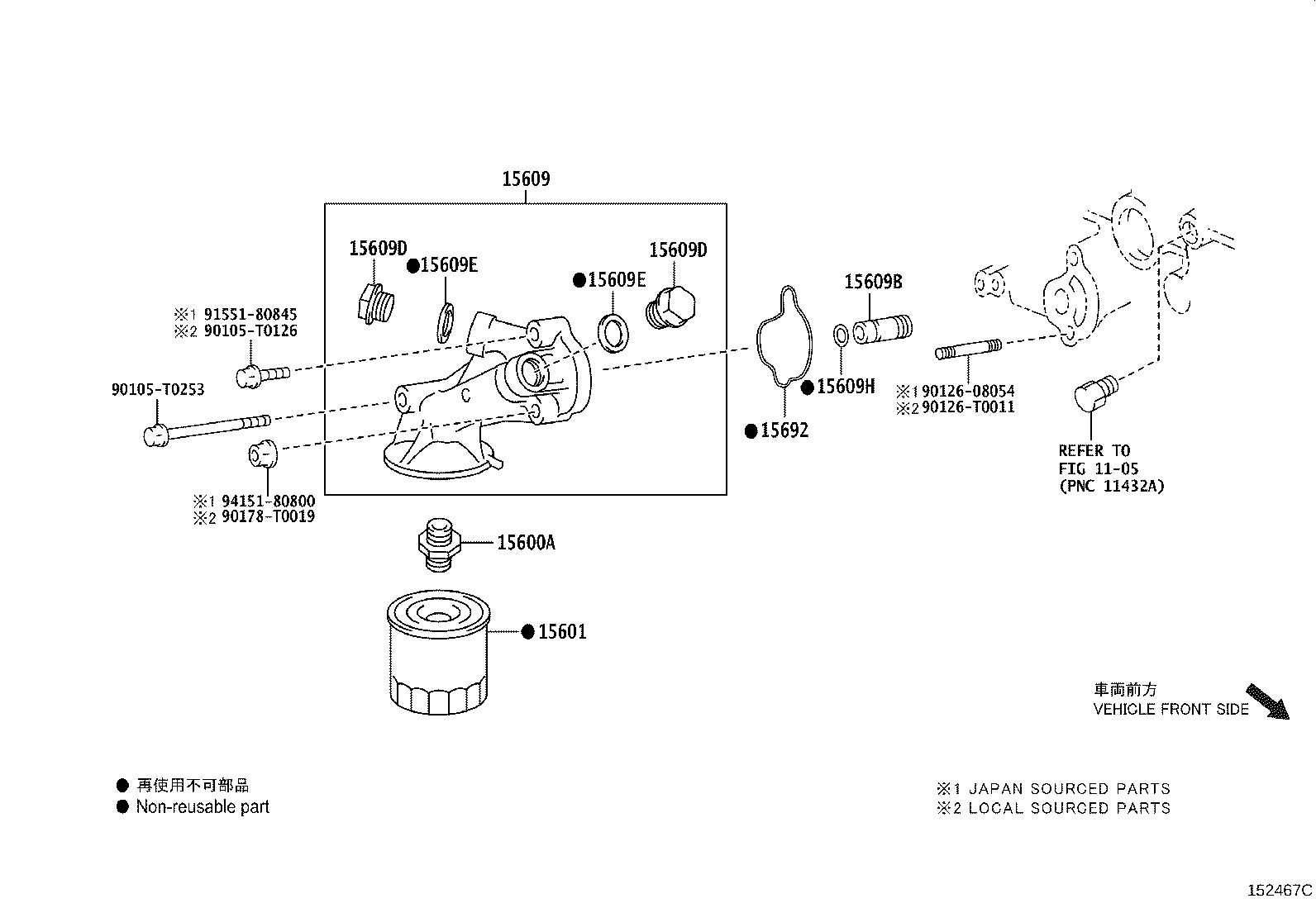

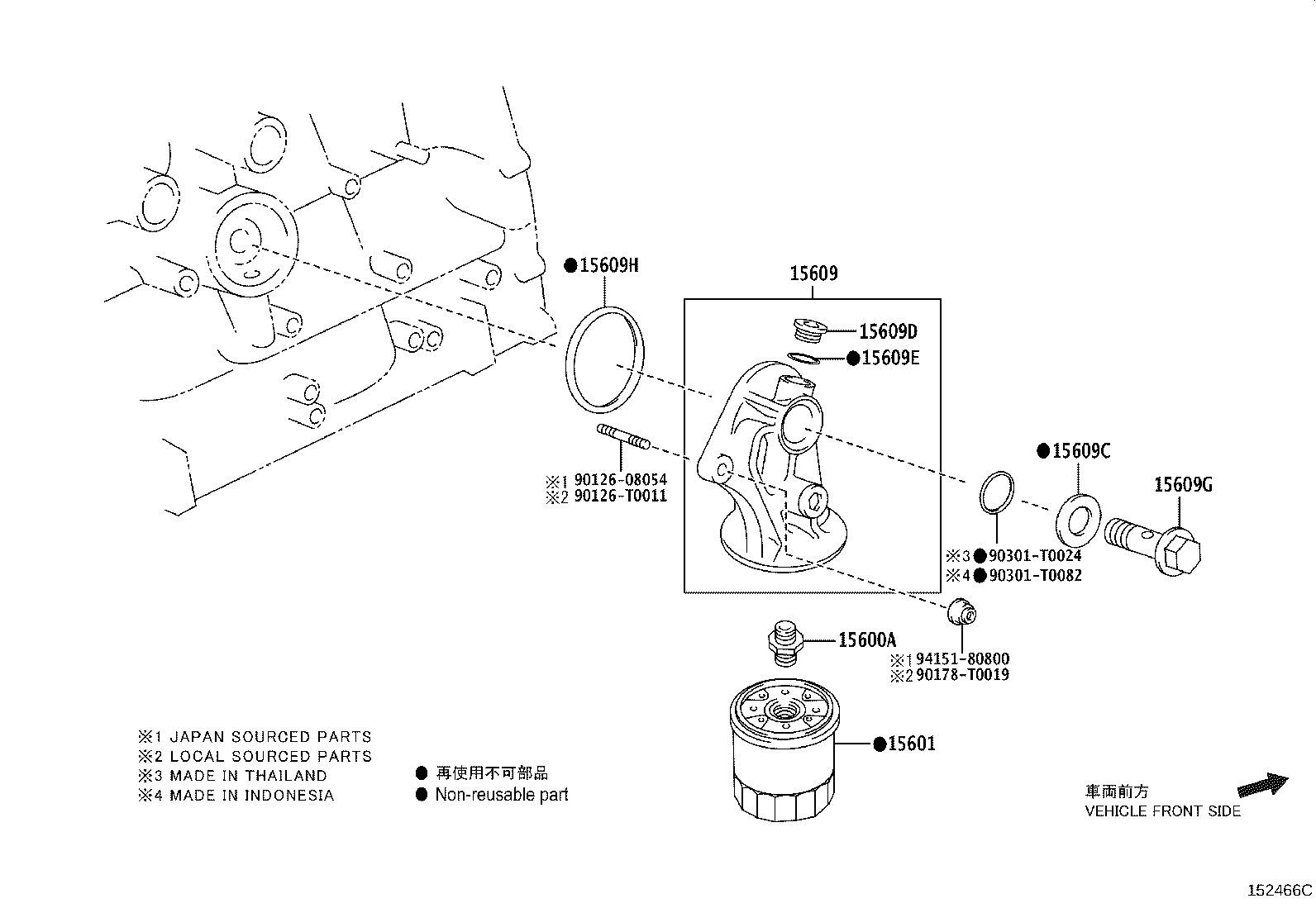

Figure 152469C 152469C 2015-11 → — Figure 152466C 152466C 2015-11 → — Figure 152467C 152467C 2015-11 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15609H Ring, O(FOR OIL FILTER BRACKET)
15677 Bracket, Oil Filter
15692 Gasket, Oil Filter Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
