Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

31 part groups · 10 illustrations

Illustrations

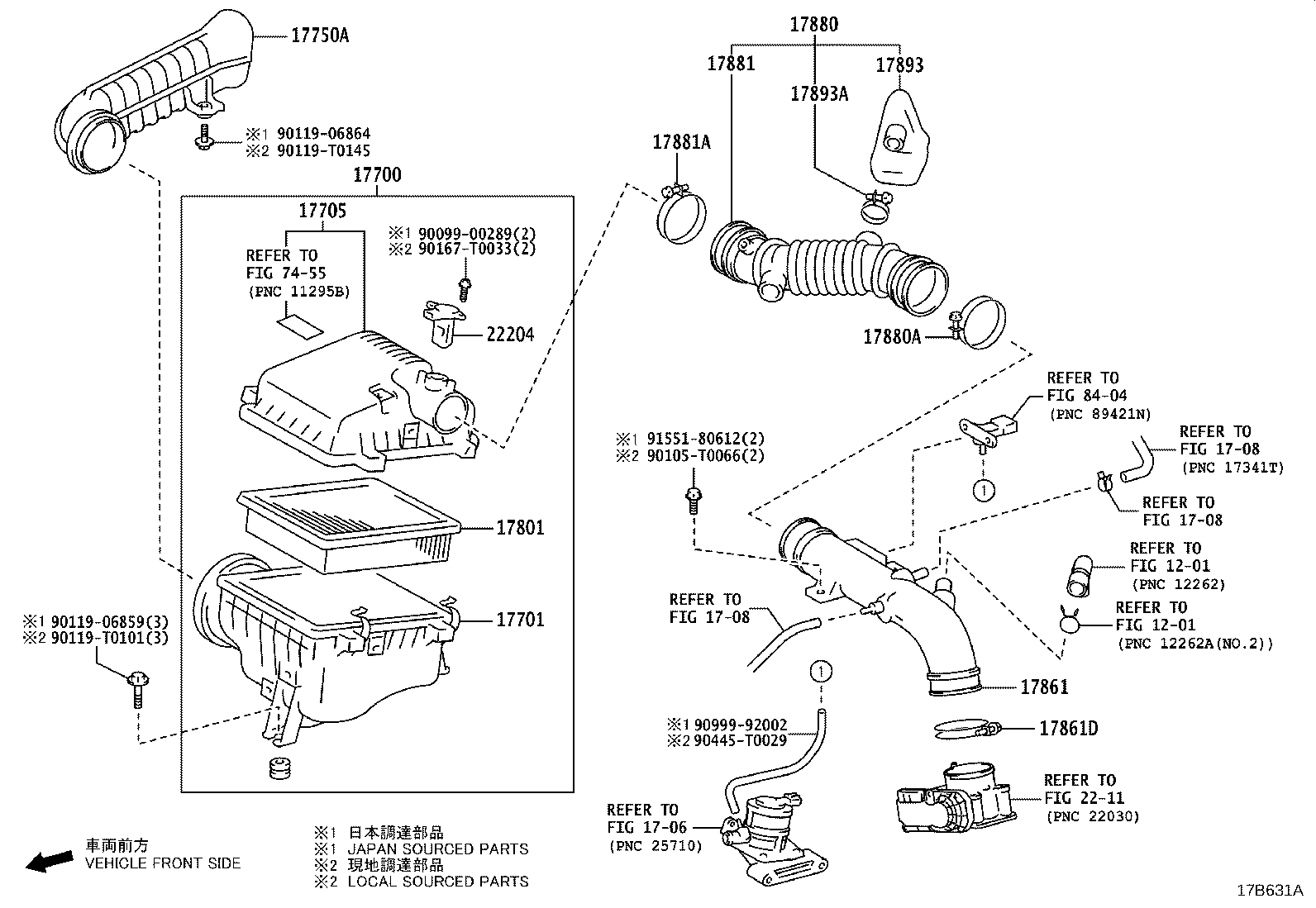

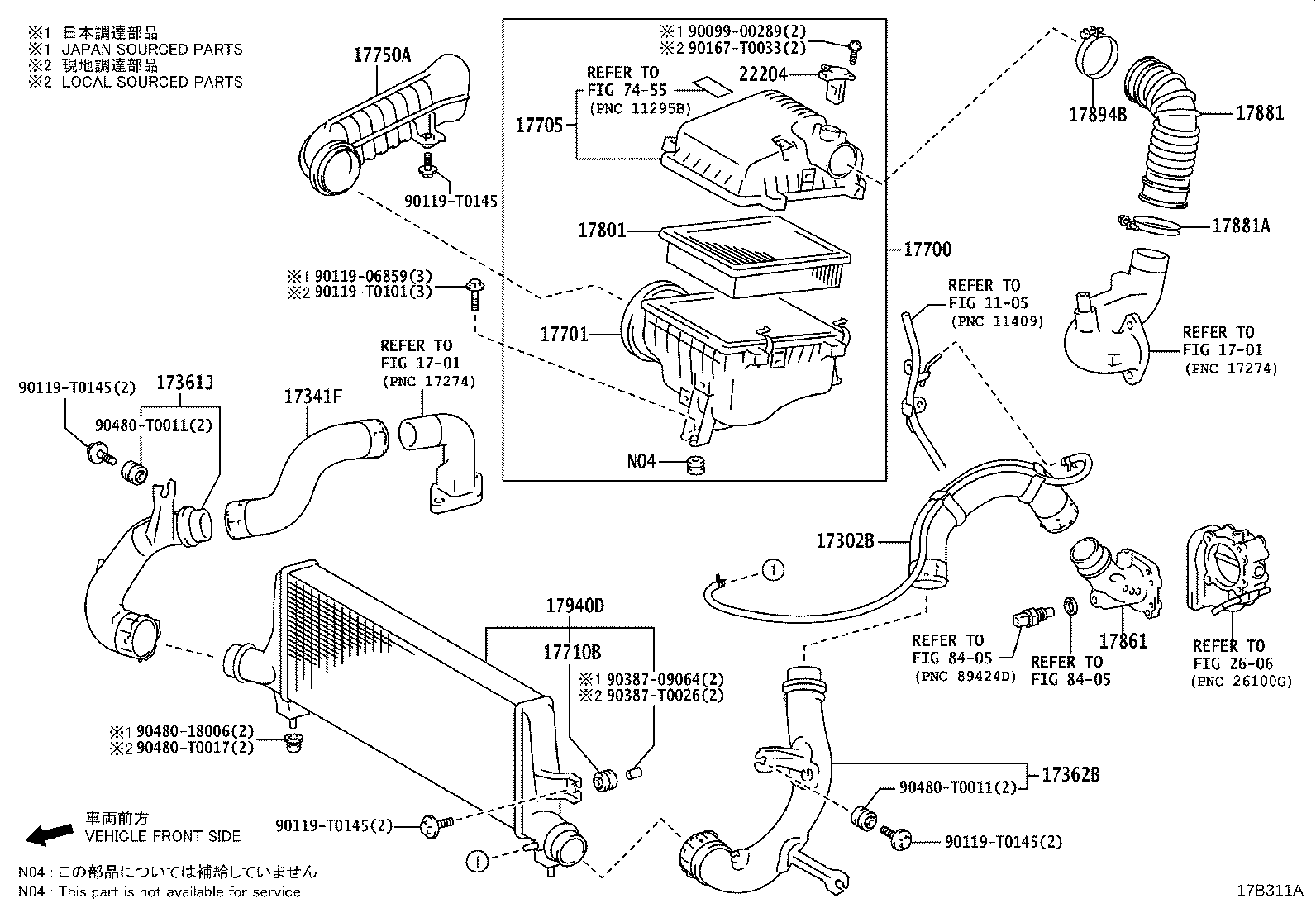

Figure 179122N 179122N 2015-11 → — Figure 179122N 179122N 2016-04 → 2021-02 Figure 179122N 179122N 2016-08 → 2020-09 Figure 179122N 179122N 2017-08 → 2020-09 Figure 17B311A 17B311A 2020-02 → — Figure 17B311A 17B311A 2020-09 → — Figure 17B311A 17B311A 2020-10 → — Figure 17B311A 17B311A 2020-11 → — Figure 17B311A 17B311A 2021-02 → — Figure 17B631A 17B631A 2015-11 → —

Part groups

PNCDescription
12268B Hose, Oil Return
17302B Hose Sub-assy, Air
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17363K Tube, Air, NO.3(FOR INTERCOOLER)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17750A Inlet Assy, Air Cleaner
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
