Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11
Starter
6 part groups · 3 illustrations
Part groups

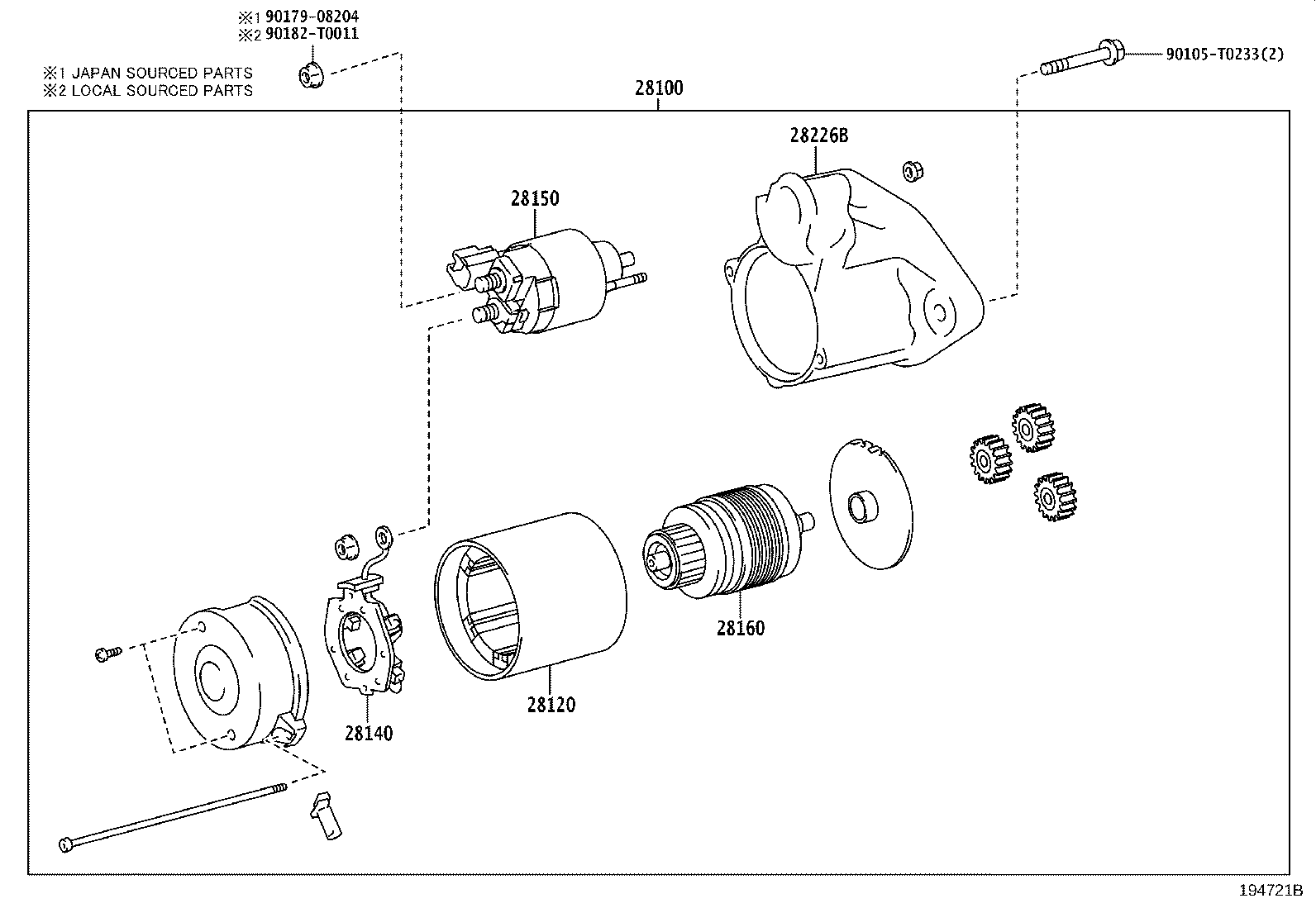

| PNC | Description |
|---|---|

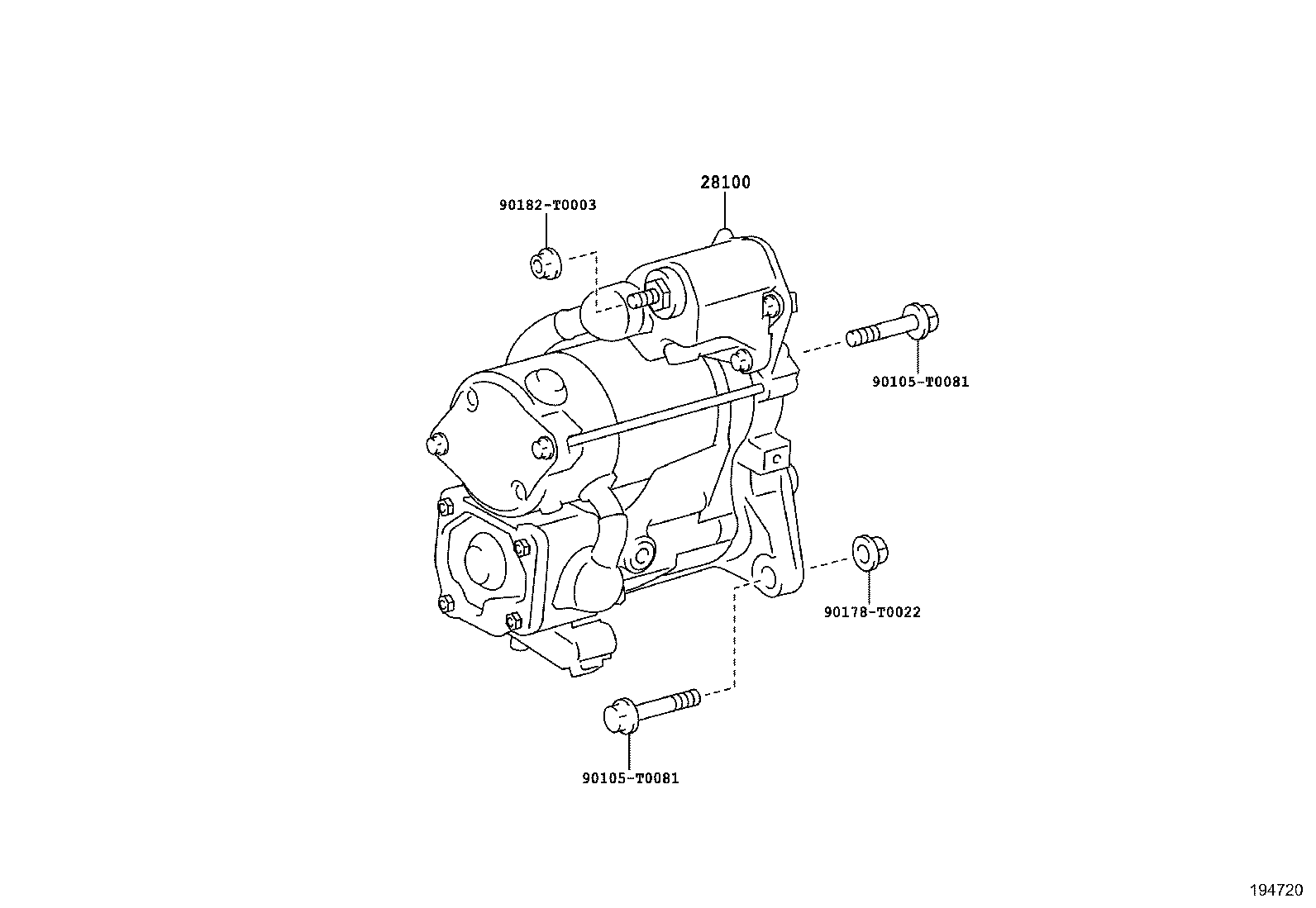

| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
