Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

11 part groups · 2 illustrations

Illustrations

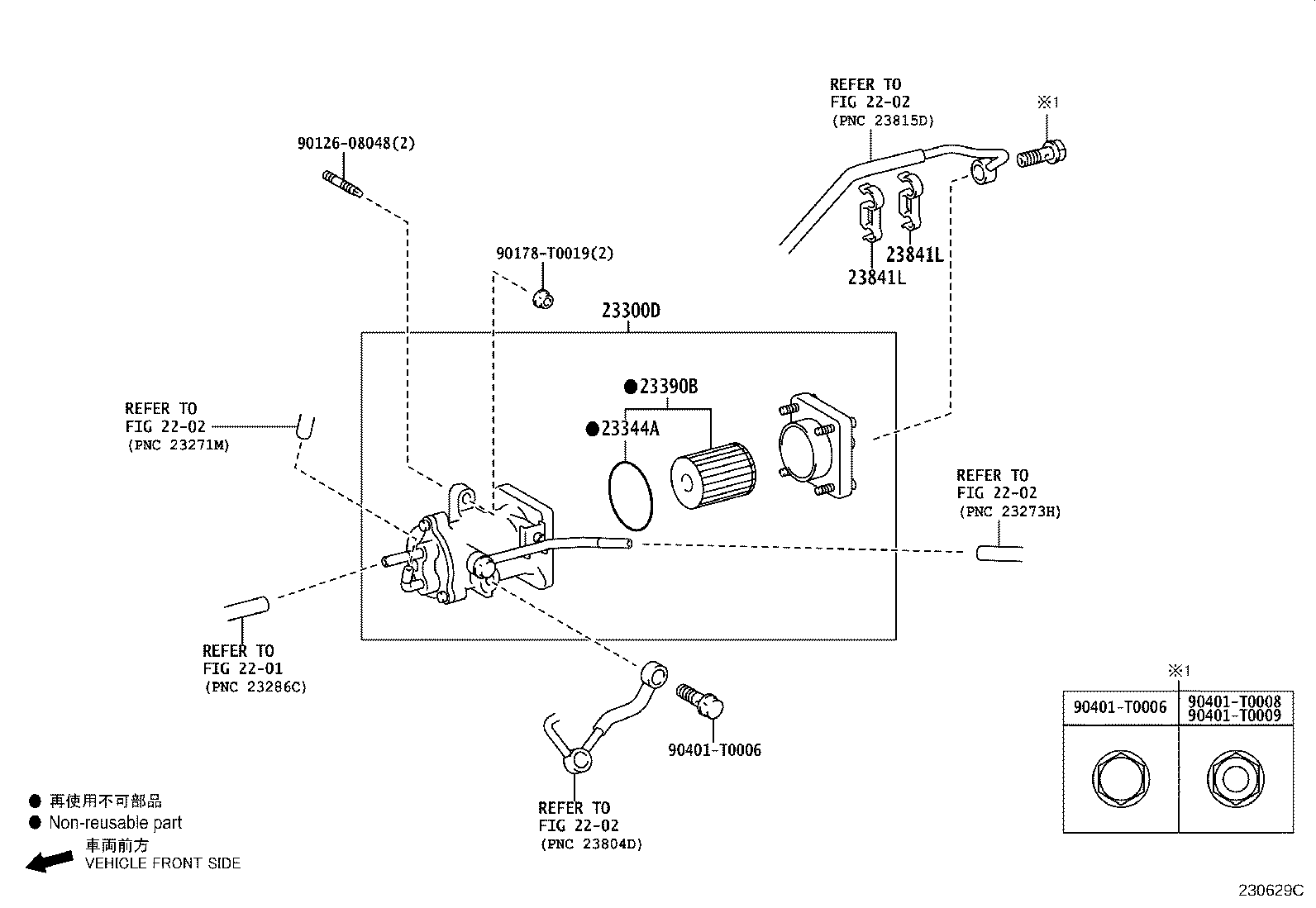

Figure 230570F 230570F 2015-11 → — Figure 230629C 230629C 2015-11 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300D Filter Assy, Fuel(FOR DIESEL)
23328 Gasket(FOR FUEL FILTER)
23344 Gasket, Clamping Nut(FOR FUEL FILTER)
23344A Gasket, Fuel Filter Element
23388A Plug, Fuel Filter Drain
23390 Element Assy, Fuel Filter
23390B Element Assy, Fuel Filter, NO.2
23841L Clamp, Fuel Pipe
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
