Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 3 illustrations

Illustrations

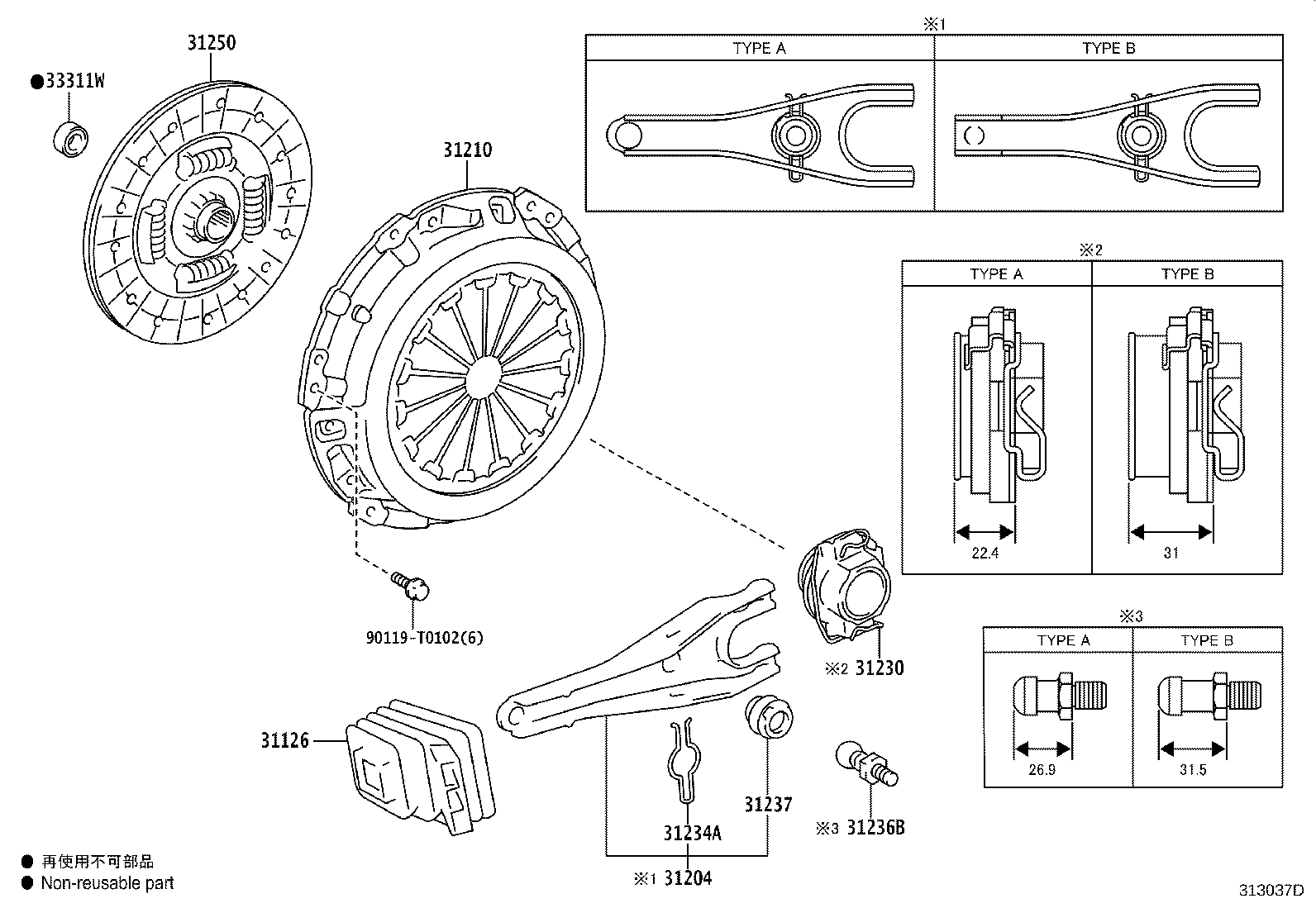

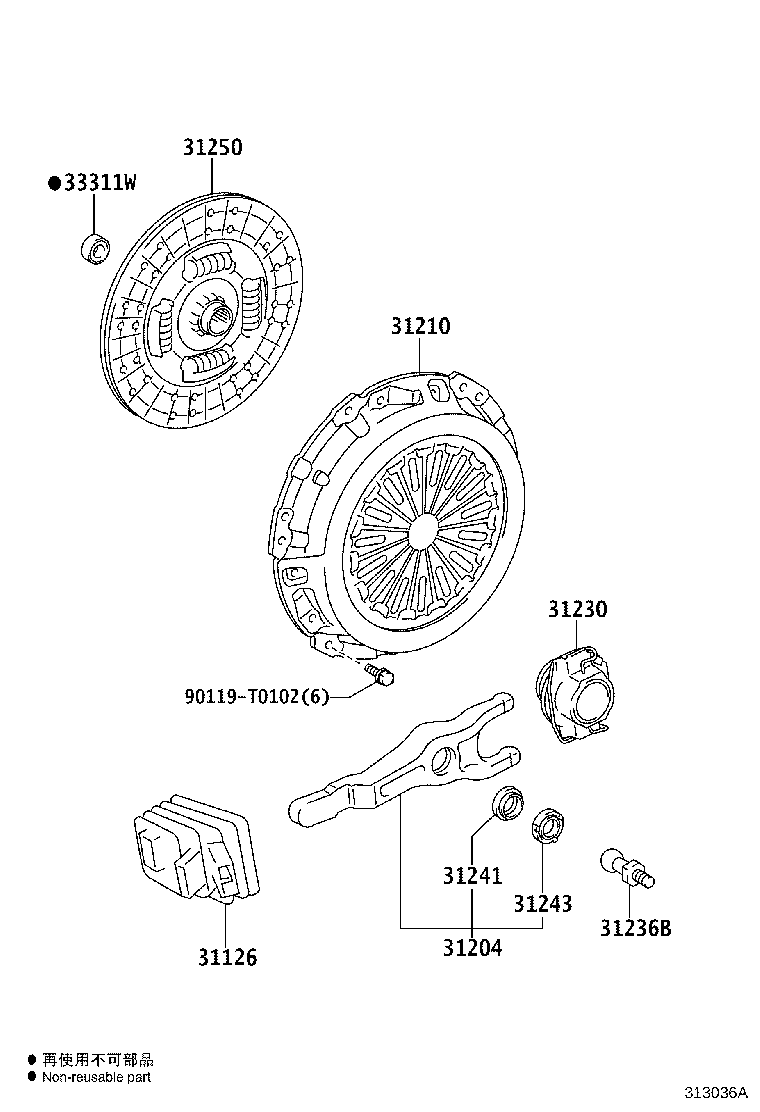

Figure 313183A 313183A 2017-09 → — Figure 313036A 313036A 2015-11 → — Figure 313037D 313037D 2015-11 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31241 Seal, Clutch Release Fork Dust
31243 Collar, Clutch Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
