Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

6 part groups · 4 illustrations

Illustrations

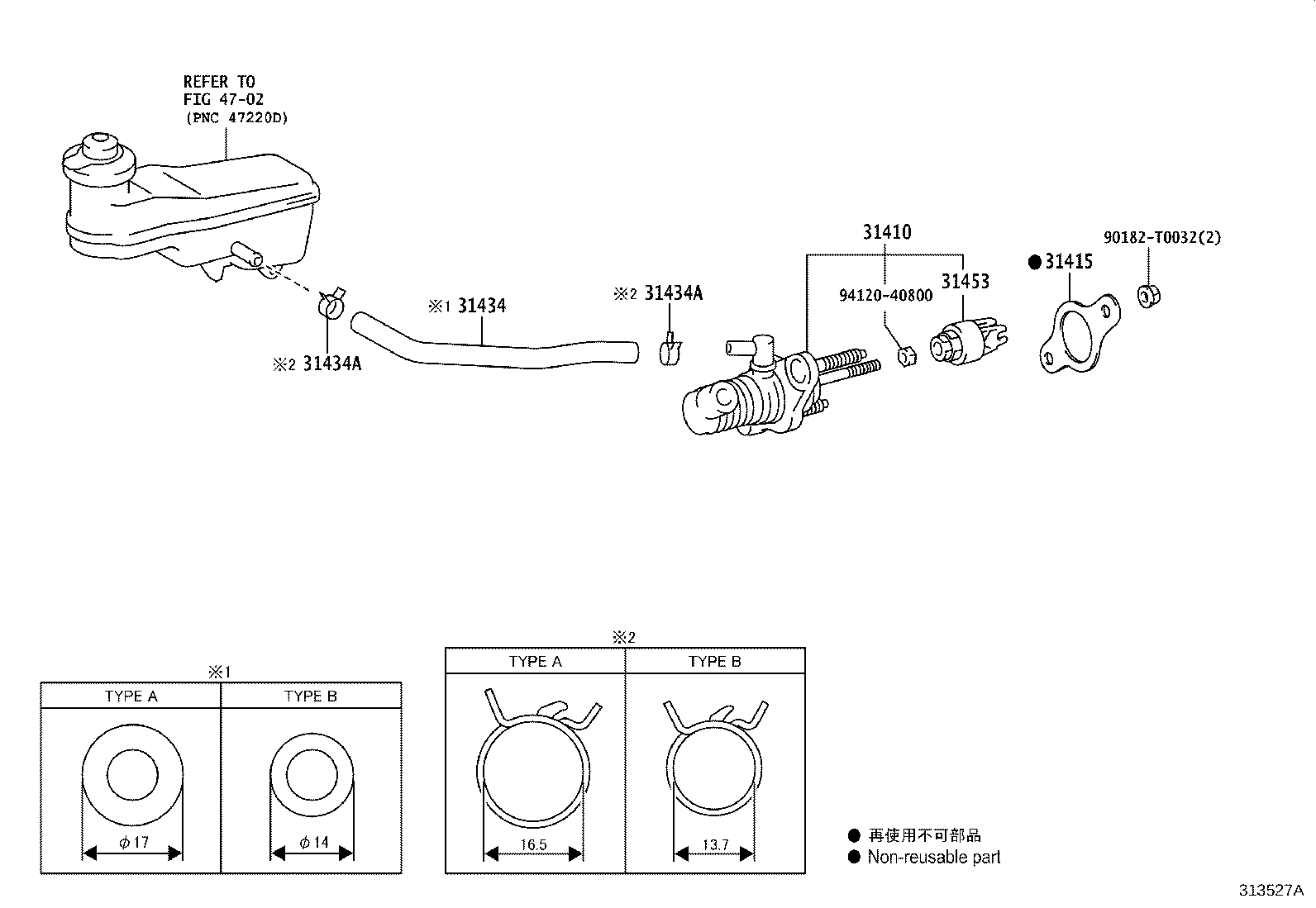

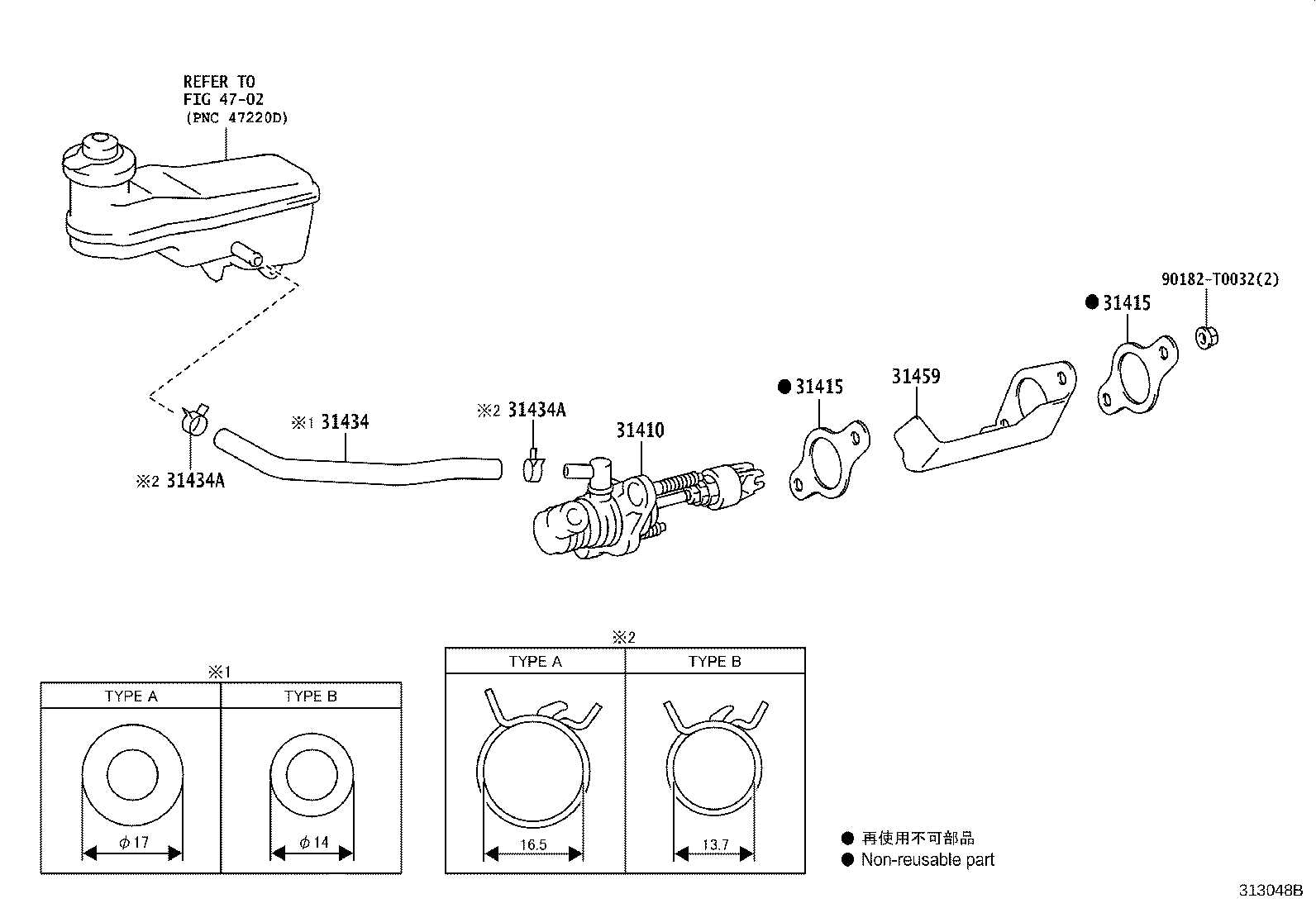

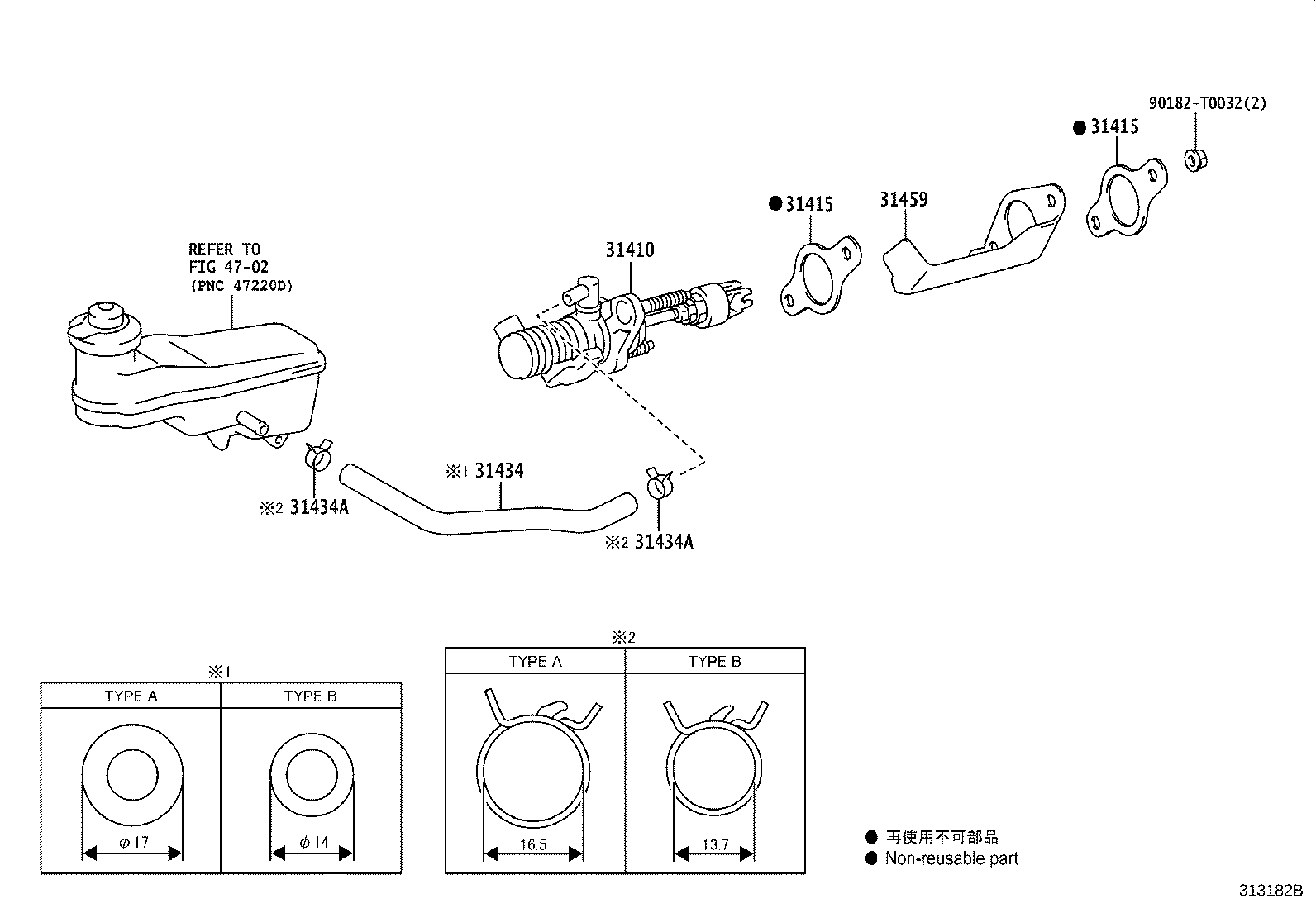

Figure 313047B 313047B 2015-11 → — Figure 313048B 313048B 2015-11 → — Figure 313182B 313182B 2017-09 → — Figure 313527A 313527A 2015-11 → —

Part groups

PNCDescription
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31453 Clevis, Clutch Master Cylinder Push Rod
31459 Bracket, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
