Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

13 part groups · 2 illustrations

Illustrations

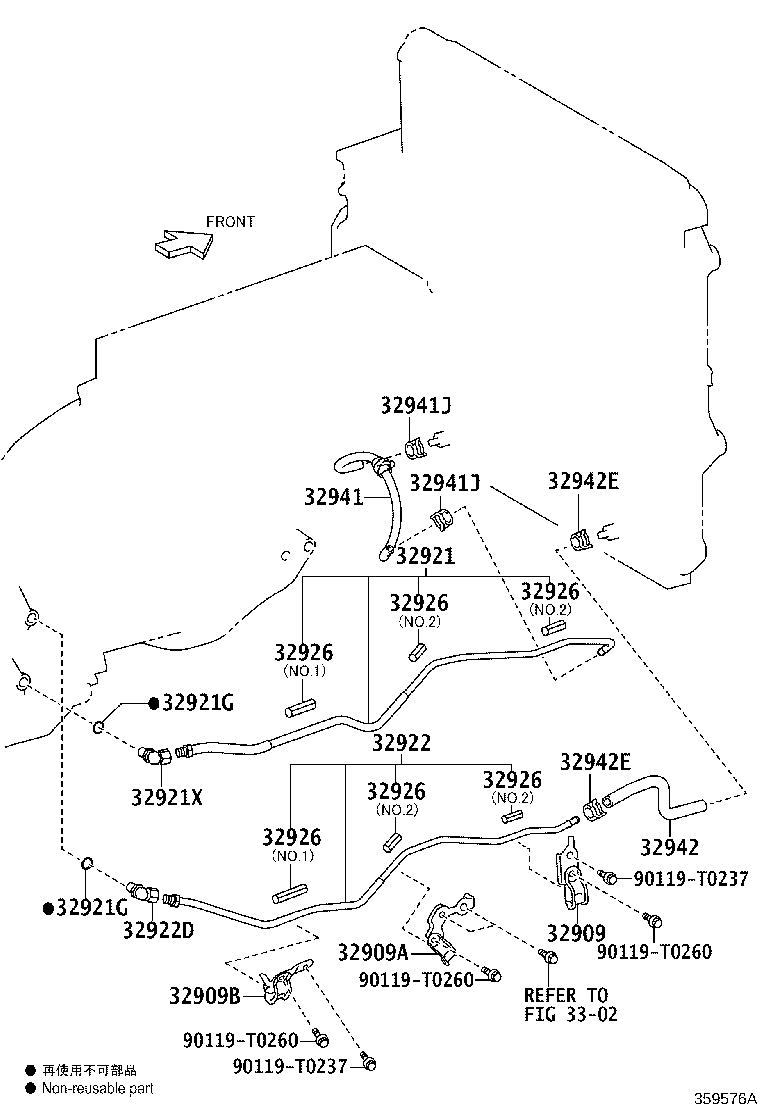

Figure 359575A 359575A 2015-11 → — Figure 359576A 359576A 2015-11 → —

Part groups

PNCDescription
32909 Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1
32909A Clamp Sub-assy, Transmission Oil Cooler Tube, NO.2
32909B Clamp Sub-assy, Transmission Oil Cooler Tube, NO.3
32921 Tube, Oil Cooler Inlet, NO.1
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922 Tube, Oil Cooler Outlet, NO.1
32922D Union OR Elbow, Oil Cooler Outlet
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
