Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

11 part groups · 17 illustrations

Illustrations

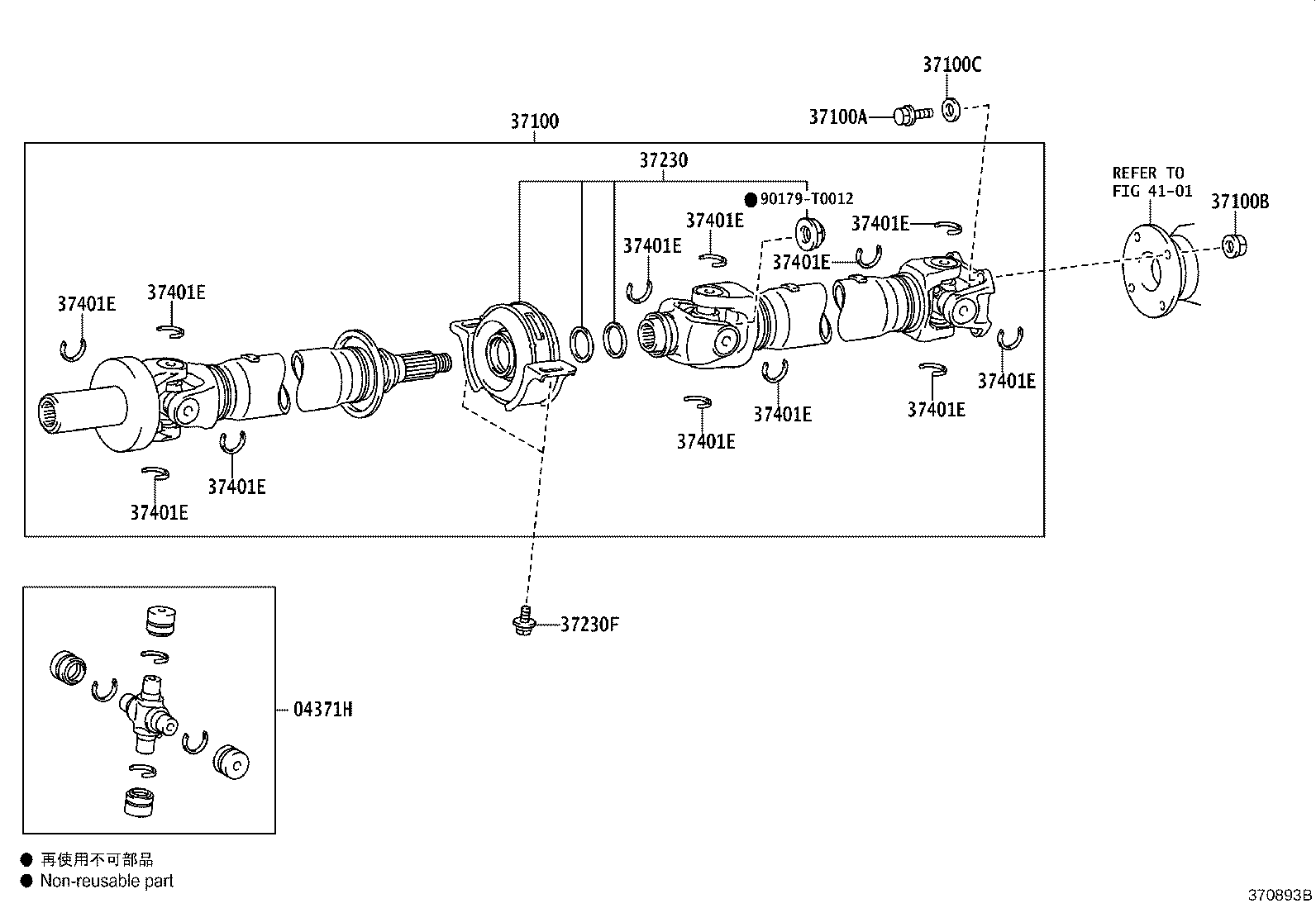

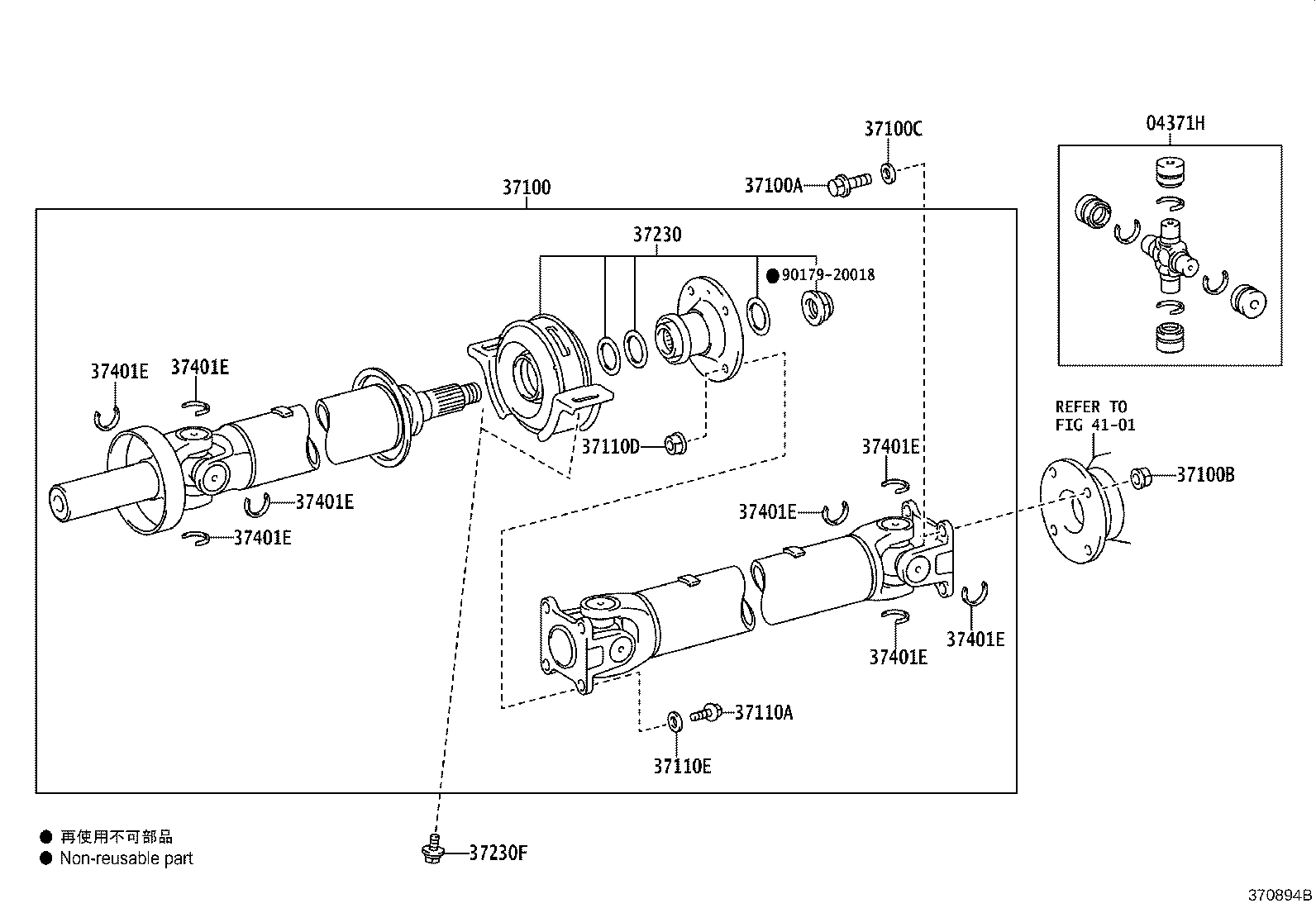

Figure 370881B 370881B 2015-11 → — Figure 370881B 370881B 2015-11 → — Figure 370881B 370881B 2017-08 → — Figure 370881B 370881B 2018-08 → — Figure 370881B 370881B 2020-10 → — Figure 370893B 370893B 2016-04 → — Figure 370893B 370893B 2020-10 → — Figure 370893B 370893B 2020-10 → — Figure 370894B 370894B 2016-04 → — Figure 370894B 370894B 2017-09 → — Figure 370894B 370894B 2017-11 → — Figure 370894B 370894B 2020-02 → — Figure 370894B 370894B 2020-09 → — Figure 370894B 370894B 2020-09 → — Figure 370957A 370957A 2017-09 → 2019-12 Figure 370957A 370957A 2020-02 → — Figure 370957A 370957A 2020-09 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
