Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

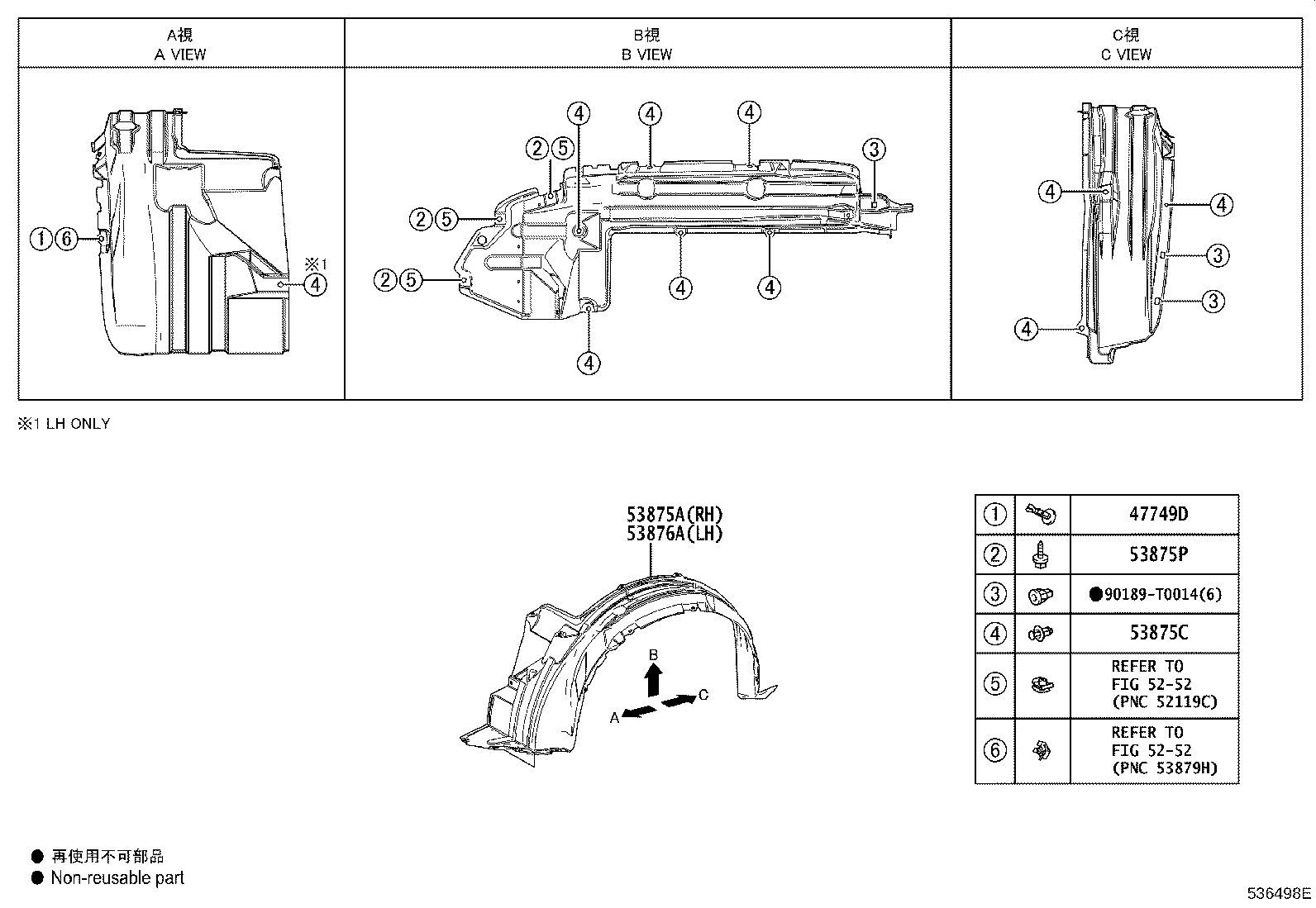

Figure 534720E 534720E 2015-11 → — Figure 536498E 536498E 2015-11 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53153E Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882K Seal, Front Fender
53941 Extension, Front End Panel, NO.1 RH
53942 Extension, Front End Panel, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
