Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 3 illustrations

Illustrations

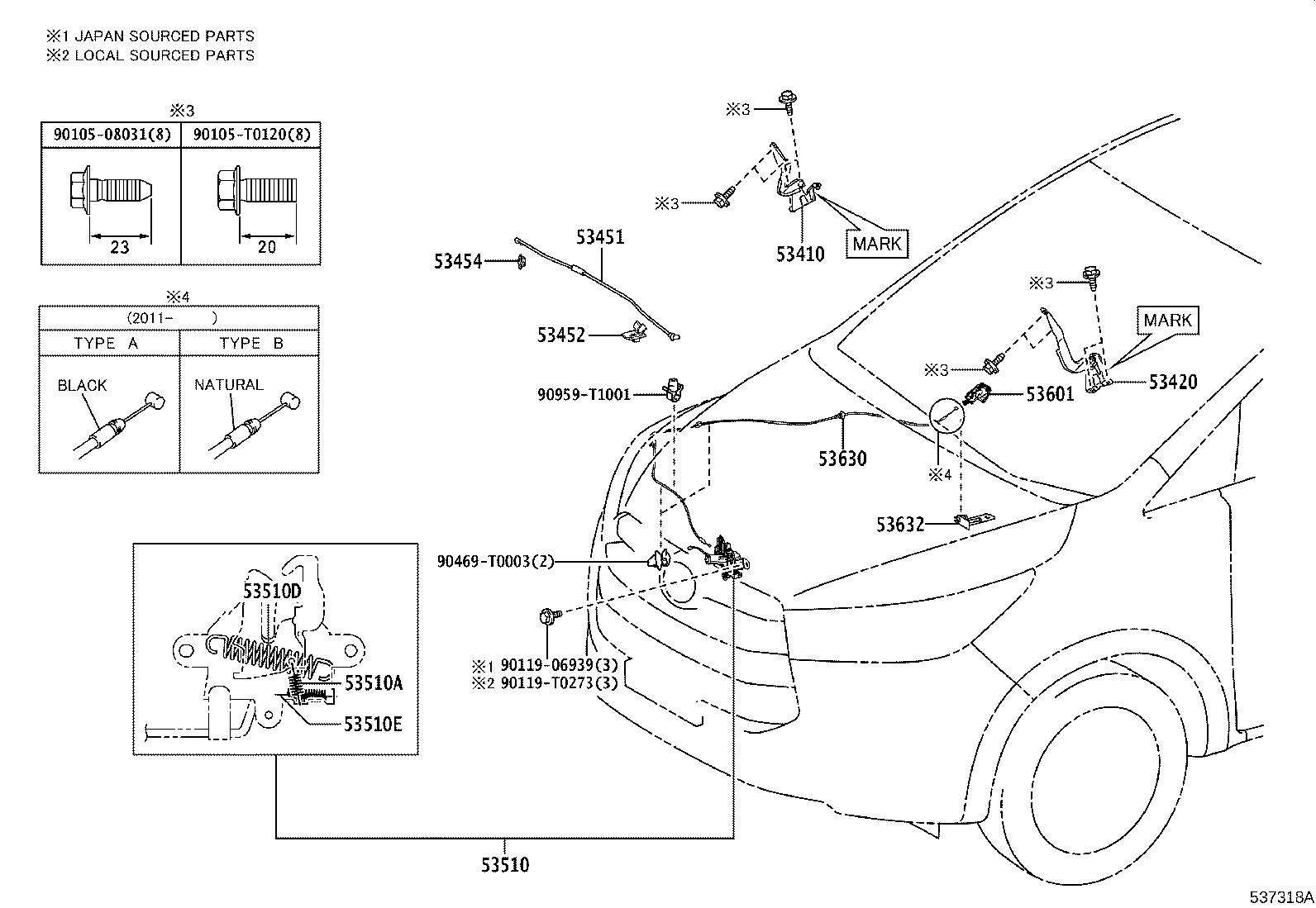

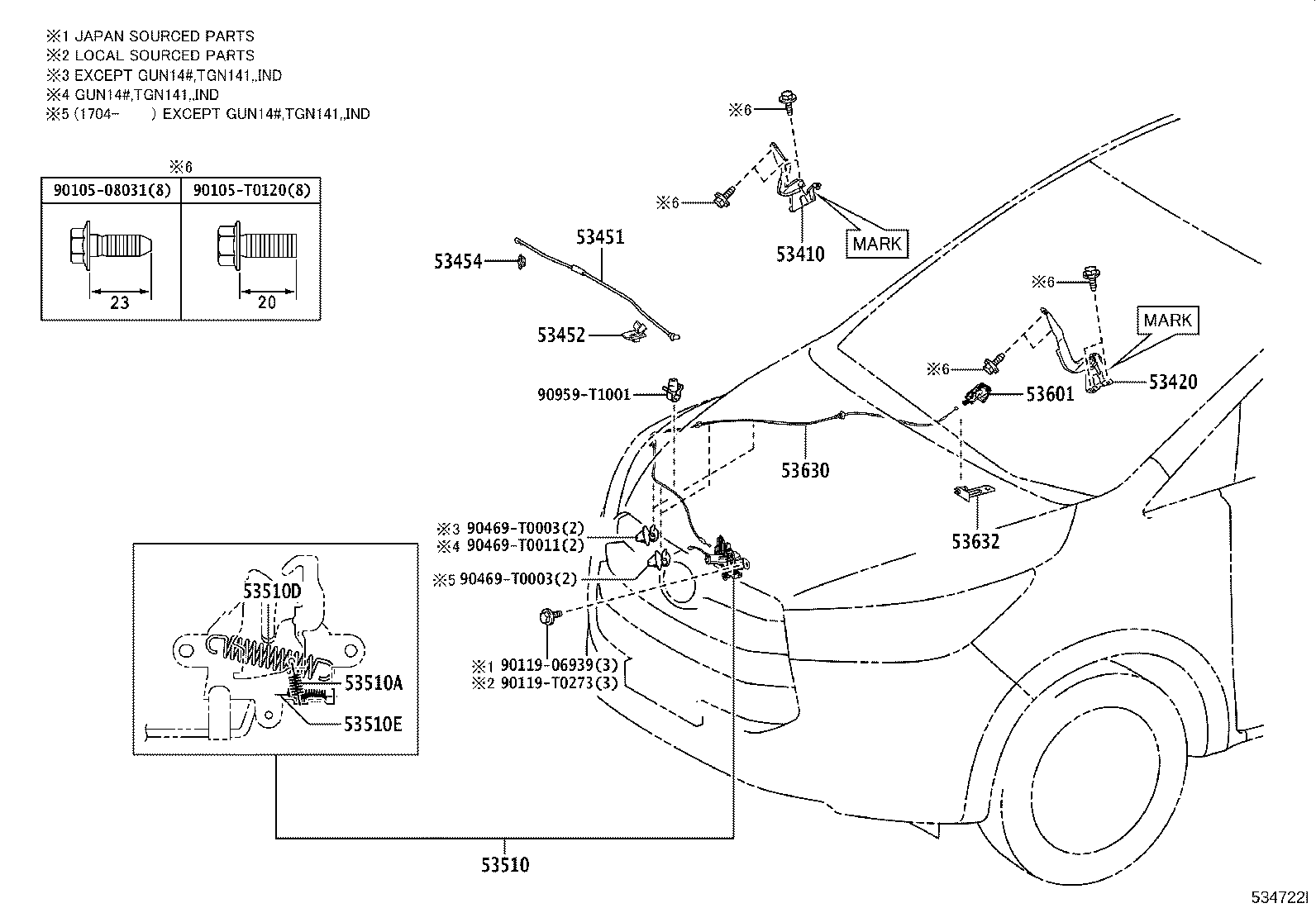

Figure 534818F 534818F 2015-11 → — Figure 534722I 534722I 2015-11 → — Figure 537318A 537318A 2016-11 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53632 Holder, Hood Lock Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
