Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

23 part groups · 12 illustrations

Illustrations

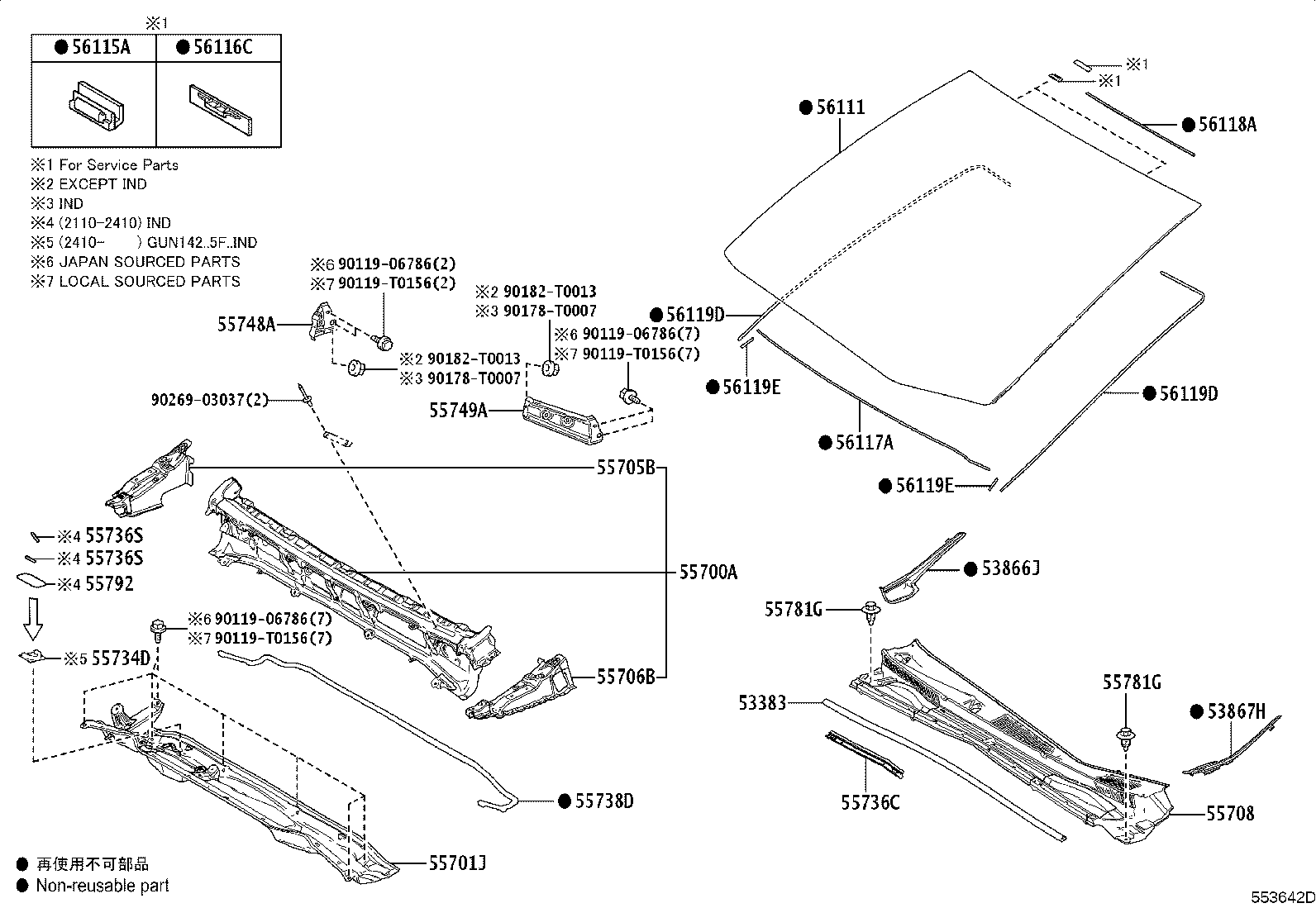

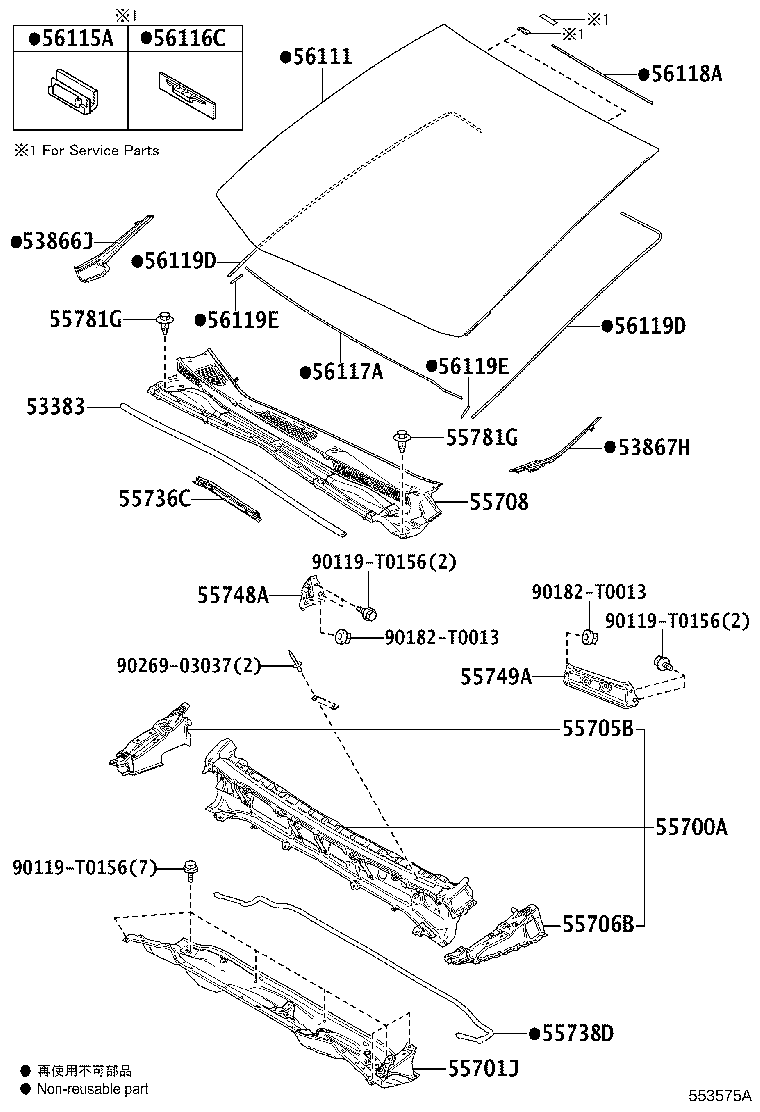

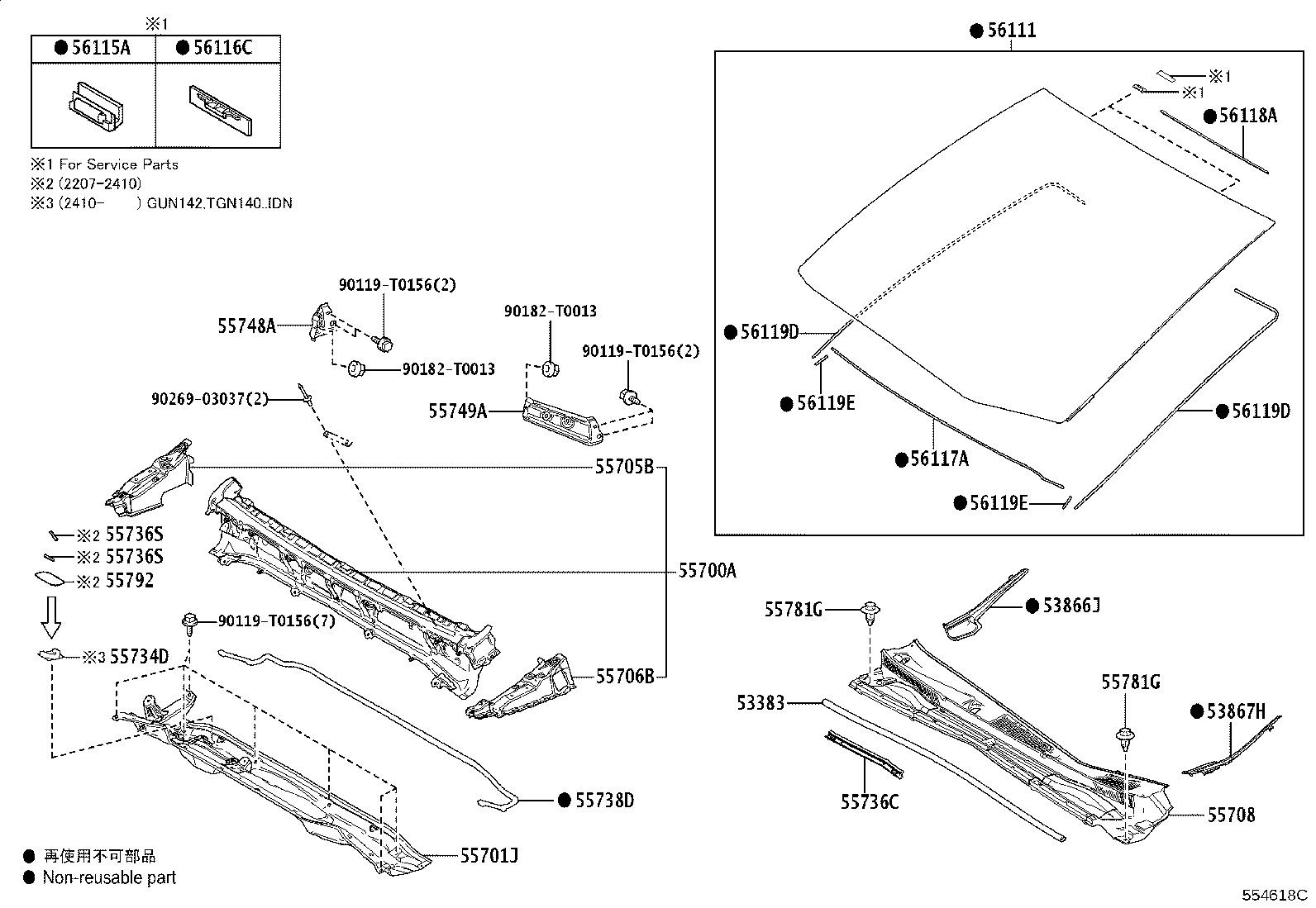

Figure 554617C 554617C 2015-11 → 2020-09 Figure 554617C 554617C 2016-04 → 2021-02 Figure 554617C 554617C 2020-09 → — Figure 554617C 554617C 2021-02 → — Figure 553575A 553575A 2016-07 → 2020-10 Figure 553575A 553575A 2020-10 → — Figure 554618C 554618C 2015-11 → 2020-09 Figure 554618C 554618C 2020-09 → — Figure 553642D 553642D 2016-04 → 2020-11 Figure 553642D 553642D 2016-11 → 2021-01 Figure 553642D 553642D 2020-11 → — Figure 553642D 553642D 2021-01 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55700A Panel Assy, Cowl Top
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55708 Louver Sub-assy, Cowl Top Ventilator
55734D Plate, Water Guard
55736C Seal, Water Guard Plate
55736S Seal, Water Guard Plate, NO.1
55738D Seal, Heater Air Duct Splash Shield, NO.2
55748A Brace, Cowl Top Inner TO Pillar
55749A Brace, Cowl Top Inner TO Pillar, LH
55781G Clip, Cowl Top Ventilator Louver
55792 Cover, Wiper Motor Service Hole
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118A Dam, Window Glass Adhesive, NO.2
56119D Dam, Window Glass Adhesive, NO.3
56119E Dam, Window Glass Adhesive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
